ST184L-BLPVKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )ST18#

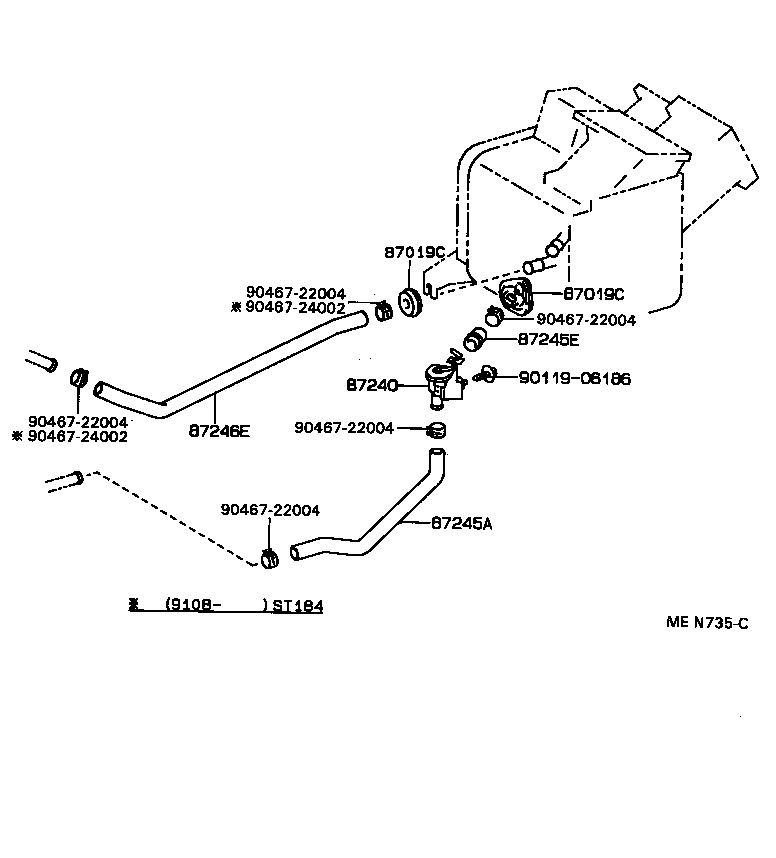

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87245A 87245E 87246E 9011906186 9046722004 9046722004 9046722004 9046722004 9046722004 9046724002 9046724002
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01527

AT180,ST18#

INLET

 1
90480-36011

AT180,ST18#

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01527

AT180,ST18#

INLET

 1
90480-36011

AT180,ST18#

OUTLET

 1
87240 - VALVE ASSY, HEATER WATER
87240-20360

AT180,ST18#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B540

ST18#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B510

AT180,ST18#

 1
99556-30100

AT180,ST18#

*H,L=60

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-2B560

ST18#

 1
87245-2B600

ST184..CP,LB

 1
87245-2B600

ST184

 1
Common parts
90119-06186
90467-22004
90467-24002
