8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

ST184L-BLPVKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8909- )

Click highlighted areas on diagram

BLOWER

Part #	Description	Period	Qty

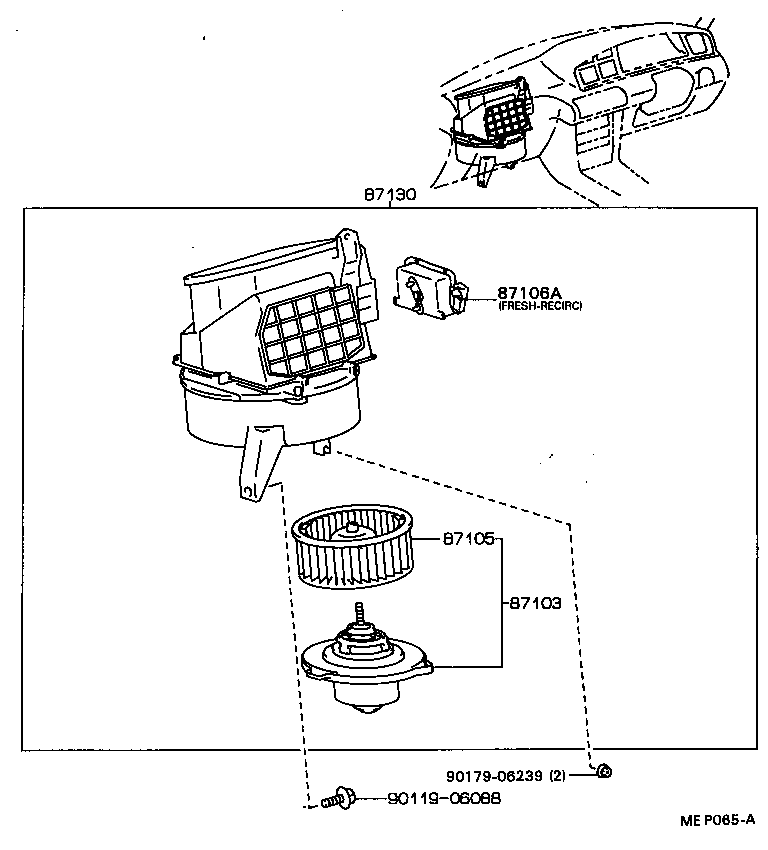

87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20060	ST18#	09/1989 - 08/1990	1
87103-20060	AT180,ST18#	08/1990 - 09/1993	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20110	AT180,ST18#	09/1989 - 09/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20150	ST18#..WIB AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1989 - 08/1991	1
87106-20170	AT180,ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87106-20130	ST18#..CP,LB W(AUTOMATIC AIR CONDITIONER),MODE	08/1991 - 09/1991	1
87106-20150	ST18# W(AUTOMATIC AIR CONDITIONER),AIR MIX	08/1991 - 09/1993	1
87106-20130	AT180,ST18#..CP,LB MODE	08/1991 - 09/1991	1
87106-20150	ST184..GT W(AUTOMATIC AIR CONDITIONER),AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1991 - 09/1993	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20460	ST18#	09/1989 - 08/1990	1
87130-20480	ST184..GTS EVP 2 PACKAGE OR W(AIR CONDITIONER)	10/1989 - 04/1990	1
87130-20480	ST184..GTS W(AIR CONDITIONER)	09/1989 - 10/1989	1
87130-20460	AT180,ST18#	08/1990 - 09/1993	1
87130-20480	ST18#..WIB W(AIR CONDITIONER)	04/1990 - 08/1991	1
87130C - RELAY, HEATER BLOWER MOTOR
88630-20200	ST18#..WIB	09/1989 - 08/1991	1
87130C - RELAY, HEATER BLOWER MOTOR
88630-20200	ST18#..WIB	09/1989 - 08/1991	1
Common parts
90119-06088
90159-60125
90179-06239

ILLUST NO. 2 OF 2(8909-9108)WIB

Click highlighted areas on diagram

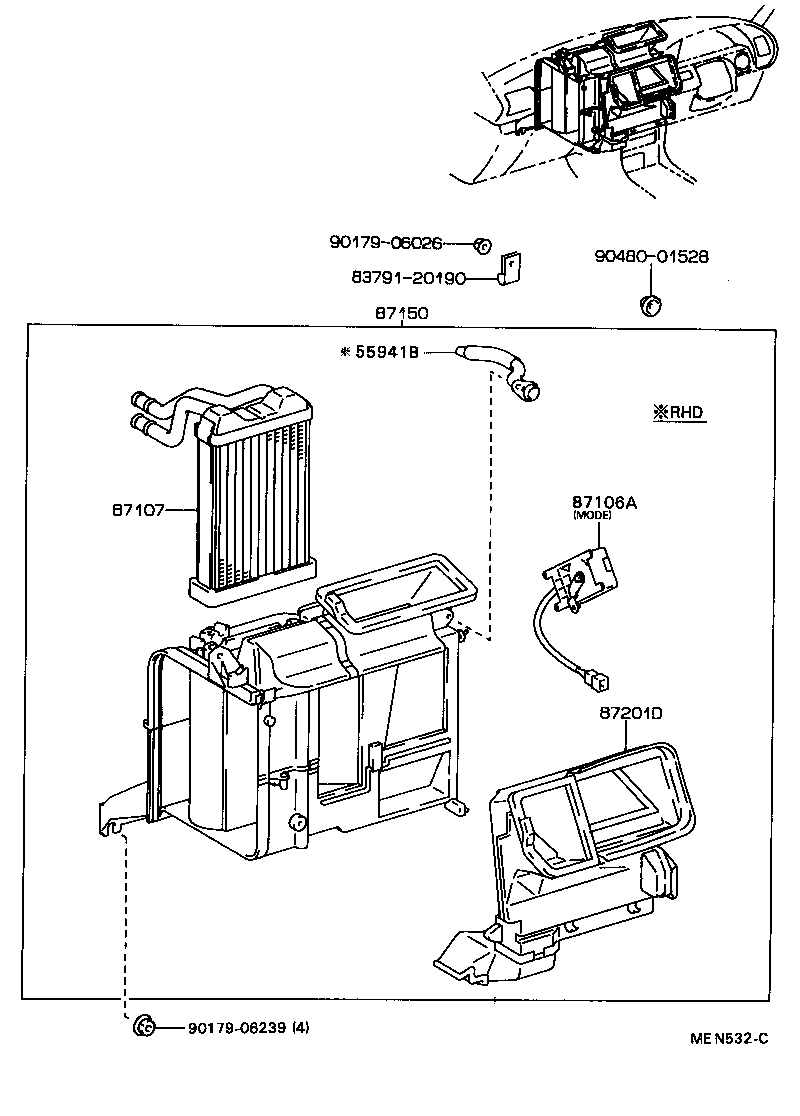

RADIATOR

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20100	ST18#	09/1989 - 09/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20150	ST18#..WIB AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1989 - 08/1991	1
87106-20170	AT180,ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87106-20130	ST18#..CP,LB W(AUTOMATIC AIR CONDITIONER),MODE	08/1991 - 09/1991	1
87106-20150	ST18# W(AUTOMATIC AIR CONDITIONER),AIR MIX	08/1991 - 09/1993	1
87106-20130	AT180,ST18#..CP,LB MODE	08/1991 - 09/1991	1
87106-20150	ST184..GT W(AUTOMATIC AIR CONDITIONER),AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1991 - 09/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20150	ST18#..WIB AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1989 - 08/1991	1
87106-20170	AT180,ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87106-20130	ST18#..CP,LB W(AUTOMATIC AIR CONDITIONER),MODE	08/1991 - 09/1991	1
87106-20150	ST18# W(AUTOMATIC AIR CONDITIONER),AIR MIX	08/1991 - 09/1993	1
87106-20130	AT180,ST18#..CP,LB MODE	08/1991 - 09/1991	1
87106-20150	ST184..GT W(AUTOMATIC AIR CONDITIONER),AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1991 - 09/1993	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20550	AT180,ST18#	09/1989 - 09/1993	1
87150 - RADIATOR ASSY, HEATER
87150-2B110	ST18#..WIB W(AUTOMATIC AIR CONDITIONER)	09/1989 - 08/1991	1
87150-2B081	AT180,ST18#	09/1991 - 09/1993	1
87150-2B091	ST18# W(AUTOMATIC AIR CONDITIONER)	09/1991 - 09/1993	1
87150-2B091	ST18#..CP,LB W(AUTOMATIC AIR CONDITIONER)	08/1991 - 09/1991	1
87150-2B090	ST184..GT W(AUTOMATIC AIR CONDITIONER)	09/1989 - 08/1991	1
87150-2B081	AT180,ST18#..CP,LB	08/1991 - 09/1991	1
87150-2B100	ST18#..WIB	09/1989 - 08/1991	1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-20030	ST18#	09/1989 - 09/1993	1
87201D - DUCT SUB-ASSY, AIR
87201-20280	AT180,ST18#	09/1989 - 09/1993	1
88650D - AMPLIFIER ASSY
88650-20721	ST18#..WIB	02/1990 - 08/1991	1
88650-20712	ST18#..CP,LB	08/1991 - 09/1991	1
88650-20711	ST184..GT	02/1990 - 08/1991	1
88650-20720	ST18#..WIB	09/1989 - 02/1990	1
88650-20710	ST184..GT	09/1989 - 02/1990	1
88650-20712	ST18#	09/1991 - 09/1993	1
88669C - HOSE, AIR
88669-20100	ST18#	09/1989 - 09/1993	1
Common parts
90179-06239

ILLUST NO. 2 OF 2(9108- )

Click highlighted areas on diagram

RADIATOR

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20100	ST18#	09/1989 - 09/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20150	ST18#..WIB AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1989 - 08/1991	1
87106-20170	AT180,ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87106-20130	ST18#..CP,LB W(AUTOMATIC AIR CONDITIONER),MODE	08/1991 - 09/1991	1
87106-20150	ST18# W(AUTOMATIC AIR CONDITIONER),AIR MIX	08/1991 - 09/1993	1
87106-20130	AT180,ST18#..CP,LB MODE	08/1991 - 09/1991	1
87106-20150	ST184..GT W(AUTOMATIC AIR CONDITIONER),AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1991 - 09/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20150	ST18#..WIB AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1989 - 08/1991	1
87106-20170	AT180,ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87106-20130	ST18#..CP,LB W(AUTOMATIC AIR CONDITIONER),MODE	08/1991 - 09/1991	1
87106-20150	ST18# W(AUTOMATIC AIR CONDITIONER),AIR MIX	08/1991 - 09/1993	1
87106-20130	AT180,ST18#..CP,LB MODE	08/1991 - 09/1991	1
87106-20150	ST184..GT W(AUTOMATIC AIR CONDITIONER),AIR MIX	09/1989 - 08/1991	1
87106-20130	AT180,ST18# MODE	09/1991 - 09/1993	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20550	AT180,ST18#	09/1989 - 09/1993	1
87150 - RADIATOR ASSY, HEATER
87150-2B110	ST18#..WIB W(AUTOMATIC AIR CONDITIONER)	09/1989 - 08/1991	1
87150-2B081	AT180,ST18#	09/1991 - 09/1993	1
87150-2B100	ST18#..WIB	09/1989 - 08/1991	1
87150-2B091	ST18# W(AUTOMATIC AIR CONDITIONER)	09/1991 - 09/1993	1
87150-2B091	ST18#..CP,LB W(AUTOMATIC AIR CONDITIONER)	08/1991 - 09/1991	1
87150-2B090	ST184..GT W(AUTOMATIC AIR CONDITIONER)	09/1989 - 08/1991	1
87150-2B081	AT180,ST18#..CP,LB	08/1991 - 09/1991	1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-20030	ST18#	09/1989 - 09/1993	1
87201D - DUCT SUB-ASSY, AIR
87201-20280	AT180,ST18#	09/1989 - 09/1993	1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-2D150	ST18#	09/1991 - 09/1993	1
88605-2D150	ST18#..CP,LB	08/1991 - 09/1991	1
88650D - AMPLIFIER ASSY
88650-20721	ST18#..WIB	02/1990 - 08/1991	1
88650-20712	ST18#..CP,LB	08/1991 - 09/1991	1
88650-20711	ST184..GT	02/1990 - 08/1991	1
88650-20720	ST18#..WIB	09/1989 - 02/1990	1
88650-20710	ST184..GT	09/1989 - 02/1990	1
88650-20712	ST18#	09/1991 - 09/1993	1
88669C - HOSE, AIR
88669-20100	ST18#	09/1989 - 09/1993	1
Common parts
90179-06239

ILLUST NO. 2 OF 2(8910- )

Click highlighted areas on diagram

RADIATOR

Part #	Description	Period	Qty	Price
Common parts
83791-20190
90179-06026
90179-06239
90480-01528

ILLUST NO. 1 OF 2(8910- )

Click highlighted areas on diagram

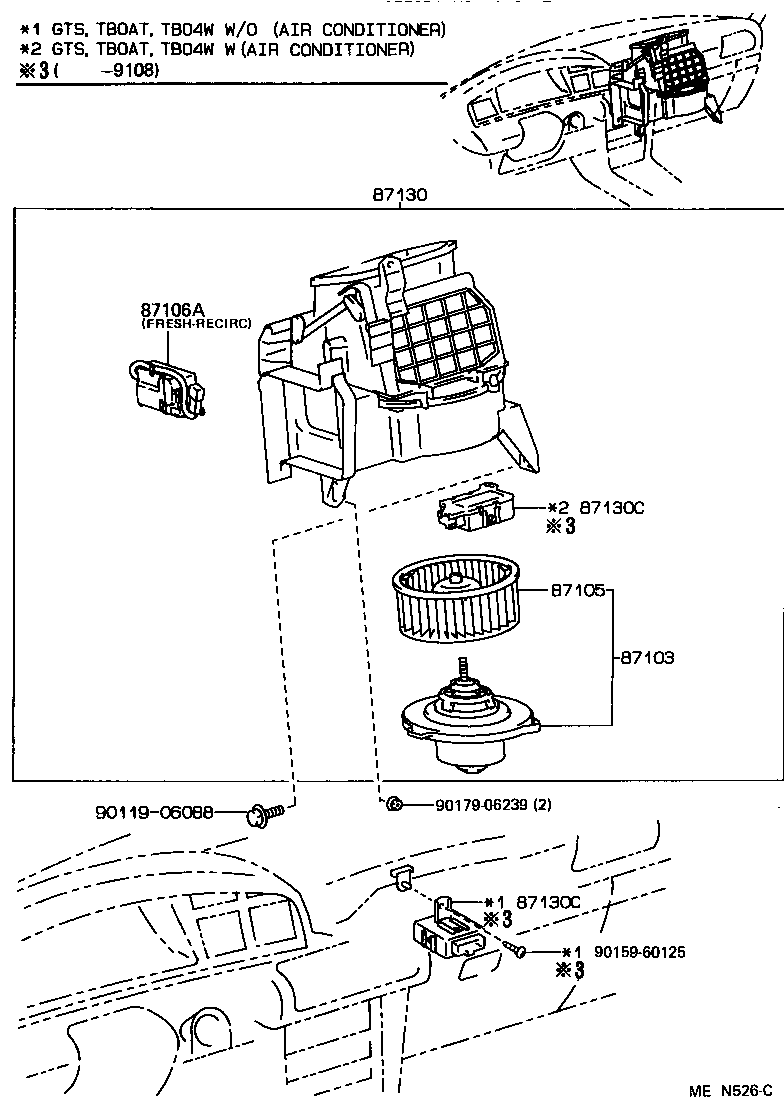

BLOWER

Part #	Description	Period	Qty	Price
Common parts
90119-06088
90179-06239

ST184L-BLPVKK (1989)

ILLUST NO. 1 OF 2(8909- )

ILLUST NO. 2 OF 2(8909-9108)WIB

ILLUST NO. 2 OF 2(9108- )

ILLUST NO. 2 OF 2(8910- )

ILLUST NO. 1 OF 2(8910- )

Part Price Details
