ST184L-BLPVKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

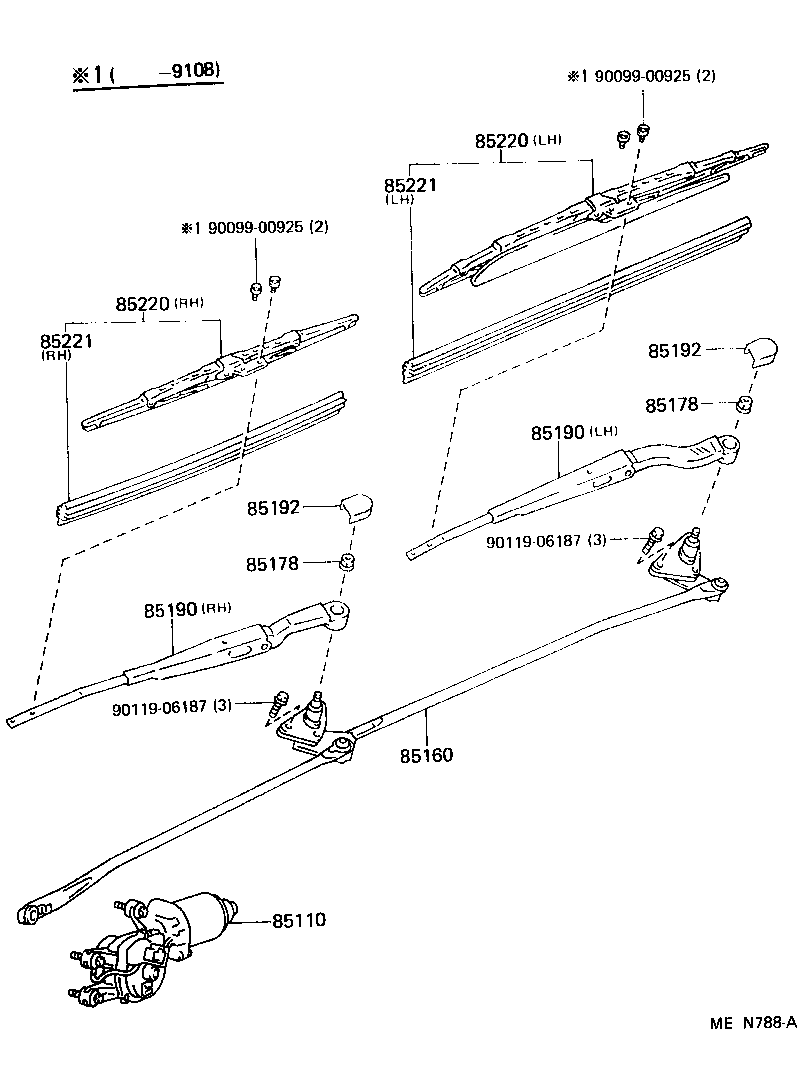

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-20610 |
AT180,ST18# |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-20430 |
AT180,ST18# |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AT180,ST18# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AT180,ST18# |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-20730 |
ST18#..WIB LH |
1 | ||
| 85210-20270 |
ST18#..WIB RH |
1 | ||
| 85190-20720 |
AT180,ST18# LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-20730 |
ST18#..WIB LH |
1 | ||
| 85210-20270 |
ST18#..WIB RH |
1 | ||
| 85190-20720 |
AT180,ST18# LH |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AT180,ST18# |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AT180,ST18# |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-3A280 |
ST18#..WIB LH |
1 | ||
| 85220-3A270 |
AT180,ST18# LH |
1 | ||
| 85220-3A290 |
ST18#..WIB RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-3A280 |
ST18#..WIB LH |
1 | ||
| 85220-3A270 |
AT180,ST18# LH |
1 | ||
| 85220-3A290 |
ST18#..WIB RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85223-17010 |
ST18#..WIB RH |
1 | ||
| 85221-20250 |
ST18#..WIB RH |
1 | ||
| 85221-20240 |
AT180,ST18# LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85223-17010 |
ST18#..WIB RH |
1 | ||
| 85221-20250 |
ST18#..WIB RH |
1 | ||
| 85221-20240 |
AT180,ST18# LH |
1 | ||
| Common parts | ||||
| 90099-00925 | ||||
| 90119-06187 | ||||
