ST184L-BLPVKK (1989)
Toyota Celica

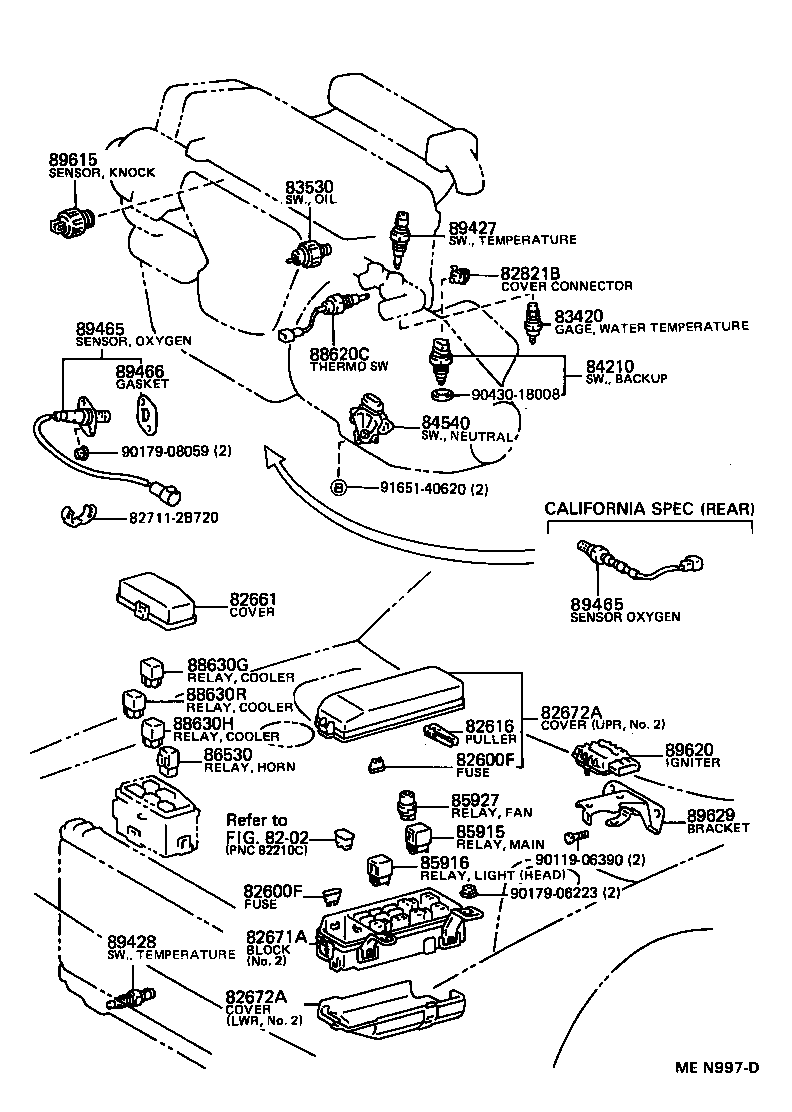

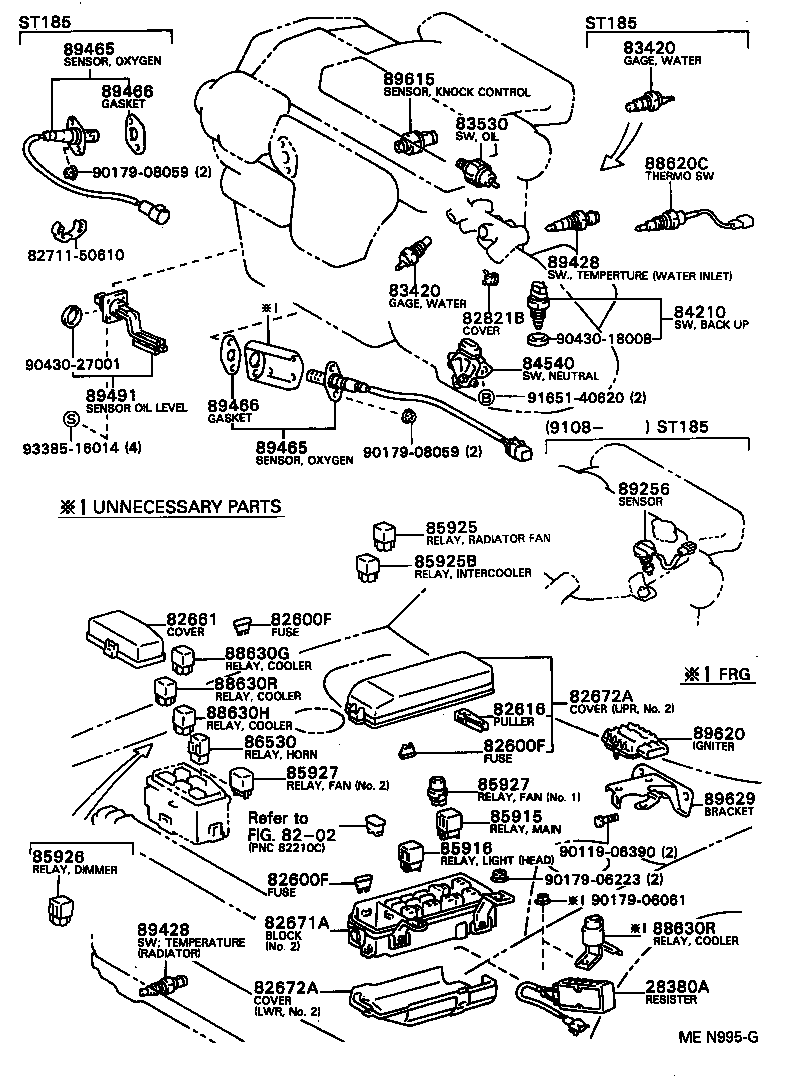

ILLUST NO. 1 OF 4(8909- )ST184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT180,ST185;ST184..LB..MTM;ST184..ATM..GTS;ST184..ATM..GT..CND;ST184..CP..MTM..CND 10A |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT180,ST185;ST184..LB..MTM;ST184..ATM..GTS;ST184..ATM..GT..CND;ST184..CP..MTM..CND 10A |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AT180,ST18# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20010 |
AT180,ST18# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20150 |
AT180,ST18#..CND |
1 | ||
| 82671-20150 |
AT180,ST18#..CND NO.1 |
1 | ||
| 82671-20210 |
AT180,ST184 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20500 |
AT180,ST18#..CND NO.1 |
1 | ||
| 82672-20510 |
AT180,ST18# NO.1 |
1 | ||
| 82672-20520 |
AT180,ST184 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST184 LOWER,NO.2 |
1 | ||
| 82672-20570 |
AT180,ST18# NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20500 |
AT180,ST18#..CND NO.1 |
1 | ||
| 82672-20510 |
AT180,ST18# NO.1 |
1 | ||
| 82672-20520 |
AT180,ST184 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST184 LOWER,NO.2 |
1 | ||
| 82672-20570 |
AT180,ST18# NO.3 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-35010 |
ST184..ATM |
1 | ||
| 82821-35010 |
ST184..(CP,LB)..ATM |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
ST18# |
1 | ||
| 83420-20020 |
ST18#..CP,LB |
1 | ||
| 83420-16020 |
AT180,ST184 |
1 | ||
| 83420-16040 |
ST18# NIPPONDENSO |
1 | ||
| 83420-20030 |
ST18# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
ST18# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12170 |
ST184..(CP,LB)..ATM |
1 | ||
| 84540-12170 |
ST184..ATM |
1 | ||
| 84540-12170 |
ST184..ATM..GTS |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85925-17010 |
AT180,ST18# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AT180,ST18# HEADLAMP |
1 | ||
| 90987-02008 |
AT180,ST18# TAIL LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
AT180,ST18# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT180,ST18# |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88625-20290 |
ST184..ATM |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-04003 |
AT180,ST185;ST184..(CVT,LB)..GT |
1 | ||
| 90987-04003 |
AT180,ST18# |
1 | ||
| 90987-04003 |
ST184..GTS |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02010 |
AT180,ST185;ST184..LB..GT NIPPONDENSO |
1 | ||
| 90987-02009 |
AT180,ST185;ST184..LB..GT MARUKO |
1 | ||
| 90987-02010 |
AT180,ST185;ST184..(CVT,LB)..GT NIPPONDENSO |
1 | ||
| 90987-02009 |
AT180,ST18# MARUKO |
1 | ||
| 90987-02010 |
AT180,ST18# NIPPONDENSO |
1 | ||
| 90987-02010 |
ST184..GTS NIPPONDENSO |
1 | ||
| 90987-02009 |
ST184..GTS MARUKO |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02009 |
AT180,ST18# MARUKO |
1 | ||
| 90987-02010 |
AT180,ST18# NIPPONDENSO |
1 | ||
| 90987-02010 |
ST184..GTS NIPPONDENSO |
1 | ||
| 90987-02010 |
AT180,ST185;ST184..LB..GT NIPPONDENSO |
1 | ||
| 90987-02010 |
AT180,ST185;ST184..(CVT,LB)..GT NIPPONDENSO |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12070 |
ST184..ATM..GT |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
ST18#..CP,LB |
1 | ||
| 89428-33010 |
ST18# |
1 | ||
| 89428-15030 |
ST18# RADIATOR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29535 |
ST184..CP,LB |
1 | ||
| 89465-29395 |
ST184 |
1 | ||
| 89465-20250 |
ST184 CALIFORNIA SPEC,REAR |
1 | ||
| 89465-29535 |
ST184 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29535 |
ST184..CP,LB |
1 | ||
| 89465-29395 |
ST184 |
1 | ||
| 89465-20250 |
ST184 CALIFORNIA SPEC,REAR |
1 | ||
| 89465-29535 |
ST184 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AT180,ST184 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
ST184..CP,LB TOYOTA |
1 | ||
| 89615-20030 |
ST184 TOYOTA |
1 | ||
| 89615-33020 |
ST184..CP,LB NIPPONDENSO |
1 | ||
| 89615-33020 |
ST184 NIPPONDENSO |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
ST184..CP,LB |
1 | ||
| 89621-12010 |
ST18# |
1 | ||
| 89621-26010 |
ST184 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20120 |
ST18# |
1 | ||
| Common parts | ||||
| 82711-2B720 | ||||
| 90119-06390 | ||||
| 90179-06223 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

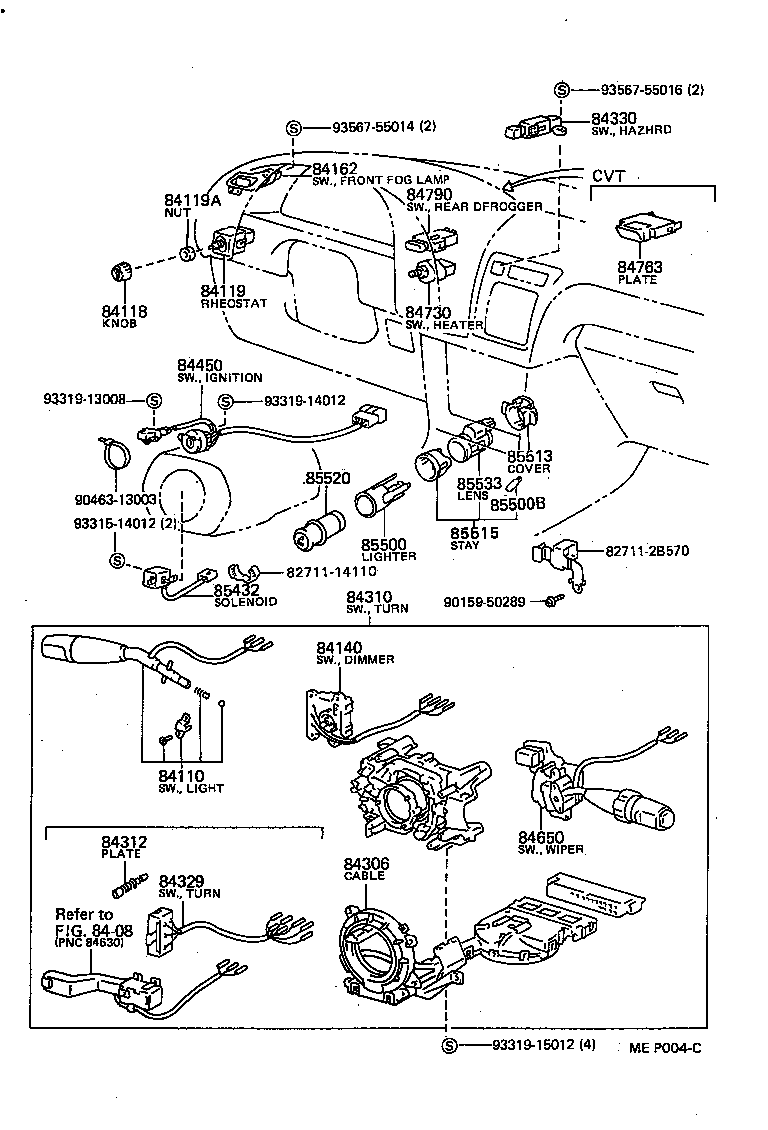

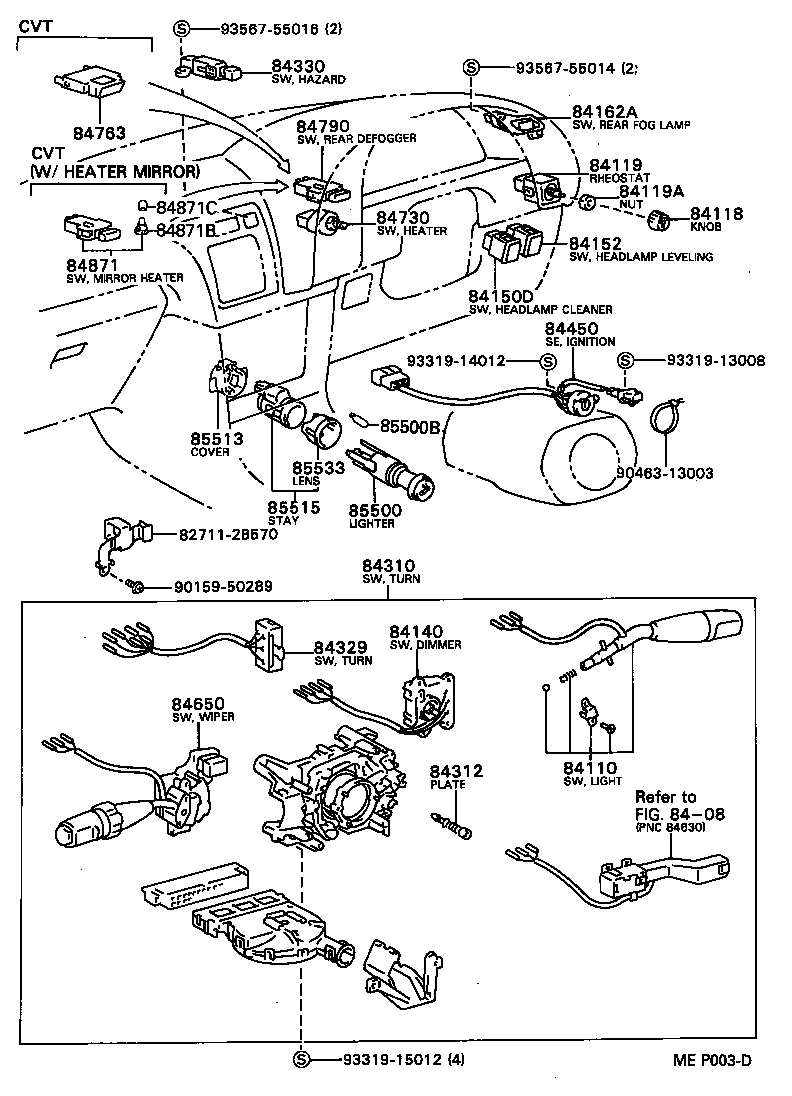

ILLUST NO. 2 OF 4(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80046 |
ST184..GTS..CND EVP 2 PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 84112-80046 |
AT180,ST18#..CND |
1 | ||
| 84112-80046 |
ST184..GTS..CND EVP 2 PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 84112-80046 |
ST184..LB..GT..CND W(CRUISE CONTROL & INTERMOTTENT WIPER) |
1 | ||
| 84112-80046 |
ST184..LB..GT..CND W(REAR WINDOW WIPER & CRUISE CONTROL);W(CRUISE CONTROL & INTERMOTTENT WIPER) |
1 | ||
| 84112-80046 |
AT180,ST184..CND W(CRUISE CONTROL) |
1 | ||
| 84112-80089 |
AT180,ST184..CND |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
AT180,ST18# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20170 |
AT180,ST18# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
AT180,ST18# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20350 |
ST184..CND;ST184..GT..USA;AT180,ST185..ST,TBO4W |
1 | ||
| 84140-20350 |
AT180,ST184..CND W(CRUISE CONTROL) |
1 | ||
| 84140-20350 |
AT180,ST18#..CND |
1 | ||
| 84140-20400 |
AT180,ST184..CND |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-20110 |
ST18#;AT180..CND |
1 | ||
| 84160-20110 |
AT180,ST18# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2G220 |
ST184..LB..GT..CND W(CRUISE CONTROL & INTERMITTENT WIPER) |
1 | ||
| 84310-2G220 |
ST184..GTS..CND EVP 2 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE) OR W(CRUISE CONTROL) |
1 | ||
| 84310-2G370 |
ST184..GTS..CND |
1 | ||
| 84310-2G240 |
ST184..LB..GT..CND W(CRUISE CONTROL & INTERMITTENT WIPER & REAR WINDOW WIPER) |
1 | ||
| 84310-2G390 |
ST184..LB..GT..CND W(INTERMITTENT WIPER & REAR WINDOW WIPER) |
1 | ||
| 84310-2G390 |
ST184..GTS..CND W(REAR WINDOW WIPER) |
1 | ||
| 84310-2H450 |
ST184..LB..CND W(REAR WINDOW WIPER) |
1 | ||
| 84310-2G240 |
ST184..LB..CND W(CRUISE CONTROL & REAR WINDOW WIPER) |
1 | ||
| 84310-2G240 |
ST184..GTS..CND EVP 2 PACKAGE & W(*66 & CRUISE CONTROL & REAR WINDOW WIPER);W(CRUISE CONTROL & REAR WINDOW WIPER);EVP 2 PACKAGE & W(CRUISE CONTROL & REAR WINDOW WIPER) |
1 | ||
| 84310-2G220 |
AT180,ST184..CND W(CRUISE CONTROL) |
1 | ||
| 84310-2H440 |
AT180,ST184..CND |
1 | ||
| 84310-2G220 |
AT180..CND;ST184..LB..GT..CND W(CRUISE CONTROL & INTERMITTENT WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AT180,ST18#..CND |
1 | ||
| 84312-12040 |
AT180,ST184..CND W(CRUISE CONTROL) |
1 | ||
| 84312-12050 |
AT180,ST184..CND |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-20110 |
AT180,ST184..CND |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20240 |
AT180,ST18# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20210 |
AT180,ST18# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2D210 |
ST184..GTS..CND EVP 2 PACKAGE & W(*66 & CRUISE CONTROL) OR EVP 2 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE) |
1 | ||
| 84652-2D220 |
ST184..LB..CND W(CRUISE CONTROL & REAR WINDOW WIPER) |
1 | ||
| 84652-33270 |
ST184..LB..CND W(REAR WINDOW WIPER) |
1 | ||
| 84652-2D220 |
ST184..GTS..CND W(REAR WINDOW WIPER) |
1 | ||
| 84652-2D220 |
ST184..LB..GT..CND W(VARIABLE INTERMITTENT WIPER & REAR WINDOW WIPER) |
1 | ||
| 84652-33030 |
AT180,ST184..CND |
1 | ||
| 84652-2D210 |
AT180,ST184..CND W(CRUISE CONTROL) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20260 |
AT180,ST18# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20340 |
ST18#..CND |
1 | ||
| 84790-20290 |
ST18#..CP,LB |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-20020 |
AT180,ST184..ATM |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30410 |
AT180,ST18# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
AT180,ST18# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AT180,ST18# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-20040 |
AT180,ST18# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30210 |
AT180,ST18# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30020 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-2B570 | ||||
| 90159-50289 | ||||
| 90463-13003 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8408 | ||||

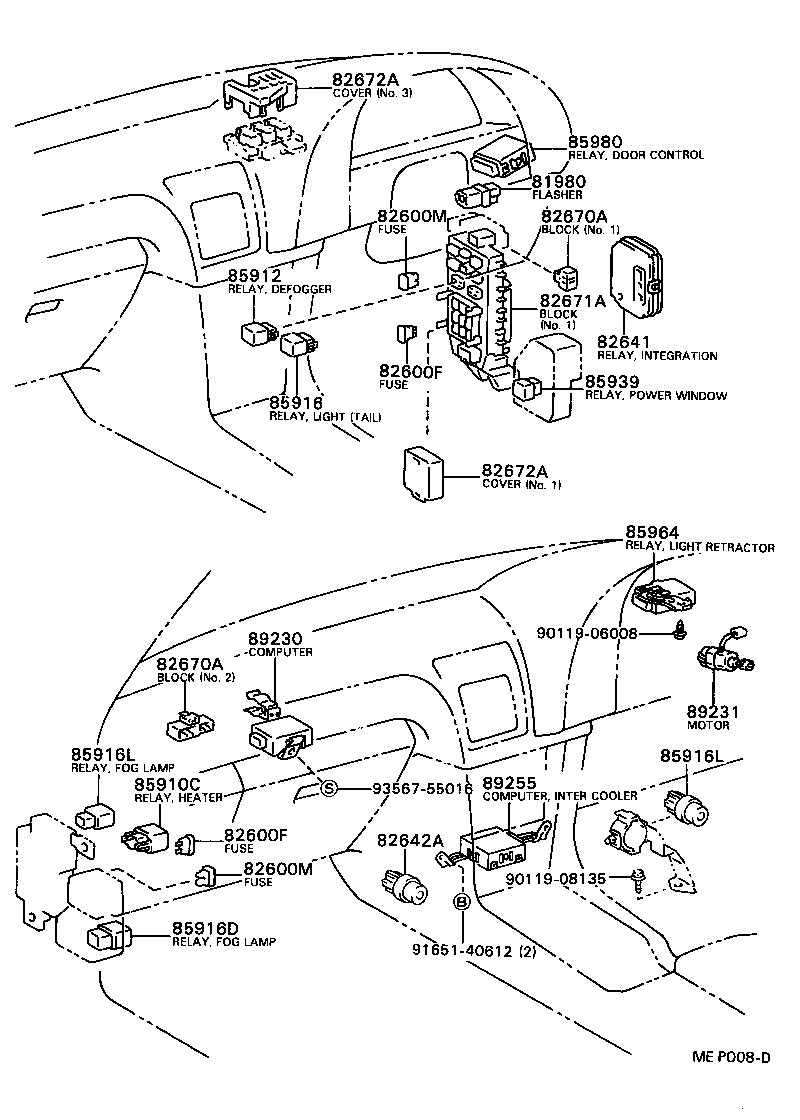

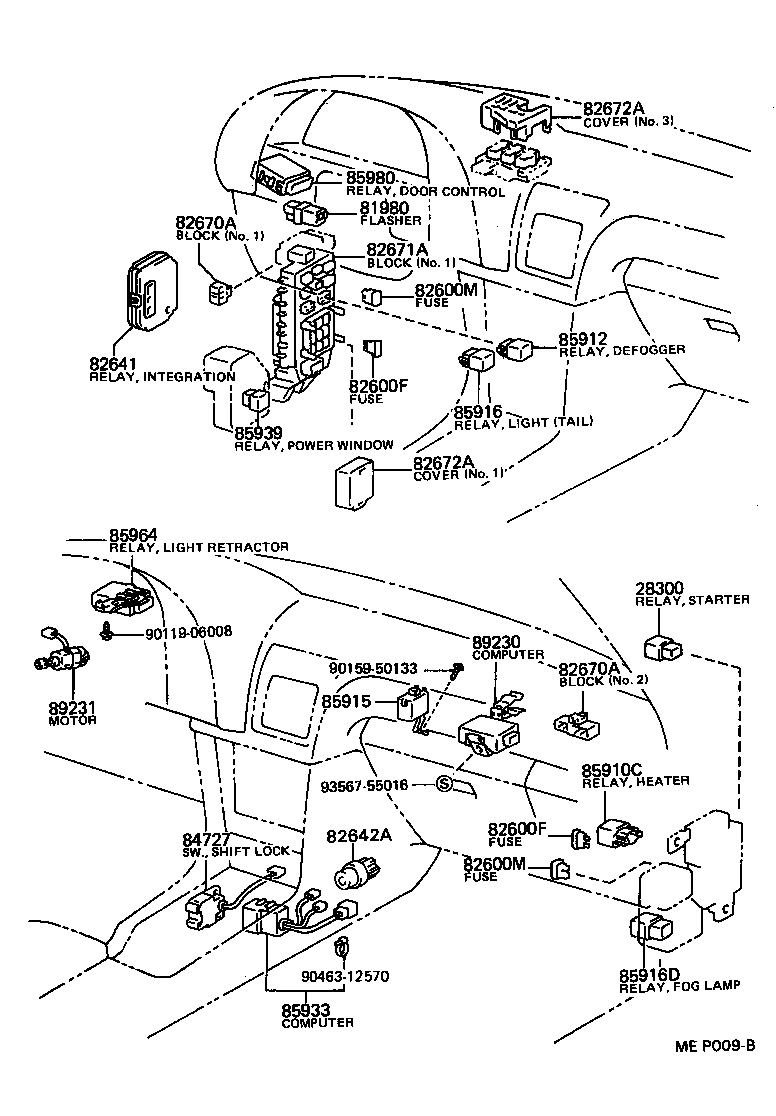

ILLUST NO. 3 OF 4(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT180,ST18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT180,ST185;ST184..LB..MTM;ST184..ATM..GTS;ST184..ATM..GT..CND;ST184..CP..MTM..CND 10A |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT180,ST185;ST184..LB..MTM;ST184..ATM..GTS;ST184..ATM..GT..CND;ST184..CP..MTM..CND 10A |
2 | ||
| 90982-07011 |
AT180,ST18# 30A,GREEN |
2 | ||
| 90982-09003 |
AT180,ST18# 15A |
5 | ||
| 90982-09003 |
AT180,ST18# 15A |
6 | ||
| 90982-09005 |
AT180,ST18# 7.5A |
1 | ||
| 90982-09002 |
AT180,ST18# 10A |
1 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
2 | ||
| 90982-09004 |
AT180,ST18# 20A,YELLOW |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AT180,ST18# 30A,PINK,30A |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN,40A |
1 | ||
| 90982-10001 |
AT180,ST18# 30A,PINK |
1 | ||
| 90982-10002 |
AT180,ST18#..CP,LB 40A,GREEN |
1 | ||
| 90982-10001 |
AT180,ST18#..CP,LB 30A,PINK |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AT180,ST18# 30A,PINK,30A |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN,40A |
1 | ||
| 90982-10001 |
AT180,ST18# 30A,PINK |
1 | ||
| 90982-10002 |
AT180,ST18#..CP,LB 40A,GREEN |
1 | ||
| 90982-10001 |
AT180,ST18#..CP,LB 30A,PINK |
1 | ||
| 90982-10002 |
AT180,ST18# 40A,GREEN |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20141 |
AT180,ST18# |
1 | ||
| 82641-20140 |
ST18# |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02009 |
AT180,ST18#..CND |
1 | ||
| 90987-02004 |
AT180,ST18#..CND |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20580 |
AT180,ST18# NO.2 |
1 | ||
| 82670-20480 |
AT180,ST18# NO.1 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20580 |
AT180,ST18# NO.2 |
1 | ||
| 82670-20480 |
AT180,ST18# NO.1 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20150 |
AT180,ST18#..CND |
1 | ||
| 82671-20150 |
AT180,ST18#..CND NO.1 |
1 | ||
| 82671-20210 |
AT180,ST184 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20500 |
AT180,ST18#..CND NO.1 |
1 | ||
| 82672-20510 |
AT180,ST18# NO.1 |
1 | ||
| 82672-20520 |
AT180,ST184 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST184 LOWER,NO.2 |
1 | ||
| 82672-20570 |
AT180,ST18# NO.3 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20500 |
AT180,ST18#..CND NO.1 |
1 | ||
| 82672-20510 |
AT180,ST18# NO.1 |
1 | ||
| 82672-20520 |
AT180,ST184 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST184 LOWER,NO.2 |
1 | ||
| 82672-20570 |
AT180,ST18# NO.3 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-20030 |
AT180,ST184..ATM |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT180,ST18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02008 |
AT180,ST18#..CP,LB |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85925-17010 |
AT180,ST18# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AT180,ST18# HEADLAMP |
1 | ||
| 90987-02008 |
AT180,ST18# TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02010 |
ST18#;AT180..CND NIPPONDENSO |
1 | ||
| 90987-02010 |
AT180,ST18# NIPPONDENSO |
1 | ||
| 90987-02009 |
AT180,ST18# MARUKO |
1 | ||
| 90987-02009 |
ST18#;AT180..CND MARUKO |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-20030 |
AT180,ST184..ATM |
1 | ||
| 85933-20060 |
AT180,ST184..(CP,LB)..ATM |
1 | ||
| 85933-20061 |
AT180,ST184..ATM |
1 | ||
| 85933-20060 |
AT180,ST184..ATM |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
AT180,ST18# MARUKO |
1 | ||
| 90987-02009 |
AT180,ST18# |
1 | ||
| 90987-02010 |
AT180,ST18# NIPPONDENSO |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85906-20030 |
AT180,ST18#..CND |
1 | ||
| 85906-20031 |
AT180,ST18#..CND |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20230 |
AT180,ST18# |
1 | ||
| 85980-20230 |
ST18# |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-20030 |
ST18# |
1 | ||
| 89230-20020 |
ST18# |
1 | ||
| 89231 - MOTOR, POWER TILT | ||||
| 89231-20020 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06008 | ||||
| 90159-50133 | ||||
| 90463-12570 | ||||
| 93567-55016 | ||||

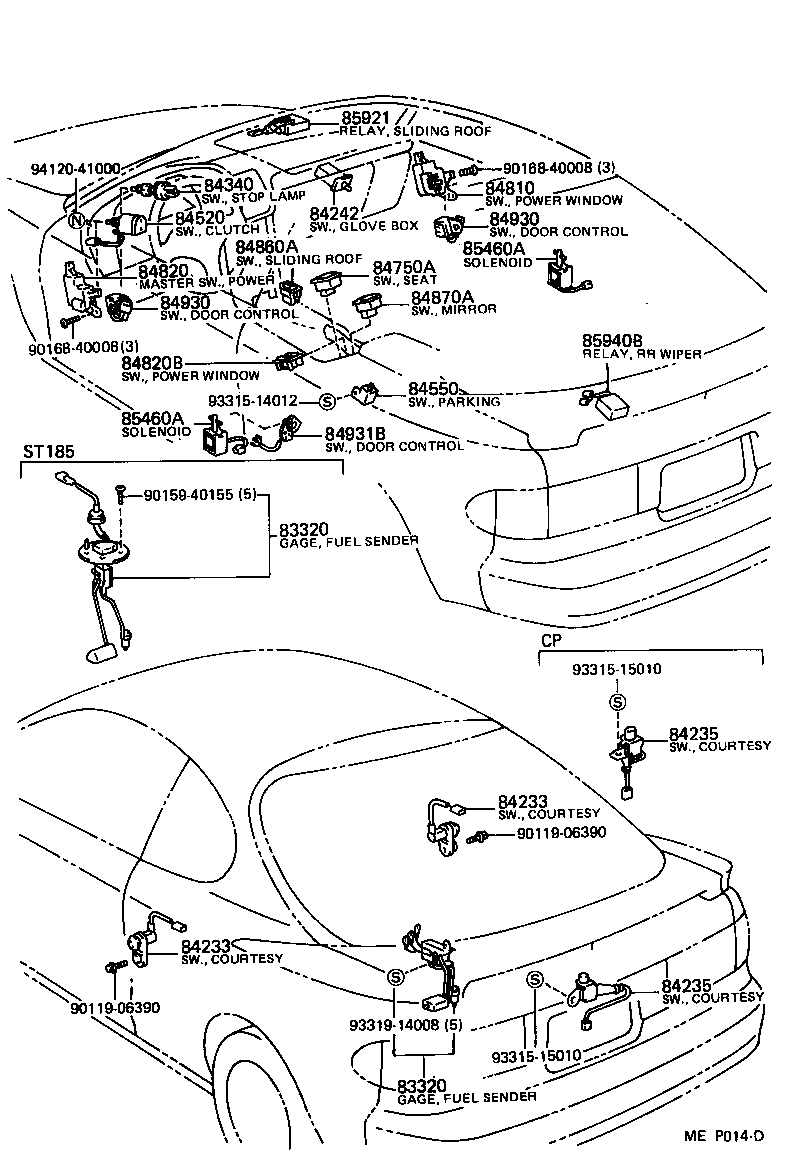

ILLUST NO. 4 OF 4(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80140 |
AT180,ST184 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80140 |
AT180,ST184 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20210 |
AT180,ST18# |
2 | ||
| 84231-32050 |
AT180,ST18# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20210 |
AT180,ST18# |
2 | ||
| 84231-32050 |
AT180,ST18# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20190 |
ST18#..LB |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20190 |
ST18#..LB |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT180,ST18# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30070 |
ST184..GTS W(CRUISE CONTROL) |
1 | ||
| 84340-32110 |
ST184..GTS W(CRUISE CONTROL) |
1 | ||
| 84340-32090 |
AT180,ST184 |
1 | ||
| 84340-32030 |
AT180,ST184 |
1 | ||
| 84340-30070 |
ST184..GT W(CRUISE CONTROL) |
1 | ||
| 84340-32110 |
AT180,ST184..CP,LB W(CRUISE CONTROL) |
1 | ||
| 84340-32110 |
AT180,ST184 W(CRUISE CONTROL) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AT180,ST18# |
1 | ||
| 84750A - SWITCH ASSY, SEAT | ||||
| 84750-20030 |
ST184..CP;ST18#..WIB |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20160 |
ST18# |
1 | ||
| 84810-20160 |
ST184 |
1 | ||
| 84810-20160 |
AT180,ST18# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20350 |
ST18#..CP,LB |
1 | ||
| 84820-20350 |
AT180,ST18#..CP,LB |
1 | ||
| 84820-20350 |
ST184 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
AT180,ST18# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20070 |
ST18# RH |
1 | ||
| 84930-20080 |
AT180,ST18# LH |
1 | ||
| 84930-20080 |
ST18# LH |
1 | ||
| 84930-20070 |
AT180,ST18# RH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20070 |
ST18# RH |
1 | ||
| 84930-20080 |
AT180,ST18# LH |
1 | ||
| 84930-20080 |
ST18# LH |
1 | ||
| 84930-20070 |
AT180,ST18# RH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20130 |
AT180,ST18#..CP,LB RH |
1 | ||
| 84931-20180 |
AT180,ST18# LH |
1 | ||
| 84931-20130 |
AT180,ST18# RH |
1 | ||
| 84931-20180 |
AT180,ST18#..CP,LB LH |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20060 |
AT180,ST18#..CP,LB |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-20080 |
ST184..LB |
1 | ||
| 85940-20080 |
ST18#..LB |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90168-40008 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14008 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 4(8910- )ST18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-50610 | ||||
| 90119-06390 | ||||
| 90179-06061 | ||||
| 90179-06223 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-40620 | ||||
| 93385-16014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 4(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2B570 | ||||
| 90159-50289 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8408 | ||||
ILLUST NO. 3 OF 4(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06008 | ||||
| 90119-08135 | ||||
| 91651-40612 | ||||
| 93567-55016 | ||||

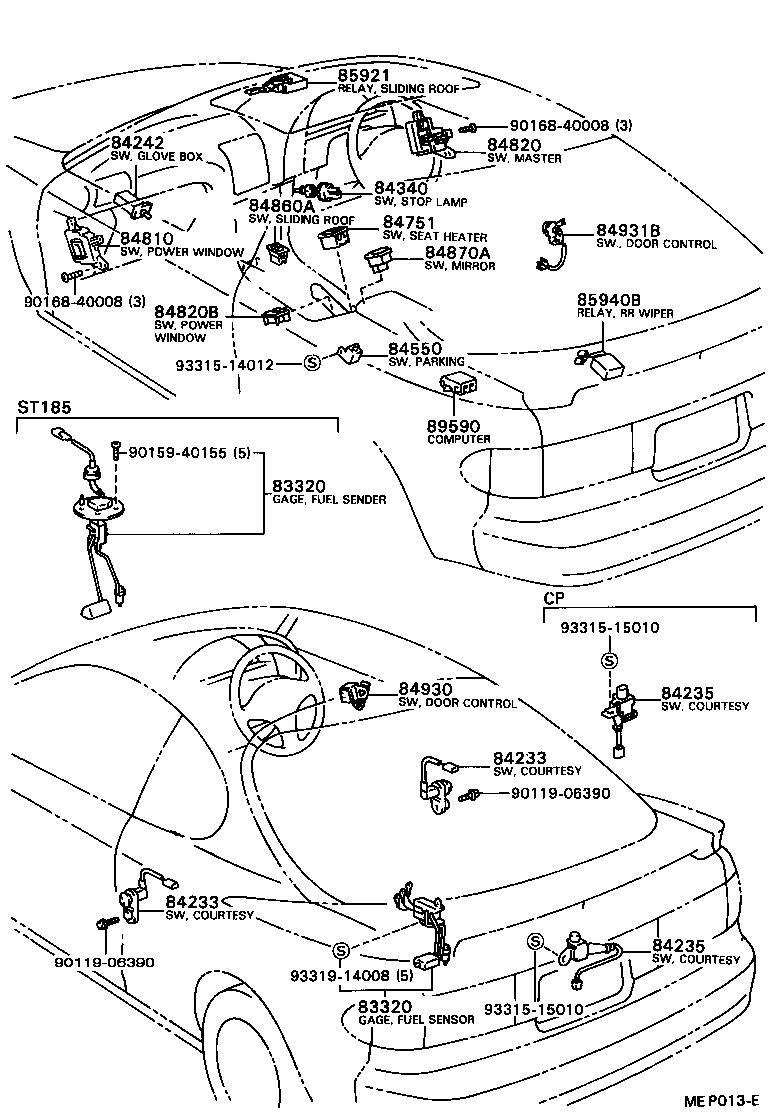

ILLUST NO. 4 OF 4(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90168-40008 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
