Toyota Celica ST184 WIRING & CLAMP

ST184L-BLPVKK (1989)

Toyota Celica

Production Sep 1989 - Sep 1993

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(8909- )

Click highlighted areas on diagram

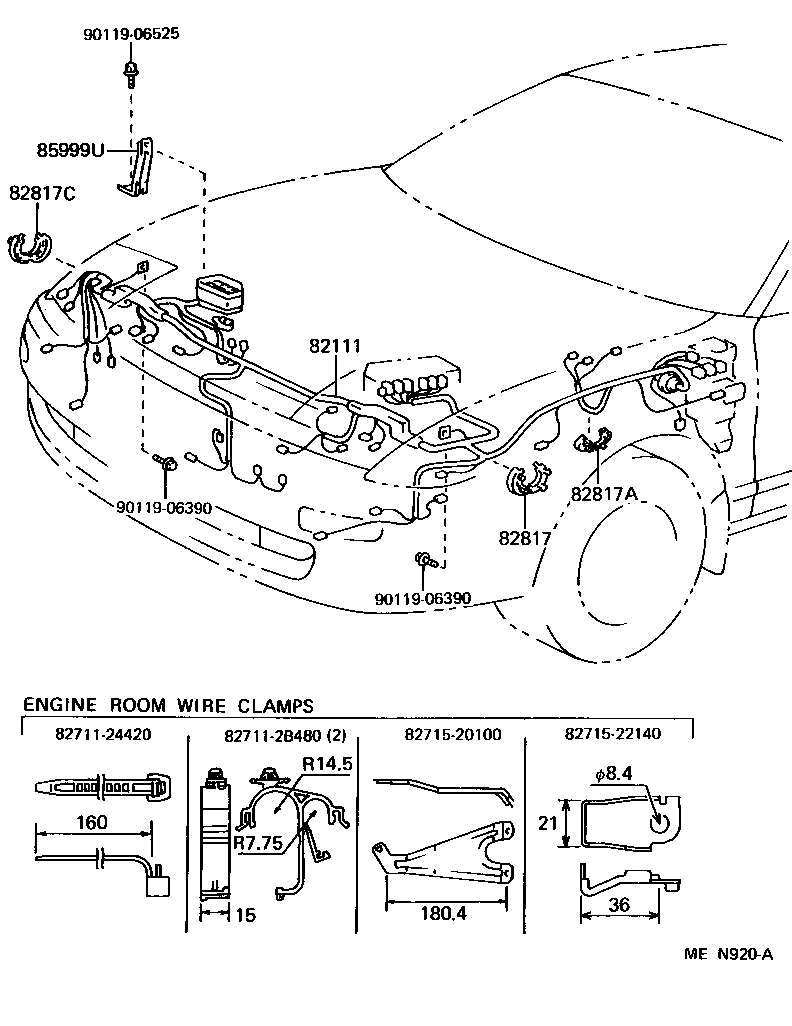

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-2D030	ST184..GTS W(*66)	09/1989 - 08/1990	1
82111-2D031	ST184..GTS W(*66)	08/1990 - 08/1991	1
82111-2D020	ST184..GT..CND;AT180,ST184..GTS,ST;ST184..(CP,CVT)..USA	09/1989 - 08/1990	1
82111-2D021	ST184..GT..CND;AT180,ST184..GTS,ST;ST184..(CP,CVT)..USA	08/1990 - 08/1991	1
82111-2G150	AT180,ST184..CP,LB	08/1991 - 09/1991	1
82111-2G160	ST184..CP,LB W(*66)	08/1991 - 09/1991	1
82111-2G160	ST184 W(*66)	09/1991 - 09/1993	1
82111-2G150	AT180,ST184	09/1991 - 09/1993	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B200	AT180,ST18#	09/1989 - 09/1993	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32420	AT180,ST18#	09/1989 - 01/1990	1
82817-2B730	AT180,ST18#	01/1990 - 09/1993	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-2B200	AT180,ST18#	09/1989 - 09/1993	1
85999U - BRACKET, RELAY BLOCK
85999-20360	AT180,ST18#	09/1989 - 09/1993	1
85999-20390	AT180,ST184 W(CRUISE CONTROL = VACUUM TYPE)	08/1990 - 09/1993	1
85999-20390	ST184 W(CRUISE CONTROL = VACUUM TYPE)	09/1989 - 08/1990	1
Common parts
82711-24420
82711-2B480
82715-20100
82715-22140
90119-06390
90119-06525

ILLUST NO. 2 OF 9(8909- )ST184

Click highlighted areas on diagram

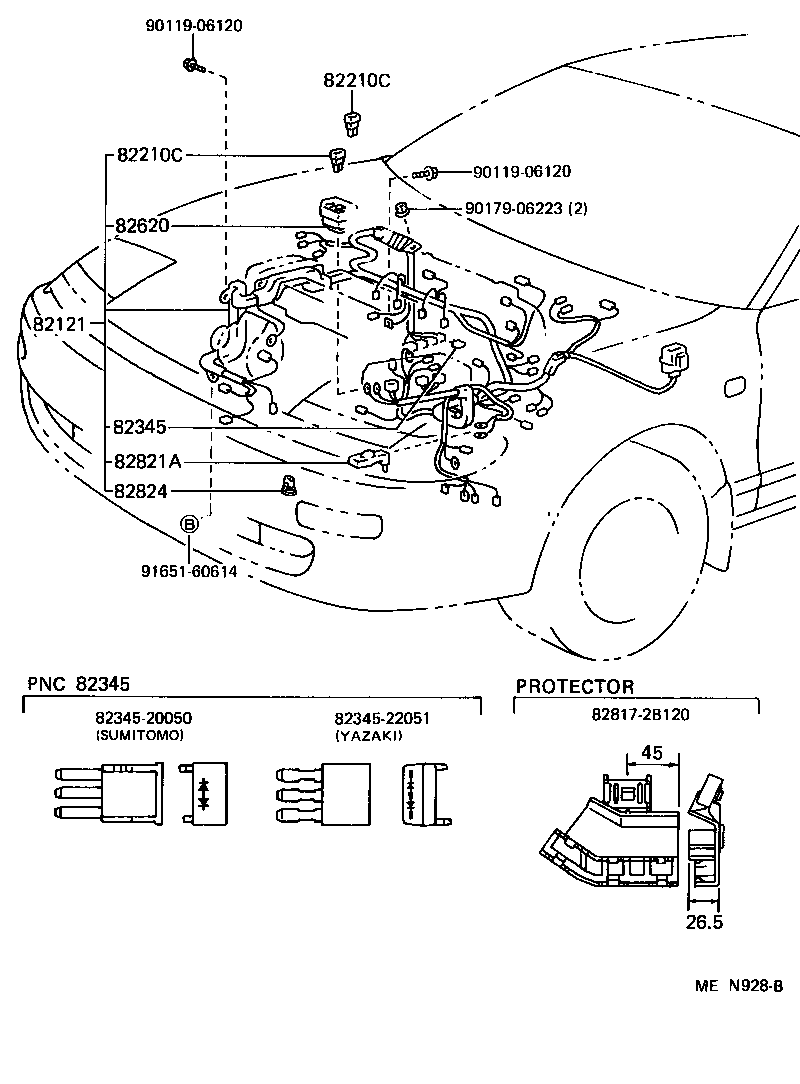

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-2B690	ST184..ATM..GT	09/1989 - 08/1990	1
82121-2B720	ST184..ATM..GTS	09/1989 - 08/1991	1
82121-2B691	ST184..ATM..GT	08/1990 - 08/1991	1
82121-2G550	ST184..(CP,LB)..ATM	08/1991 - 09/1991	1
82121-2G550	ST184..ATM	09/1991 - 11/1992	1
82121-2G551	ST184..ATM	11/1992 - 09/1993	1
82210C - FUSIBLE LINK
90982-08188	AT180,ST18# 30A,TERM.:FEMALE,PNK	09/1989 - 09/1993	1
90982-08189	AT180,ST18# 40A,TERM.:FEMALE,GRN	09/1989 - 09/1993	1
90982-08190	ST18# 60A,TERM.:FEMALE,YEL	09/1989 - 09/1993	1
90982-08246	AT180,ST18# 100A,TERM.:MALE,BLUE	09/1989 - 09/1993	1
90982-08188	AT180,ST18# 30A,TERM.:FEMALE,PNK	09/1989 - 09/1993	2
82210C - FUSIBLE LINK
90982-08188	AT180,ST18# 30A,TERM.:FEMALE,PNK	09/1989 - 09/1993	1
90982-08189	AT180,ST18# 40A,TERM.:FEMALE,GRN	09/1989 - 09/1993	1
90982-08190	ST18# 60A,TERM.:FEMALE,YEL	09/1989 - 09/1993	1
90982-08246	AT180,ST18# 100A,TERM.:MALE,BLUE	09/1989 - 09/1993	1
90982-08188	AT180,ST18# 30A,TERM.:FEMALE,PNK	09/1989 - 09/1993	2
82345 - DIODE
82345-12020	ST184..MTM;AT180,ST185;ST184..ATM..GT COWL WIRE,TYPE E	09/1989 - 08/1991	1
82345-20040	AT180,ST18# COWL WIRE,TYPE A	09/1989 - 08/1991	1
82345-22051	ST184..ATM..GT ENGINE WIRE,YAZAKI	09/1989 - 08/1991	1
82345-20050	ST184..ATM..GT ENGINE WIRE,SUMITOMO	09/1989 - 08/1991	1
82345-20040	ST18#;AT180..CND COWL WIRE,TYPE A	08/1991 - 09/1993	1
82345-12020	ST184..MTM;ST184..ATM..CND;ST184..CVT..ATM;AT180,ST185..ST,TBOAT COWL WIRE,TYPE E	08/1991 - 09/1993	1
82345 - DIODE
82345-12020	ST184..MTM;AT180,ST185;ST184..ATM..GT COWL WIRE,TYPE E	09/1989 - 08/1991	1
82345-20040	AT180,ST18# COWL WIRE,TYPE A	09/1989 - 08/1991	1
82345-22051	ST184..ATM..GT ENGINE WIRE,YAZAKI	09/1989 - 08/1991	1
82345-20050	ST184..ATM..GT ENGINE WIRE,SUMITOMO	09/1989 - 08/1991	1
82345-20040	ST18#;AT180..CND COWL WIRE,TYPE A	08/1991 - 09/1993	1
82345-12020	ST184..MTM;ST184..ATM..CND;ST184..CVT..ATM;AT180,ST185..ST,TBOAT COWL WIRE,TYPE E	08/1991 - 09/1993	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-20140	AT180,ST184	09/1989 - 09/1993	1
82821A - COVER, CONNECTOR
82821-20160	AT180,ST18#	09/1989 - 09/1993	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AT180,ST184..CP,LB ENGINE WIRE	08/1991 - 09/1991	1
82824-20060	AT180,ST184 COWL WIRE	09/1989 - 09/1993	1
82824-20050	AT180,ST184 ENGINE WIRE	09/1991 - 09/1993	1
Common parts
82345-20050
82345-22051
82817-2B120
90119-06120
90179-06223
91651-60614

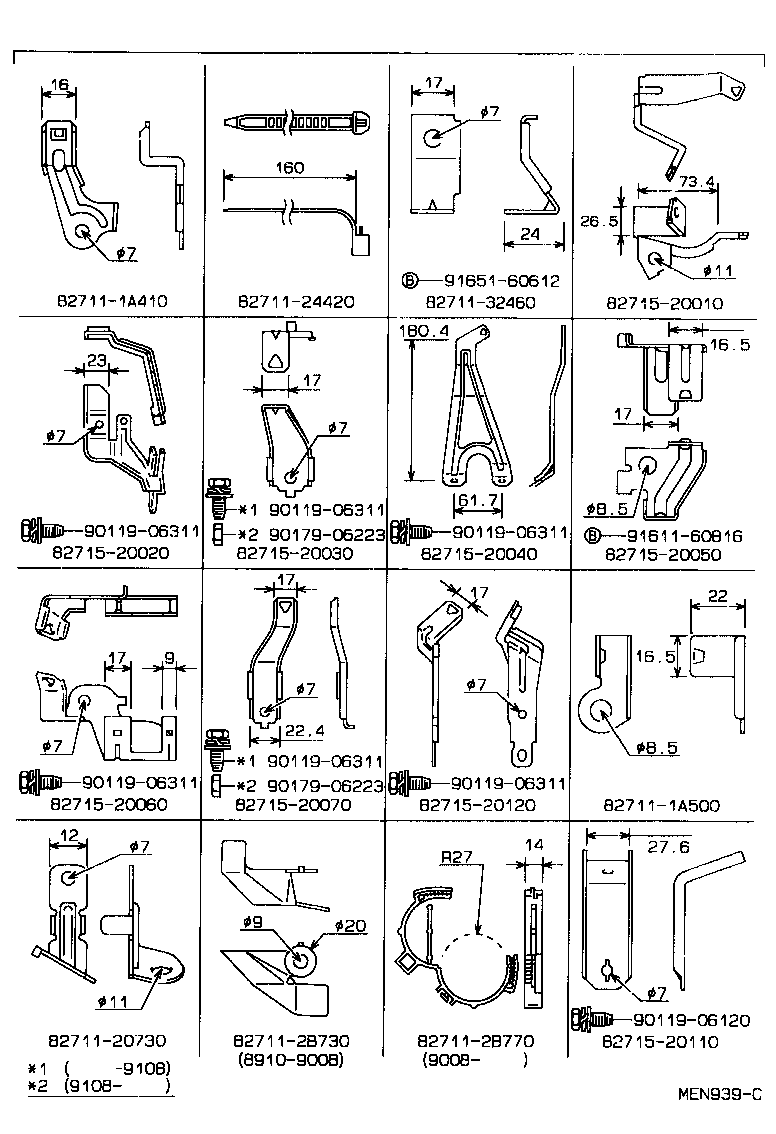

ILLUST NO. 3 OF 9(8909- )

Click highlighted areas on diagram

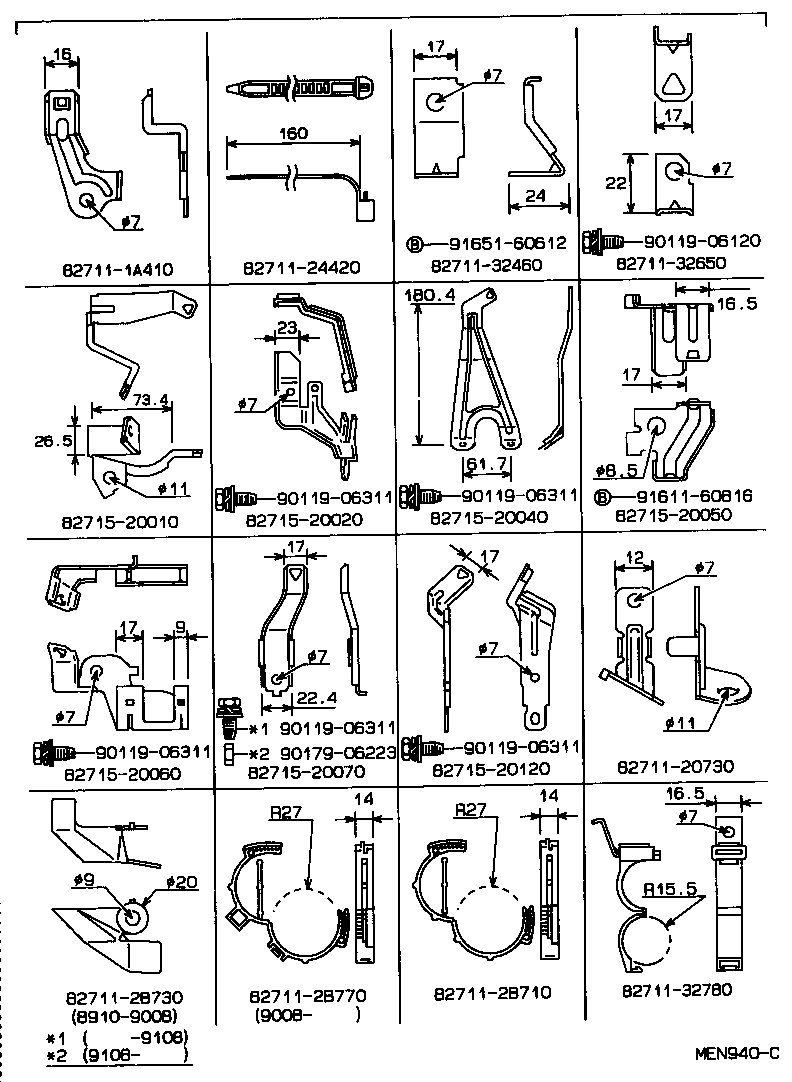

ENGINE WIRE CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82711-1A410
82711-20730
82711-24420
82711-2B710
82711-2B730
82711-2B770
82711-32460
82711-32650
82711-32780
82715-20010
82715-20020
82715-20040
82715-20050
82715-20060
82715-20070
82715-20120
90119-06120
90119-06311
90179-06223
91611-60816
91651-60612

ILLUST NO. 4 OF 9(8909- )

Click highlighted areas on diagram

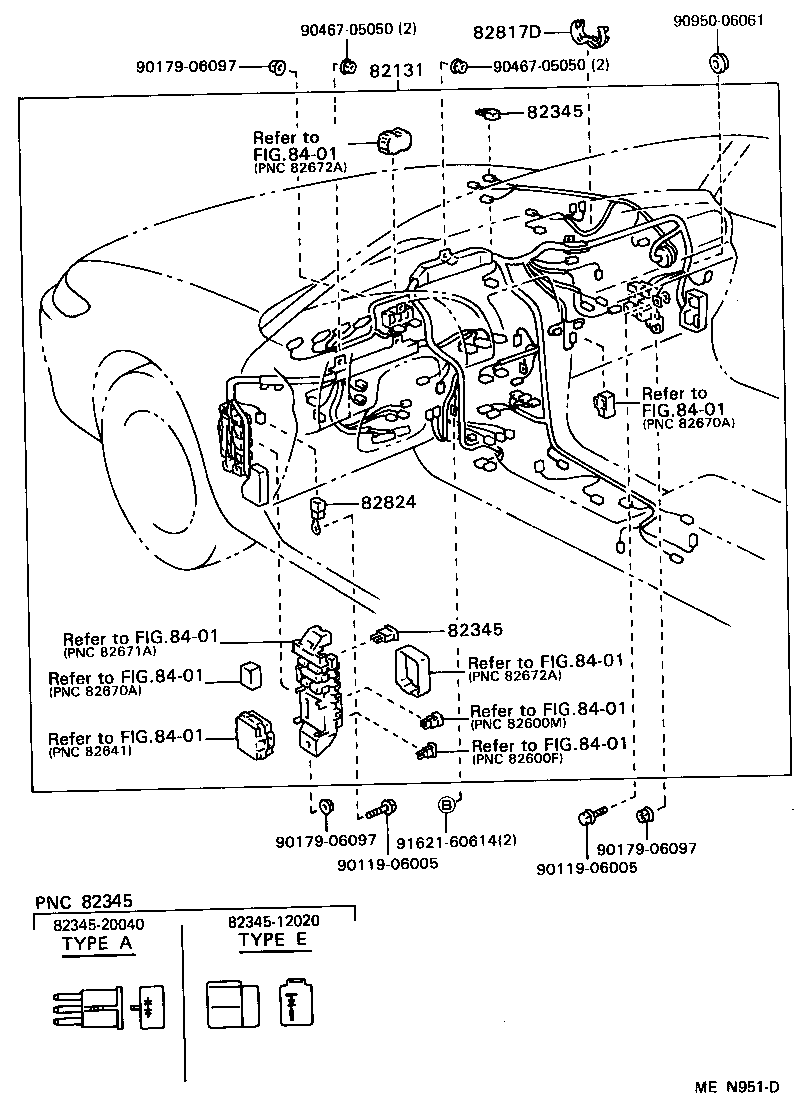

COWL WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-2H550	ST184..GT..CND	09/1989 - 08/1990	1
82131-2H580	ST184..ATM..GTS..CND	09/1989 - 08/1990	1
82131-2H590	ST184..ATM..GTS..CND W(*66)	09/1989 - 08/1990	1
82131-2H581	ST184..ATM..GTS..CND	08/1990 - 08/1991	1
82131-2H551	ST184..GT..CND	08/1990 - 08/1991	1
82131-2H591	ST184..ATM..GTS..CND W(*66)	08/1990 - 08/1991	1
82131-2M430	ST184..ATM..CND	08/1991 - 08/1992	1
82131-2M440	ST184..ATM..CND W(*66)	08/1991 - 08/1992	1
82131-2M441	ST184..ATM..CND W(*66)	08/1992 - 09/1993	1
82131-2M431	ST184..ATM..CND	08/1992 - 09/1993	1
82345 - DIODE
82345-12020	ST184..MTM;AT180,ST185;ST184..ATM..GT COWL WIRE,TYPE E	09/1989 - 08/1991	1
82345-20040	AT180,ST18# COWL WIRE,TYPE A	09/1989 - 08/1991	1
82345-22051	ST184..ATM..GT ENGINE WIRE,YAZAKI	09/1989 - 08/1991	1
82345-20050	ST184..ATM..GT ENGINE WIRE,SUMITOMO	09/1989 - 08/1991	1
82345-20040	ST18#;AT180..CND COWL WIRE,TYPE A	08/1991 - 09/1993	1
82345-12020	ST184..MTM;ST184..ATM..CND;ST184..CVT..ATM;AT180,ST185..ST,TBOAT COWL WIRE,TYPE E	08/1991 - 09/1993	1
82345 - DIODE
82345-12020	ST184..MTM;AT180,ST185;ST184..ATM..GT COWL WIRE,TYPE E	09/1989 - 08/1991	1
82345-20040	AT180,ST18# COWL WIRE,TYPE A	09/1989 - 08/1991	1
82345-22051	ST184..ATM..GT ENGINE WIRE,YAZAKI	09/1989 - 08/1991	1
82345-20050	ST184..ATM..GT ENGINE WIRE,SUMITOMO	09/1989 - 08/1991	1
82345-20040	ST18#;AT180..CND COWL WIRE,TYPE A	08/1991 - 09/1993	1
82345-12020	ST184..MTM;ST184..ATM..CND;ST184..CVT..ATM;AT180,ST185..ST,TBOAT COWL WIRE,TYPE E	08/1991 - 09/1993	1
82345 - DIODE
82345-12020	ST184..MTM;AT180,ST185;ST184..ATM..GT COWL WIRE,TYPE E	09/1989 - 08/1991	1
82345-20040	AT180,ST18# COWL WIRE,TYPE A	09/1989 - 08/1991	1
82345-22051	ST184..ATM..GT ENGINE WIRE,YAZAKI	09/1989 - 08/1991	1
82345-20050	ST184..ATM..GT ENGINE WIRE,SUMITOMO	09/1989 - 08/1991	1
82345-20040	ST18#;AT180..CND COWL WIRE,TYPE A	08/1991 - 09/1993	1
82345-12020	ST184..MTM;ST184..ATM..CND;ST184..CVT..ATM;AT180,ST185..ST,TBOAT COWL WIRE,TYPE E	08/1991 - 09/1993	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-2B730	AT180,ST18#	01/1990 - 09/1991	1
82817-2B730	AT180,ST18#	09/1991 - 09/1993	1
82817-32420	AT180,ST18#	09/1989 - 01/1990	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AT180,ST184..CP,LB ENGINE WIRE	08/1991 - 09/1991	1
82824-20060	AT180,ST184 COWL WIRE	09/1989 - 09/1993	1
82824-20050	AT180,ST184 ENGINE WIRE	09/1991 - 09/1993	1
Common parts
82345-12020
82345-20040
90119-06005
90179-06097
90467-05050
90950-06061
91621-60614
Linked diagrams
8401

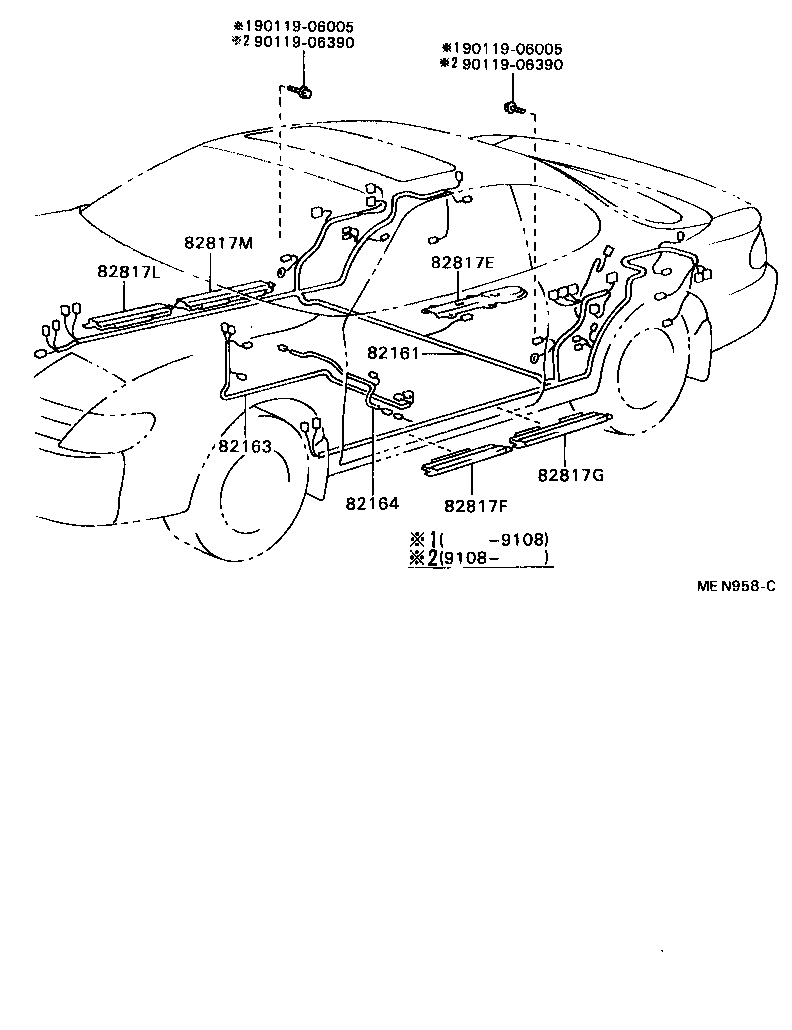

ILLUST NO. 7 OF 9(8909- )CP,LB

Click highlighted areas on diagram

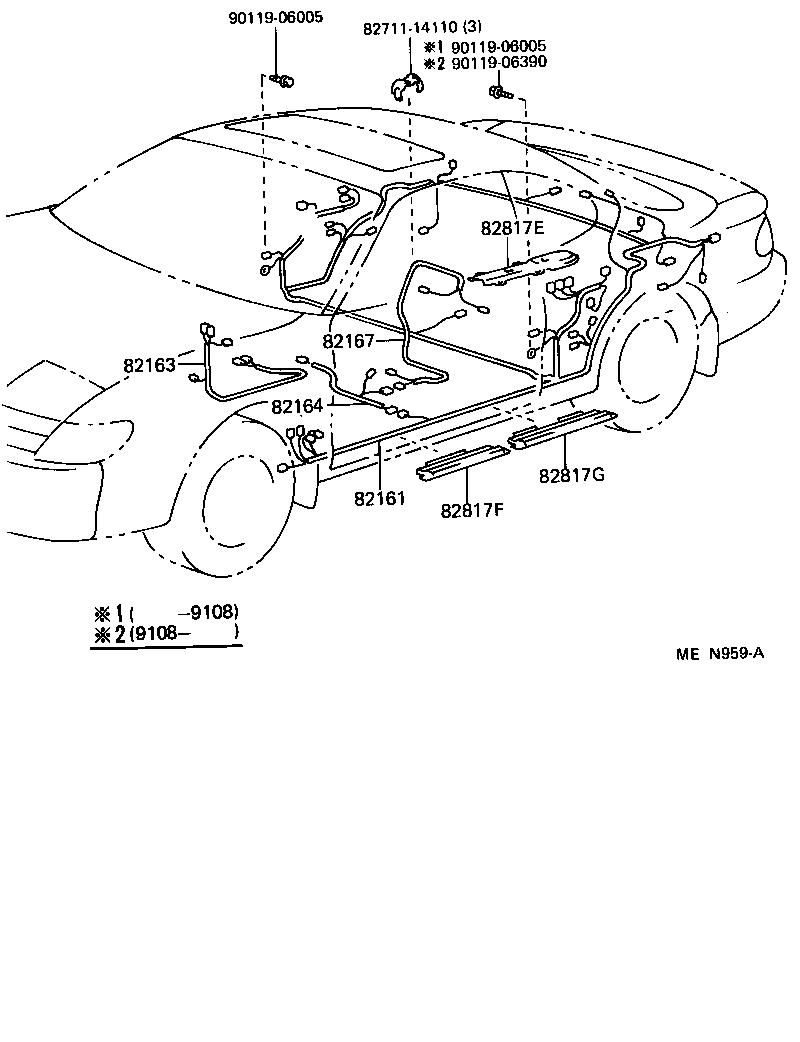

FLOOR,FRAME,SEAT WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-2B770	ST184..GTS;ST184..LB..GT..CND;ST184..LB..ATM..GT..USA	09/1989 - 05/1990	1
82161-2B881	ST184..GTS W(*66)	05/1990 - 08/1991	1
82161-2B771	ST184..GTS;ST184..LB..GT..CND;ST184..LB..ATM..GT..USA	05/1990 - 08/1992	1
82161-2B880	ST184..GTS W(*66)	09/1989 - 05/1990	1
82161-2H180	ST184..GTS;ST184..LB..GT..CND;ST184..LB..ATM..GT..USA W(*66)	08/1991 - 09/1993	1
82161-2B772	ST184..GTS;ST184..LB..GT..CND;ST184..LB..ATM..GT..USA	08/1992 - 09/1993	1
82163 - WIRE, FLOOR, NO.3
82163-20100	ST184	09/1989 - 08/1990	1
82163-20100	AT180,ST184	08/1990 - 08/1991	1
82163-20250	ST184..GTS;ST184..CVT	11/1992 - 09/1993	1
82163-20250	ST184..LB..CND;ST184..CP..MTM..CND	08/1991 - 09/1991	1
82163-20250	ST184	09/1991 - 11/1992	1
82164 - WIRE, FRAME
82164-20070	ST184..GTS W(POWER SEAT)	08/1990 - 08/1991	1
82164-20070	ST184..GTS W(POWER SEAT)	08/1991 - 09/1993	1
82164-20070	ST184..GTS W(POWER SEAT)	09/1989 - 08/1990	1
82164-20030	AT180,ST184..CP,LB	09/1989 - 09/1993	1
82167 - WIRE, SEAT, NO.1
82167-20050	ST184..CP;ST18#..WIB	09/1989 - 09/1993	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-2B581	ST184..LB W(*66)	08/1991 - 09/1993	2
82817-2B581	AT180,ST18#	05/1990 - 09/1993	1
82817-2B580	AT180,ST18#	09/1989 - 05/1990	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-2B601	AT180,ST18#	05/1990 - 09/1993	1
82817-2B600	AT180,ST18#	09/1989 - 05/1990	1
Common parts
82711-14110
90119-06005
90119-06390

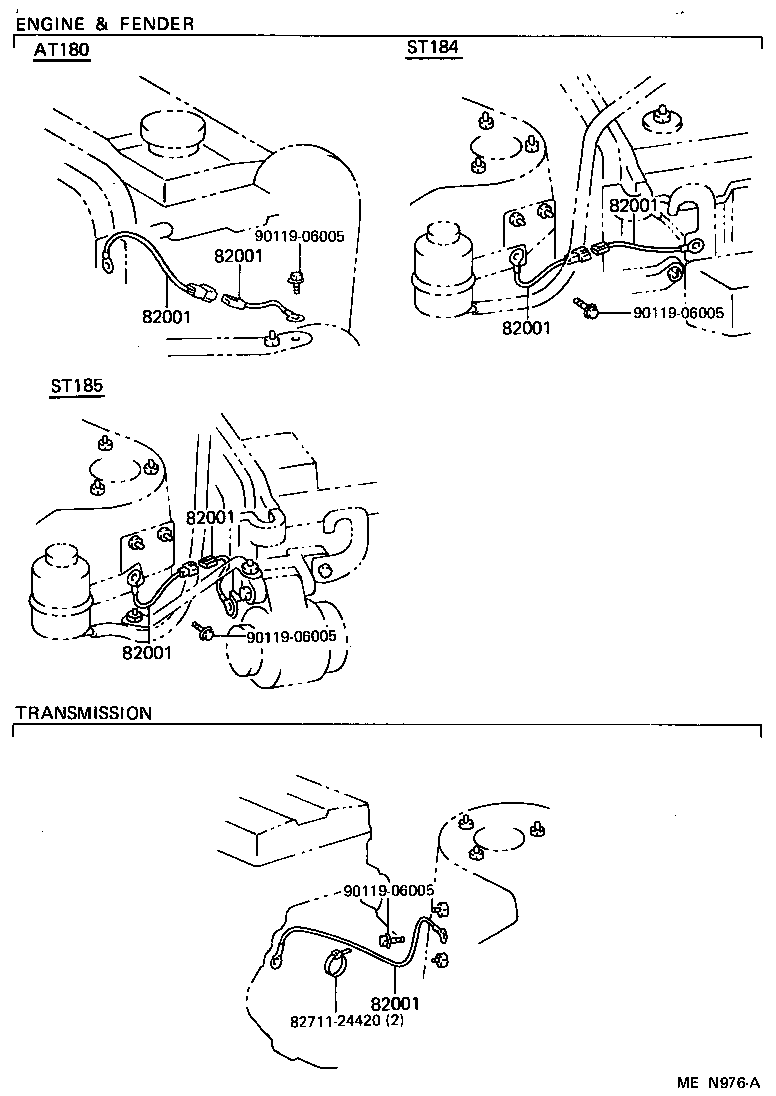

ILLUST NO. 8 OF 9(8909- )

Click highlighted areas on diagram

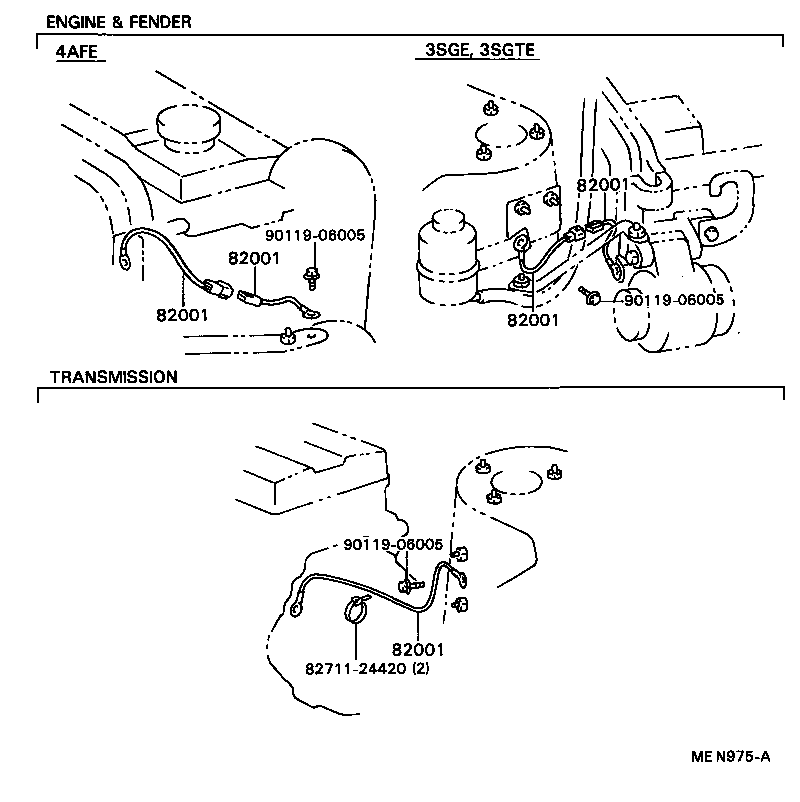

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07280	ST184 ENGINE HANGER	09/1989 - 09/1993	1
90980-07264	AT180,ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	AT180,ST18# FENDER RH	09/1989 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07280	ST184 ENGINE HANGER	09/1989 - 09/1993	1
90980-07264	AT180,ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	AT180,ST18# FENDER RH	09/1989 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07280	ST184 ENGINE HANGER	09/1989 - 09/1993	1
90980-07264	AT180,ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	AT180,ST18# FENDER RH	09/1989 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07280	ST184 ENGINE HANGER	09/1989 - 09/1993	1
90980-07264	AT180,ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	AT180,ST18# FENDER RH	09/1989 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07280	ST184 ENGINE HANGER	09/1989 - 09/1993	1
90980-07264	AT180,ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	AT180,ST18# FENDER RH	09/1989 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07280	ST184 ENGINE HANGER	09/1989 - 09/1993	1
90980-07264	AT180,ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	AT180,ST18# FENDER RH	09/1989 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07280	ST184 ENGINE HANGER	09/1989 - 09/1993	1
90980-07264	AT180,ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	AT180,ST18# FENDER RH	09/1989 - 09/1993	1
Common parts
82711-24420
90119-06005

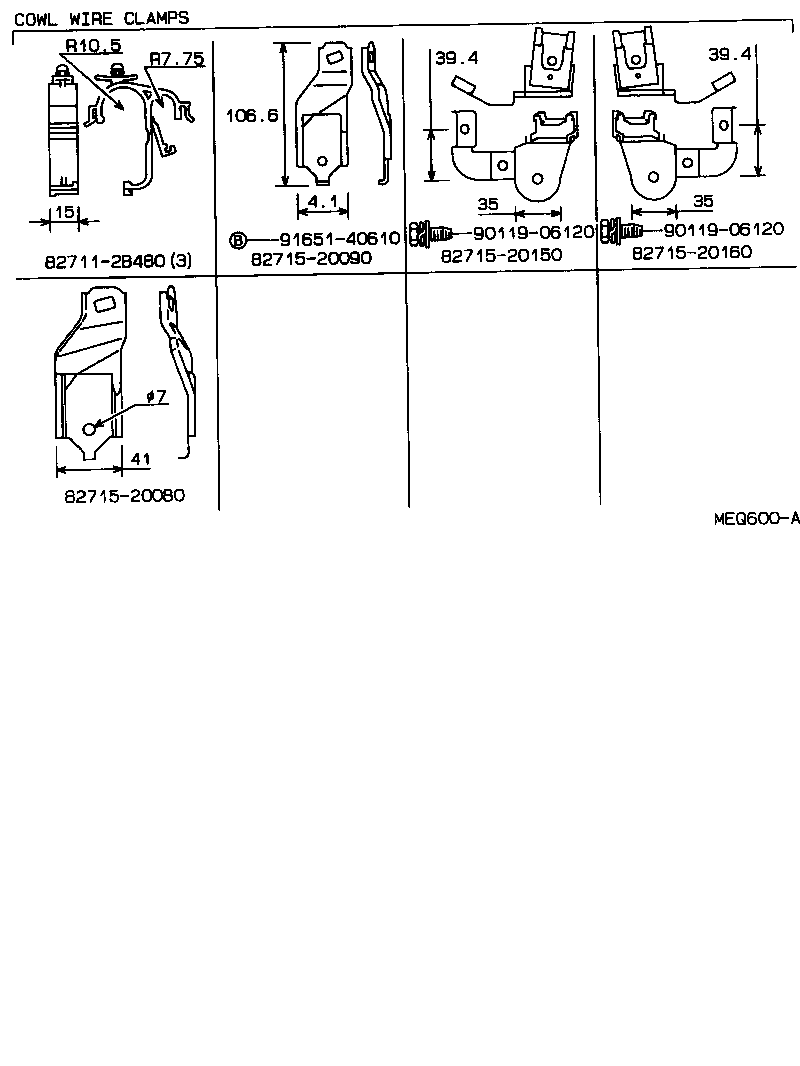

ILLUST NO. 5 OF 9(8909- )

Click highlighted areas on diagram

COWL WIRE CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82711-2B480
82715-20080
82715-20090
82715-20150
82715-20160
90119-06120
91651-40610

ILLUST NO. 9 OF 9(8909- )

Click highlighted areas on diagram

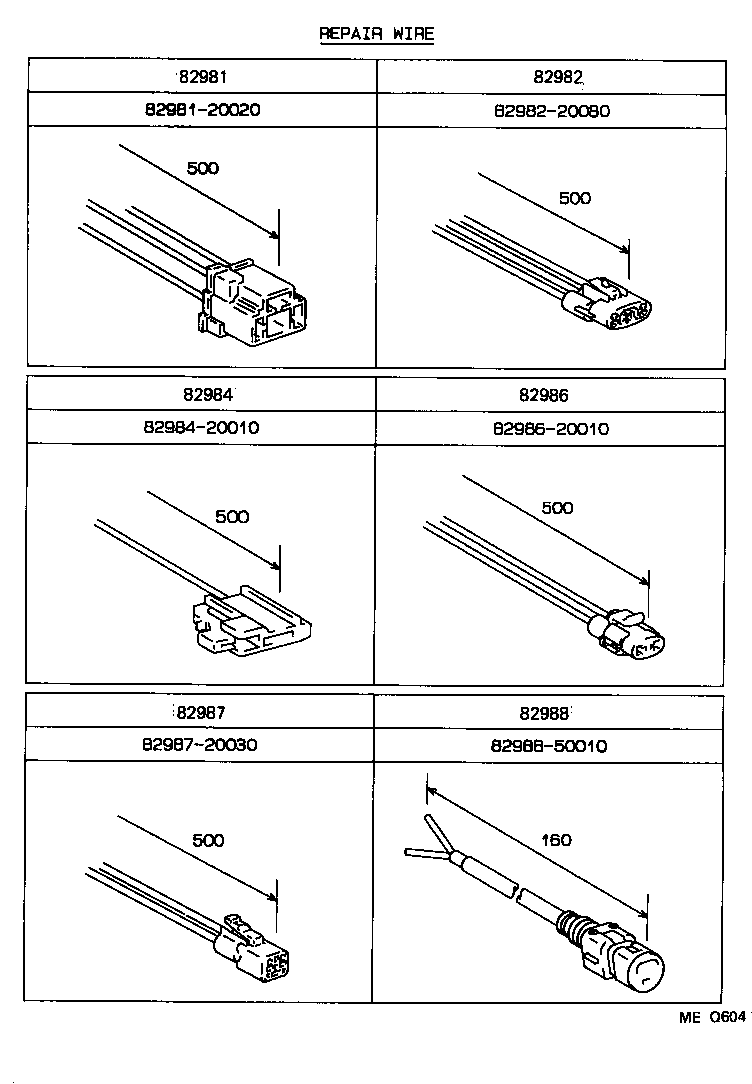

REPAIR WIRE

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-20020	AT180,ST18#	09/1989 - 09/1993	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-20080	AT180,ST18#	09/1989 - 09/1993	1
82984 - WIRE, HORN REPAIR
82984-20010	AT180,ST18#	09/1989 - 09/1993	1
82986 - WIRE, SIDE MARKER LAMP REPAIR
82986-20010	AT180,ST18#	09/1989 - 09/1993	1
82987 - WIRE, FOG LAMP REPAIR
82987-20030	AT180,ST18#	09/1989 - 09/1993	1
82988 - WIRE, AIR BAG REPAIR
82988-50010	AT180,ST18#	09/1989 - 09/1993	1
Common parts
82981-20020
82982-20080
82984-20010
82986-20010
82987-20030
82988-50010

ILLUST NO. 9 OF 9(8909- )

Click highlighted areas on diagram

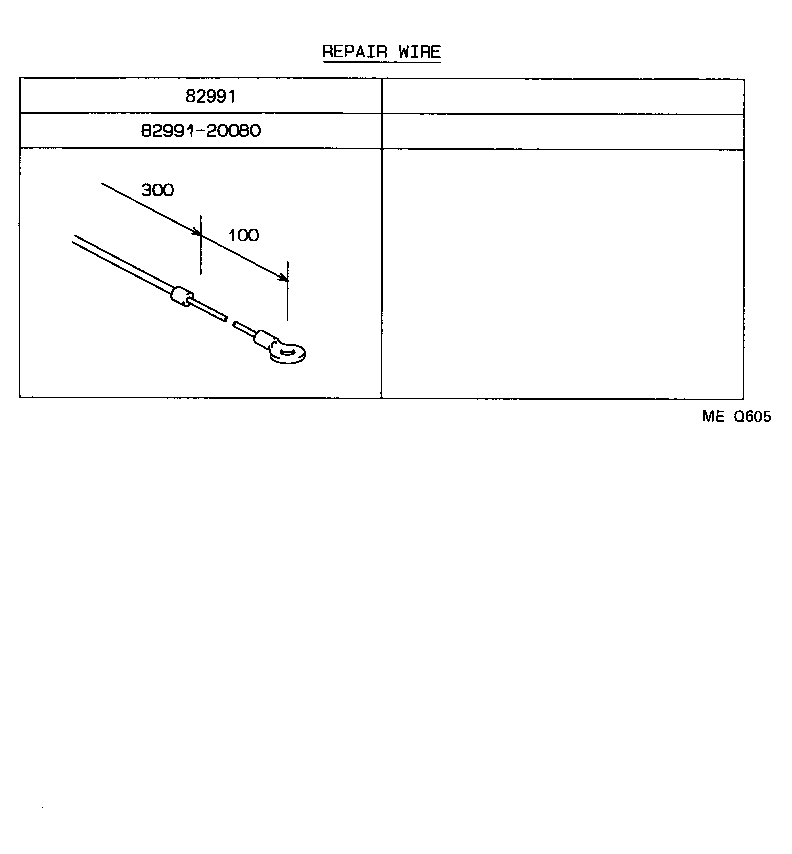

REPAIR WIRE

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20080	AT180,ST18#	09/1989 - 09/1993	1
Common parts
82991-20080

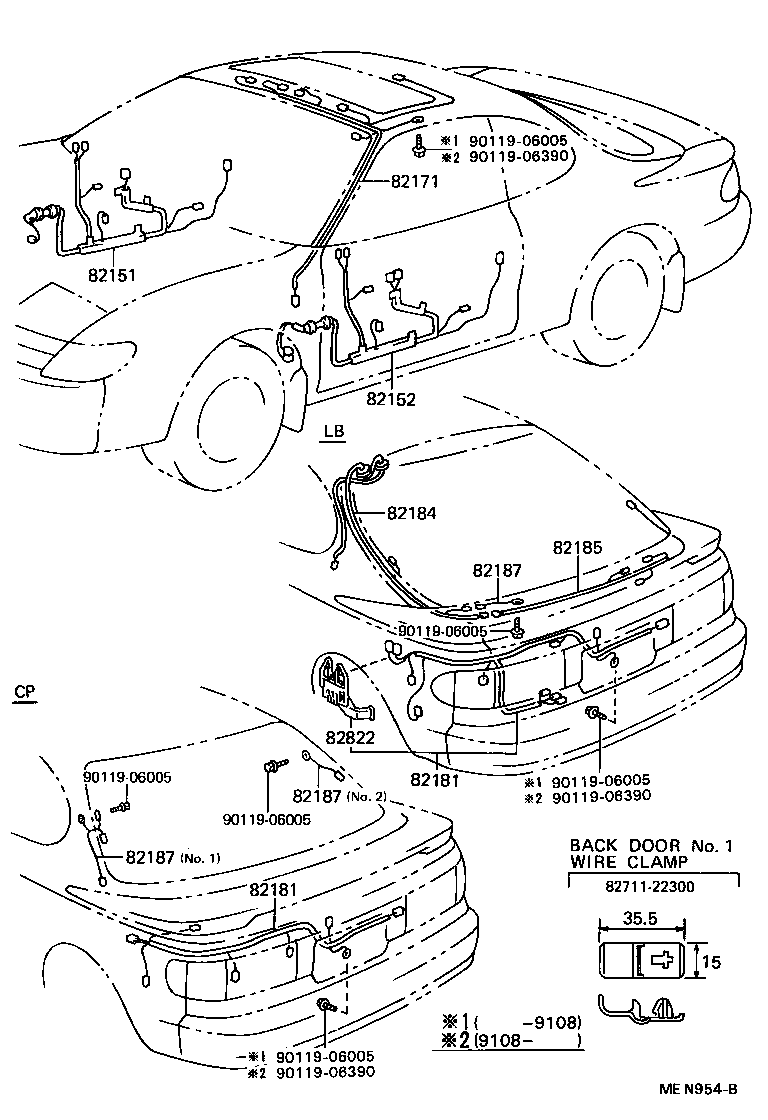

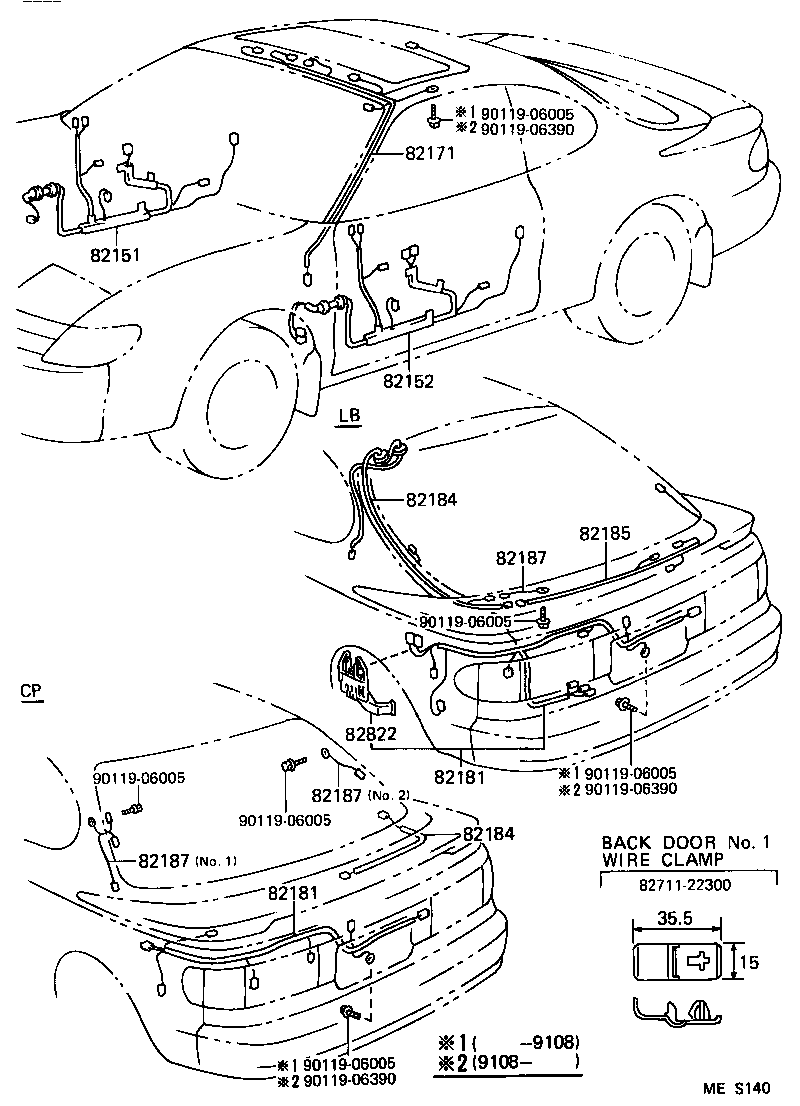

ILLUST NO. 6 OF 9(8909- )CP,LB

Click highlighted areas on diagram

DOOR,ROOF,LUGGAGE WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-2B180	ST184..GT	09/1989 - 04/1990	1
82151-2B250	ST184..(CP,LB)..GT W(PW & 10SP);W(PW & 6SP)	09/1989 - 08/1990	1
82151-2B220	ST184..GTS	09/1989 - 04/1990	1
82151-2B220	ST184..GT W(6SP)	09/1989 - 04/1990	1
82151-2B221	ST184..GT W(6SP)	08/1990 - 08/1991	1
82151-2B221	ST184..GT W(6SP)	04/1990 - 08/1990	1
82151-2B250	ST184..GT..CND W(PW & 6SP) OR W(PW & 10SP)	08/1990 - 08/1991	1
82151-2B221	ST184..(CP,LB)..GT W(6SP)	08/1991 - 09/1991	1
82151-2B250	ST184..GTS W(*PW)	09/1989 - 09/1993	1
82151-2B221	ST184..GT W(6SP)	09/1991 - 11/1992	1
82151-2B250	ST184..(CP,LB)..GT W(PW & 10SP);W(PW & 6SP)	08/1991 - 11/1992	1
82151-2B230	ST184..(CP,LB)..GT W(*PW)	09/1989 - 09/1993	1
82151-2B221	ST184..GTS	04/1990 - 09/1993	1
82151-2B181	ST184..(CP,LB)..GT	04/1990 - 09/1993	1
82151-2B221	ST184..(CP,LB)..GT W(6SP)	11/1992 - 09/1993	1
82151-2B250	ST184..(CP,LB)..GT W(*PW & 6SP)	11/1992 - 09/1993	1
82152 - WIRE, FRONT DOOR, LH
82152-2B060	ST184..GT W(6SP)	09/1989 - 04/1990	1
82152-2B060	ST184..GTS	09/1989 - 04/1990	1
82152-2B061	ST184..GT W(6SP)	04/1990 - 08/1990	1
82152-2B050	ST184..GT	09/1989 - 04/1990	1
82152-2B090	ST184..(CP,LB)..GT W(PW & 6SP) OR W(PW & 10SP)	08/1990 - 08/1991	1
82152-2B090	ST184..(CP,LB)..GT W(PW & 10SP);W(PW & 6SP)	09/1989 - 08/1990	1
82152-2B090	ST184..(CP,LB)..GT W(PW & 10SP);W(PW & 6SP)	08/1991 - 11/1992	1
82152-2B061	ST184..(CP,LB)..GT W(6SP)	08/1991 - 09/1991	1
82152-2B061	ST184..GT W(6SP)	09/1991 - 11/1992	1
82152-2B051	ST184..(CP,LB)..GT	04/1990 - 09/1993	1
82152-2B070	ST184..(CP,LB)..GT W(*PW)	09/1989 - 09/1993	1
82152-2B061	ST184..GT W(6SP)	08/1990 - 08/1991	1
82152-2B061	ST184..GTS	04/1990 - 09/1993	1
82152-2B090	ST184..GTS W(*PW)	09/1989 - 09/1993	1
82152-2B061	ST184..(CP,LB)..GT W(6SP)	11/1992 - 09/1993	1
82152-2B090	ST184..(CP,LB)..GT W(*PW & 6SP)	11/1992 - 09/1993	1
82171 - WIRE, ROOF, NO.1
82171-20430	AT180,ST18#..CP,LB	09/1989 - 09/1993	1
82171-20530	AT180,ST18#..CP,LB W(SUN ROOF)	09/1989 - 09/1993	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20500	ST184..LB	09/1989 - 09/1993	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20500	ST184..LB	09/1989 - 09/1993	1
82184 - WIRE, BACK DOOR, NO.1
82184-20100	ST184..LB..MTM;ST184..ATM..GTS;ST184..LB..ATM..GT..CND	09/1989 - 08/1991	1
82184-20100	ST184..LB	08/1991 - 09/1993	1
82184-20110	ST184..LB W(REAR WINDOW WIPER)	08/1991 - 09/1993	1
82184-20110	ST184..LB..MTM;ST184..ATM..GTS;ST184..LB..ATM..GT..CND W(REAR WINDOW WIPER)	09/1989 - 08/1991	1
82184 - WIRE, BACK DOOR, NO.1
82184-20100	ST184..LB..MTM;ST184..ATM..GTS;ST184..LB..ATM..GT..CND	09/1989 - 08/1991	1
82184-20100	ST184..LB	08/1991 - 09/1993	1
82184-20110	ST184..LB W(REAR WINDOW WIPER)	08/1991 - 09/1993	1
82184-20110	ST184..LB..MTM;ST184..ATM..GTS;ST184..LB..ATM..GT..CND W(REAR WINDOW WIPER)	09/1989 - 08/1991	1
82185 - WIRE, BACK DOOR, NO.2
82185-20330	ST184..LB W(REAR WINDOW WIPER)	09/1989 - 09/1993	1
82185-20320	ST184..LB	09/1989 - 09/1993	1
82187 - WIRE, REAR WINDOW, NO.2
82187-20140	ST18#..LB NO.1	09/1989 - 09/1993	1
82187 - WIRE, REAR WINDOW, NO.2
82187-20140	ST18#..LB NO.1	09/1989 - 09/1993	1
82187 - WIRE, REAR WINDOW, NO.2
82187-20140	ST18#..LB NO.1	09/1989 - 09/1993	1
82822 - BRACKET,CONNECTOR BLOCK
82822-20010	ST18#..LB	09/1989 - 09/1993	1
Common parts
82711-22300
90119-06005
90119-06390

ILLUST NO. 3 OF 9(8910- )

Click highlighted areas on diagram

ENGINE WIRE CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82711-1A410
82711-1A500
82711-20730
82711-24420
82711-2B730
82711-2B770
82711-32460
82715-20010
82715-20020
82715-20030
82715-20040
82715-20050
82715-20060
82715-20070
82715-20110
82715-20120
90119-06120
90119-06311
90179-06223
91611-60816
91651-60612

ILLUST NO. 6 OF 9(8910- )CP,LB

Click highlighted areas on diagram

DOOR,ROOF,LUGGAGE WIRE

Part #	Description	Period	Qty	Price
Common parts
82711-22300
90119-06005
90119-06390

ILLUST NO. 7 OF 9(8910- )CP,LB

Click highlighted areas on diagram

FLOOR,FRAME WIRE

Part #	Description	Period	Qty	Price
Common parts
90119-06005
90119-06390

ILLUST NO. 8 OF 9(8910- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty	Price
Common parts
82711-24420
90119-06005

ILLUST NO. 9 OF 9(8910- )

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty	Price
Common parts
82981-20020
82982-22050
82983-20040
82983-20041
82984-20010
82987-20030

ILLUST NO. 9 OF 9(8910- )

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty	Price
Common parts
82991-20080
82991-20090

ILLUST NO. 5 OF 9(8910- )

Click highlighted areas on diagram

COWL WIRE DIODE

Part #	Description	Period	Qty	Price
Common parts
82345-20040
82345-20050
82345-32010

ST184L-BLPVKK (1989)

ILLUST NO. 1 OF 9(8909- )

ILLUST NO. 2 OF 9(8909- )ST184

ILLUST NO. 3 OF 9(8909- )

ILLUST NO. 4 OF 9(8909- )

ILLUST NO. 7 OF 9(8909- )CP,LB

ILLUST NO. 8 OF 9(8909- )

ILLUST NO. 5 OF 9(8909- )

ILLUST NO. 9 OF 9(8909- )

ILLUST NO. 9 OF 9(8909- )

ILLUST NO. 6 OF 9(8909- )CP,LB

ILLUST NO. 3 OF 9(8910- )

ILLUST NO. 6 OF 9(8910- )CP,LB

ILLUST NO. 7 OF 9(8910- )CP,LB

ILLUST NO. 8 OF 9(8910- )

ILLUST NO. 9 OF 9(8910- )

ILLUST NO. 9 OF 9(8910- )

ILLUST NO. 5 OF 9(8910- )

Part Price Details
