ST184L-BLPVKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

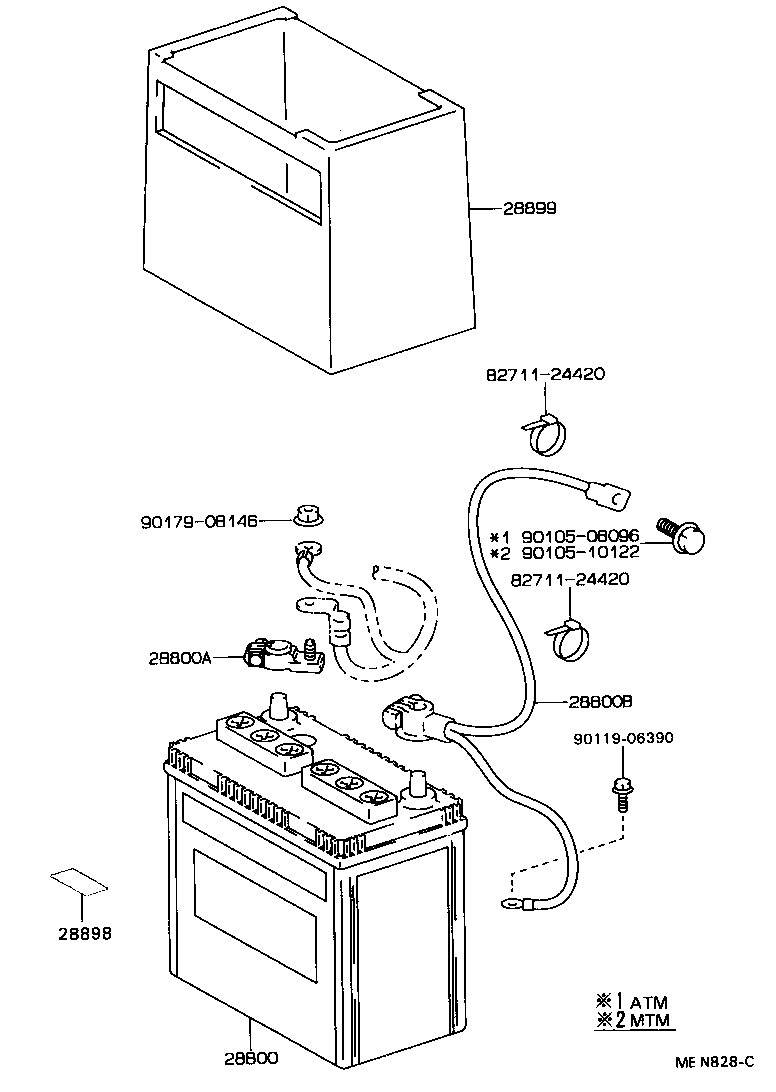

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-43250 |
4AFE,3SGTE,5SFE..AT180,ST18# 55D23L |
1 | ||
| 28800-74150 |
5SFE..ST184 75D26L |
1 | ||
| 28800-74150 |
5SFE..ST184..CP,LB 75D26L |
1 | ||
| 28800-74151 |
5SFE..ST184 75D26L |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05030 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 82123-20181 |
3SGTE,5SFE..ST18#..CP,LB |
1 | ||
| 82123-20180 |
3SGTE,5SFE..ST18# |
1 | ||
| 82123-20181 |
3SGTE,5SFE..ST18# |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-38010 |
4AFE,3SGTE,5SFE..AT180,ST18#..CND |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-74070 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 28899-74090 |
5SFE..ST184 |
1 | ||
| 28899-74090 |
5SFE..ST184..CP,LB |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90179-08146 | ||||
(8910- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24420 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90179-08146 | ||||
