ST184L-BLPVKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )LB

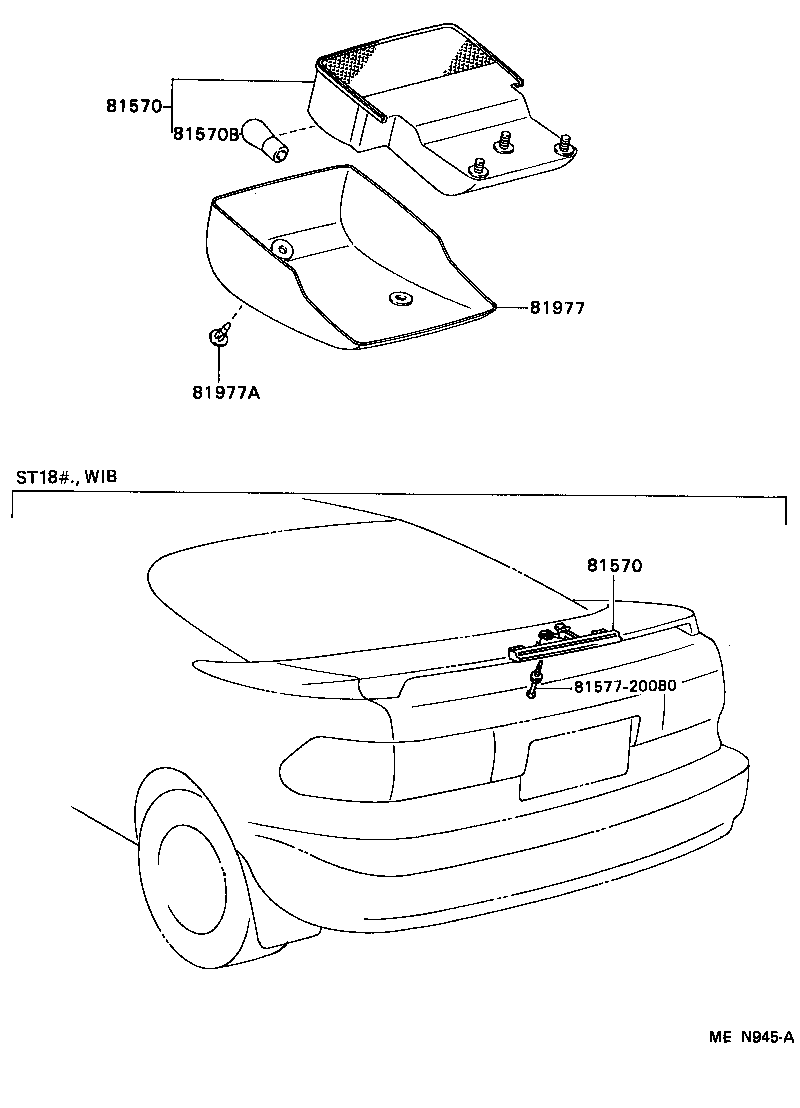

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81570 - LAMP ASSY, CENTER STOP | ||||
| 81570-20080 |
ST18#..WIB |
1 | ||
| 81570-20070 |
ST184..LB..GT |
1 | ||
| 81570 - LAMP ASSY, CENTER STOP | ||||
| 81570-20080 |
ST18#..WIB |
1 | ||
| 81570-20070 |
ST184..LB..GT |
1 | ||
| 81570B - BULB (FOR CENTER STOP LAMP) | ||||
| 99132-11270 |
ST184..LB..GT 12V 27W |
2 | ||
| 81977 - COVER, CENTER STOP LAMP | ||||
| 81977-2004003 |
ST184..LB..GT SHADOW GRAY,TRIM1# |
1 | ||
| 81977-2004002 |
ST184..LB..GT RED,TRIM3# |
1 | ||
| 81977-2004004 |
ST184..LB..GT DARK BLUE,TRIM8# |
1 | ||
| 81977A - CLIP (FOR CENTER STOP LAMP) | ||||
| 90467-0705526 |
ST184..LB..GT SABLE,TRIM4# |
3 | ||
| 90467-0705503 |
ST184..LB..GT GRAY,TRIM1# |
3 | ||
| 90467-0705532 |
ST184..LB..GT RED,TRIM3# |
3 | ||
| 90467-07055J0 |
ST184..LB..GT DARK BLUE,TRIM8# |
3 | ||
| 90467-07055B2 |
ST184..LB..GT SHADOW GRAY,TRIM1# |
3 | ||
| Common parts | ||||
| 81577-20080 | ||||
