ST184L-BLPVKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
5SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )LB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61567 - PLATE, QUARTER PANEL END, RH | ||||
| 61567-20040 |
ST18#..LB |
1 | ||
| 61568 - PLATE, QUARTER PANEL END, LH | ||||
| 61568-20030 |
ST18#..LB |
1 | ||
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-20050 |
AT180,ST18# |
1 | ||
| 62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH | ||||
| 62860-20060 |
AT180,ST18# |
1 | ||
| 62861A - GASKET, ROOM PRESSURE RELIEF VALVE, RH | ||||
| 62861-20050 |
AT180,ST18# |
1 | ||
| 62862A - GASKET, ROOM PRESSURE RELIEF VALVE, LH | ||||
| 62862-20040 |
AT180,ST18# |
1 | ||
| 62933E - DUCT, QUARTER VENT, INNER RH | ||||
| 62933-20040 |
AT180,ST18# |
1 | ||
| 62934B - DUCT, QUARTER VENT, INNER LH | ||||
| 62934-20040 |
AT180,ST18# |
1 | ||
| 62937A - PACKING, QUARTER VENT DUCT, RH | ||||
| 62937-20050 |
AT180,ST18# |
1 | ||
| 62938A - PACKING, QUARTER VENT DUCT, LH | ||||
| 62938-20020 |
AT180,ST18# |
1 | ||
| 62945A - RETAINER, QUARTER VENT DUCT, NO.3 | ||||
| 62945-20010 |
AT180,ST18# |
1 | ||
| 62946 - RETAINER, QUARTER VENT DUCT, NO.4 | ||||
| 62946-20010 |
AT180,ST18# |
1 | ||
| 62963B - PLATE, QUARTER VENT LOUVER, RH | ||||
| 62963-20050 |
AT180,ST18# |
1 | ||
| 62964B - PLATE, QUARTER VENT LOUVER, LH | ||||
| 62964-20030 |
AT180,ST18# |
1 | ||
| Common parts | ||||
| 90164-40089 | ||||
| 90168-50039 | ||||
| 90189-04035 | ||||
| 90189-05095 | ||||
(8910- )LB

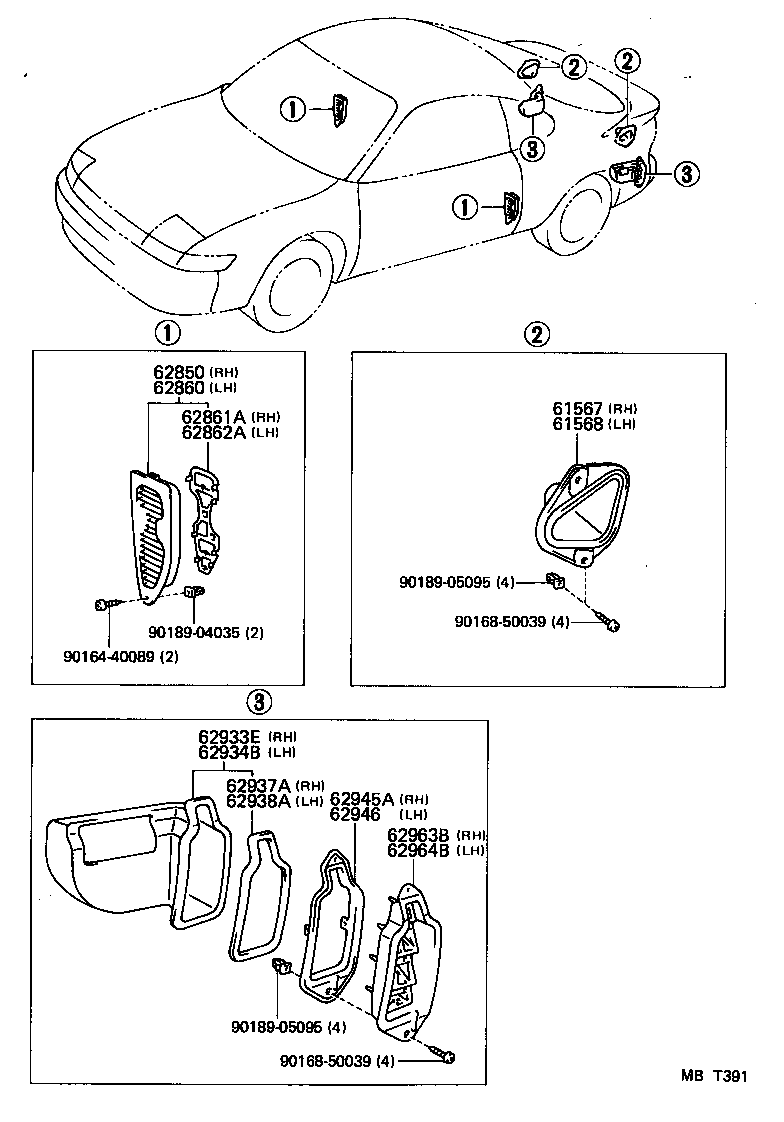

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-40089 | ||||
| 90168-50039 | ||||
| 90189-04035 | ||||
| 90189-05095 | ||||
