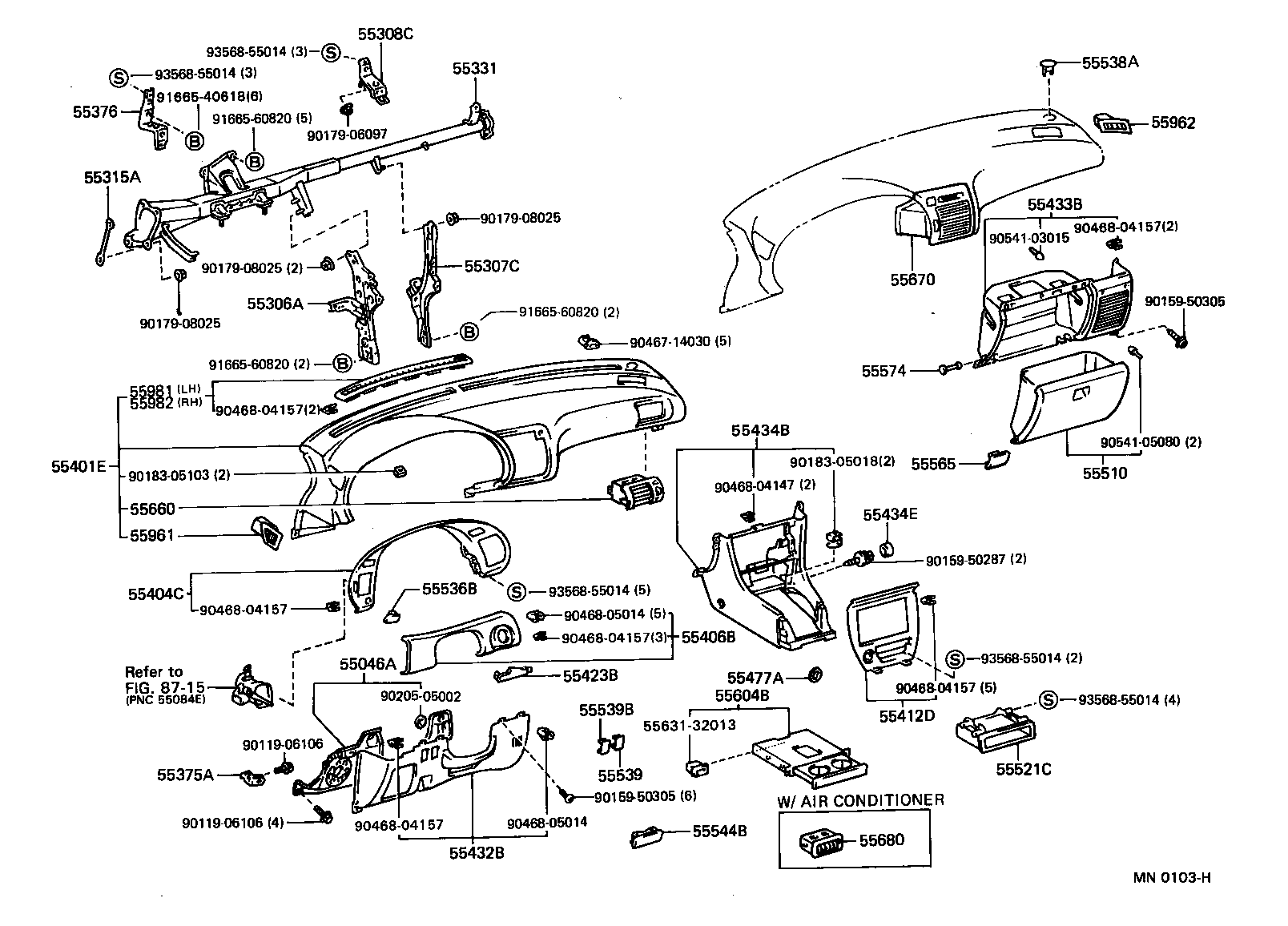

Toyota Celica ST184 INSTRUMENT PANEL & GLOVE COMPARTMENT

Part #	Description	Period	Qty
55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH
55046-20010	AT180,ST18#	08/1992 - 09/1993	1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-20180	AT180,ST18#	08/1992 - 09/1993	1
55306-20190	AT180,ST18#..CND	09/1989 - 08/1992	1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-20170	AT180,ST18#	09/1989 - 09/1993	1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-20160	AT180,ST18#	09/1989 - 09/1993	1
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-20060	AT180,ST18# T=0.5	09/1989 - 09/1993	1
55315-20040	AT180,ST18# T=1.5	09/1989 - 09/1993	1
55315-20050	AT180,ST18# T=1.0	09/1989 - 09/1993	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-20140	AT180,ST18#..CND	09/1989 - 08/1992	1
55330-20130	AT180,ST18#	08/1992 - 09/1993	1
55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55375-20020	AT180,ST18#	08/1992 - 09/1993	1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-20080	AT180,ST18#	09/1989 - 09/1993	1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-2058016	ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55401-2058004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55401-2058003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55401-2058004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55401-2058002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-20280	AT180,ST18#	09/1989 - 09/1993	1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-20050	AT180,ST18#	09/1989 - 09/1993	1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-20400	AT180,ST18#	09/1989 - 09/1993	1
55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL
55423-20160	AT180,ST18#	09/1989 - 09/1993	1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-2021002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55432-2021004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55432-2021016	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55432-2021003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55432-2021004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-2012004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55433-2012016	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55433-2012002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55433-2012004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55433-2012003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-2015004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55434-2015003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55434-2015002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55434-2015004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55434-2015016	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55434E - CAP
90339-1000904	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	2
90339-1000902	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	2
90339-1000906	AT180,ST184..CP,LB SABLE,TRIM4#	08/1990 - 08/1991	2
90339-1000904	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	2
90339-1000903	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	2
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-20090	AT180,ST18#	09/1989 - 09/1993	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-2013002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55501-2013004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55501-2013004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55501-2013003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55501-2013026	AT180,ST184..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55521C - COVER, STEREO OPENING
55521-16030	AT180,ST18#	09/1989 - 09/1993	1
55538A - COVER, COOLER SWITCH HOLE
55538-2006026	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55538-2006004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55538-2006002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55538-2006004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55538-2006003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55539 - COVER, SPARE SWITCH HOLE
55539-2008002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55539-2008026	AT180,ST184..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55539-2008003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55539-2008004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55539-2008004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-2008003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55539-2008002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55539-2008026	AT180,ST184..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55539-2008004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55539-2008004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55544B - COVER, INSTRUMENT PANEL LOWER REGISTER HOLE
55544-2203012	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55544-2203003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1991	1
55544-2203026	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55544-2203014	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55544-2203014	AT180,ST184..CP,LB DARK BLUE,TRIM8#	02/1992 - 09/1993	1
55544-2203003	AT180,ST18# SHADOW GRAY,TRIM1#	02/1992 - 09/1993	1
55544-2203014	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1991	1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-2007003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55565-2007026	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55565-2007004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55565-2007002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55565-2007004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010	AT180,ST18#	09/1989 - 09/1993	2
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-20040	AT180,ST18#	09/1989 - 09/1993	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-2018016	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55660-2018002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55660-2018004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1990 - 09/1993	1
55660-2018003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55660-2018004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1990	1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-2015003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55670-2015002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55670-2015004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55670-2015004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55670-2015016	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-1403026	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55680-1403013	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55680-1403012	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55680-14030J0	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55680-14030J0	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-2019002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55961-2019016	AT180,ST184..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55961-2019004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55961-2019004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55961-2019003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-2019004	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	09/1989 - 08/1991	1
55962-2019003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
55962-2019002	AT180,ST18#..CP,LB RED,TRIM3#	09/1989 - 08/1990	1
55962-2019004	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55962-2019016	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-2011002	AT180,ST18# RED,TRIM3#	09/1989 - 12/1989	1
55981-2011102	AT180,ST18#..CP,LB RED,TRIM3#	12/1989 - 08/1990	1
55981-2011003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 12/1989	1
55981-2011004	AT180,ST18# DARK BLUE,TRIM8#	09/1989 - 12/1989	1
55981-2011104	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	12/1989 - 08/1991	1
55981-2011103	AT180,ST18# SHADOW GRAY,TRIM1#	12/1989 - 09/1993	1
55981-2011104	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
55981-2011106	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55982 - GARNISH, DEFROSTER NOZZLE, NO.2
55982-2011004	AT180,ST18# DARK BLUE,TRIM8#	09/1989 - 12/1989	1
55982-2011102	AT180,ST18#..CP,LB RED,TRIM3#	12/1989 - 08/1990	1
55982-2011104	AT180,ST18#..CP,LB DARK BLUE,TRIM8#	12/1989 - 08/1991	1
55982-2011002	AT180,ST18# RED,TRIM3#	09/1989 - 12/1989	1
55982-2011003	AT180,ST18# SHADOW GRAY,TRIM1#	09/1989 - 12/1989	1
55982-2011106	AT180,ST18#..CP,LB CHOCOLATE BROWN,TRIM4#	08/1990 - 08/1991	1
55982-2011103	AT180,ST18# SHADOW GRAY,TRIM1#	12/1989 - 09/1993	1
55982-2011104	AT180,ST184..CP,LB DARK BLUE,TRIM8#	08/1991 - 09/1993	1
Common parts
55631-32013
90119-06106
90159-50287
90159-50305
90179-06097
90179-08025
90183-05018
90183-05103
90205-05002
90467-14030
90468-04147
90468-04157
90468-05014
90541-03015
90541-05080
91665-40618
91665-60820
93568-55014
Linked diagrams
8715

ST184L-BLPVKK (1989)

(8909- )
