ST184L-BLPVKK (1989)
Toyota Celica
ILLUST NO. 2 OF 2(8909- )
W(ANTI-LOCK BRAKING SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20050 |
ST18#..CP,LB |
1 | ||
| 44510-20050 |
ST18#..WIB |
1 | ||
| 44510-20050 |
ST18# |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
ST18#..WIB |
2 | ||
| 44543-14010 |
ST18#..CP,LB |
2 | ||
| 44543-14010 |
ST18# |
2 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
ST18#..WIB |
2 | ||
| 44543-14010 |
ST18#..CP,LB |
2 | ||
| 44543-14010 |
ST18# |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
ST184..GTS |
3 | ||
| 44545-14010 |
ST18# |
3 | ||
| 44545-14010 |
ST18#..WIB |
3 | ||
| 44545-14010 |
ST18#..CP,LB |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
ST184..GTS |
3 | ||
| 44545-14010 |
ST18# |
3 | ||
| 44545-14010 |
ST18#..WIB |
3 | ||
| 44545-14010 |
ST18#..CP,LB |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-22070 |
ST184..GTS |
3 | ||
| 44545-14010 |
ST18# |
3 | ||
| 44545-14010 |
ST18#..WIB |
3 | ||
| 44545-14010 |
ST18#..CP,LB |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
ST184..GTS |
3 | ||
| 44546-14010 |
ST18#..WIB |
3 | ||
| 44546-14010 |
ST18#..CP,LB |
3 | ||
| 44546-14010 |
ST18# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
ST184..GTS |
3 | ||
| 44546-14010 |
ST18#..WIB |
3 | ||
| 44546-14010 |
ST18#..CP,LB |
3 | ||
| 44546-14010 |
ST18# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-22070 |
ST184..GTS |
3 | ||
| 44546-14010 |
ST18#..WIB |
3 | ||
| 44546-14010 |
ST18#..CP,LB |
3 | ||
| 44546-14010 |
ST18# |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-20011 |
ST18#..WIB |
1 | ||
| 44551-20011 |
ST18# |
1 | ||
| 44551-20011 |
ST18#..CP,LB |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90413-10244 |
ST18#..CP,LB |
1 | ||
| 90413-10244 |
ST18# |
1 | ||
| 90413-10244 |
ST18#..WIB |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-20031 |
ST18#..WIB |
1 | ||
| 44552-20031 |
ST18# |
1 | ||
| 44552-20031 |
ST18#..CP,LB |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-20011 |
ST18#..WIB |
1 | ||
| 44553-20011 |
ST18# |
1 | ||
| 44553-20011 |
ST18#..CP,LB |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-20012 |
ST18# |
1 | ||
| 44554-20012 |
ST18#..WIB |
1 | ||
| 44554-20012 |
ST18#..CP,LB |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-20011 |
ST18# |
1 | ||
| 44555-20011 |
ST18#..WIB |
1 | ||
| 44555-20011 |
ST18#..CP,LB |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-20040 |
ST18#..CP,LB |
1 | ||
| 44591-20040 |
ST18#..WIB |
1 | ||
| 44591-20040 |
ST18# |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-20010 |
ST18#..WIB |
1 | ||
| 44592-20010 |
ST18# |
1 | ||
| 44592-20010 |
ST18#..CP,LB |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-20040 |
ST18#..CP,LB |
1 | ||
| 44593-20040 |
ST18# |
1 | ||
| 44593-20040 |
ST18#..WIB |
1 | ||
| 44595 - BRACKET, BRAKE ACTUATOR, NO.5 | ||||
| 44595-20010 |
ST18# |
1 | ||
| 44595-20010 |
ST18#..CP,LB |
1 | ||
| 44595-20010 |
ST18#..WIB |
1 | ||
| 44598A - COVER, BRAKE ACTUATOR | ||||
| 44598-20020 |
ST18#..CP,LB |
1 | ||
| 44598-20020 |
ST18# |
1 | ||
| 44598-20010 |
ST18#..WIB |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12100 |
ST184..GTS W(*66) |
1 | ||
| 47150-20130 |
ST184..GT |
1 | ||
| 47150-32060 |
ST184..CP,LB W(*66) |
1 | ||
| 47150-16040 |
ST184..CP,LB |
1 | ||
| 47150-20140 |
ST184..GTS |
1 | ||
| Common parts | ||||
| 90091-40608 | ||||
| 90099-04400 | ||||
| 90119-08778 | ||||
| 90179-10074 | ||||
| 90467-11064 | ||||
| 90949-01582 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||
| 91661-60814 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||

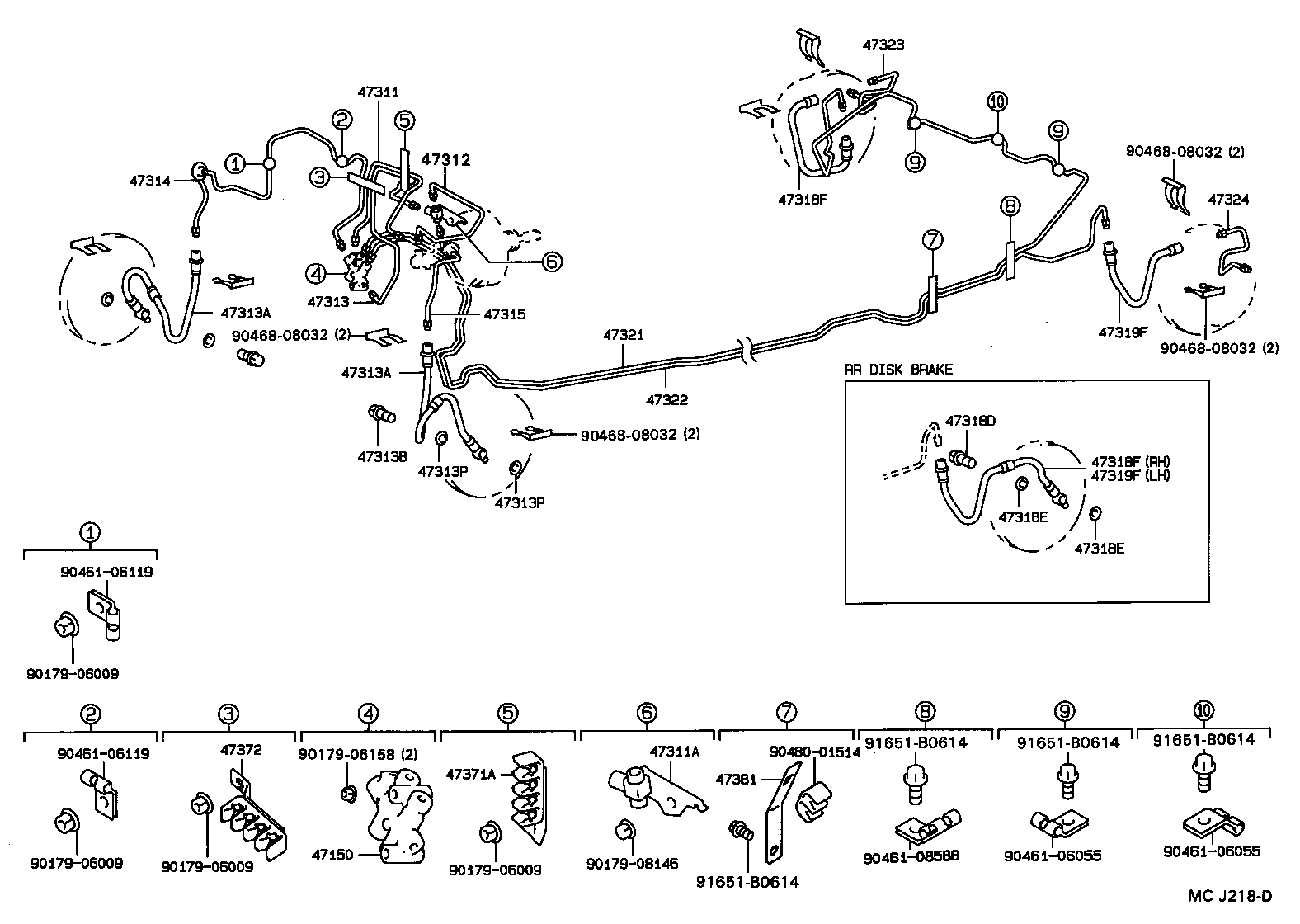

(8909- )AT180,ST184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12100 |
ST184..GTS W(*66) |
1 | ||
| 47150-20130 |
ST184..GT |
1 | ||
| 47150-32060 |
ST184..CP,LB W(*66) |
1 | ||
| 47150-16040 |
ST184..CP,LB |
1 | ||
| 47150-20140 |
ST184..GTS |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20730 |
ST18#..WIB W(*66) |
1 | ||
| 47311-20831 |
ST18# W(*66) |
1 | ||
| 47311-20710 |
AT180,ST18# |
1 | ||
| 47311-20831 |
ST18#..CP,LB W(*66) |
1 | ||
| 47311-20810 |
AT180,ST18#..CP,LB |
1 | ||
| 47311-20810 |
AT180,ST18# |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10149 |
ST18#..CP,LB W(*66) |
1 | ||
| 90412-10149 |
ST18#..WIB W(*66) |
1 | ||
| 90412-10149 |
ST18# W(*66) |
1 | ||
| 90413-10182 |
AT180,ST18# |
1 | ||
| 90413-10182 |
ST184 |
2 | ||
| 90413-10182 |
ST184..CP,LB |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20190 |
ST184..CP,LB |
2 | ||
| 47312-20190 |
ST184 |
2 | ||
| 47312-20190 |
AT180,ST18# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20480 |
AT180,ST18# |
1 | ||
| 47313-20601 |
ST18#..CP,LB W(*66) |
1 | ||
| 47313-20580 |
AT180,ST18# |
1 | ||
| 47313-20580 |
AT180,ST18#..CP,LB |
1 | ||
| 47313-20601 |
ST18# W(*66) |
1 | ||
| 47313-20500 |
ST18#..WIB W(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
AT180,ST18# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
AT180,ST18# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AT180,ST18# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT180,ST18# |
4 | ||
| 47389-30010 |
AT180,ST18#..CP,LB |
4 | ||
| 47389-30010 |
AT180,ST18# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT180,ST18# |
4 | ||
| 47389-30010 |
AT180,ST18#..CP,LB |
4 | ||
| 47389-30010 |
AT180,ST18# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20390 |
ST18#..WIB W(*66) |
1 | ||
| 47314-20360 |
AT180,ST18# |
1 | ||
| 47314-20450 |
AT180,ST18#..CP,LB |
1 | ||
| 47314-20450 |
AT180,ST18# |
1 | ||
| 47314-20490 |
ST18# W(*66) |
1 | ||
| 47314-20490 |
ST18#..CP,LB W(*66) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20490 |
AT180,ST18# |
1 | ||
| 47315-20491 |
AT180,ST18# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18#..WIB |
2 | ||
| 90401-10015 |
ST18# |
2 | ||
| 90401-10015 |
ST18#..CP,LB |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST18# |
4 | ||
| 47389-30010 |
ST18#..CP,LB |
4 | ||
| 90430-10074 |
ST18#..WIB |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST18# |
4 | ||
| 47389-30010 |
ST18#..CP,LB |
4 | ||
| 90430-10074 |
ST18#..WIB |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02598 |
ST184..CP,LB |
1 | ||
| 90947-02598 |
ST184 |
1 | ||
| 90947-02598 |
ST184..GTS |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02598 |
ST184..CP,LB |
1 | ||
| 90947-02598 |
ST184 |
1 | ||
| 90947-02598 |
ST184..GTS |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02598 |
ST184..CP,LB |
1 | ||
| 90947-02598 |
ST184..GTS |
1 | ||
| 90947-02598 |
ST184 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02598 |
ST184..CP,LB |
1 | ||
| 90947-02598 |
ST184..GTS |
1 | ||
| 90947-02598 |
ST184 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20280 |
AT180,ST184 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20410 |
AT180,ST184 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20220 |
AT180,ST18# |
1 | ||
| 47371-20250 |
AT180,ST18# |
1 | ||
| 47371-20040 |
ST18# W(*66) |
1 | ||
| 47371-20070 |
ST18#..WIB W(*66) |
2 | ||
| 47371-20250 |
AT180,ST18#..CP,LB |
1 | ||
| 47371-20040 |
ST18#..CP,LB W(*66) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20060 |
AT180,ST18# |
1 | ||
| 47371-20260 |
AT180,ST18#..CP,LB |
1 | ||
| 47371-20270 |
ST18#..CP,LB W(*66) |
2 | ||
| 47371-20040 |
ST18#..WIB W(*66) |
1 | ||
| 47371-20270 |
ST18# W(*66) |
2 | ||
| 47371-20260 |
AT180,ST18# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-20090 |
AT180,ST184 |
1 | ||
| Common parts | ||||
| 90168-08032 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-06119 | ||||
| 90461-08588 | ||||
| 90468-08032 | ||||
| 90480-01514 | ||||
| 91651-B0614 | ||||

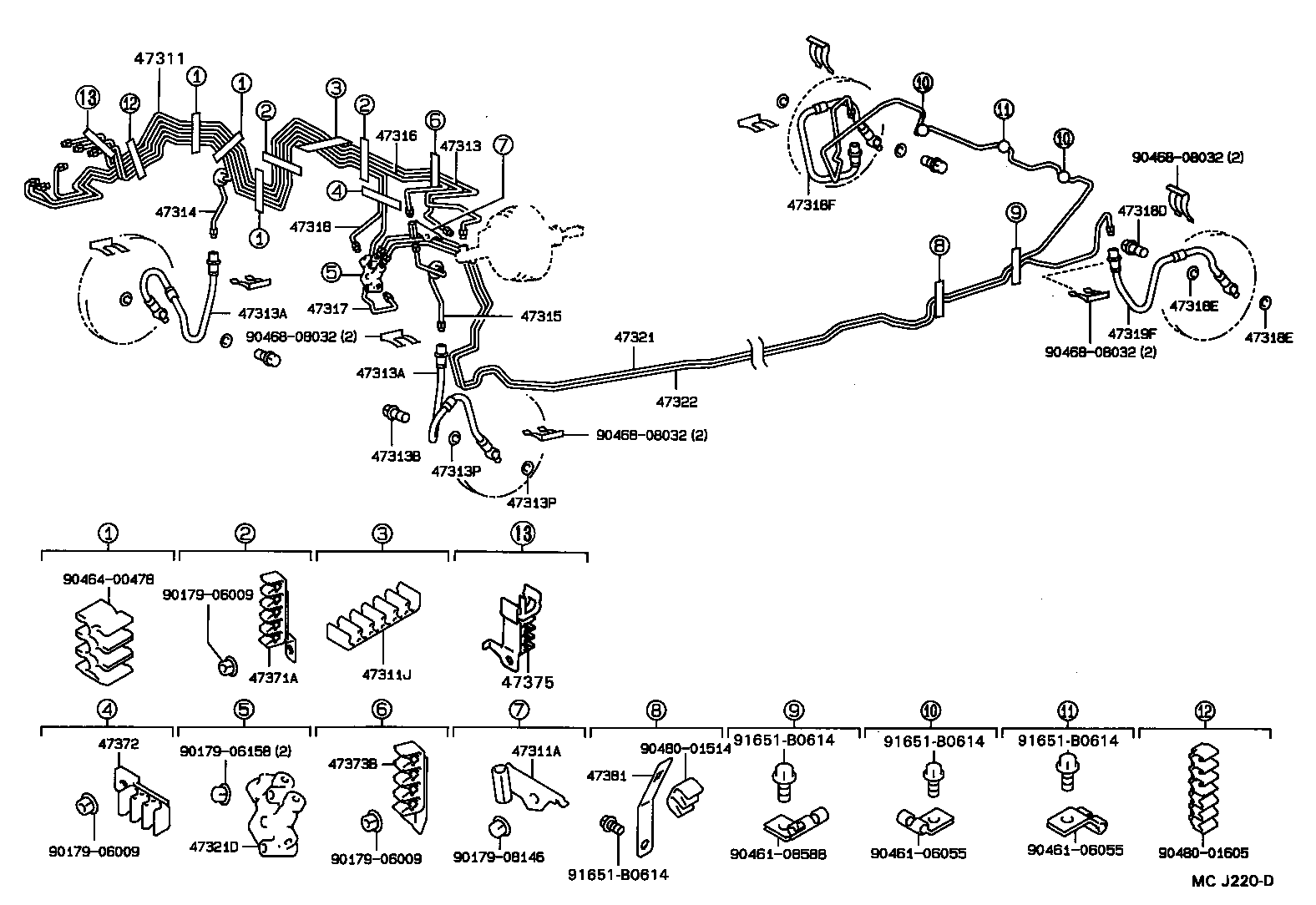

ILLUST NO. 1 OF 2(8909- )ST184
W(ANTI-LOCK BRAKING SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20730 |
ST18#..WIB W(*66) |
1 | ||
| 47311-20831 |
ST18# W(*66) |
1 | ||
| 47311-20710 |
AT180,ST18# |
1 | ||
| 47311-20831 |
ST18#..CP,LB W(*66) |
1 | ||
| 47311-20810 |
AT180,ST18#..CP,LB |
1 | ||
| 47311-20810 |
AT180,ST18# |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10149 |
ST18#..CP,LB W(*66) |
1 | ||
| 90412-10149 |
ST18#..WIB W(*66) |
1 | ||
| 90412-10149 |
ST18# W(*66) |
1 | ||
| 90413-10182 |
AT180,ST18# |
1 | ||
| 90413-10182 |
ST184 |
2 | ||
| 90413-10182 |
ST184..CP,LB |
2 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90480-01433 |
ST18# |
1 | ||
| 90480-01433 |
ST18#..WIB |
1 | ||
| 90480-01433 |
ST18#..CP,LB |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20480 |
AT180,ST18# |
1 | ||
| 47313-20601 |
ST18#..CP,LB W(*66) |
1 | ||
| 47313-20580 |
AT180,ST18# |
1 | ||
| 47313-20580 |
AT180,ST18#..CP,LB |
1 | ||
| 47313-20601 |
ST18# W(*66) |
1 | ||
| 47313-20500 |
ST18#..WIB W(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
AT180,ST18# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
AT180,ST18# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AT180,ST18# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT180,ST18# |
4 | ||
| 47389-30010 |
AT180,ST18#..CP,LB |
4 | ||
| 47389-30010 |
AT180,ST18# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AT180,ST18# |
4 | ||
| 47389-30010 |
AT180,ST18#..CP,LB |
4 | ||
| 47389-30010 |
AT180,ST18# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20390 |
ST18#..WIB W(*66) |
1 | ||
| 47314-20360 |
AT180,ST18# |
1 | ||
| 47314-20450 |
AT180,ST18#..CP,LB |
1 | ||
| 47314-20450 |
AT180,ST18# |
1 | ||
| 47314-20490 |
ST18# W(*66) |
1 | ||
| 47314-20490 |
ST18#..CP,LB W(*66) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20490 |
AT180,ST18# |
1 | ||
| 47315-20491 |
AT180,ST18# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20511 |
ST18# |
1 | ||
| 47316-20511 |
ST18#..CP,LB |
1 | ||
| 47316-20470 |
ST18#..WIB |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20151 |
ST18# |
1 | ||
| 47317-20110 |
ST18#..WIB |
1 | ||
| 47317-20151 |
ST18#..CP,LB |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20281 |
ST18# |
1 | ||
| 47318-20281 |
ST18#..CP,LB |
1 | ||
| 47318-20240 |
ST18#..WIB |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18#..WIB |
2 | ||
| 90401-10015 |
ST18# |
2 | ||
| 90401-10015 |
ST18#..CP,LB |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST18# |
4 | ||
| 47389-30010 |
ST18#..CP,LB |
4 | ||
| 90430-10074 |
ST18#..WIB |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
ST18# |
4 | ||
| 47389-30010 |
ST18#..CP,LB |
4 | ||
| 90430-10074 |
ST18#..WIB |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02598 |
ST184..CP,LB |
1 | ||
| 90947-02598 |
ST184 |
1 | ||
| 90947-02598 |
ST184..GTS |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02598 |
ST184..CP,LB |
1 | ||
| 90947-02598 |
ST184..GTS |
1 | ||
| 90947-02598 |
ST184 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20280 |
AT180,ST184 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ST18#..CP,LB |
1 | ||
| 90412-10140 |
ST18# |
1 | ||
| 90412-10140 |
ST18#..WIB |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20410 |
AT180,ST184 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20220 |
AT180,ST18# |
1 | ||
| 47371-20250 |
AT180,ST18# |
1 | ||
| 47371-20040 |
ST18# W(*66) |
1 | ||
| 47371-20070 |
ST18#..WIB W(*66) |
2 | ||
| 47371-20250 |
AT180,ST18#..CP,LB |
1 | ||
| 47371-20040 |
ST18#..CP,LB W(*66) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20060 |
AT180,ST18# |
1 | ||
| 47371-20260 |
AT180,ST18#..CP,LB |
1 | ||
| 47371-20270 |
ST18#..CP,LB W(*66) |
2 | ||
| 47371-20040 |
ST18#..WIB W(*66) |
1 | ||
| 47371-20270 |
ST18# W(*66) |
2 | ||
| 47371-20260 |
AT180,ST18# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90461-06216 |
AT180,ST18#..CP,LB |
2 | ||
| 47371-20190 |
ST18#..WIB |
1 | ||
| 47371-20280 |
ST18#..CP,LB W(*66) |
1 | ||
| 47371-20280 |
ST18# W(*66) |
1 | ||
| 90461-06216 |
AT180,ST18# |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20230 |
ST18#..WIB |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-20090 |
AT180,ST184 |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-08588 | ||||
| 90464-00478 | ||||
| 90468-08032 | ||||
| 90480-01514 | ||||
| 90480-01605 | ||||
| 91651-B0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
