ST184L-BLPVKK (1989)
Toyota Celica
ILLUST NO. 1 OF 2(8909- )ATM
A241L,A241E,A243L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-12010 |
AT180,ST184..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-20040 |
AT180,ST184..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
AT180,ST184..ATM |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
AT180,ST184..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
AT180,ST184..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-11001 |
AT180,ST184..ATM |
1 | ||
| 35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90201-12028 |
AT180,ST184..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12020 |
AT180,ST184..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-12020 |
AT180,ST184..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21003 |
AT180,ST184..ATM |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-12010 |
AT180,ST184..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-12020 |
AT180,ST184..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-20170 |
ST184..ATM |
1 | ||
| 35593 - SLEEVE, CAM GUIDE | ||||
| 35593-12010 |
AT180,ST184..ATM |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-12010 |
AT180,ST184..ATM |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
AT180,ST184..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
AT180,ST184..ATM *8-1.25PX35-30 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
AT180,ST184..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
AT180,ST184..ATM *8-1.25PX35-30 |
1 | ||
| 35597 - SLEEVE, SPRING GUIDE | ||||
| 35597-12010 |
AT180,ST184..ATM |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-12010 |
AT180,ST184..ATM |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

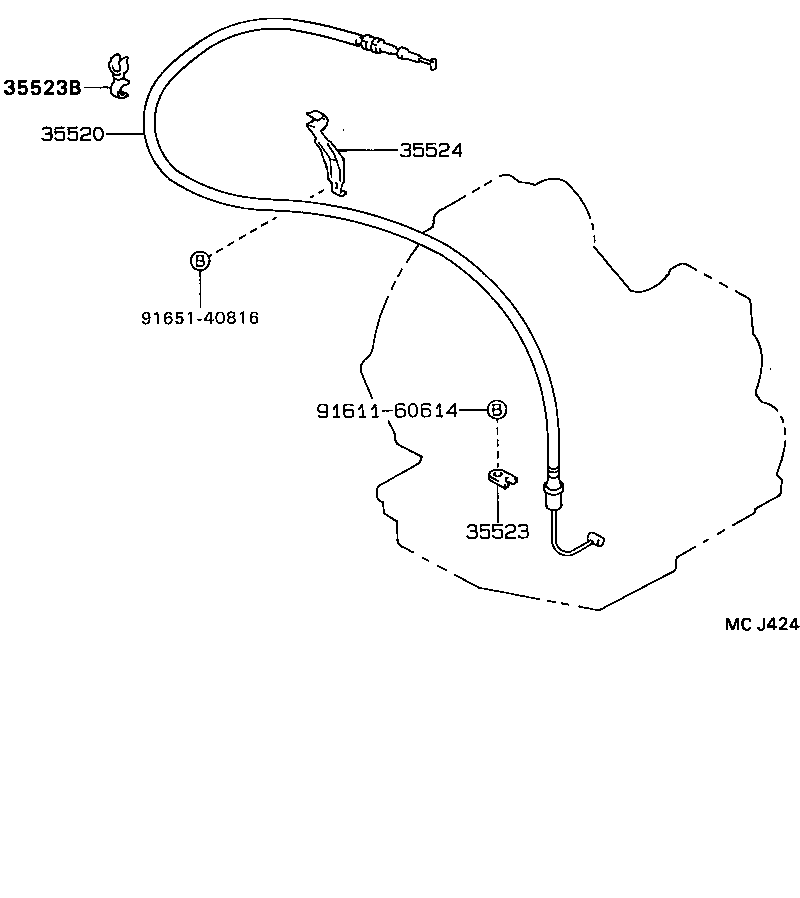

ILLUST NO. 2 OF 2(8909-9108)ATM..GTS
A241E W(MOTOR TYPE CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-20290 |
ST184..ATM..GT |
1 | ||
| 35520-20300 |
ST184..ATM..GTS |
1 | ||
| 35520-20370 |
ST184..ATM |
1 | ||
| 35520-20310 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35520-20370 |
ST184..(CP,LB)..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12080 |
AT180,ST184..ATM |
1 | ||
| 35523B - CLAMP, THROTTLE CABLE, NO.3 | ||||
| 90464-00617 |
ST184..ATM..GTS |
1 | ||
| 90464-00507 |
ST184..ATM..GTS |
1 | ||
| 35523-20300 |
ST184..ATM |
1 | ||
| 35523-20300 |
ST184..(CP,LB)..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-20190 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35523-20270 |
ST184..(CP,LB)..ATM |
1 | ||
| 90464-00251 |
ST184..ATM |
1 | ||
| 35523-20270 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 91651-40816 | ||||

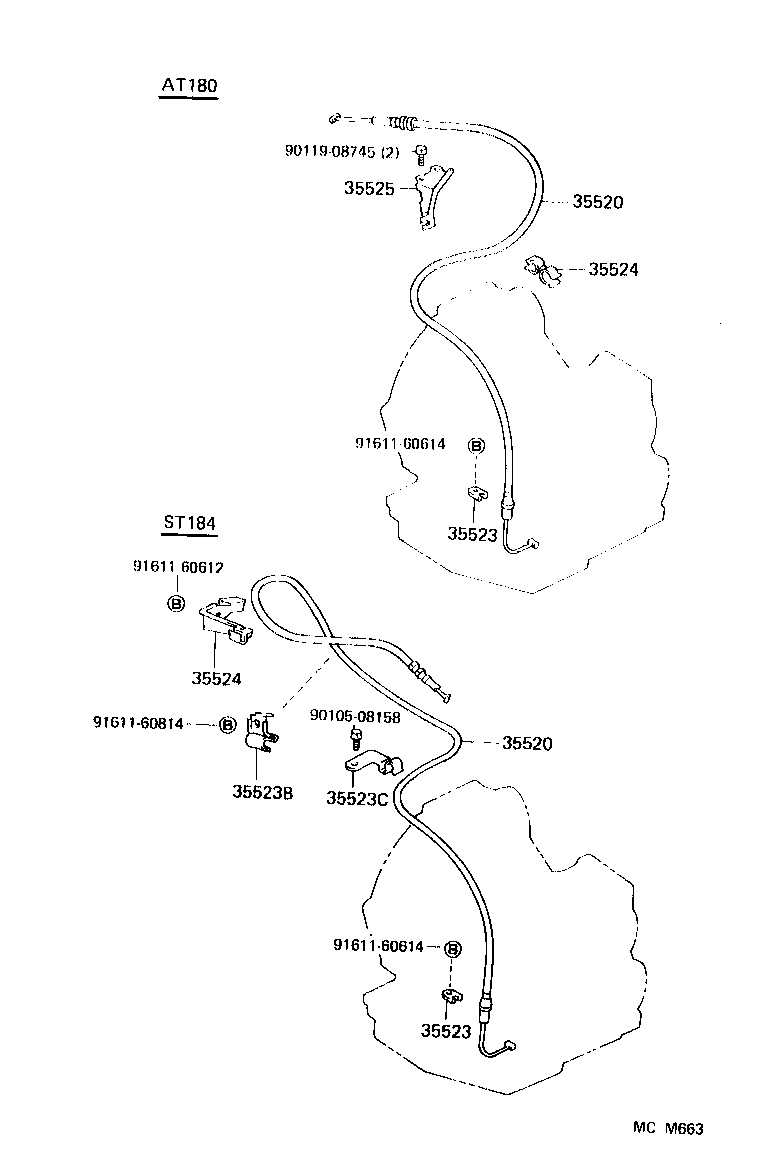

ILLUST NO. 2 OF 2(8909-9108)ATM
A241L,A241E,A243L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-20290 |
ST184..ATM..GT |
1 | ||
| 35520-20300 |
ST184..ATM..GTS |
1 | ||
| 35520-20370 |
ST184..ATM |
1 | ||
| 35520-20310 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35520-20370 |
ST184..(CP,LB)..ATM |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-20290 |
ST184..ATM..GT |
1 | ||
| 35520-20300 |
ST184..ATM..GTS |
1 | ||
| 35520-20370 |
ST184..ATM |
1 | ||
| 35520-20310 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35520-20370 |
ST184..(CP,LB)..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12080 |
AT180,ST184..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12080 |
AT180,ST184..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-20190 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35523-20270 |
ST184..(CP,LB)..ATM |
1 | ||
| 90464-00251 |
ST184..ATM |
1 | ||
| 35523-20270 |
ST184..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-20190 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35523-20270 |
ST184..(CP,LB)..ATM |
1 | ||
| 90464-00251 |
ST184..ATM |
1 | ||
| 35523-20270 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90119-08745 | ||||
| 91611-60614 | ||||

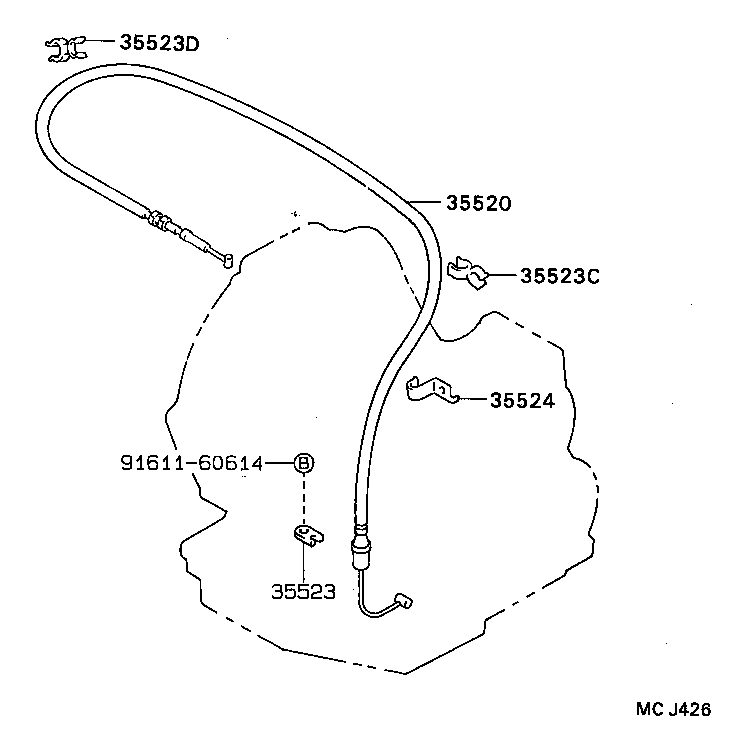

ILLUST NO. 2 OF 2(9108- )ATM
A241E,A243L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-20290 |
ST184..ATM..GT |
1 | ||
| 35520-20300 |
ST184..ATM..GTS |
1 | ||
| 35520-20370 |
ST184..ATM |
1 | ||
| 35520-20310 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35520-20370 |
ST184..(CP,LB)..ATM |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-20290 |
ST184..ATM..GT |
1 | ||
| 35520-20300 |
ST184..ATM..GTS |
1 | ||
| 35520-20370 |
ST184..ATM |
1 | ||
| 35520-20310 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35520-20370 |
ST184..(CP,LB)..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12080 |
AT180,ST184..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-12080 |
AT180,ST184..ATM |
1 | ||
| 35523B - CLAMP, THROTTLE CABLE, NO.3 | ||||
| 90464-00617 |
ST184..ATM..GTS |
1 | ||
| 90464-00507 |
ST184..ATM..GTS |
1 | ||
| 35523-20300 |
ST184..ATM |
1 | ||
| 35523-20300 |
ST184..(CP,LB)..ATM |
1 | ||
| 35523C - CLAMP, THROTTLE CABLE, NO.4 | ||||
| 35523-20340 |
ST184..(CP,LB)..ATM |
1 | ||
| 35523-20340 |
ST184..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-20190 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35523-20270 |
ST184..(CP,LB)..ATM |
1 | ||
| 90464-00251 |
ST184..ATM |
1 | ||
| 35523-20270 |
ST184..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-20190 |
ST184..ATM..GTS W(MOTOR TYPE CRUISE CONTROL) |
1 | ||
| 35523-20270 |
ST184..(CP,LB)..ATM |
1 | ||
| 90464-00251 |
ST184..ATM |
1 | ||
| 35523-20270 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-08745 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(8910- )ATM
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-12010 |
AT180,ST184..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-20040 |
AT180,ST184..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
AT180,ST184..ATM |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
AT180,ST184..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
AT180,ST184..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-11001 |
AT180,ST184..ATM |
1 | ||
| 35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90201-12028 |
AT180,ST184..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12020 |
AT180,ST184..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-12020 |
AT180,ST184..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21003 |
AT180,ST184..ATM |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-12010 |
AT180,ST184..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-12020 |
AT180,ST184..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-20170 |
ST184..ATM |
1 | ||
| 35593 - SLEEVE, CAM GUIDE | ||||
| 35593-12010 |
AT180,ST184..ATM |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-12010 |
AT180,ST184..ATM |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
AT180,ST184..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
AT180,ST184..ATM *8-1.25PX35-30 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
AT180,ST184..ATM *8-1.25PX17-13.5 |
1 | ||
| 90105-08068 |
AT180,ST184..ATM *8-1.25PX35-30 |
1 | ||
| 35597 - SLEEVE, SPRING GUIDE | ||||
| 35597-12010 |
AT180,ST184..ATM |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-12010 |
AT180,ST184..ATM |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(8910- )ATM
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60614 | ||||
