ST184L-BLPVKK (1989)
Toyota Celica
(8909- )ATM
A241L,A241E,A243L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-20030 |
AT180,ST184..ATM |
1 | ||
| 33570-20031 |
AT180,ST184..ATM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20300 |
AT180,ST184..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-20340 |
AT180,ST18# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20640 |
ST184..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01568 |
AT180,ST184..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01560 |
AT180,ST184..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01562 |
ST184..ATM |
1 | ||
| 33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01563 |
AT180,ST184..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20060 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90159-60025 | ||||
| 90179-06214 | ||||
| 90179-08061 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60816 | ||||
| 93560-15020 | ||||
| 94110-40600 | ||||

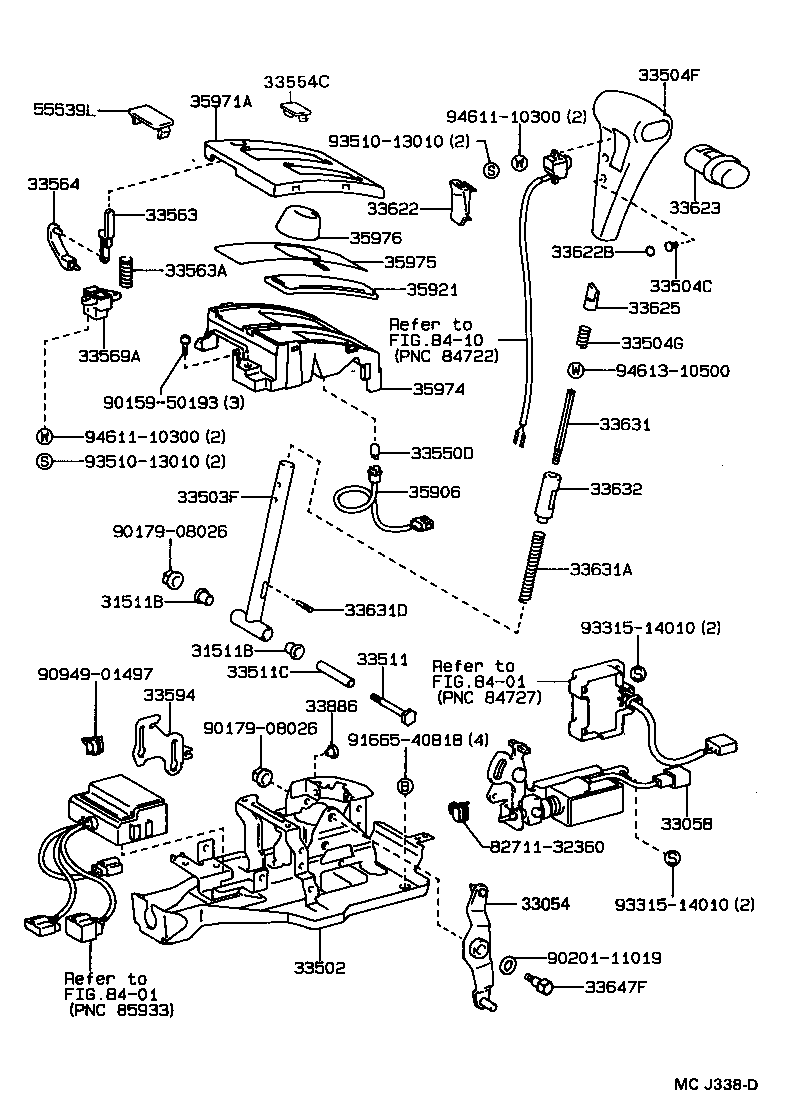

(8909- )ATM
A241L,A241E,A243L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31511B - BUSH(FOR CONTROL SHAFT) | ||||
| 90386-12037 |
AT180,ST184..ATM |
2 | ||
| 31511B - BUSH(FOR CONTROL SHAFT) | ||||
| 90386-12037 |
AT180,ST184..ATM |
2 | ||
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-20070 |
AT180,ST184..ATM |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-20030 |
AT180,ST184..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-20290 |
AT180,ST184..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-20110 |
AT180,ST184..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40134 |
AT180,ST184..ATM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20130 |
AT180,ST184..ATM |
1 | ||
| 33504G - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) | ||||
| 90501-09077 |
AT180,ST184..ATM |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20260 |
AT180,ST184..ATM |
1 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08121 |
AT180,ST184..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11025 |
AT180,ST184..ATM 12V 1.7W |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-20040 |
AT180,ST184..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-20040 |
AT180,ST184..ATM |
1 | ||
| 33563-20070 |
AT180,ST184..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07081 |
AT180,ST184..ATM |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-20030 |
AT180,ST184..ATM |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-20020 |
AT180,ST184..ATM |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-20020 |
AT180,ST184..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-20040 |
AT180,ST184..ATM |
1 | ||
| 33622B - PLUG, SHIFT LEVER KNOB | ||||
| 33622-20060 |
AT180,ST184..ATM |
2 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20050 |
AT180,ST184..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-20030 |
AT180,ST184..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20130 |
AT180,ST184..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08111 |
AT180,ST184..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04004 |
AT180,ST184..ATM |
1 | ||
| 33632 - ROD, DETENT, NO.2 | ||||
| 33632-20010 |
AT180,ST184..ATM |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-12010 |
AT180,ST184..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-20010 |
AT180,ST184..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20050 |
AT180,ST184..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20290 |
AT180,ST184..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20220 |
AT180,ST184..(CP,LB)..ATM |
1 | ||
| 35971-20200 |
AT180,ST184..ATM |
1 | ||
| 35971-20220 |
AT180,ST184..ATM |
1 | ||
| 35971-20250 |
AT180,ST184..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20130 |
AT180,ST184..ATM |
1 | ||
| 35974-20150 |
AT180,ST184..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20110 |
AT180,ST184..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-20040 |
AT180,ST184..ATM |
1 | ||
| Common parts | ||||
| 82711-32360 | ||||
| 90159-50193 | ||||
| 90179-08026 | ||||
| 90201-11019 | ||||
| 90949-01497 | ||||
| 91665-40818 | ||||
| 93315-14010 | ||||
| 93510-13010 | ||||
| 94611-10300 | ||||
| 94613-10500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
(8910- )ATM
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-20030 |
AT180,ST184..ATM |
1 | ||
| 33570-20031 |
AT180,ST184..ATM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20300 |
AT180,ST184..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-20340 |
AT180,ST18# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-20640 |
ST184..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01568 |
AT180,ST184..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01560 |
AT180,ST184..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01562 |
ST184..ATM |
1 | ||
| 33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01563 |
AT180,ST184..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20060 |
ST184..ATM |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90159-60025 | ||||
| 90179-06214 | ||||
| 90179-08061 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60816 | ||||
| 93560-15020 | ||||
| 94110-40600 | ||||
(8910- )ATM
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08606 | ||||
| 90206-12002 | ||||
| 90209-12010 | ||||
| 90463-12570 | ||||
| 91665-40818 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8410 | ||||
