Toyota Celica ST184 STARTER - JDM Part Detective

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-74060	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	09/1989 - 08/1991	1
28011-74060	3SGTE,5SFE..ST18#	08/1991 - 09/1993	1
28100 - STARTER ASSY
28100-74050	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND 12V 1.6KW	09/1989 - 08/1991	1
28100-74050	3SGTE,5SFE..ST18#..GT,GTS,TBO4W 12V 1.6KW	08/1991 - 09/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-62020	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28110-62020	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	09/1989 - 08/1991	1
28120 - YOKE ASSY, STARTER
28120-65030	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28120-65030	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	09/1989 - 08/1991	1
28120-26071	4AFE,3SGTE,5SFE..AT180,ST18#..CP,LB	09/1989 - 08/1991	1
28120A - RING, O(FOR STARTER YOKE)
90099-14064	5SFE..ST184..CVT;4AFE,3SGTE,5SFE..AT180,ST18#..CND	09/1989 - 08/1991	2
90099-14064	5SFE..ST184;4AFE,3SGTE..AT180,ST185..CND	08/1991 - 09/1993	2
28120A - RING, O(FOR STARTER YOKE)
90099-14064	5SFE..ST184..CVT;4AFE,3SGTE,5SFE..AT180,ST18#..CND	09/1989 - 08/1991	2
90099-14064	5SFE..ST184;4AFE,3SGTE..AT180,ST185..CND	08/1991 - 09/1993	2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-74010	3SGTE,5SFE..ST18#..CP,LB	09/1989 - 08/1991	1
28130-62020	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	09/1989 - 08/1991	1
28130-62020	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-74020	3SGTE,5SFE..ST18#..CP,LB COLD SPEC	09/1989 - 08/1991	1
28140-74020	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	09/1989 - 08/1991	1
28140-74020	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28143 - SPRING, STARTER BRUSH
90099-17112	4AFE,3SGTE,5SFE..AT180,ST18#	09/1989 - 09/1993	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-74020	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	09/1989 - 08/1991	1
28150-74020	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28160 - ARMATURE ASSY, STARTER
28160-65030	5SFE..ST184..CND	09/1989 - 10/1989	1
28160-65031	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	10/1989 - 08/1991	1
28160-65031	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28160A - BEARING, STARTER ARMATURE
90099-65030	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND NO.2	09/1989 - 08/1991	1
90099-10144	5SFE..ST184..CVT;4AFE,3SGTE,5SFE..AT180,ST18#..CND NO.1	09/1989 - 08/1991	1
90099-10143	3SGTE,5SFE..ST18#..(CP,LB)..(GT,GTS,TBO4W) NO.2	08/1991 - 09/1991	1
90099-10144	3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.1	08/1991 - 09/1993	1
90099-10143	3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.2	09/1991 - 09/1993	1
28160A - BEARING, STARTER ARMATURE
90099-65030	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND NO.2	09/1989 - 08/1991	1
90099-10144	5SFE..ST184..CVT;4AFE,3SGTE,5SFE..AT180,ST18#..CND NO.1	09/1989 - 08/1991	1
90099-10143	3SGTE,5SFE..ST18#..(CP,LB)..(GT,GTS,TBO4W) NO.2	08/1991 - 09/1991	1
90099-10144	3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.1	08/1991 - 09/1993	1
90099-10143	3SGTE,5SFE..ST18#..GT,GTS,TBO4W NO.2	09/1991 - 09/1993	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-74010	3SGTE,5SFE..ST18#	09/1989 - 09/1993	1
28199 - COVER, STARTER
28199-15090	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28199-15090	5SFE..ST184..CVT;3SGTE,5SFE..ST18#..CND	09/1989 - 08/1991	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	4AFE,3SGTE,5SFE..AT180,ST18#	09/1989 - 09/1993	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	4AFE..AT180..USA;3SGTE,5SFE..ST18#	08/1991 - 09/1993	1
28229-26040	4AFE,3SGTE,5SFE..AT180,ST18#	09/1989 - 08/1991	1
28251 - PINION, STARTER DRIVE
28251-15090	5SFE..ST184..CVT;4AFE,3SGTE,5SFE..AT180,ST18#..CND	09/1989 - 08/1991	1
28251-15090	3SGTE,5SFE..ST18#..GT,GTS,TBO4W	08/1991 - 09/1993	1
28252 - GEAR, STARTER IDLE
28254-54070	3SGTE,5SFE..ST18#	09/1989 - 09/1993	1
Common parts
28176-15090
90099-00907
90099-04974
90099-05129
90099-12009
90179-08146
91611-61035
94110-40800
94511-00600
94511-00800

ST184L-BLPVKK (1989)

(8909- )3SGTE,5SFE

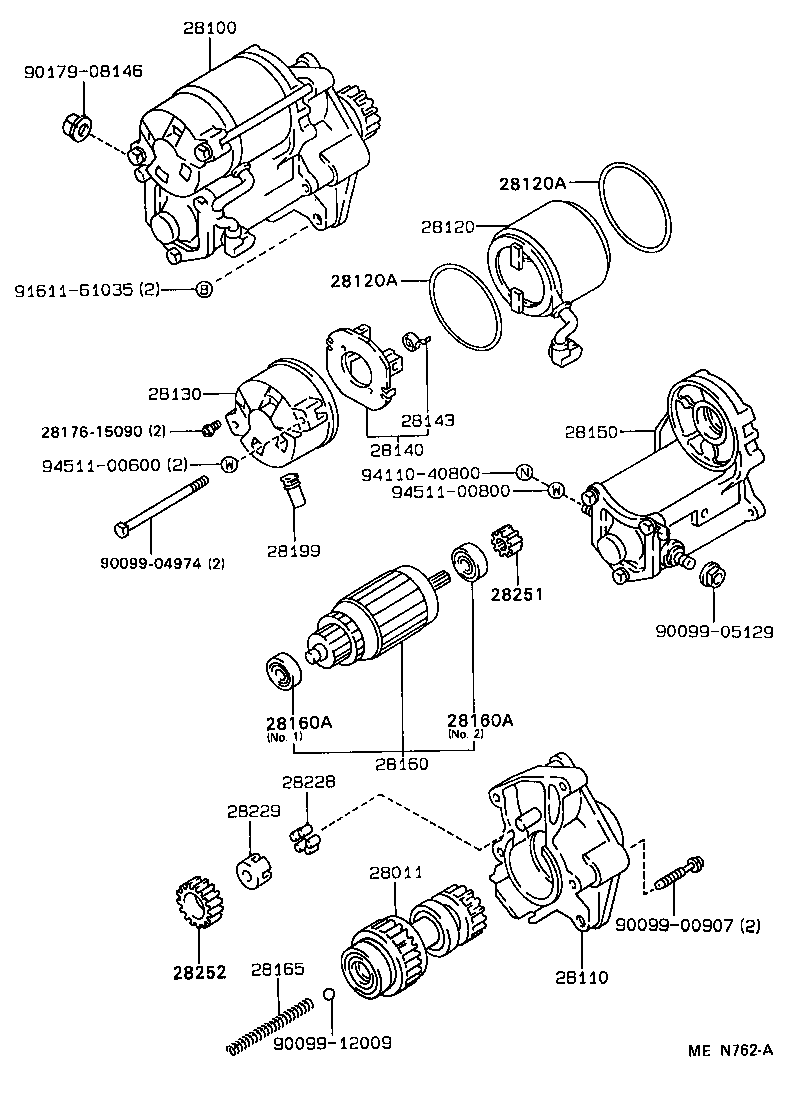

ILLUST NO. 2 OF 2(8910- )
