Toyota Celica ST184 CRUISE CONTROL (AUTO DRIVE)

Manufacturers Home
Toyota
EU
CELICA
ST184L-BLPVKA (1989)
8408 - CRUISE CONTROL (AUTO DRIVE)

ST184L-BLPVKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993

Engine 5SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

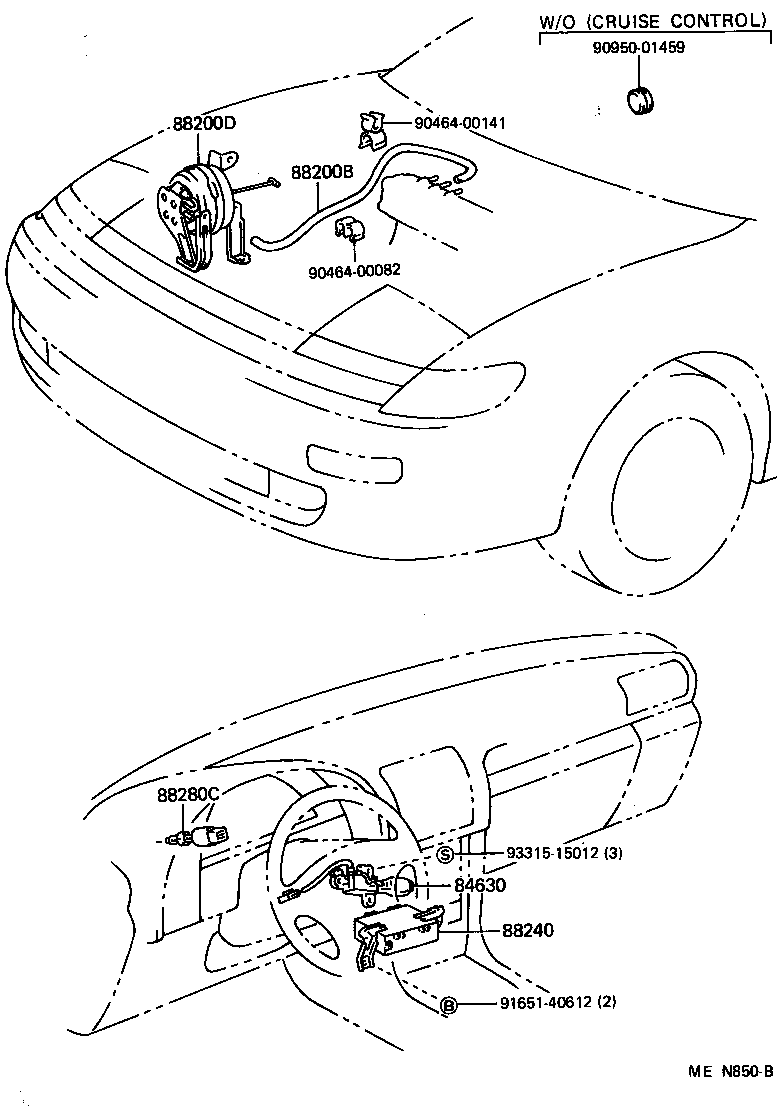

(8909- )ST184

Click highlighted areas on diagram

VACUUM TYPE

Part #	Description	Period	Qty
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-20080	AT180,ST18#..USA	09/1989 - 09/1993	1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92004	ST184 L=950	09/1989 - 08/1991	1
90445-08303	ST184..CP,LB L=950	08/1991 - 09/1991	1
90445-08303	ST184 L=950	09/1991 - 09/1993	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20110	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	08/1990 - 08/1991	1
88200-20080	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	09/1989 - 08/1990	1
88200-20070	ST184..GT	09/1989 - 08/1990	1
88200-20120	ST184..CP,LB W(CRUISE CONTROL = MOTOR TYPE)	08/1991 - 09/1991	1
88200-20070	ST184 W(CRUISE CONTROL = VACUUM TYPE)	09/1991 - 09/1993	1
88200-20120	ST184 W(CRUISE CONTROL = MOTOR TYPE)	09/1991 - 09/1993	1
88200-20070	ST184..GTS W(CRUISE CONTROL = VACUUM TYPE)	09/1989 - 08/1991	1
88200-20070	ST184..CP,LB W(CRUISE CONTROL = VACUUM TYPE)	08/1991 - 09/1991	1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-20310	ST184..GTS W(CRUISE CONTROL = VACUUM TYPE)	09/1989 - 08/1990	1
88240-20340	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	09/1989 - 08/1990	1
88240-20311	ST184..GTS W(CRUISE CONTROL = VACUUM TYPE)	08/1990 - 08/1991	1
88240-20341	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	08/1990 - 08/1991	1
88240-20312	ST184..CP,LB W(CRUISE CONTROL = VACUUM TYPE)	08/1991 - 09/1991	1
88240-20312	ST184 W(CRUISE CONTROL = VACUUM TYPE)	09/1991 - 09/1993	1
88240-20342	ST184 W(CRUISE CONTROL = MOTOR TYPE)	09/1991 - 09/1993	1
88240-20310	ST184..GT	09/1989 - 08/1990	1
88240-20342	ST184..CP,LB W(CRUISE CONTROL = MOTOR TYPE)	08/1991 - 09/1991	1
Common parts
90464-00082
90464-00141
90950-01459
91651-40612
93315-15012

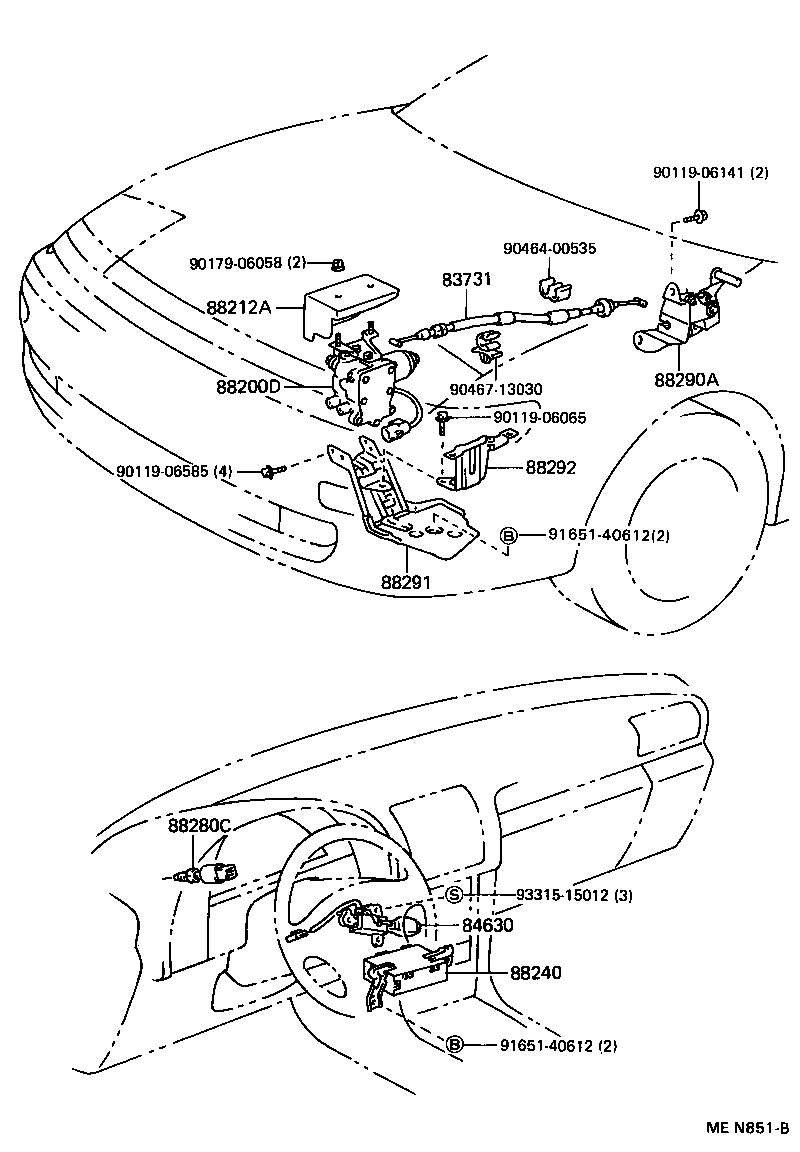

(8909- )AT180,ST184

Click highlighted areas on diagram

MOTOR TYPE

Part #	Description	Period	Qty
83731 - CABLE, CRUISE CONTROL
83731-20120	ST184	09/1991 - 09/1993	1
83731-20120	ST184..CP,LB	08/1991 - 09/1991	1
83731-20030	ST184..GTS	09/1989 - 08/1991	1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-20080	AT180,ST18#..USA	09/1989 - 09/1993	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20110	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	08/1990 - 08/1991	1
88200-20080	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	09/1989 - 08/1990	1
88200-20070	ST184..GT	09/1989 - 08/1990	1
88200-20120	ST184..CP,LB W(CRUISE CONTROL = MOTOR TYPE)	08/1991 - 09/1991	1
88200-20070	ST184 W(CRUISE CONTROL = VACUUM TYPE)	09/1991 - 09/1993	1
88200-20120	ST184 W(CRUISE CONTROL = MOTOR TYPE)	09/1991 - 09/1993	1
88200-20070	ST184..GTS W(CRUISE CONTROL = VACUUM TYPE)	09/1989 - 08/1991	1
88200-20070	ST184..CP,LB W(CRUISE CONTROL = VACUUM TYPE)	08/1991 - 09/1991	1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-20040	ST18#..WIB	09/1989 - 08/1991	1
88212-20040	ST18#	09/1991 - 09/1993	1
88212-20040	ST18#..CP,LB	08/1991 - 09/1991	1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-20310	ST184..GTS W(CRUISE CONTROL = VACUUM TYPE)	09/1989 - 08/1990	1
88240-20340	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	09/1989 - 08/1990	1
88240-20311	ST184..GTS W(CRUISE CONTROL = VACUUM TYPE)	08/1990 - 08/1991	1
88240-20341	ST184..GTS W(CRUISE CONTROL = MOTOR TYPE)	08/1990 - 08/1991	1
88240-20312	ST184..CP,LB W(CRUISE CONTROL = VACUUM TYPE)	08/1991 - 09/1991	1
88240-20312	ST184 W(CRUISE CONTROL = VACUUM TYPE)	09/1991 - 09/1993	1
88240-20342	ST184 W(CRUISE CONTROL = MOTOR TYPE)	09/1991 - 09/1993	1
88240-20310	ST184..GT	09/1989 - 08/1990	1
88240-20342	ST184..CP,LB W(CRUISE CONTROL = MOTOR TYPE)	08/1991 - 09/1991	1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-20040	ST18#..CP,LB	08/1991 - 09/1991	1
88290-20040	ST18#..WIB	09/1989 - 08/1991	1
88290-20040	ST18#	09/1991 - 09/1993	1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-20060	ST184..GTS	09/1989 - 08/1991	1
88291-20090	ST184	09/1991 - 09/1993	1
88291-20090	ST184..CP,LB	08/1991 - 09/1991	1
88292 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2
88292-20030	ST184..GTS	09/1989 - 08/1991	1
88292-20030	ST184	09/1991 - 09/1993	1
88292-20030	ST184..CP,LB	08/1991 - 09/1991	1
Common parts
90119-06065
90119-06141
90119-06585
90179-06058
90464-00535
90467-13030
91651-40612
93315-15012
