Toyota Celica ST184 WIRING & CLAMP

ST184L-BKMGKA (1990)

Toyota Celica

Production Jun 1990 - Sep 1993

Engine 5SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF 9(9006- )CVT

Click highlighted areas on diagram

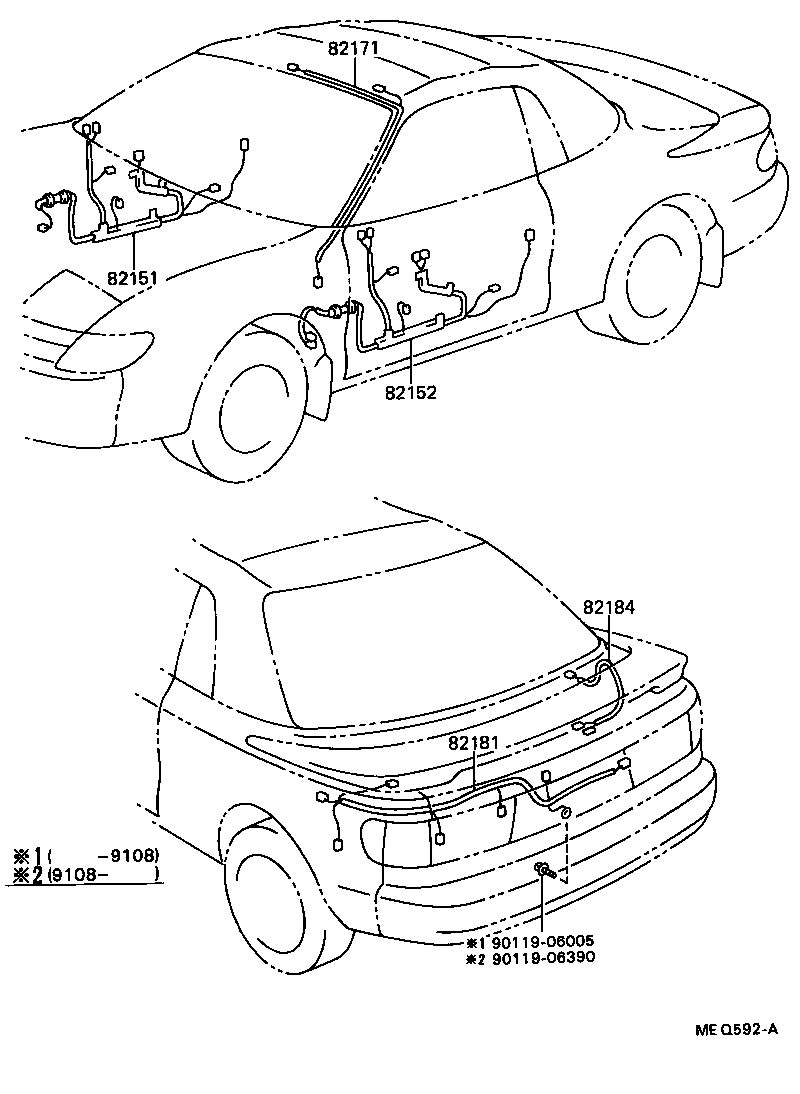

DOOR,ROOF,LUGGAGE WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-2B180	ST184..GT	09/1989 - 04/1990	1
82151-2B230	ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 08/1990	1
82151-2B220	ST184..GT W(6SP)	09/1989 - 04/1990	1
82151-2B250	ST184..CVT W(PW & 6SP) OR W(PW & 10SP) OR W(PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR);W(PW & 10SP & ELECTRONIC REMOTE CONTROL MIRR0R)	06/1990 - 08/1990	1
82151-2B221	ST184..GT W(6SP)	08/1990 - 08/1991	1
82151-2B230	AT180;ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	08/1990 - 08/1991	1
82151-2B250	ST184..CVT W(PW & 10SP & ELECTRONIC REMOTE CONTROR MIRROR;W(PW & 6SP) OR W(*PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR)	08/1990 - 09/1991	1
82151-2B290	ST184..CVT W(*PW)	06/1990 - 08/1990	1
82151-2B230	ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	08/1991 - 09/1991	1
82151-2B221	ST184..GT W(6SP)	09/1991 - 11/1992	1
82151-2B181	ST184..CVT W(ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 09/1991	1
82151-2B290	AT180;ST184..CVT W(*PW)	08/1990 - 09/1993	1
82151-2B221	ST184..CVT W(6SP)	08/1991 - 09/1991	1
82151-2B280	ST184..CVT	06/1990 - 09/1993	1
82151-2B221	ST184..CVT W(6SP)	11/1992 - 09/1993	1
82151-2B181	ST184..CVT W(ELECTRONIC REMORE CONTROL MIRROR)	09/1991 - 09/1993	1
82151-2B230	AT180;ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	09/1991 - 09/1993	1
82151-2B250	ST184..CVT W(*PW & 6 SPEAKERS)	09/1991 - 09/1993	1
82152 - WIRE, FRONT DOOR, LH
82152-2B060	ST184..GT W(6SP)	09/1989 - 04/1990	1
82152-2B160	ST184..CVT W(PW & 6SP) OR W(PW & 10SP) OR W(PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR);W(PW & 10SP & ELECTRONIC REMOTE CONTROL MIRR0R)	06/1990 - 08/1990	1
82152-2B050	ST184..GT	09/1989 - 04/1990	1
82152-2B061	ST184..CVT W(6SP)	08/1991 - 09/1991	1
82152-2B051	ST184..CVT W(ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 09/1991	1
82152-2B061	ST184..GT W(6SP)	09/1991 - 11/1992	1
82152-2B160	ST184..CVT W(PW & 10SP & ELECTRONIC REMOTE CONTROL MIRROR);W(PW & 6SP) OR W(PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR) OR W(PW & 10SP)	08/1990 - 09/1991	1
82152-2B121	ST184..CVT	06/1990 - 09/1993	1
82152-2B140	ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 09/1991	1
82152-2B061	ST184..GT W(6SP)	08/1990 - 08/1991	1
82152-2B130	ST184..CVT W(*PW)	06/1990 - 09/1993	1
82152-2B061	ST184..CVT W(6SP)	11/1992 - 09/1993	1
82152-2B051	ST184..CVT W(ELECTPONIC REMOTE CONTROL MIRROR)	09/1991 - 09/1993	1
82152-2B140	ST184..CVT W(*PW & ELECTRO REMOTE CONTROL MIRROR)	09/1991 - 09/1993	1
82152-2B160	ST184..CVT W(*PW & 6 SPEAKERS)	09/1991 - 09/1993	1
82171 - WIRE, ROOF, NO.1
82171-20550	ST184..CVT	06/1990 - 09/1993	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20470	AT180,ST184..CP,CVT	09/1989 - 09/1993	1
82184 - WIRE, BACK DOOR, NO.1
82184-20170	ST184..CVT	06/1990 - 09/1991	1
82184-20140	ST184..CP,CVT	09/1991 - 09/1993	1
82184-20140	ST184..CVT W(REAR SPOILER)	06/1990 - 09/1991	1
Common parts
90119-06005
90119-06390

ILLUST NO. 7 OF 9(9006- )CVT

Click highlighted areas on diagram

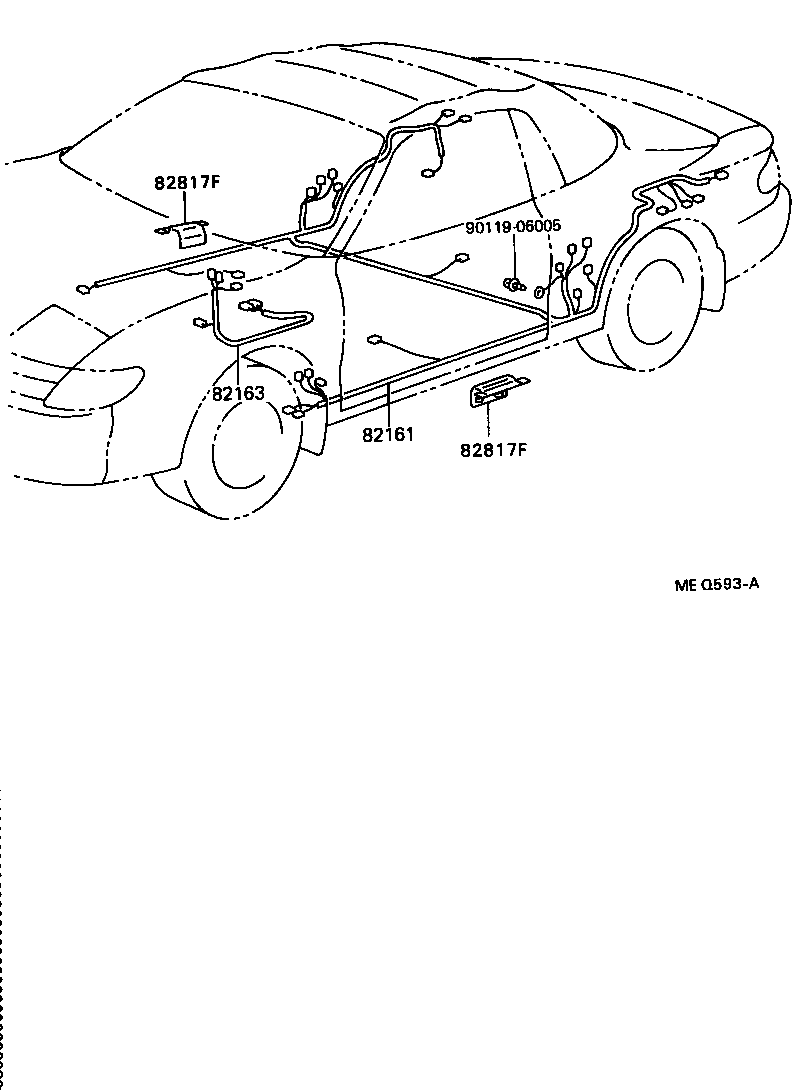

FLOOR,FRAME,SEAT WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-2B780	ST184..CVT	06/1990 - 09/1991	1
82161-2H230	ST184..CVT W(*66)	09/1991 - 09/1993	1
82161-2H240	ST184..CVT	09/1991 - 09/1993	1
82163 - WIRE, FLOOR, NO.3
82163-20100	ST184	09/1989 - 08/1990	1
82163-20100	AT180,ST184	08/1990 - 08/1991	1
82163-20100	ST184..CP..MTM..USA;ST184..(CVT,LB)..USA	08/1991 - 09/1991	1
82163-20250	ST184..GTS;ST184..CVT	11/1992 - 09/1993	1
82163-20250	ST184	09/1991 - 11/1992	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-2B580	AT180,ST18#	09/1989 - 05/1990	1
82817-2B670	ST184..CVT	06/1990 - 09/1993	2
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-2B580	AT180,ST18#	09/1989 - 05/1990	1
82817-2B670	ST184..CVT	06/1990 - 09/1993	2
Common parts
90119-06005

ILLUST NO. 6 OF 9(9010- )CVT

Click highlighted areas on diagram

DOOR,ROOF,LUGGAGE WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-2B180	ST184..GT	09/1989 - 04/1990	1
82151-2B230	ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 08/1990	1
82151-2B220	ST184..GT W(6SP)	09/1989 - 04/1990	1
82151-2B250	ST184..CVT W(PW & 6SP) OR W(PW & 10SP) OR W(PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR);W(PW & 10SP & ELECTRONIC REMOTE CONTROL MIRR0R)	06/1990 - 08/1990	1
82151-2B221	ST184..GT W(6SP)	08/1990 - 08/1991	1
82151-2B230	AT180;ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	08/1990 - 08/1991	1
82151-2B250	ST184..CVT W(PW & 10SP & ELECTRONIC REMOTE CONTROR MIRROR;W(PW & 6SP) OR W(*PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR)	08/1990 - 09/1991	1
82151-2B290	ST184..CVT W(*PW)	06/1990 - 08/1990	1
82151-2B230	ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	08/1991 - 09/1991	1
82151-2B221	ST184..GT W(6SP)	09/1991 - 11/1992	1
82151-2B181	ST184..CVT W(ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 09/1991	1
82151-2B290	AT180;ST184..CVT W(*PW)	08/1990 - 09/1993	1
82151-2B221	ST184..CVT W(6SP)	08/1991 - 09/1991	1
82151-2B280	ST184..CVT	06/1990 - 09/1993	1
82151-2B221	ST184..CVT W(6SP)	11/1992 - 09/1993	1
82151-2B181	ST184..CVT W(ELECTRONIC REMORE CONTROL MIRROR)	09/1991 - 09/1993	1
82151-2B230	AT180;ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	09/1991 - 09/1993	1
82151-2B250	ST184..CVT W(*PW & 6 SPEAKERS)	09/1991 - 09/1993	1
82152 - WIRE, FRONT DOOR, LH
82152-2B060	ST184..GT W(6SP)	09/1989 - 04/1990	1
82152-2B160	ST184..CVT W(PW & 6SP) OR W(PW & 10SP) OR W(PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR);W(PW & 10SP & ELECTRONIC REMOTE CONTROL MIRR0R)	06/1990 - 08/1990	1
82152-2B050	ST184..GT	09/1989 - 04/1990	1
82152-2B061	ST184..CVT W(6SP)	08/1991 - 09/1991	1
82152-2B051	ST184..CVT W(ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 09/1991	1
82152-2B061	ST184..GT W(6SP)	09/1991 - 11/1992	1
82152-2B160	ST184..CVT W(PW & 10SP & ELECTRONIC REMOTE CONTROL MIRROR);W(PW & 6SP) OR W(PW & 6SP & ELECTRONIC REMOTE CONTROL MIRROR) OR W(PW & 10SP)	08/1990 - 09/1991	1
82152-2B121	ST184..CVT	06/1990 - 09/1993	1
82152-2B140	ST184..CVT W(*PW & ELECTRONIC REMOTE CONTROL MIRROR)	06/1990 - 09/1991	1
82152-2B061	ST184..GT W(6SP)	08/1990 - 08/1991	1
82152-2B130	ST184..CVT W(*PW)	06/1990 - 09/1993	1
82152-2B061	ST184..CVT W(6SP)	11/1992 - 09/1993	1
82152-2B051	ST184..CVT W(ELECTPONIC REMOTE CONTROL MIRROR)	09/1991 - 09/1993	1
82152-2B140	ST184..CVT W(*PW & ELECTRO REMOTE CONTROL MIRROR)	09/1991 - 09/1993	1
82152-2B160	ST184..CVT W(*PW & 6 SPEAKERS)	09/1991 - 09/1993	1
82171 - WIRE, ROOF, NO.1
82171-20550	ST184..CVT	06/1990 - 09/1993	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20470	AT180,ST184..CP,CVT	09/1989 - 09/1993	1
82184 - WIRE, BACK DOOR, NO.1
82184-20170	ST184..CVT	06/1990 - 09/1991	1
82184-20140	ST184..CP,CVT	09/1991 - 09/1993	1
82184-20140	ST184..CVT W(REAR SPOILER)	06/1990 - 09/1991	1
Common parts
90119-06005
90119-06390

ILLUST NO. 7 OF 9(9010- )CVT

Click highlighted areas on diagram

FLOOR,FRAME WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-2B780	ST184..CVT	06/1990 - 09/1991	1
82161-2H230	ST184..CVT W(*66)	09/1991 - 09/1993	1
82161-2H240	ST184..CVT	09/1991 - 09/1993	1
82163 - WIRE, FLOOR, NO.3
82163-20100	ST184	09/1989 - 08/1990	1
82163-20100	AT180,ST184	08/1990 - 08/1991	1
82163-20100	ST184..CP..MTM..USA;ST184..(CVT,LB)..USA	08/1991 - 09/1991	1
82163-20250	ST184..GTS;ST184..CVT	11/1992 - 09/1993	1
82163-20250	ST184	09/1991 - 11/1992	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-2B580	AT180,ST18#	09/1989 - 05/1990	1
82817-2B670	ST184..CVT	06/1990 - 09/1993	2
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-2B580	AT180,ST18#	09/1989 - 05/1990	1
82817-2B670	ST184..CVT	06/1990 - 09/1993	2
Common parts
90119-06005
