ST182R-BLMVFG (1991)

Toyota Celica

Production Aug 1991 - Nov 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )

Click highlighted areas on diagram

MANUAL

diagram 87116A 87138C 88501 88510 88515 88539 8856930880 88605 88625 88625A 88626A 88626A 88650 886882B520 88710A 887182B320 9009900968 9009900968 9009904381 9009914044 9009914045 9009914045 9009932129 9015960480 9017906054 9017906239 9048024008 9048026004 9095001189 9354015012 9354015012 9354015012
Part # Description Qty Price
Common parts
88569-30880
88688-2B520
88718-2B320
90099-00968
90099-04381
90099-14044
90099-14045
90099-32129
90159-60480
90179-06054
90179-06239
90480-24008
90480-26004
90950-01189
93540-15012

(9108- )ST18#

Click highlighted areas on diagram

AUTO

diagram 87116A 87138C 88501 88510 88515 88539 88605 88625 88625A 88626A 88626A 88630 88650 886882B520 88710A 887182B320 88750B 9009900968 9009900968 9009900968 9009900968 9009904381 9009914044 9009914045 9009914045 9009935027 9015960480 9017906239 9048024008 9048026004 9095001189 9354015012 9354015012 9354015012
Part # Description Qty Price
Common parts
88688-2B520
88718-2B320
90099-00968
90099-04381
90099-14044
90099-14045
90099-35027
90159-60480
90179-06239
90480-24008
90480-26004
90950-01189
93540-15012

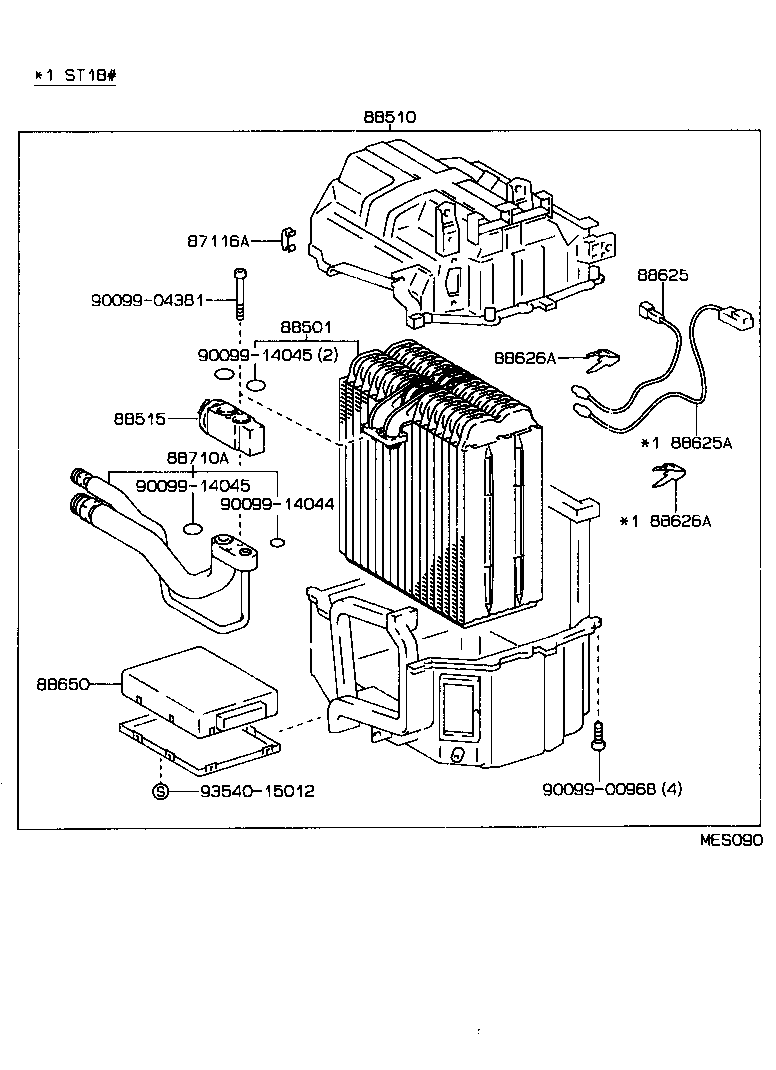

ILLUST NO. 1 OF 2(9108- )

Click highlighted areas on diagram

diagram 87116A 88501 88510 88515 88625 88625A 88626A 88626A 88650 88710A 9009900968 9009904381 9009914044 9009914045 9009914045 9354015012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

ST18#

 4
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20260

ST18#..RHD..LB

 1
88510 - UNIT ASSY, COOLER
88510-20861

ST182..RHD..LB

 1
88510-2B300

ST18#..RHD..LB

 1
88515 - VALVE, COOLER EXPANSION
88515-14060

ST18#

 1
88515-14062

AT180;ST18#..RHD..LB

 1
88515-14062

ST182..RHD;AT180,ST185..STI,TB4WA

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20270

ST18#

 1
88625-60050

ST182..RHD..LB

DEALER OPT

 1
88625-20270

ST18#..LB..(GTI,TBO4W)

MAKER OPT

 1
88626A - HOLDER, THERMISTOR
88626-28010

AT180;ST18#..RHD..LB

 1
88626-28010

ST18#

 1
88626A - HOLDER, THERMISTOR
88626-28010

AT180;ST18#..RHD..LB

 1
88626-28010

ST18#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660

ST18#..LB

 1
88650-2B140

ST18#..LB

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20190

ST18#..RHD..LB

 1
Common parts
90099-00968
90099-04381
90099-14044
90099-14045
93540-15012

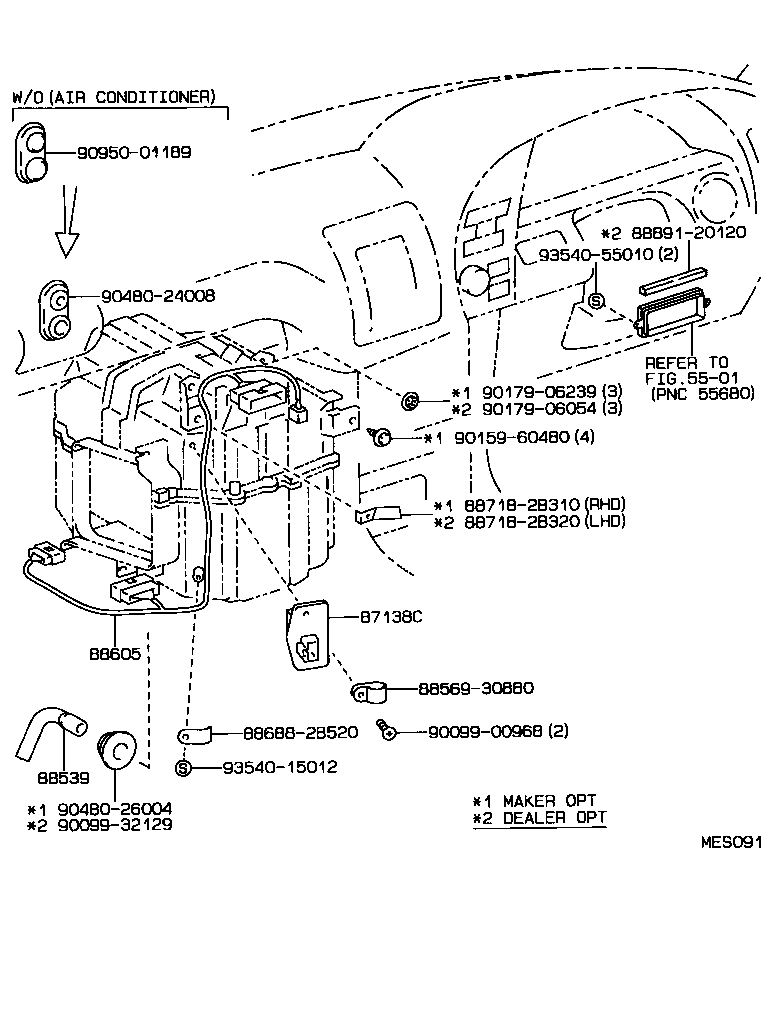

ILLUST NO. 2 OF 2(9108- )

Click highlighted areas on diagram

diagram 5501 87138C 88539 8856930880 88605 886882B520 887182B310 887182B320 8889120120 9009900968 9009932129 9015960480 9017906054 9017906239 9048024008 9048026004 9095001189 9354015012 9354055010
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-20180

AT180;ST18#..RHD

 1
87138-20150

ST18#..RHD..LB

W(MANUAL AIR CONDITIONER)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110

ST18#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2B550

ST18#..RHD

 1
88605-2D091

ST18#..LB

 1
Common parts
88569-30880
88688-2B520
88718-2B310
88718-2B320
88891-20120
90099-00968
90099-32129
90159-60480
90179-06054
90179-06239
90480-24008
90480-26004
90950-01189
93540-15012
93540-55010
Linked diagrams
5501
