ST182R-BLMVFG (1991)

Toyota Celica

Production Aug 1991 - Nov 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )GTI,TBO4W ; (9108-9202)ST185

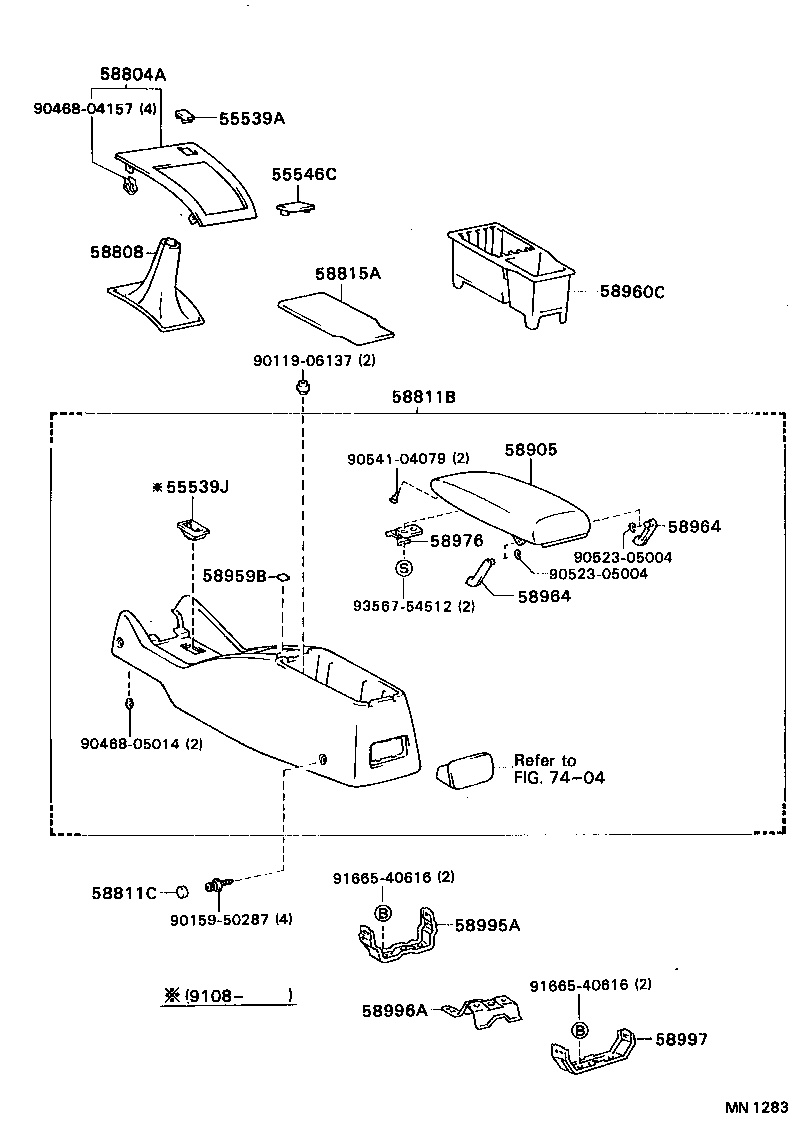

Click highlighted areas on diagram

diagram 55539A 55539J 55546C 58804A 58808 58811B 58811C 58815A 58905 58959B 58960C 58964 58964 58976 58995A 58996A 58997 7404 9011906137 9015950287 9046804157 9046805014 9052305004 9052305004 9054104079 9166540616 9166540616 9356754512
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2008004

ST182..RHD..LB

DARK BLUE,TRIM8#

 1
55539-2008003

ST18#..RHD..LB

SHADOW GRAY,TRIM1#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-3203004

AT180,ST182..CP,LB

DARK BLUE,TRIM8#

 1
55539-32030B0

AT180,ST18#..CP,LB

SHADOW GRAY,TRIM1#

 1
55539-32030B0

AT180,ST18#

SHADOW GRAY,TRIM1#

 1
55546C - COVER, POWER SEAT SWITCH HOLE
55546-2002003

AT180,ST18#..CP,LB

SHADOW GRAY,TRIM1#

 1
55546-2002004

AT180,ST182..CP,LB

DARK BLUE,TRIM8#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-2005004

ST182..RHD..LB..MTM

DARK BLUE,TRIM8#

 1
58804-2005003

ST18#..RHD..MTM

SHADOW GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-20090

AT180,ST18#..MTM

 1
58811B - BOX, CONSOLE
58801-2021004

ST182..LB

DARK BLUE,TRIM8#

 1
58801-20211P0

ST182

SHADOW GRAY,TRIM1#

 1
58801-2021003

ST182

SHADOW GRAY,TRIM1#

 1
58801-20211P0

ST182..LB

SHADOW GRAY,TRIM1#

 1
58801-20211R8

ST182..LB

DARK BLUE,TRIM8#

 1
58811C - CAP(FOR CONSOLE)
90339-1000903

AT180,ST18#

SHADOW GRAY,TRIM1#

 4
90339-1000904

AT180,ST182..CP,LB

DARK BLUE,TRIM8#

 4
58815A - CARPET, CONSOLE BOX
58815-2002001

AT180,ST182..CP,LB

BLACK,TRIM1#,8#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2012004

ST182..LB

DARK BLUE,TRIM8#

 1
58905-2012003

ST18#

SHADOW GRAY,TRIM1#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

AT180,ST18#

 2
58960C - HOLDER ASSY, CASSETTE CASE
58960-20010

ST182

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20020

AT180,ST18#

LH

 1
58964-90K00

AT180,ST18#

RH

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20020

AT180,ST18#

LH

 1
58964-90K00

AT180,ST18#

RH

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT180,ST18#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-20050

AT180,ST182

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-20050

AT180,ST182

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-20020

AT180,ST182

 1
Common parts
90119-06137
90159-50287
90468-04157
90468-05014
90523-05004
90541-04079
91665-40616
93567-54512
Linked diagrams
7404
