ST182R-BLMVFG (1991)

Toyota Celica

Production Aug 1991 - Nov 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )CP,LB ; (9109- )CVT

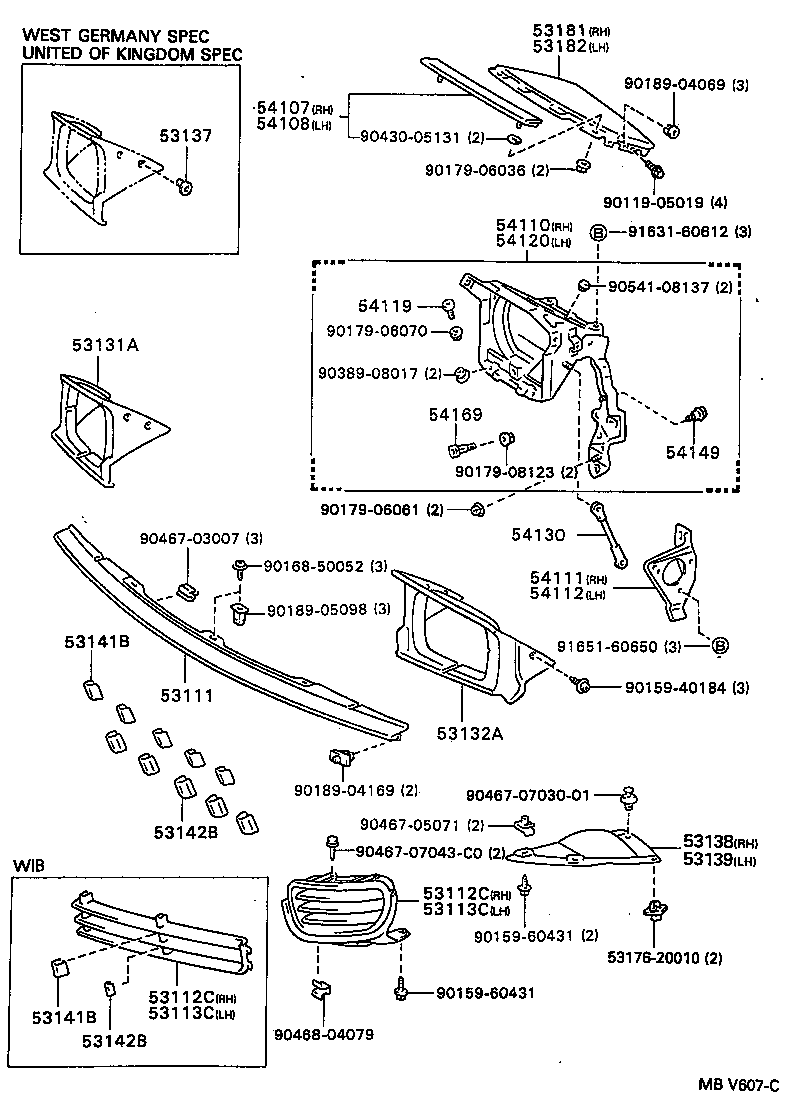

Click highlighted areas on diagram

diagram 53111 53112C 53112C 53113C 53113C 53131A 53132A 53138 53139 53141B 53141B 53142B 53142B 5317620010 53181 53182 54107 54108 54110 54111 54112 54119 54120 54130 54149 54169 9011905019 9015940184 9015960431 9015960431 9016850052 9017906036 9017906061 9017906070 9017908123 9018904069 9018904169 9018905098 9038908017 9043005131 9046703007 9046705071 904670703001 9046707043C0 9046804079 9054108137 9163160612 9165160650
Part # Description Qty Price
Common parts
53176-20010
90119-05019
90159-40184
90159-60431
90168-50052
90179-06036
90179-06061
90179-06070
90179-08123
90189-04069
90189-04169
90189-05098
90389-08017
90430-05131
90467-03007
90467-05071
90467-0703001
90467-07043C0
90468-04079
90541-08137
91631-60612
91651-60650

(9108- )CP,LB..GTI,STI,TBO4W ; (9109- )CVT

Click highlighted areas on diagram

diagram 53111 53112C 53112C 53113C 53113C 53131A 53132A 53137 53138 53139 53141B 53141B 53142B 53142B 5317620010 53181 53182 54107 54108 54110 54111 54112 54119 54120 54130 54149 54169 9011905019 9015940184 9015960431 9015960431 9016850052 9017906036 9017906061 9017906070 9017908123 9018904069 9018904169 9018905098 9038908017 9043005131 9046703007 9046705071 904670703001 9046707043C0 9046804079 9054108137 9163160612 9165160650
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-20650

AT180,ST18#

 1
53112C - GRILLE, RADIATOR, LOWER RH
53112-2014001

ST18#..WIB..(GTI,TBO4W)

BLACK,202

 1
53112-2014008

ST18#..WIB..(GTI,TBO4W)

SUPER WHITE 2,040

 1
53112-2014038

ST182..WIB

WINERED MICA,3J8

 1
53112-2014012

ST18#..WIB..(GTI,TBO4W)

SUPER RED 2,3E5

 1
53112-20140H0

ST18#..WIB..(GTI,TBO4W)

MEDIUM TURQUOISEM,749

 1
53112-20140J0

ST182..WIB

DARK BLUE MICA,8J1

 1
53112-2014013

ST18#..WIB..(GTI,TBO4W)

BLUISH GRAY M,182

 1
53112C - GRILLE, RADIATOR, LOWER RH
53112-2014001

ST18#..WIB..(GTI,TBO4W)

BLACK,202

 1
53112-2014008

ST18#..WIB..(GTI,TBO4W)

SUPER WHITE 2,040

 1
53112-2014038

ST182..WIB

WINERED MICA,3J8

 1
53112-2014012

ST18#..WIB..(GTI,TBO4W)

SUPER RED 2,3E5

 1
53112-20140H0

ST18#..WIB..(GTI,TBO4W)

MEDIUM TURQUOISEM,749

 1
53112-20140J0

ST182..WIB

DARK BLUE MICA,8J1

 1
53112-2014013

ST18#..WIB..(GTI,TBO4W)

BLUISH GRAY M,182

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-2008008

ST18#..WIB..(GTI,TBO4W)

SUPER WHITE 2,040

 1
53113-20080H0

ST18#..WIB..(GTI,TBO4W)

MEDIUM TURQUOISEM,749

 1
53113-2008038

ST182..WIB

WINERED MICA,3J8

 1
53113-20080J0

ST182..WIB

DARK BLUE MICA,8J1

 1
53113-2008012

ST18#..WIB..(GTI,TBO4W)

SUPER RED 2,3E5

 1
53113-2008001

ST18#..WIB..(GTI,TBO4W)

BLACK,202

 1
53113-2008013

ST18#..WIB..(GTI,TBO4W)

BLUISH GRAY M,182

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-2008008

ST18#..WIB..(GTI,TBO4W)

SUPER WHITE 2,040

 1
53113-20080H0

ST18#..WIB..(GTI,TBO4W)

MEDIUM TURQUOISEM,749

 1
53113-2008038

ST182..WIB

WINERED MICA,3J8

 1
53113-20080J0

ST182..WIB

DARK BLUE MICA,8J1

 1
53113-2008012

ST18#..WIB..(GTI,TBO4W)

SUPER RED 2,3E5

 1
53113-2008001

ST18#..WIB..(GTI,TBO4W)

BLACK,202

 1
53113-2008013

ST18#..WIB..(GTI,TBO4W)

BLUISH GRAY M,182

 1
53131A - DOOR, HEADLAMP, RH
53131-20290

AT180,ST18#

 1
53132A - DOOR, HEADLAMP, LH
53132-20260

AT180,ST18#

 1
53137 - COVER SUB-ASSY, COOL AIR INTAKE HOLE, LH
53137-20040

ST18#..RHD

UNITED OF KINGDOM SPEC

 6
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-20040

AT180,ST18#..GTI,STI,TBO4W

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-20080

AT180,ST18#..GTI,STI,TBO4W

 1
53141B - GARNISH, RADIATOR GRILLE, NO.1
53141-20030

AT180,ST182

 5
53141-20040

ST18#..WIB..(GTI,TBO4W)

 12
53141B - GARNISH, RADIATOR GRILLE, NO.1
53141-20030

AT180,ST182

 5
53141-20040

ST18#..WIB..(GTI,TBO4W)

 12
53142B - RADIATOR GRILLE GARNISH, NO.2
53142-20020

ST18#..WIB..(GTI,TBO4W)

 9
53142B - RADIATOR GRILLE GARNISH, NO.2
53142-20020

ST18#..WIB..(GTI,TBO4W)

 9
53181 - COVER, HEADLAMP, RH
53181-20020

AT180,ST18#

 1
53182 - COVER, HEADLAMP, LH
53182-20020

AT180,ST18#

 1
54107 - GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, RH
54107-20030

AT180,ST18#

 1
54108 - GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, LH
54108-20030

AT180,ST18#

 1
54110 - BRACKET ASSY, RETRACTABLE HEADLAMP, RH
54110-20050

AT180,ST18#

 1
54111 - BRACKET, RETRACTABLE HEADLAMP, NO.1 RH
54111-20030

AT180,ST18#

 1
54112 - BRACKET, RETRACTABLE HEADLAMP, NO.1 LH
54112-20030

AT180,ST18#

 1
54119 - STOP, RETRACTABLE HEADLAMP LINK
54119-14010

AT180,ST18#

 2
54120 - BRACKET ASSY, RETRACTABLE HEADLAMP, LH
54120-20050

AT180,ST18#

 1
54130 - ROD ASSY, RETRACTABLE HEADLAMP
54130-20020

AT180,ST18#

 2
54149 - BOLT, RETRACTABLE HEADLAMP STOP
54149-20010

AT180,ST18#

 2
54149-20010

AT180,ST18#..CP,LB

 1
54149-20010

AT180,ST18#

 1
54169 - STOP, RETRACTABLE HEADLAMP LINK DOWN
54169-20030

AT180,ST18#

L=21.5

 2
54169-20020

AT180,ST18#

L=46.3

 2
Common parts
53176-20010
90119-05019
90159-40184
90159-60431
90168-50052
90179-06036
90179-06061
90179-06070
90179-08123
90189-04069
90189-04169
90189-05098
90389-08017
90430-05131
90467-03007
90467-05071
90467-0703001
90467-07043C0
90468-04079
90541-08137
91631-60612
91651-60650
