ST182R-BLMVFG (1991)
Toyota Celica
Production
Aug 1991
-
Nov 1993
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9108-9109)3SGE..LB ; (9109- )3SGE

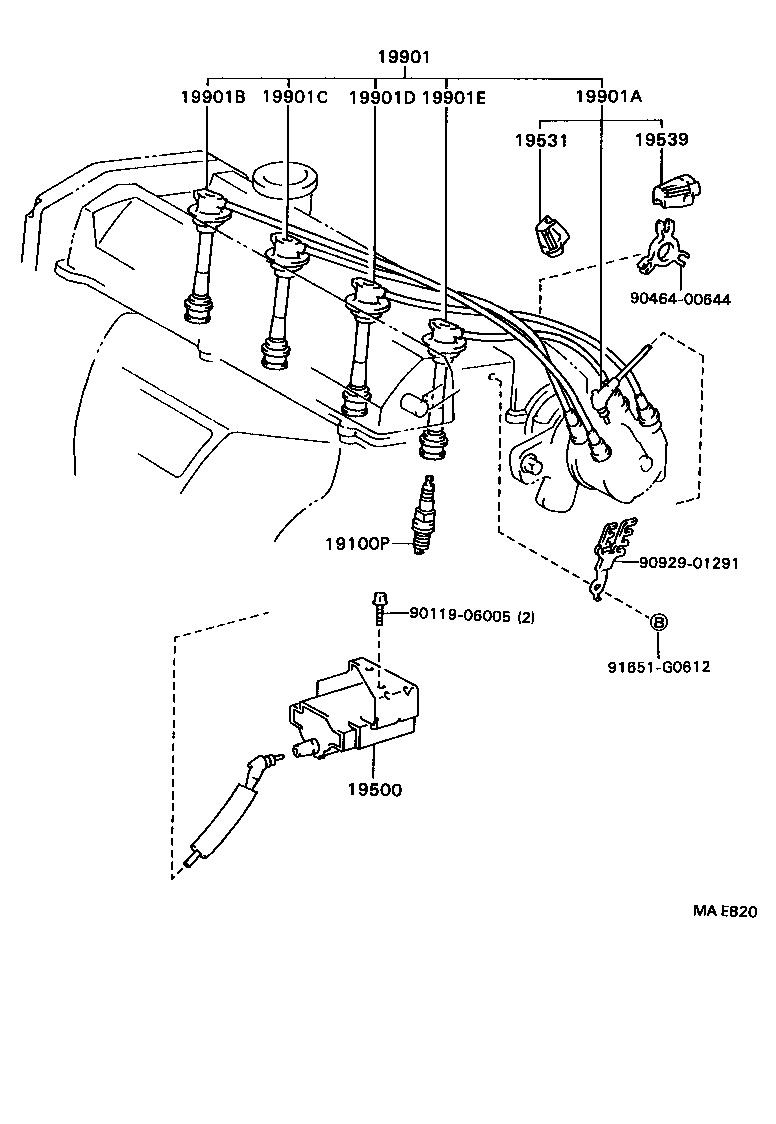

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01180 |
3SG#..ST18#..G PK20R8 |
4 | ||
| 90919-01166 |
3SGE..ST182..W K20R-U |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 19500-74020 |
3SGE..ST182..RHD..MTM..W |
1 | ||
| 19500-74020 |
3SG#..ST18#..RHD |
1 | ||
| 19500-74040 |
3SG#..ST18#..RHD..LB |
1 | ||
| 19531 - HOLDER, RESISTIVE CORD, NO.1 | ||||
| 19531-74020 |
3SG#..ST18# |
1 | ||
| 19531-74020 |
3SG#..ST18#..LB |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-62020 |
3SG#..ST18#..LB |
1 | ||
| 19539-62020 |
3SG#..ST18# |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21468 |
3SGE..ST182 |
1 | ||
| 90919-21525 |
3SGE..ST182 |
1 | ||
| 90919-21525 |
3SGE..ST182..LB |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 19590-74040 |
3SGE..ST182..RHD |
1 | ||
| 19590-74150 |
3SG#..ST18#..LB |
1 | ||
| 19590-74150 |
3SG#..ST18# |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15262 |
3SGE..ST182 |
1 | ||
| 90919-15046 |
3SGE..ST182 |
1 | ||
| 90919-15262 |
3SGE..ST182..LB |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15047 |
3SGE..ST182 |
1 | ||
| 90919-15263 |
3SGE..ST182 |
1 | ||
| 90919-15263 |
3SGE..ST182..LB |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15264 |
3SGE..ST182 |
1 | ||
| 90919-15264 |
3SGE..ST182..LB |
1 | ||
| 90919-15048 |
3SGE..ST182 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15049 |
3SGE..ST182 |
1 | ||
| 90919-15265 |
3SGE..ST182..LB |
1 | ||
| 90919-15265 |
3SGE..ST182 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90464-00644 | ||||
| 90929-01291 | ||||
| 91651-G0612 | ||||
