ST182R-BLMVFG (1991)

Toyota Celica

Production Aug 1991 - Nov 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )3SGE..LB..W

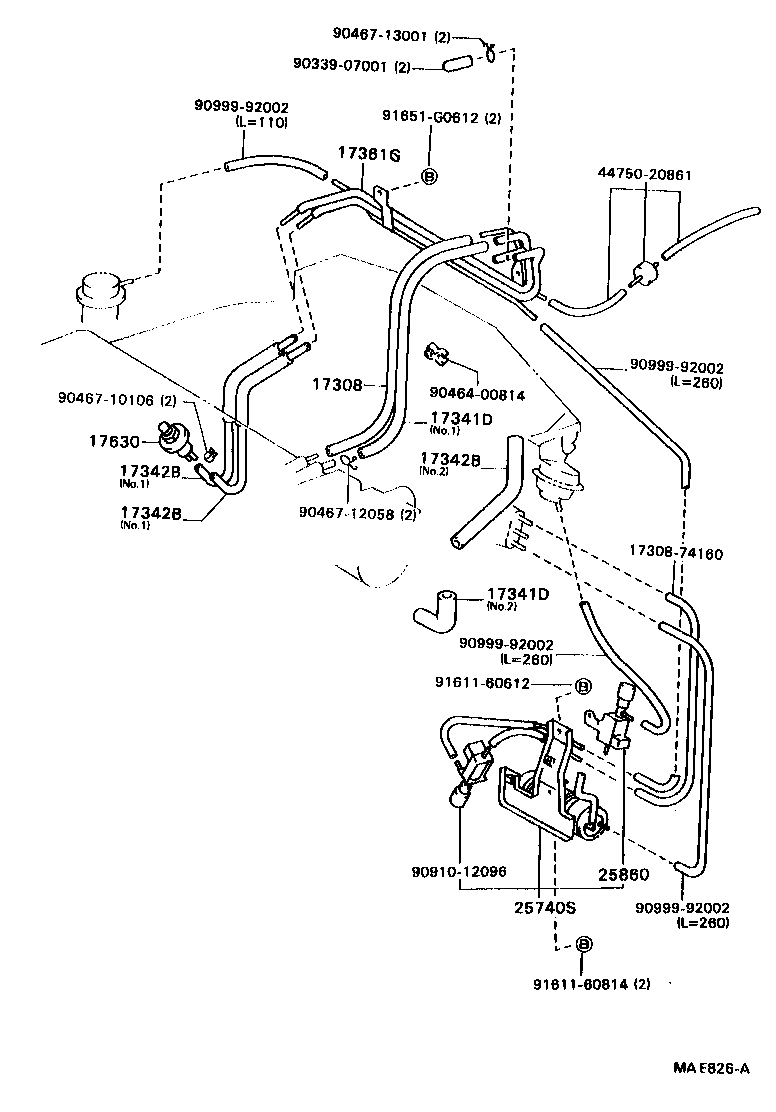

Click highlighted areas on diagram

diagram 17308 1730874160 17341D 17341D 17342B 17342B 17342B 17361G 17630 25740S 25860 4475020861 9033907001 9046400814 9046710106 9046712058 9046713001 9091012096 9099992002 9099992002 9099992002 9099992002 9161160612 9161160814 91651G0612
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74070

3SGE..ST182..LB

 1
17308-74070

3SGE..ST182

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74140

3SGE..ST182

NO.1

 1
17341-74150

3SGE..ST182..RHD

NO.2

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74140

3SGE..ST182

NO.1

 1
17341-74150

3SGE..ST182..RHD

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74180

3SGE..ST182

NO.1

 2
17342-88361

3SGE..ST182..RHD

NO.1

 2
17342-74050

3SGE..ST182..RHD

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74180

3SGE..ST182

NO.1

 2
17342-88361

3SGE..ST182..RHD

NO.1

 2
17342-74050

3SGE..ST182..RHD

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74180

3SGE..ST182

NO.1

 2
17342-88361

3SGE..ST182..RHD

NO.1

 2
17342-74050

3SGE..ST182..RHD

NO.2

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74040

3SGE..ST182

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SGE..ST182..RHD

 1
25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL)
25740-74020

3SGE..ST182

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74020

3SGE..ST182

 1
Common parts
17308-74160
44750-20861
90339-07001
90464-00814
90467-10106
90467-12058
90467-13001
90910-12096
90999-92002
91611-60612
91611-60814
91651-G0612

(9108-9109)3SGE..LB..G ; (9109- )3SGE..G

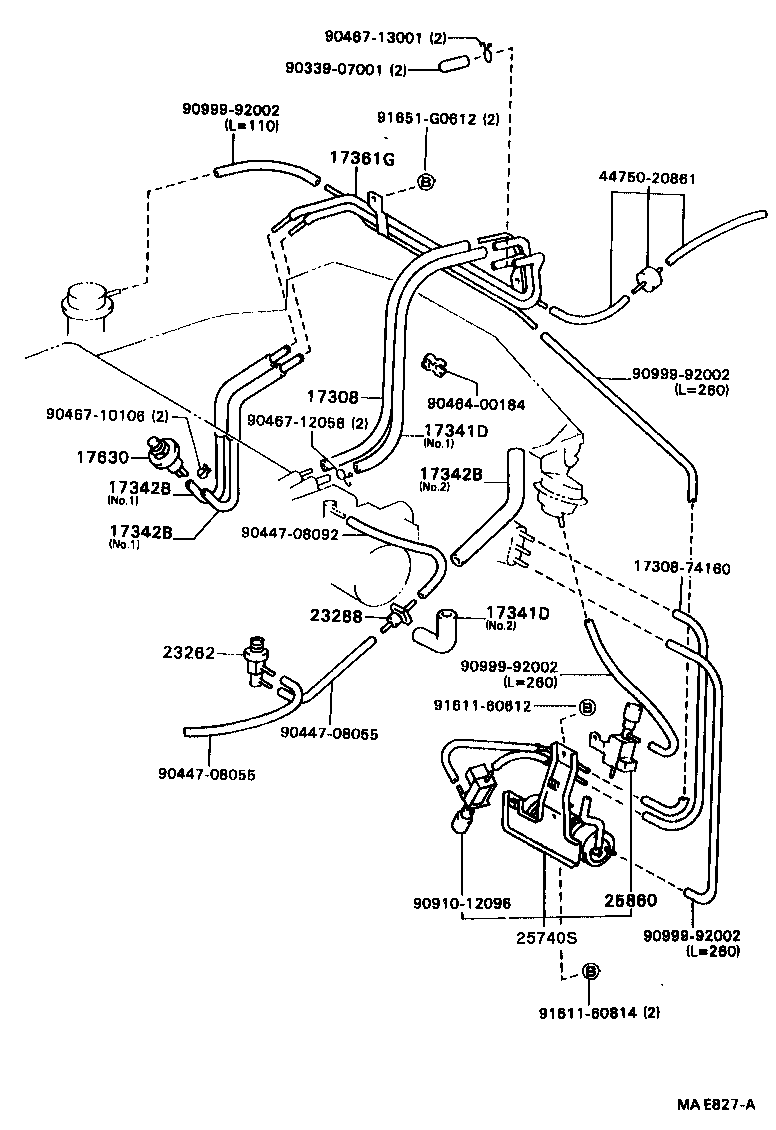

Click highlighted areas on diagram

diagram 17308 1730874160 17341D 17341D 17342B 17342B 17342B 17361G 17630 23262 23288 25740S 25860 4475020861 9033907001 9044708055 9044708055 9044708092 9046400184 9046710106 9046712058 9046713001 9091012096 9099992002 9099992002 9099992002 9099992002 9161160612 9161160814 91651G0612
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74070

3SGE..ST182..LB

 1
17308-74070

3SGE..ST182

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74140

3SGE..ST182

NO.1

 1
17341-74150

3SGE..ST182..RHD

NO.2

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74140

3SGE..ST182

NO.1

 1
17341-74150

3SGE..ST182..RHD

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74180

3SGE..ST182

NO.1

 2
17342-88361

3SGE..ST182..RHD

NO.1

 2
17342-74050

3SGE..ST182..RHD

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74180

3SGE..ST182

NO.1

 2
17342-88361

3SGE..ST182..RHD

NO.1

 2
17342-74050

3SGE..ST182..RHD

NO.2

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74180

3SGE..ST182

NO.1

 2
17342-88361

3SGE..ST182..RHD

NO.1

 2
17342-74050

3SGE..ST182..RHD

NO.2

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74040

3SGE..ST182

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SGE..ST182..RHD

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

3SG#..ST18#..G

 1
23288 - JET, NO.1
90925-04032

3SGE..ST182..G

 1
25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL)
25740-74020

3SGE..ST182

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74020

3SGE..ST182

 1
Common parts
17308-74160
44750-20861
90339-07001
90447-08055
90447-08092
90464-00184
90467-10106
90467-12058
90467-13001
90910-12096
90999-92002
91611-60612
91611-60814
91651-G0612
