ST182R-BLMVFG (1991)
Toyota Celica

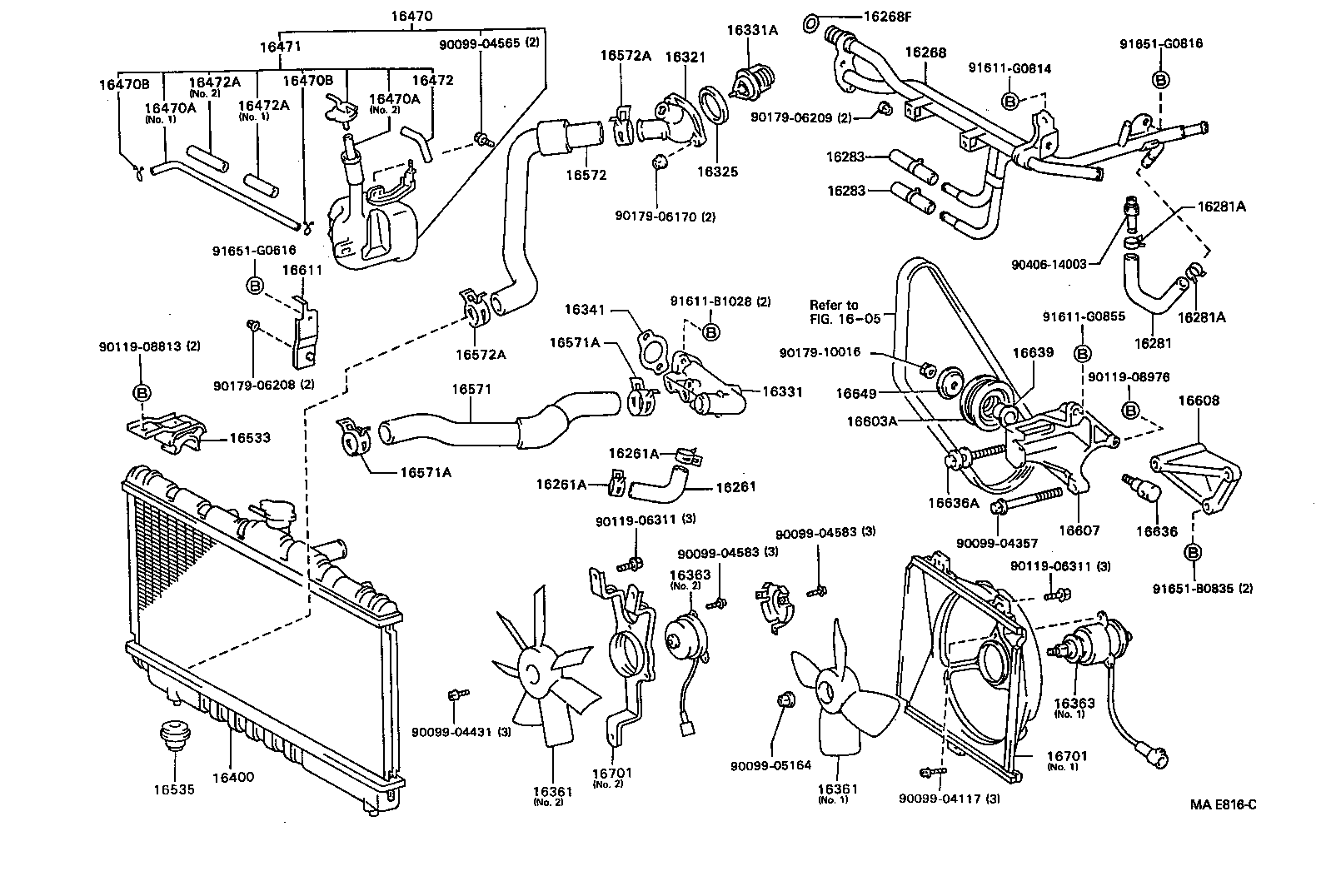

ILLUST NO. 1 OF 2(9108-9109)3SGE..LB ; (9109- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88362 |
3SGE..ST182 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-88360 |
3SGE..ST182..LB |
1 | ||
| 16281-88360 |
3SGE..ST182 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-20011 |
3SG#..ST18#..LB |
2 | ||
| 90467-20011 |
3SG#..ST18# |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-20011 |
3SG#..ST18#..LB |
2 | ||
| 90467-20011 |
3SG#..ST18# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88381 |
3SG#..ST18# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3SG#..ST18# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-88363 |
3SGE..ST182..G |
1 | ||
| 16304-88362 |
3SGE..ST182..W |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
3SG#..ST18# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-88380 |
3SG#..ST18# |
1 | ||
| 16361 - FAN | ||||
| 16361-64010 |
3SGE..ST182..RHD NO.1 |
1 | ||
| 16361-74040 |
3SGE..ST182..RHD NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-64010 |
3SGE..ST182..RHD NO.1 |
1 | ||
| 16361-74040 |
3SGE..ST182..RHD NO.2 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74020 |
3SGE..ST182 NO.1 |
1 | ||
| 16363-74050 |
3SGE..ST182 NO.2 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74020 |
3SGE..ST182 NO.1 |
1 | ||
| 16363-74050 |
3SGE..ST182 NO.2 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74540 |
3SGE..ST182..RHD..MTM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74110 |
3SGE..ST182..RHD |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74110 |
3SGE..ST182..RHD NO.1 |
1 | ||
| 90445-12078 |
3SGE..ST182..RHD L=600,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74110 |
3SGE..ST182..RHD NO.1 |
1 | ||
| 90445-12078 |
3SGE..ST182..RHD L=600,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SGE..ST182..RHD |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SGE..ST182..RHD |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74120 |
3SGE..ST182..RHD |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
3SGE..ST182..RHD |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16477-74110 |
3SGE..ST182..RHD NO.1 |
1 | ||
| 85338-70070 |
3SGE..ST182..RHD NO.2 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16477-74110 |
3SGE..ST182..RHD NO.1 |
1 | ||
| 85338-70070 |
3SGE..ST182..RHD NO.2 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74120 |
3SGE..ST182..RHD |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74090 |
3SGE..ST182 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74120 |
3SGE..ST182..RHD |
1 | ||
| 16571-74210 |
3SGE..ST182 |
1 | ||
| 16571-74210 |
3SGE..ST182..LB |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33003 |
3SGE..ST182..RHD |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33003 |
3SGE..ST182..RHD |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74100 |
3SGE..ST182..RHD |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3SGE..ST182..RHD |
2 | ||
| 90467-33003 |
3SGE..ST182..LB ENGINE SIDE |
1 | ||
| 90467-33002 |
3SGE..ST182 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3SGE..ST182..RHD |
2 | ||
| 90467-33003 |
3SGE..ST182..LB ENGINE SIDE |
1 | ||
| 90467-33002 |
3SGE..ST182 RADIATOR SIDE |
1 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-88360 |
3SGE..ST182..RHD |
1 | ||
| 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 | ||||
| 16631-74030 |
3SG#..ST18# |
1 | ||
| 16608 - BRACKET SUB-ASSY, IDLER PULLEY, NO.2 | ||||
| 16632-74010 |
3SGE..ST182 |
1 | ||
| 16632-74010 |
3SGE..ST182..LB |
1 | ||
| 16632-74010 |
3SGE..ST182 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74070 |
3SGE..ST182..RHD |
1 | ||
| 16636 - SHAFT, IDLER PULLY, NO.1 | ||||
| 16636-74020 |
3SGE..ST182..RHD |
1 | ||
| 16636A - BOLT(FOR IDLER PULLY TENSION) | ||||
| 90109-08116 |
3SG#..ST18# |
1 | ||
| 16639 - SPACER, IDLER PULLEY | ||||
| 16639-88361 |
3SGE..ST182..RHD |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-88360 |
3SGE..ST182..RHD |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74250 |
3SGE..ST182..RHD NO.2 |
1 | ||
| 16711-74200 |
3SGE..ST182..RHD NO.1 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74250 |
3SGE..ST182..RHD NO.2 |
1 | ||
| 16711-74200 |
3SGE..ST182..RHD NO.1 |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04357 | ||||
| 90099-04431 | ||||
| 90099-04565 | ||||
| 90099-04583 | ||||
| 90099-05164 | ||||
| 90119-06311 | ||||
| 90119-08813 | ||||
| 90119-08976 | ||||
| 90179-06170 | ||||
| 90179-06208 | ||||
| 90179-06209 | ||||
| 90179-10016 | ||||
| 90406-14003 | ||||
| 91611-B1028 | ||||
| 91611-G0814 | ||||
| 91611-G0855 | ||||
| 91651-B0835 | ||||
| 91651-G0616 | ||||
| 91651-G0816 | ||||
| Linked diagrams | ||||
| 1605 | ||||
