ST182R-BLMVFG (1991)

Toyota Celica

Production Aug 1991 - Nov 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108-9109)3SGE..LB ; (9109- )3SGE

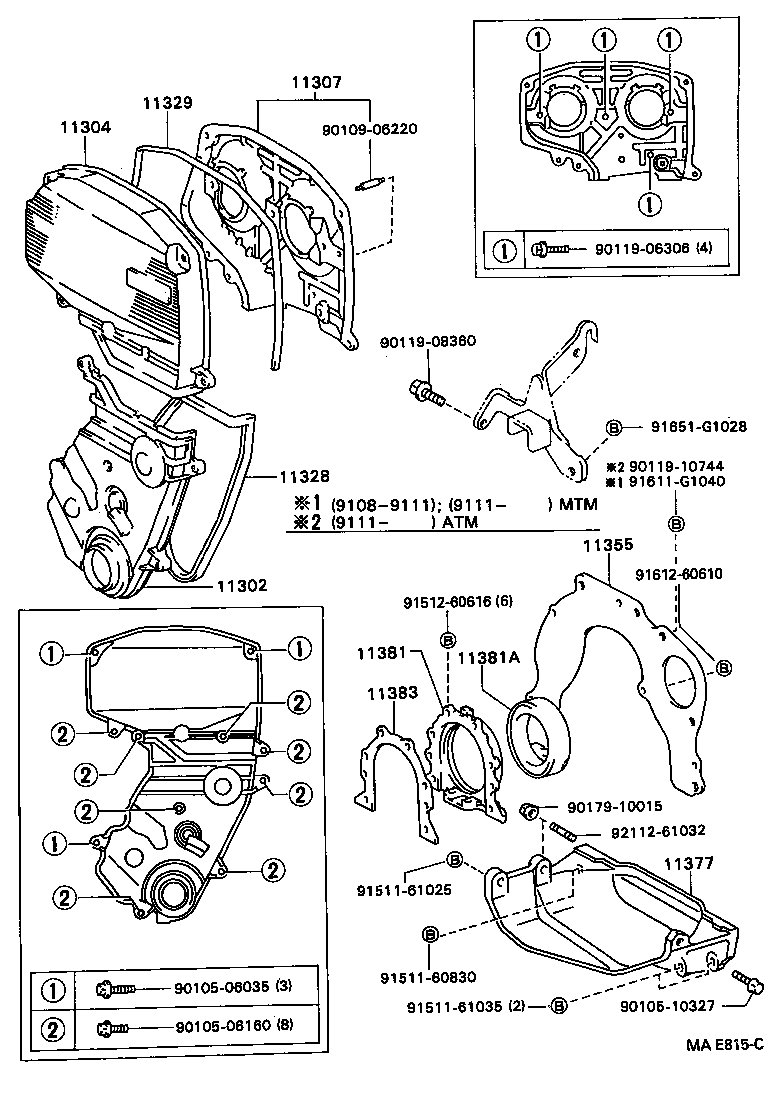

Click highlighted areas on diagram

diagram 11302 11304 11307 11328 11329 11355 11377 11381 11381A 11383 9010506035 9010506160 9010510327 9010906220 9011906306 9011908360 9011910744 9017910015 9151160830 9151161025 9151161035 9151260616 91611G1040 9161260610 91651G1028 9211261032
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-88380

3SG#..ST18#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-88380

3SGE..ST182

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11323-88381

3SGE..ST182

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-88380

3SG#..ST18#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-88380

3SG#..ST18#

 1
11355 - PLATE, REAR END
11355-74010

3SGE..ST182

 1
11377 - STIFFENER, REAR END PLATE
11377-74020

3SGE..ST182..LB

 1
11377-74020

3SGE..ST182

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012

3SG#..ST18#

 1
11381A - SEAL, ENGINE REAR OIL
90311-89001

3SG#..ST18#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-88381

3SG#..ST18#

 1
Common parts
90105-06035
90105-06160
90105-10327
90109-06220
90119-06306
90119-08360
90119-10744
90179-10015
91511-60830
91511-61025
91511-61035
91512-60616
91611-G1040
91612-60610
91651-G1028
92112-61032
