ST182L-BLMVFW (1990)
Toyota Celica
Production
Aug 1990
-
Aug 1991
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

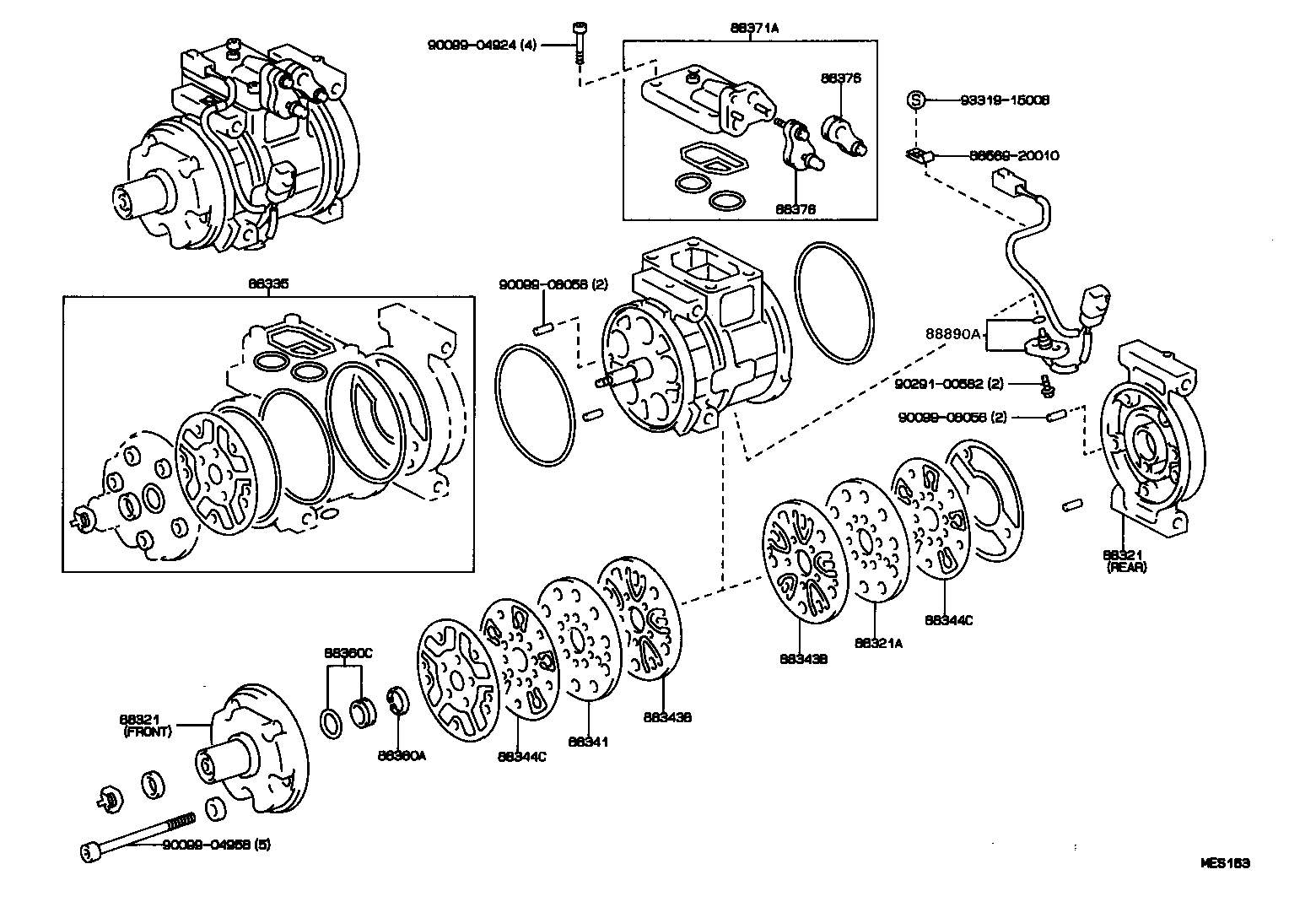

ILLUST NO. 3 OF 3(9008- )ST182
Click highlighted areas on diagram
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
ST182..LHD REAR |
1 | ||
| 88321-14021 |
ST182 FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
ST182..LHD REAR |
1 | ||
| 88321-14021 |
ST182 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-14020 |
ST182..LHD REAR |
1 | ||
| 88305-14020 |
ST18# FRONT |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32010 |
ST182..LB |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14030 |
ST182 NO.1 |
2 | ||
| 88341-14040 |
ST18# FRONT,NO.2 |
1 | ||
| 88342-14030 |
ST182..LHD REAR,NO.2 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST182 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST182 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14022 |
ST182 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14022 |
ST182 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ST18# |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
ST18# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-20290 |
ST182..LB |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
ST18# DISCHARGE |
1 | ||
| 88376-17020 |
ST18# SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
ST18# SUCTION |
1 | ||
| 88376-22020 |
ST18# DISCHARGE |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88336-20140 |
ST182..LHD..LB |
1 | ||
| Common parts | ||||
| 88569-20010 | ||||
| 90099-04924 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
| 90291-00582 | ||||
| 93319-15008 | ||||

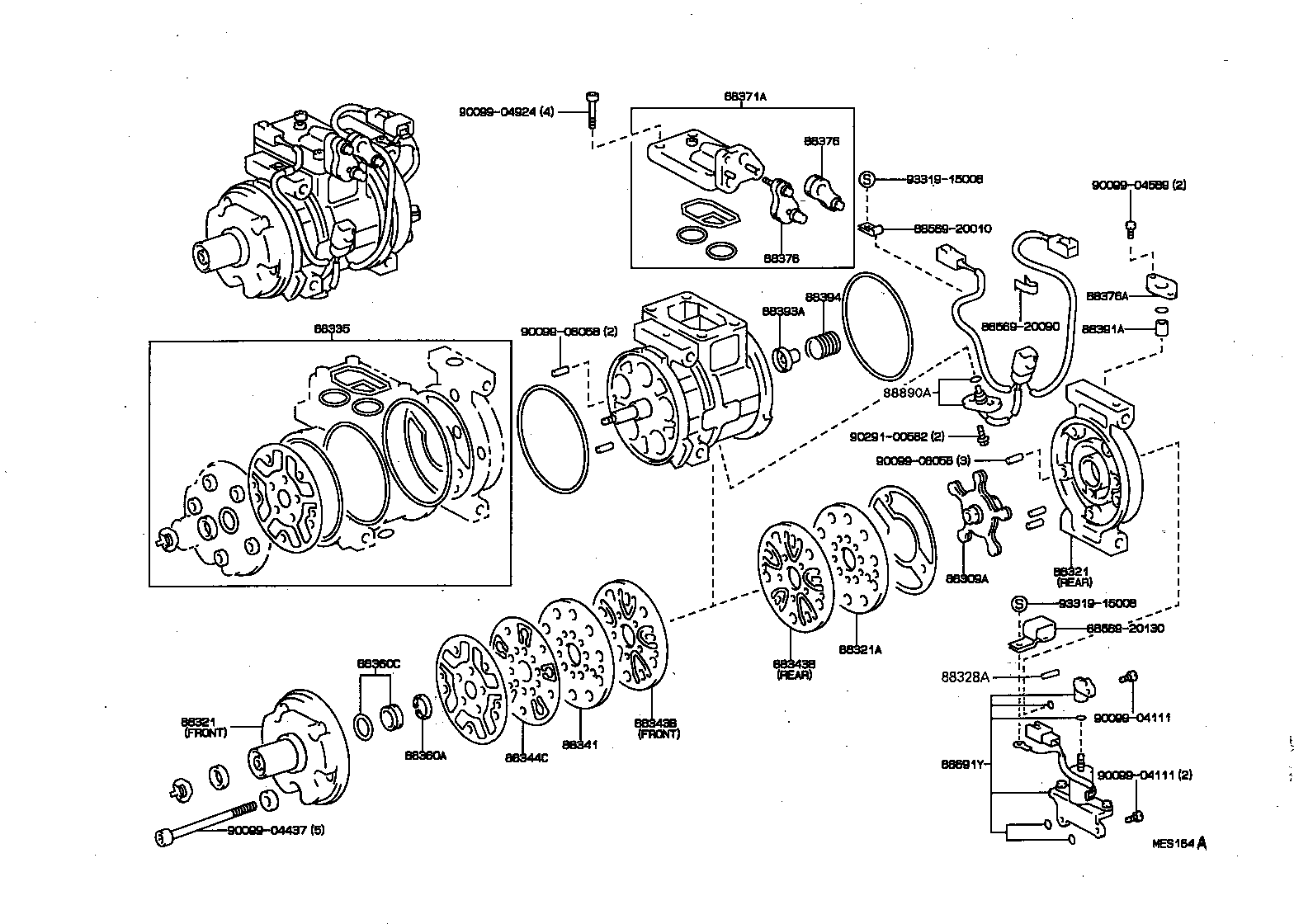

ILLUST NO. 3 OF 3(9008- )ST18#
Click highlighted areas on diagram
ST182=DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
ST182..LHD REAR |
1 | ||
| 88321-14021 |
ST182 FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
ST182..LHD REAR |
1 | ||
| 88321-14021 |
ST182 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-14020 |
ST182..LHD REAR |
1 | ||
| 88305-14020 |
ST18# FRONT |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32010 |
ST182..LB |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14030 |
ST182 NO.1 |
2 | ||
| 88341-14040 |
ST18# FRONT,NO.2 |
1 | ||
| 88342-14030 |
ST182..LHD REAR,NO.2 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST182 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST182 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14022 |
ST182 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ST18# |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
ST18# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-20290 |
ST182..LB |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
ST18# DISCHARGE |
1 | ||
| 88376-17020 |
ST18# SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
ST18# DISCHARGE |
1 | ||
| 88376-17020 |
ST18# SUCTION |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88336-20140 |
ST182..LHD..LB |
1 | ||
| Common parts | ||||
| 88569-20010 | ||||
| 88569-20090 | ||||
| 88569-20130 | ||||
| 90099-04111 | ||||
| 90099-04437 | ||||
| 90099-04589 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 90291-00582 | ||||
| 93319-15008 | ||||
