ST182L-BLMVFW (1990)

Toyota Celica

Production Aug 1990 - Aug 1991
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

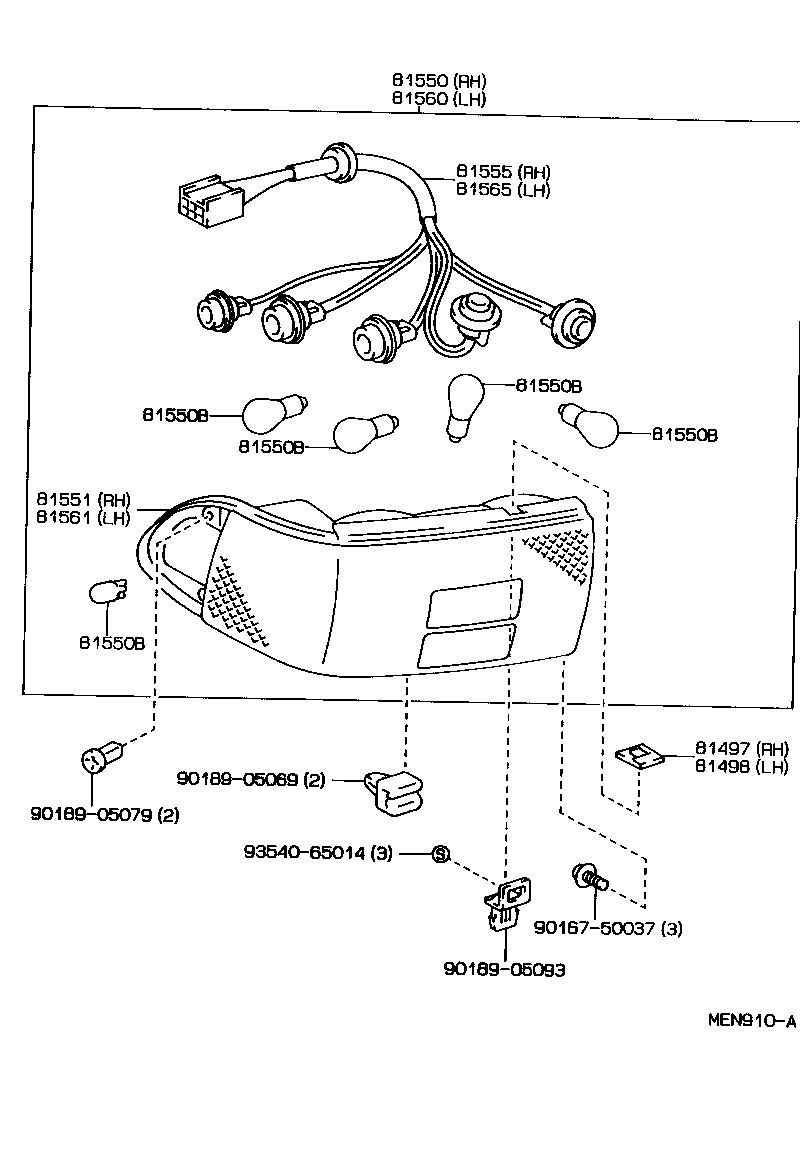

(8909-9108)LB

Click highlighted areas on diagram

diagram 81497 81498 81550 81550B 81550B 81550B 81550B 81550B 81551 81555 81560 81561 81565 9016750037 9018905069 9018905079 9018905093 9354065014
Part # Description Qty Price
Common parts
90167-50037
90189-05069
90189-05079
90189-05093
93540-65014

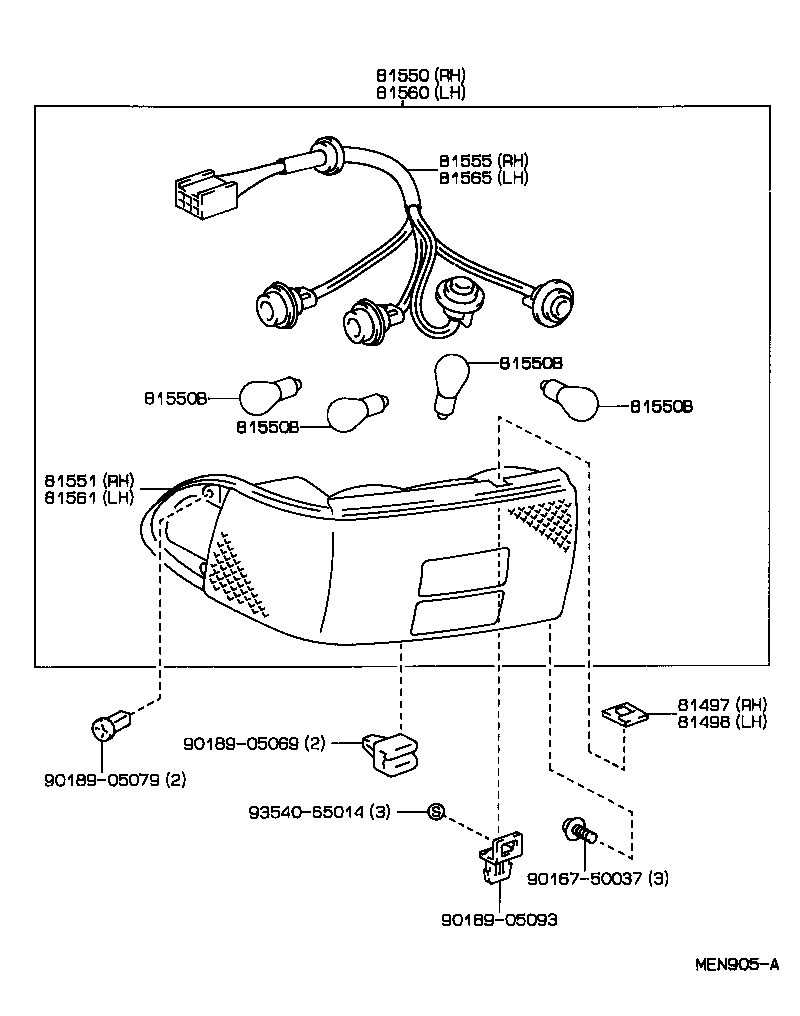

(8910-9108)LB

Click highlighted areas on diagram

diagram 81497 81498 81550 81550B 81550B 81550B 81550B 81551 81555 81560 81561 81565 9016750037 9018905069 9018905079 9018905093 9354065014
Part # Description Qty Price
81497 - COVER, REAR COMBINATION LAMP, RH
81497-20030

AT180,ST18#..LB

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-20020

AT180,ST18#..LB

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B080

AT180,ST18#..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT180,ST18#

12V 21/5W,TAIL & STOP

 2
99132-11210

AT180,ST18#

12V 21W,TURN,BACK OR RR FOG

 6
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B080

AT180,ST18#..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2B080

AT180,ST18#..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B080

AT180,ST18#..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B080

AT180,ST18#..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2B080

AT180,ST18#..LB

 1
Common parts
90167-50037
90189-05069
90189-05079
90189-05093
93540-65014
