ST182L-BLMGFG (1989)

Toyota Celica

Production Oct 1989 - Nov 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8910- )MTM

Click highlighted areas on diagram

diagram 31418 31418 31481 31481 31482 31482 31484A 31484A 31484C 31484C 31484D 31485 31485 9046106055 9046106055 9046108652 9046808032 9046808032 9046808032 9046808032 9161160816 9161160816 9165160616 9165160616 9165160616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01070

ST18#..LHD

 1
31418 - HOSE, CLUTCH
90931-01070

ST18#..LHD

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20460

AT180,ST182..LHD

 1
31481-20590

AT180,ST182..LHD..(CP,LB)

 1
31481-20480

ST182..LHD

W(*66)

 1
31481-20600

AT180,ST182..LHD..(CP,LB)

W(*66)

 1
31481-20590

AT180,ST182..LHD

 1
31481-20600

AT180,ST182..LHD

W(*66)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20460

AT180,ST182..LHD

 1
31481-20590

AT180,ST182..LHD..(CP,LB)

 1
31481-20480

ST182..LHD

W(*66)

 1
31481-20600

AT180,ST182..LHD..(CP,LB)

W(*66)

 1
31481-20590

AT180,ST182..LHD

 1
31481-20600

AT180,ST182..LHD

W(*66)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20400

ST182..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20400

ST182..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20420

AT180,ST18#..LHD

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20420

AT180,ST18#..LHD

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

ST182..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

ST182..MTM

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-20460

ST18#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20440

ST182..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20440

ST182..MTM

 1
Common parts
90461-06055
90461-08652
90468-08032
91611-60816
91651-60616

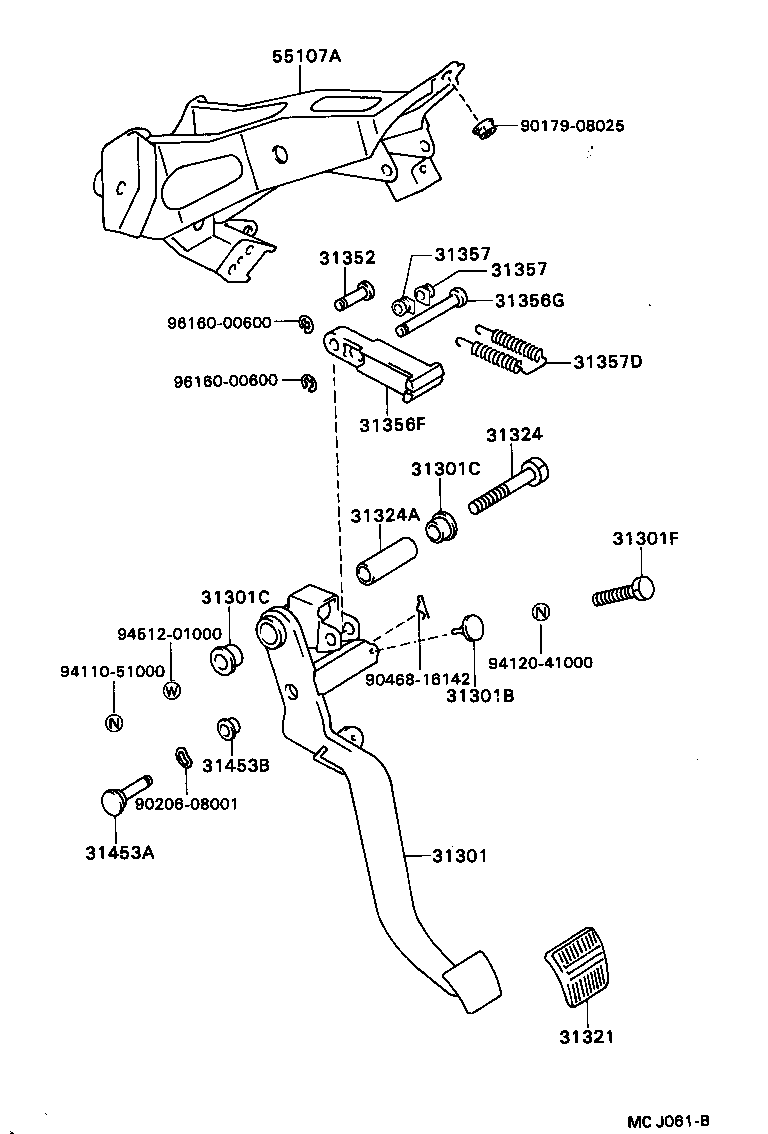

ILLUST NO. 1 OF 2(8910- )ST18#..LHD

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31321 31324 31324A 31352 31356F 31356G 31357 31357 31357D 31453A 31453B 55107A 9017908025 9020608001 9046816142 9411051000 9412041000 9451201000 9616000600 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-20360

ST18#..LHD

 1
31301-20440

ST18#..LHD..LB

 1
31301-20440

ST18#..LHD

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06032

AT180,ST18#..(CP,LB)..MTM

 1
90541-06032

AT180,ST18#..MTM

 1
90541-06036

AT180,ST18#..LHD

 1
90541-06036

ST18#..LHD..(GTI,TBO4W)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT180,ST18#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT180,ST18#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ST185..LHD;AT180,ST182..MTM

 1
90101-10369

AT180,ST18#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

AT180,ST18#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

AT180,ST18#..LHD

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AT180,ST18#..LHD

 1
31352 - PIN, OVER CENTER PLATE
31352-20020

ST18#..LHD

 1
31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1
31356-20020

ST18#..LHD

 1
31356G - PIN(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE)
90249-08214

ST18#..LHD

 1
31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2
31357-20020

ST18#..LHD

 2
31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2
31357-20020

ST18#..LHD

 2
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
31316-20020

ST182..LHD

 1
31316-20030

ST182..LHD..LB

 1
31316-20030

ST182..LHD

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

AT180,ST18#..MTM

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

AT180,ST18#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-20330

ST18#..LHD..LB

 1
55107-20310

ST18#..LHD

 1
55107-20330

ST18#..LHD

 1
Common parts
90179-08025
90206-08001
90468-16142
94110-51000
94120-41000
94512-01000
96160-00600
