ST165R-BLMVZG (1987)

Toyota Celica

Production Oct 1987 - Aug 1989
Engine 3SGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

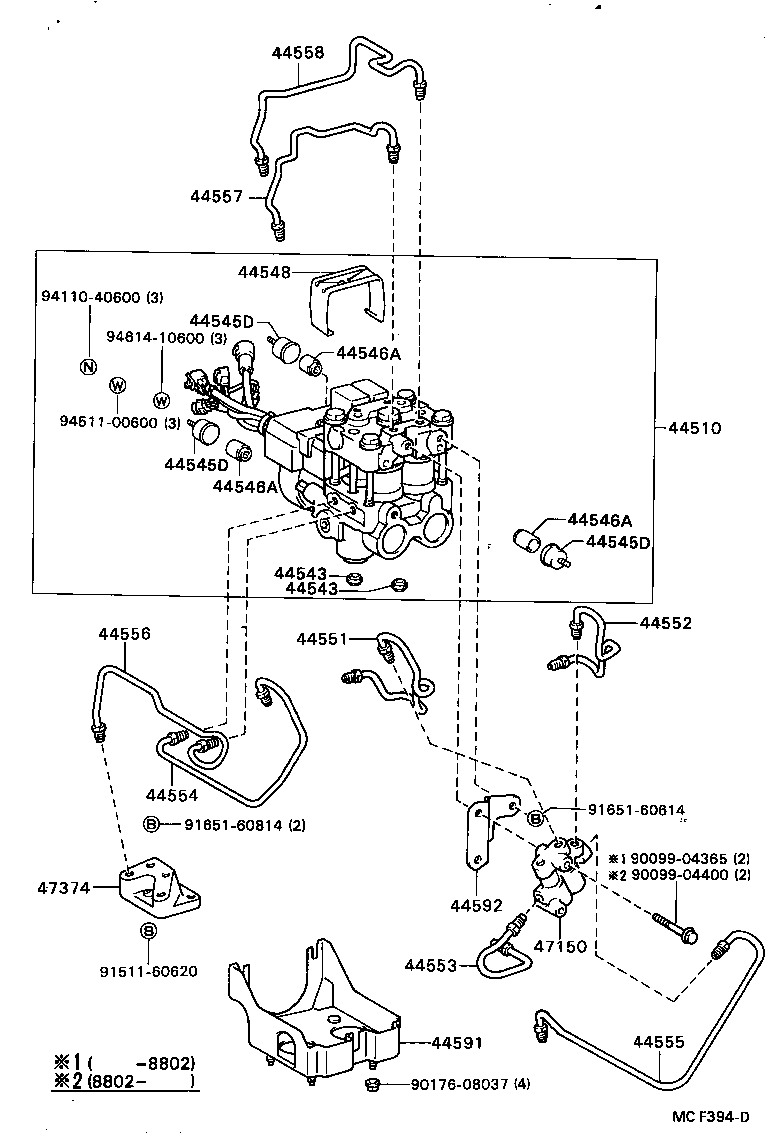

ILLUST NO. 2 OF 2(8710- )ST165

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

diagram 44510 44543 44543 44545D 44545D 44545D 44546A 44546A 44546A 44548 44551 44552 44553 44554 44555 44556 44557 44558 44591 44592 47150 47374 9009904365 9009904400 9017608037 9151160620 9165160614 9165160814 9411040600 9451100600 9461410600
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-20020

ST165

 1
44543 - CAP, RUBBER
44543-14010

ST16#

 2
44543 - CAP, RUBBER
44543-14010

ST16#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

ST16#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

ST16#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

ST16#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

ST16#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

ST16#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

ST16#

 3
44548 - CLAMP(FOR BRAKE ACTUATOR)
44548-20020

ST165

 1
44551 - TUBE, BRAKE ACTUATOR, NO.1
44551-20020

ST165

 1
44552 - TUBE, BRAKE ACTUATOR, NO.2
44552-20020

ST165

 1
44553 - TUBE, BRAKE ACTUATOR, NO.3
44553-20020

ST165

 1
44554 - TUBE, BRAKE ACTUATOR, NO.4
44554-20020

ST165

 1
44555 - TUBE, BRAKE ACTUATOR, NO.5
44555-20020

ST165

 1
44556 - TUBE, BRAKE ACTUATOR, NO.6
44556-20010

ST165

 1
44557 - TUBE, BRAKE ACTUATOR, NO.7
44557-20010

ST165

 1
44558 - TUBE, BRAKE ACTUATOR, NO.8
44558-20010

ST165

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-20020

ST165

 1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-20020

ST165

 1
47150 - VALVE ASSY, PROPORTIONING
47150-32060

ST165

 1
47374 - CONNECTOR, TUBE
47374-20010

ST165

 1
Common parts
90099-04365
90099-04400
90176-08037
91511-60620
91651-60614
91651-60814
94110-40600
94511-00600
94614-10600

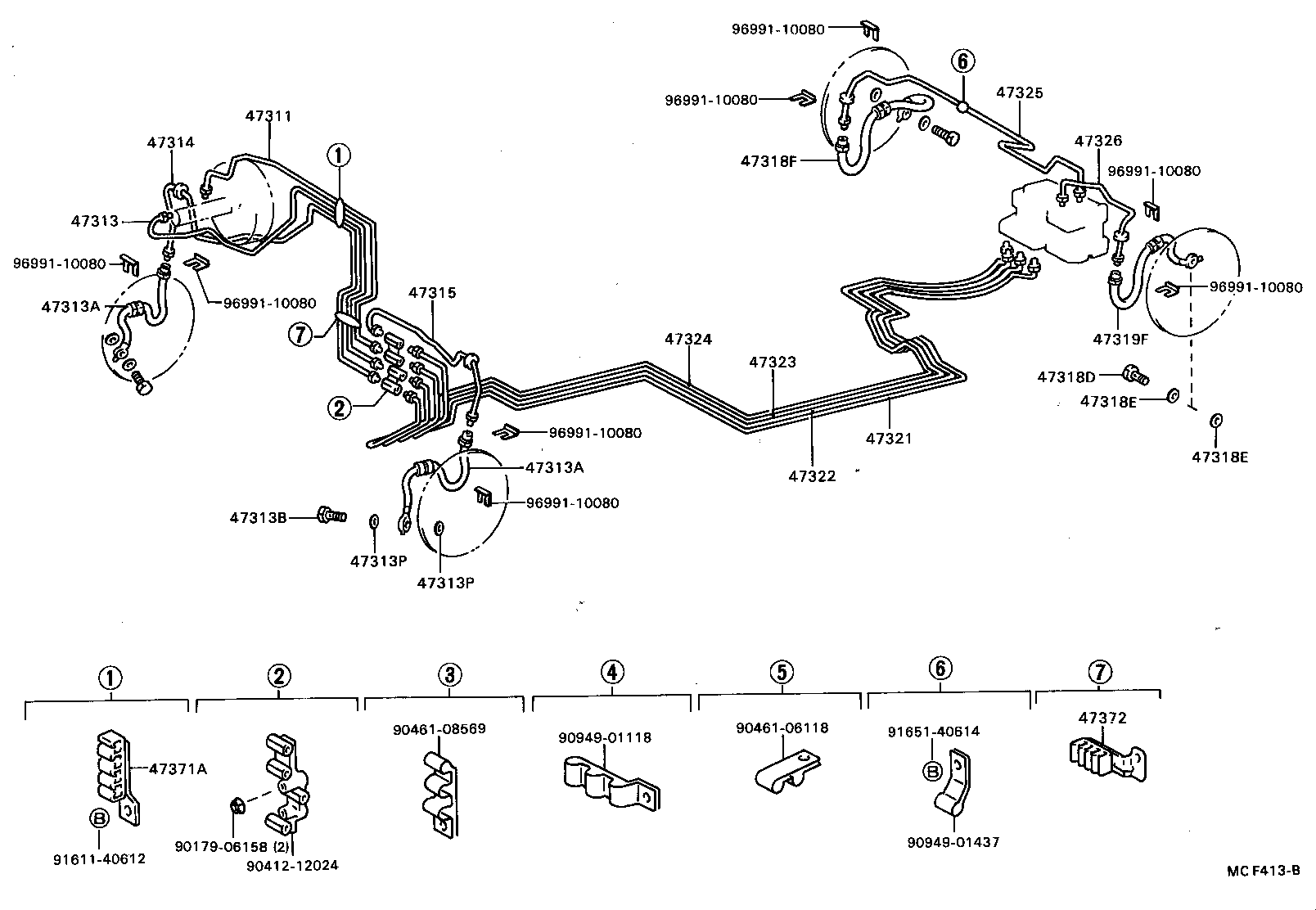

ILLUST NO. 1 OF 2(8710- )ST165

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

diagram 47311 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47326 47371A 47372 9017906158 9041212024 9046106118 9046106119 9094901437 9161140612 9161140612 9161140612 9165140614 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-20630

ST165..RHD

 1
47311-20470

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47311-20631

ST165..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20290

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47313-20280

ST165..RHD

 1
47313-20281

ST165..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02550

AT160,ST16#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02550

AT160,ST16#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT160,ST16#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST16#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST16#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20210

ST165..RHD

 1
47314-20220

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20320

ST16#..RHD

 1
47315-20360

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

ST16#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST16#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST16#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02549

ST165

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02549

ST165

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-20270

ST165..RHD

 1
47321-20160

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47322 - TUBE, REAR BRAKE, NO.2
47321-20140

ST165..RHD

 1
47322-20280

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-20080

ST165..RHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-20080

ST165..RHD

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-20010

ST165

RH

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-20010

ST165

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20020

ST165

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-20020

ST165..RHD

 1
Common parts
90179-06158
90412-12024
90461-06118
90461-06119
90949-01437
91611-40612
91651-40614
96991-10080

ILLUST NO. 2 OF 2(8710- )ST165

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

diagram 44510 44543 44543 44545D 44545D 44545D 44546A 44546A 44546A 44548 44551 44552 44553 44554 44555 44556 44557 44558 44591 44592 47150 47374 9009904365 9009904400 9017608037 9151160620 9165160614 9165160814 9411040600 9451100600 9461410600
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-20020

ST165

 1
44543 - CAP, RUBBER
44543-14010

ST16#

 2
44543 - CAP, RUBBER
44543-14010

ST16#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

ST16#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

ST16#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

ST16#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

ST16#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

ST16#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

ST16#

 3
44548 - CLAMP(FOR BRAKE ACTUATOR)
44548-20020

ST165

 1
44551 - TUBE, BRAKE ACTUATOR, NO.1
44551-20020

ST165

 1
44552 - TUBE, BRAKE ACTUATOR, NO.2
44552-20020

ST165

 1
44553 - TUBE, BRAKE ACTUATOR, NO.3
44553-20020

ST165

 1
44554 - TUBE, BRAKE ACTUATOR, NO.4
44554-20020

ST165

 1
44555 - TUBE, BRAKE ACTUATOR, NO.5
44555-20020

ST165

 1
44556 - TUBE, BRAKE ACTUATOR, NO.6
44556-20010

ST165

 1
44557 - TUBE, BRAKE ACTUATOR, NO.7
44557-20010

ST165

 1
44558 - TUBE, BRAKE ACTUATOR, NO.8
44558-20010

ST165

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-20020

ST165

 1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-20020

ST165

 1
47150 - VALVE ASSY, PROPORTIONING
47150-32060

ST165

 1
47374 - CONNECTOR, TUBE
47374-20010

ST165

 1
Common parts
90099-04365
90099-04400
90176-08037
91511-60620
91651-60614
91651-60814
94110-40600
94511-00600
94614-10600

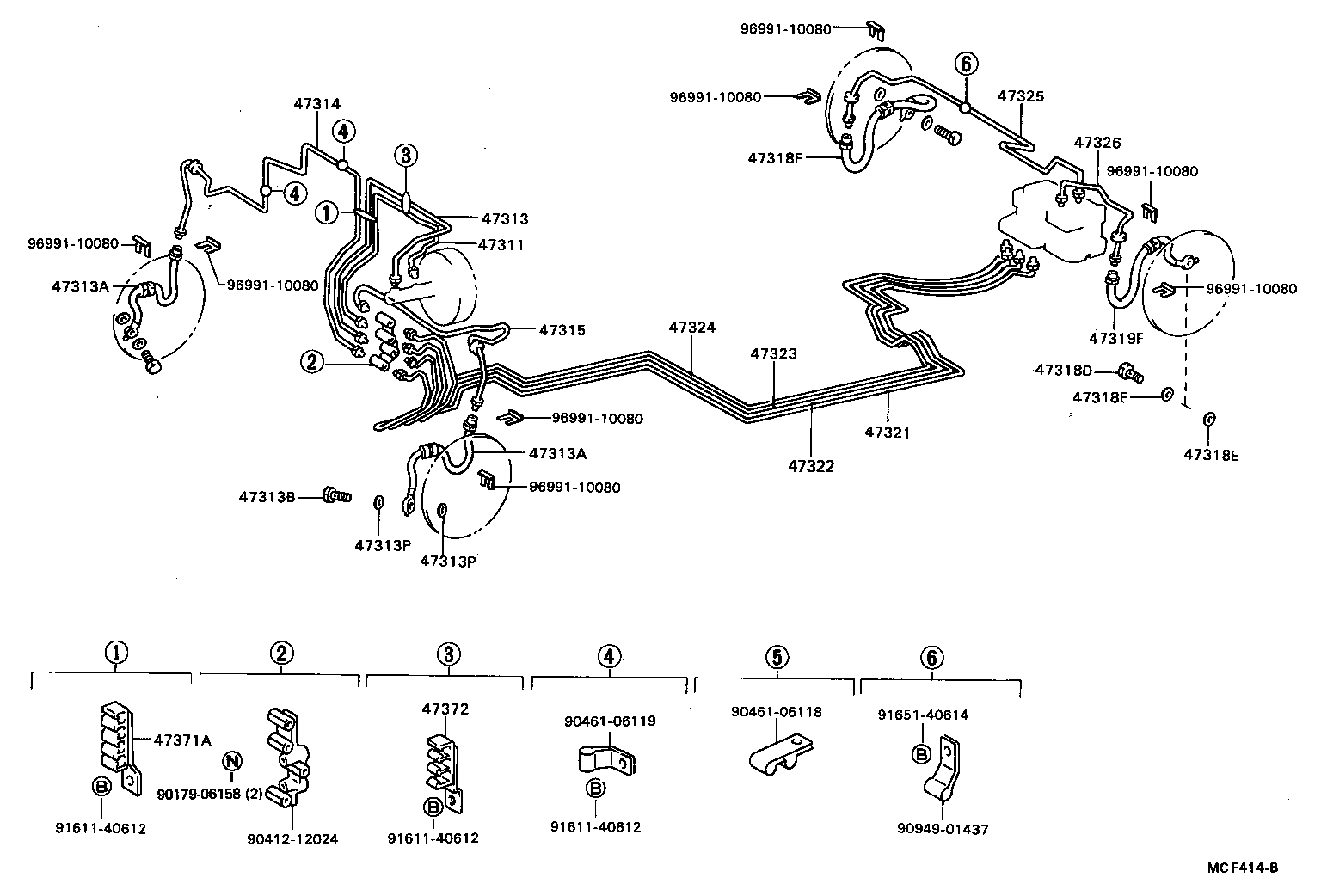

ILLUST NO. 1 OF 2(8710- )ST165..RHD

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

diagram 47311 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47326 47371A 47372 9017906158 9041212024 9046106118 9046108569 9094901118 9094901437 9161140612 9165140614 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-20630

ST165..RHD

 1
47311-20470

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47311-20631

ST165..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20290

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47313-20280

ST165..RHD

 1
47313-20281

ST165..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02550

AT160,ST16#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02550

AT160,ST16#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT160,ST16#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST16#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST16#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20210

ST165..RHD

 1
47314-20220

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20320

ST16#..RHD

 1
47315-20360

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

ST16#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST16#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST16#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02549

ST165

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02549

ST165

 1
47321 - TUBE, REAR BRAKE, NO.1
47322-20270

ST165..RHD

 1
47321-20160

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47322 - TUBE, REAR BRAKE, NO.2
47321-20140

ST165..RHD

 1
47322-20280

ST165..RHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-20080

ST165..RHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-20080

ST165..RHD

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-20010

ST165

RH

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-20010

ST165

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20020

ST165

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-20020

ST165..RHD

 1
Common parts
90179-06158
90412-12024
90461-06118
90461-08569
90949-01118
90949-01437
91611-40612
91651-40614
96991-10080
