ST165R-BLMVZG (1987)

Toyota Celica

Production Oct 1987 - Aug 1989
Engine 3SGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )3SGTE

Click highlighted areas on diagram

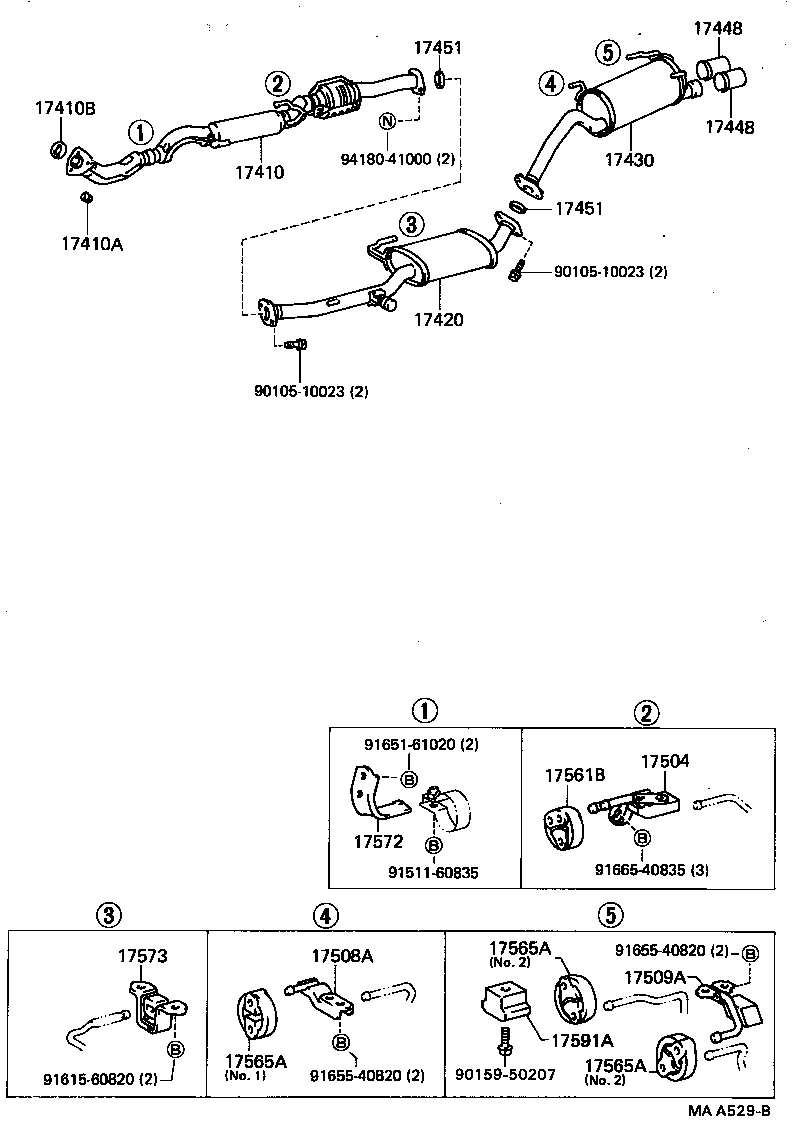

diagram 17410 17410A 17410B 17420 17430 17448 17448 17451 17451 17504 17508A 17509A 17561B 17565A 17565A 17565A 17572 17573 17591A 9010510023 9010510023 9015950207 9151160835 9161560820 9165161020 9165540820 9165540820 9166540835 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74390

3SGTE..ST165

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AG#,4AL,3SG#..AT160,ST16#

 3
17410B - GASKET, EXHAUST PIPE
90917-06013

3SGTE..ST165

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74180

3SGTE..ST165

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74330

3SGTE..ST165

 1
17448 - BAFFLE, TAIL PIPE
17448-74040

3SGTE..ST165

 2
17448 - BAFFLE, TAIL PIPE
17448-74040

3SGTE..ST165

 2
17451 - GASKET, EXHAUST PIPE
90917-06032

3SGTE..ST165

 2
17451 - GASKET, EXHAUST PIPE
90917-06032

3SGTE..ST165

 2
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-74020

3SGTE..ST165

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74020

3SGTE..ST165

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74020

3SGTE..ST165

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

3SGTE..ST165

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3SGTE..ST165

NO.2

 2
17565-63020

3SGTE..ST165

NO.1

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3SGTE..ST165

NO.2

 2
17565-63020

3SGTE..ST165

NO.1

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3SGTE..ST165

NO.2

 2
17565-63020

3SGTE..ST165

NO.1

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-74100

3SGTE..ST165

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-74010

3SGTE..ST165

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-74010

4AG#,4AL,3SG#..AT160,ST16#

 1
Common parts
90105-10023
90159-50207
91511-60835
91615-60820
91651-61020
91655-40820
91665-40835
94180-41000
