ST165R-BLMVZG (1987)

Toyota Celica

Production Oct 1987 - Aug 1989
Engine 3SGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )3SGTE

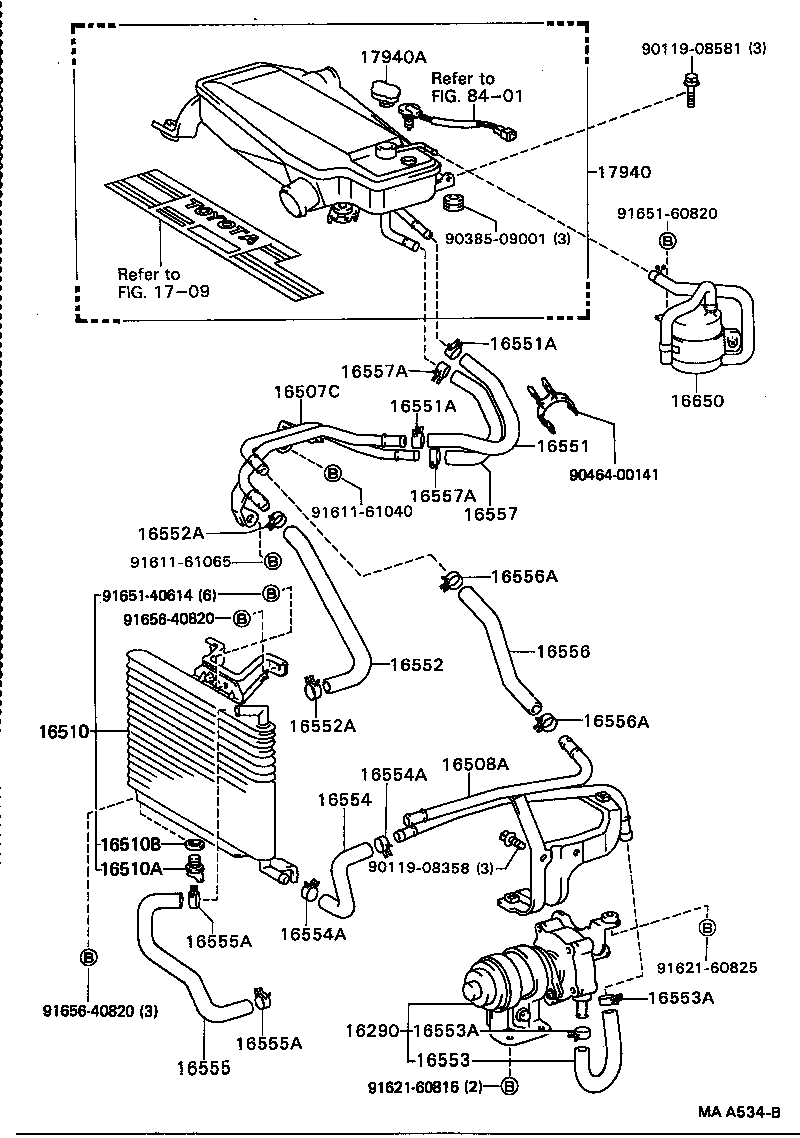

Click highlighted areas on diagram

diagram 16290 16507C 16508A 16510 16510A 16510B 16551 16551A 16551A 16552 16552A 16552A 16553 16553A 16553A 16554 16554A 16554A 16555 16555A 16555A 16556 16556A 16556A 16557 16557A 16557A 16650 1709 17940 17940A 8401 9011908358 9011908581 9038509001 9046400141 9161161040 9161161065 9162160816 9162160825 9165140614 9165160820 9165640820 9165640820
Part # Description Qty Price
16290 - PUMP ASSY, WATER W/MOTOR & BRACKET
16290-74010

3SGTE..ST165

 1
16507C - PIPE SUB-ASSY, SUB-RADIATOR, NO.1
16507-74010

3SGTE..ST165

 1
16508A - PIPE SUB-ASSY, SUB-RADIATOR, NO.2
16508-74010

3SGTE..ST165

 1
16510 - SUB-RADIATOR ASSY
16510-74010

3SGTE..ST165

 1
16510A - PLUG, DRAIN COCK(FOR SUB-RADIATOR)
90910-09054

3SGTE..ST165

 1
16510B - RING, O(FOR SUB-RADIATOR DRAIN COCK PLUG)
96711-19007

3SGTE..ST165

 1
16551 - HOSE, SUB-RADIATOR, NO.1
16551-74010

3SGTE..ST165

 1
16551A - CLIP, SUB-RADIATOR HOSE, NO.1
90467-22004

3SGTE..ST165

 2
16551A - CLIP, SUB-RADIATOR HOSE, NO.1
90467-22004

3SGTE..ST165

 2
16552 - HOSE, SUB-RADIATOR, NO.2
16552-74010

3SGTE..ST165

 1
16552A - CLIP, SUB-RADIATOR HOSE, NO.2
90467-22004

3SGTE..ST165

PUMP SIDE

 1
90467-22003

3SGTE..ST165

PIPE SIDE

 1
16552A - CLIP, SUB-RADIATOR HOSE, NO.2
90467-22004

3SGTE..ST165

PUMP SIDE

 1
90467-22003

3SGTE..ST165

PIPE SIDE

 1
16553 - HOSE, SUB-RADIATOR, NO.3
16553-74010

3SGTE..ST165

 1
16553A - CLIP, SUB-RADIATOR HOSE, NO.3
90467-22003

3SGTE..ST165

PUMP SIDE

 1
90467-22004

3SGTE..ST165

PIPE SIDE,RADIATOR SIDE

 1
16553A - CLIP, SUB-RADIATOR HOSE, NO.3
90467-22003

3SGTE..ST165

PUMP SIDE

 1
90467-22004

3SGTE..ST165

PIPE SIDE,RADIATOR SIDE

 1
16554 - HOSE, SUB-RADIATOR, NO.4
16554-74010

3SGTE..ST165

 1
16554A - CLIP, SUB-RADIATOR HOSE, NO.4
90467-22003

3SGTE..ST165

PIPE SIDE

 1
90467-22004

3SGTE..ST165

SUB-RADIATOR SIDE

 1
16554A - CLIP, SUB-RADIATOR HOSE, NO.4
90467-22003

3SGTE..ST165

PIPE SIDE

 1
90467-22004

3SGTE..ST165

SUB-RADIATOR SIDE

 1
16555 - HOSE, SUB-RADIATOR, NO.5
16555-74010

3SGTE..ST165

 1
16555A - CLIP, SUB-RADIATOR HOSE, NO.5
90467-22004

3SGTE..ST165

SUB-RADIATOR SIDE

 1
90467-22003

3SGTE..ST165

PIPE SIDE

 1
16555A - CLIP, SUB-RADIATOR HOSE, NO.5
90467-22004

3SGTE..ST165

SUB-RADIATOR SIDE

 1
90467-22003

3SGTE..ST165

PIPE SIDE

 1
16556 - HOSE, SUB-RADIATOR, NO.6
16556-74010

3SGTE..ST165

 1
16556A - CLIP, SUB-RADIATOR HOSE, NO.6
90467-22004

3SGTE..ST165

PIPE NO.2 SIDE

 1
90467-22003

3SGTE..ST165

PIPE NO.1 SIDE

 1
16556A - CLIP, SUB-RADIATOR HOSE, NO.6
90467-22004

3SGTE..ST165

PIPE NO.2 SIDE

 1
90467-22003

3SGTE..ST165

PIPE NO.1 SIDE

 1
16557 - HOSE, SUB-RADIATOR, NO.7
16557-74010

3SGTE..ST165

 1
16557A - CLIP, SUB-RADIATOR HOSE, NO.7
90467-22003

3SGTE..ST165

COOLER SIDE

 1
90467-22004

3SGTE..ST165

PIPE SIDE

 1
16557A - CLIP, SUB-RADIATOR HOSE, NO.7
90467-22003

3SGTE..ST165

COOLER SIDE

 1
90467-22004

3SGTE..ST165

PIPE SIDE

 1
16650 - TANK ASSY, RESERVE(FOR INTERCOOLER)
16650-88380

3SGTE..ST165

 1
17940 - INTERCOOLER ASSY
17940-74021

3SGTE..ST165

 1
17940A - CAP SUB-ASSY, INTERCOOLER
16401-74010

3SGTE..ST165

 1
Common parts
90119-08358
90119-08581
90385-09001
90464-00141
91611-61040
91611-61065
91621-60816
91621-60825
91651-40614
91651-60820
91656-40820
Linked diagrams
1709
8401
