ST165L-BLMVZG (1987)
Toyota Celica
Production
Oct 1987
-
Aug 1989
Engine
3SGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8710- )5F
Click highlighted areas on diagram
E50F2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08649 | ||||
| 90159-40156 | ||||

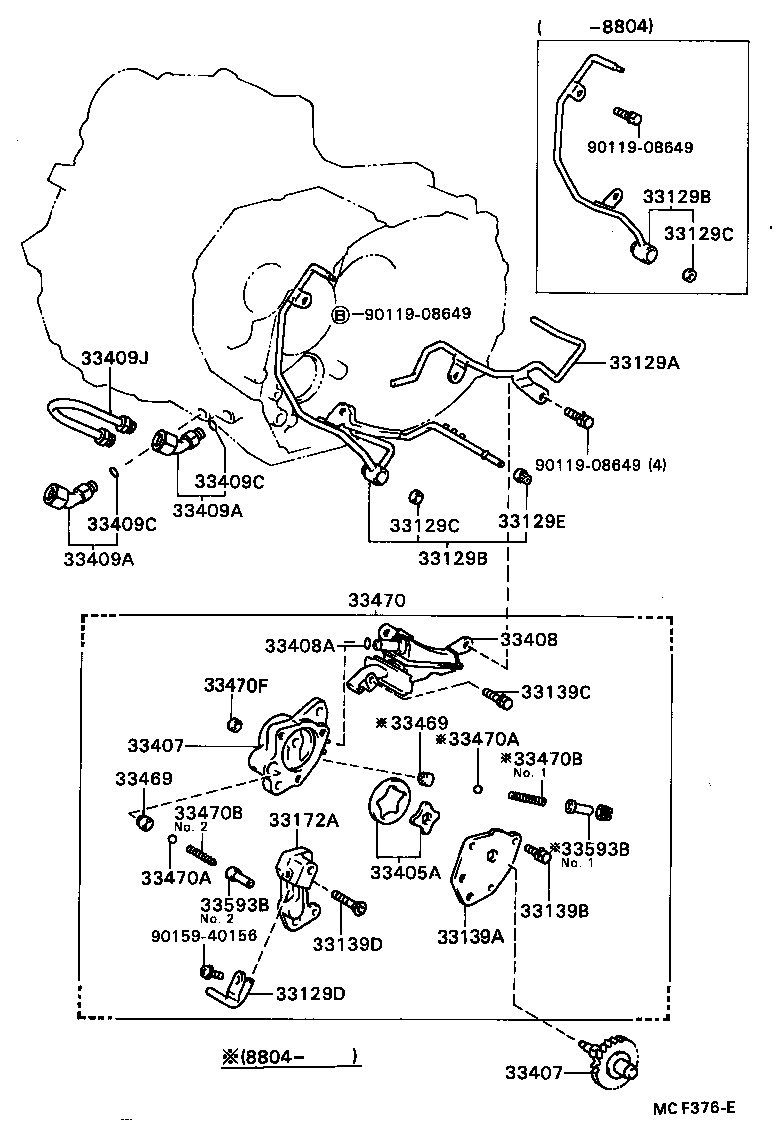

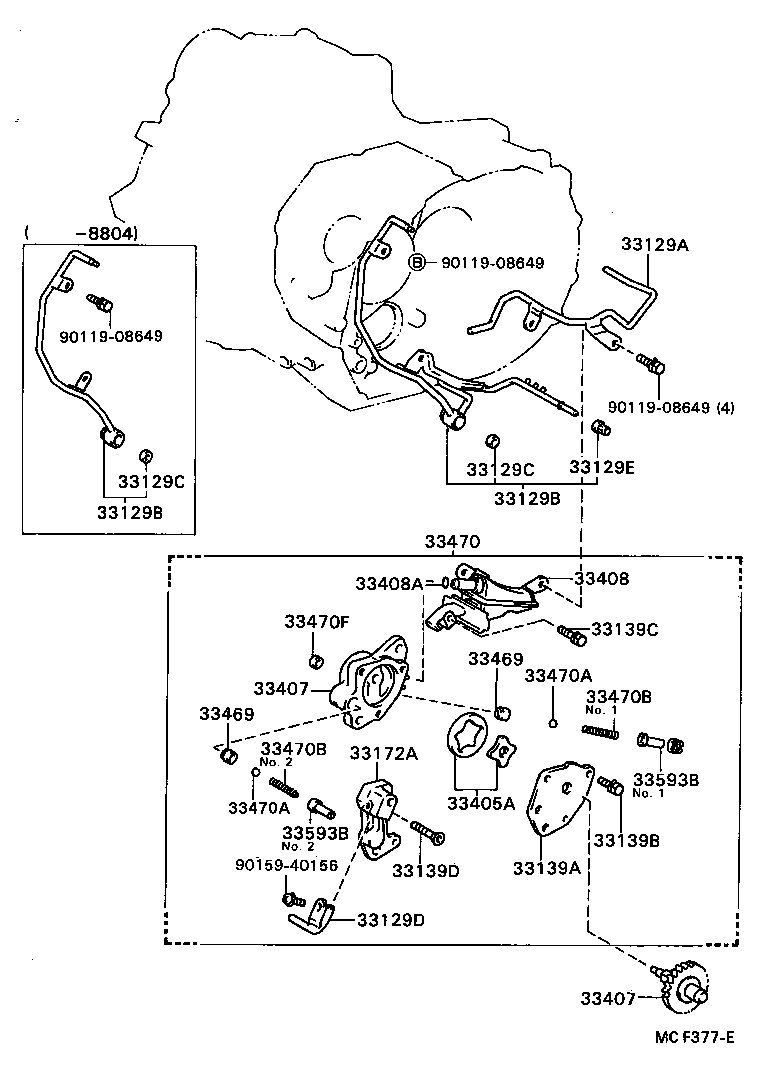

ILLUST NO. 1 OF 2(8710- )5F
Click highlighted areas on diagram
E50F2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129A - PIPE, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33129-20050 |
ST165 |
1 | ||
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-20040 |
ST165 |
1 | ||
| 33106-20031 |
ST165 |
1 | ||
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-20040 |
ST165 |
1 | ||
| 33106-20031 |
ST165 |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
ST165 |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
ST165 |
1 | ||
| 33129D - PIPE, TRANSMISSION OIL, NO.3 | ||||
| 33129-20040 |
ST165 |
1 | ||
| 33129E - BUSH(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90389-05012 |
ST165 |
1 | ||
| 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) | ||||
| 33139-20020 |
ST165 |
1 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ST165 |
1 | ||
| 33139C - BOLT(FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06268 |
ST165 |
1 | ||
| 33139D - SCREW(FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90149-60064 |
ST165 |
1 | ||
| 33172A - BY-PASS, TRANSMISSION OIL PUMP | ||||
| 33172-20020 |
ST165 |
1 | ||
| 33405A - ROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP | ||||
| 33405-20010 |
ST165 |
1 | ||
| 33405-20020 |
ST165 |
1 | ||
| 33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE | ||||
| 33407-12011 |
ST165 |
1 | ||
| 33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE | ||||
| 33407-12011 |
ST165 |
1 | ||
| 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33408-20020 |
ST165 |
1 | ||
| 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19012 |
ST165 |
1 | ||
| 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33469-20020 |
ST165 |
2 | ||
| 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33469-20020 |
ST165 |
2 | ||
| 33470 - PUMP ASSY, MANUAL TRANSMISSION OIL | ||||
| 33470-20020 |
ST165 |
1 | ||
| 33470-20021 |
ST165 |
1 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-09001 |
ST165 |
2 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-09001 |
ST165 |
2 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-07062 |
ST165 NO.2 |
1 | ||
| 90501-08094 |
ST165 NO.1 |
1 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-07062 |
ST165 NO.2 |
1 | ||
| 90501-08094 |
ST165 NO.1 |
1 | ||
| 33470F - GASKET (FOR TRANSMISSION OIL PUMP) | ||||
| 90430-09004 |
ST165 |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20020 |
ST165 NO.1 |
1 | ||
| 33593-20030 |
ST165 NO.2 |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20020 |
ST165 NO.1 |
1 | ||
| 33593-20030 |
ST165 NO.2 |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
| 90159-40156 | ||||

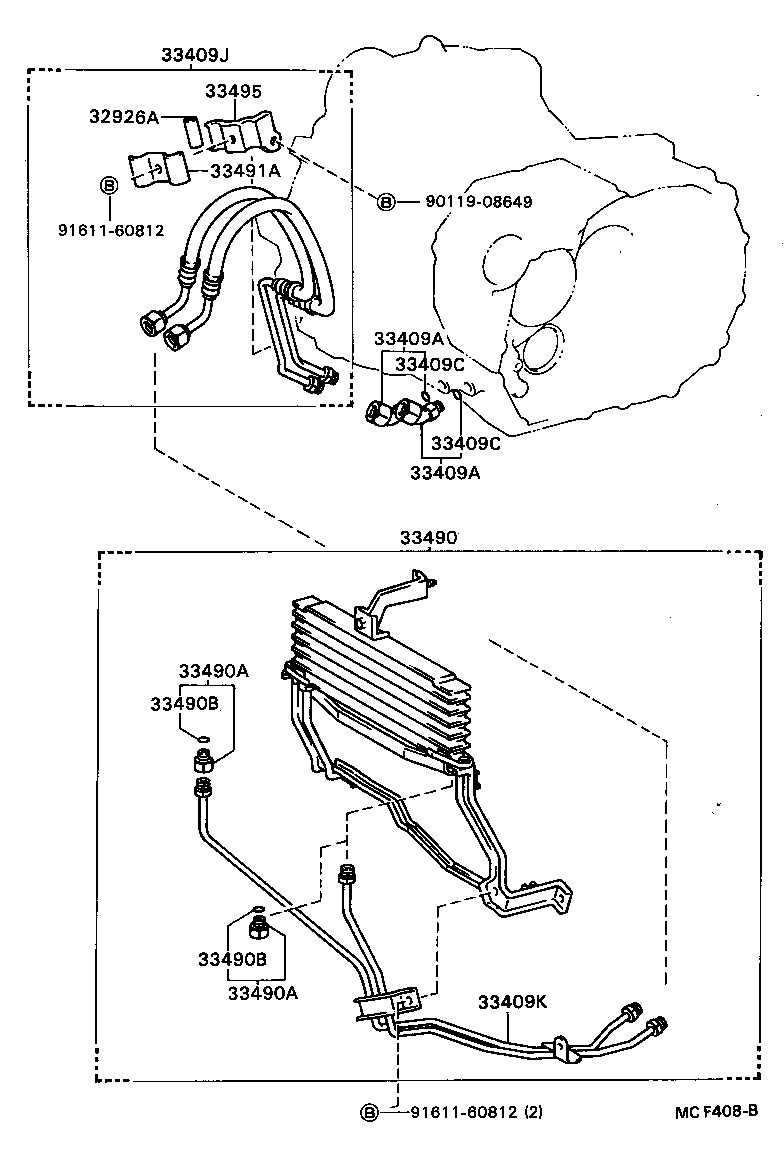

ILLUST NO. 2 OF 2(8710- )5F
Click highlighted areas on diagram
E50F2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32926A - CUSHION, OIL COOLER TUBE(MTM) | ||||
| 32926-30020 |
ST165 |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16014 |
ST165 |
2 | ||
| 90407-16017 |
ST165 |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16014 |
ST165 |
2 | ||
| 90407-16017 |
ST165 |
2 | ||
| 33409C - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ST165 |
2 | ||
| 90301-10189 |
ST165 |
2 | ||
| 33409C - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ST165 |
2 | ||
| 90301-10189 |
ST165 |
2 | ||
| 33409J - TUBE SUB-ASSY, TRANSMISSION OIL COOLER, NO.2 | ||||
| 33409-20010 |
ST165 |
1 | ||
| 33409-20011 |
ST165 |
1 | ||
| 33409K - TUBE SUB-ASSY, TRANSMISSION OIL COOLER, NO.3 | ||||
| 33409-20031 |
ST165 |
1 | ||
| 33490 - COOLER ASSY, MANUAL TRANSMISSION OIL | ||||
| 33490-20011 |
ST165 |
1 | ||
| 33490A - UNION (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90404-16023 |
ST165 |
2 | ||
| 33490A - UNION (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90404-16023 |
ST165 |
2 | ||
| 33490B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
ST165 |
2 | ||
| 33490B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
ST165 |
2 | ||
| 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-16066 |
ST165 |
1 | ||
| 33495 - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.2 | ||||
| 33495-20010 |
ST165 |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
| 91611-60812 | ||||
