ST162R-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )GT,ST

Click highlighted areas on diagram

diagram 78024 78024 78100 78100B 78110 78110 78110A 78111 78111A 78113A 78118A 78141A 78150B 78180 78180 78183B 78183B 78183B 78186 78186 78189A 78193A 9011906198 9020505002 9161140614 9165140610 9165140612 9165140612 9165140614 9165140625 9165540630 9165540630 9166140614 9166140614 9166140614 9331515012 9616000400 9616000600
Part # Description Qty Price
Common parts
90119-06198
90205-05002
91611-40614
91651-40610
91651-40612
91651-40614
91651-40625
91655-40630
91661-40614
93315-15012
96160-00400
96160-00600

(8508- )RHD

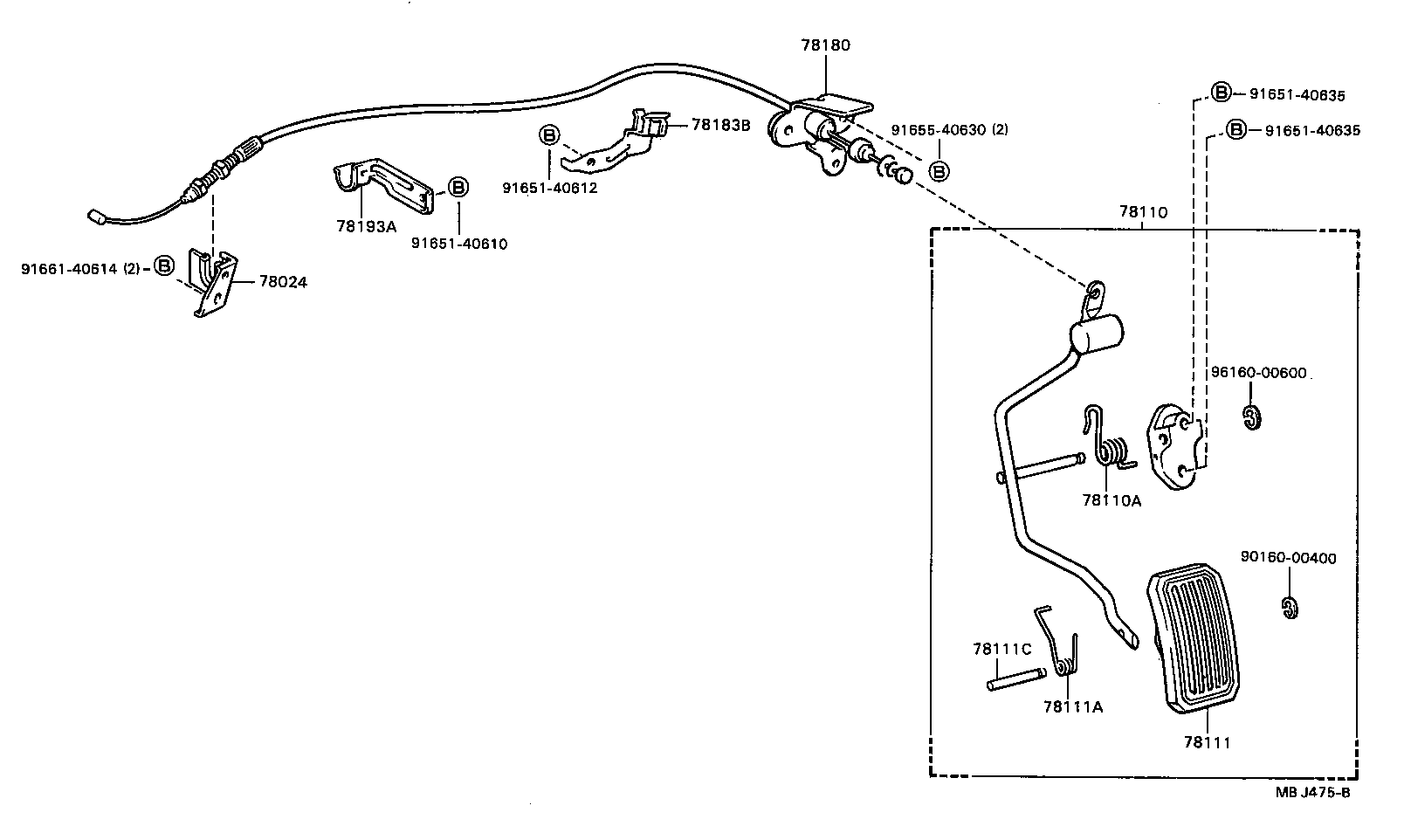

Click highlighted areas on diagram

diagram 78024 78110 78110A 78111 78111A 78111C 78180 78183B 78193A 9016000400 9165140610 9165140612 9165140635 9165140635 9165540630 9166140614 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20070

ST162..4FC

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-20270

ST162..RHD..4FC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048

ST162..RHD..4FC

 1
78111 - PEDAL, ACCELERATOR
78111-20030

AT160,ST162

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT160,ST162

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT160,ST162

 1
78180 - WIRE ASSY, ACCELERATOR
78180-20430

ST162..RHD..4FC

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20030

ST162..RHD

 1
78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78193-20030

ST162

 1
Common parts
90160-00400
91651-40610
91651-40612
91651-40635
91655-40630
91661-40614
96160-00600
