ST162R-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

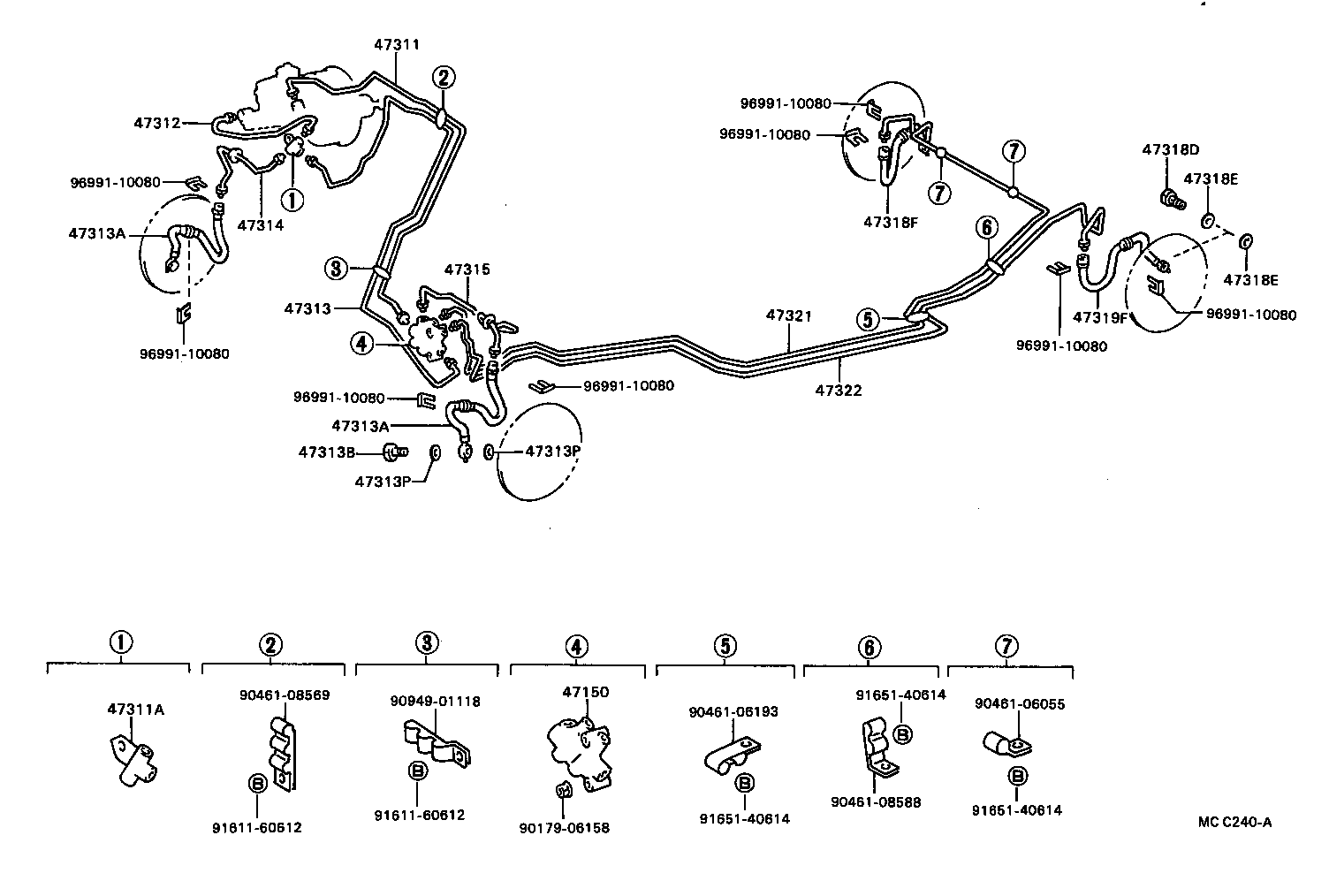

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 9017906158 9046106055 9046106118 9046106119 9046106193 9046108588 9094901118 9161160162 9161160612 9161160612 9165140614 9165140614 9165140614 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20130

ST162

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20380

ST162..RHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10193

ST162..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20130

ST162..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20240

ST162..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AT160,ST162

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AT160,ST162

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT160,ST162

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST162

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST162

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20190

ST162..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20320

ST162..RHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

ST162

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST162

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST162

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02473

ST162

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02473

ST162

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02473

ST162

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02473

ST162

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20120

ST162..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20240

ST162..RHD

 1
Common parts
90179-06158
90461-06055
90461-06118
90461-06119
90461-06193
90461-08588
90949-01118
91611-60162
91611-60612
91651-40614
96991-10080

(8508- )RHD

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47319F 47321 47322 9017906158 9046106055 9046106193 9046108569 9046108588 9094901118 9161160612 9161160612 9165140614 9165140614 9165140614 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20130

ST162

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20380

ST162..RHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10193

ST162..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20130

ST162..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20240

ST162..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AT160,ST162

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AT160,ST162

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT160,ST162

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST162

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT160,ST162

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20190

ST162..RHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20320

ST162..RHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

ST162

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST162

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

ST162

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02473

ST162

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02473

ST162

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20120

ST162..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20240

ST162..RHD

 1
Common parts
90179-06158
90461-06055
90461-06193
90461-08569
90461-08588
90949-01118
91611-60612
91651-40614
96991-10080
