ST162R-BCMVFW (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
3SGEL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

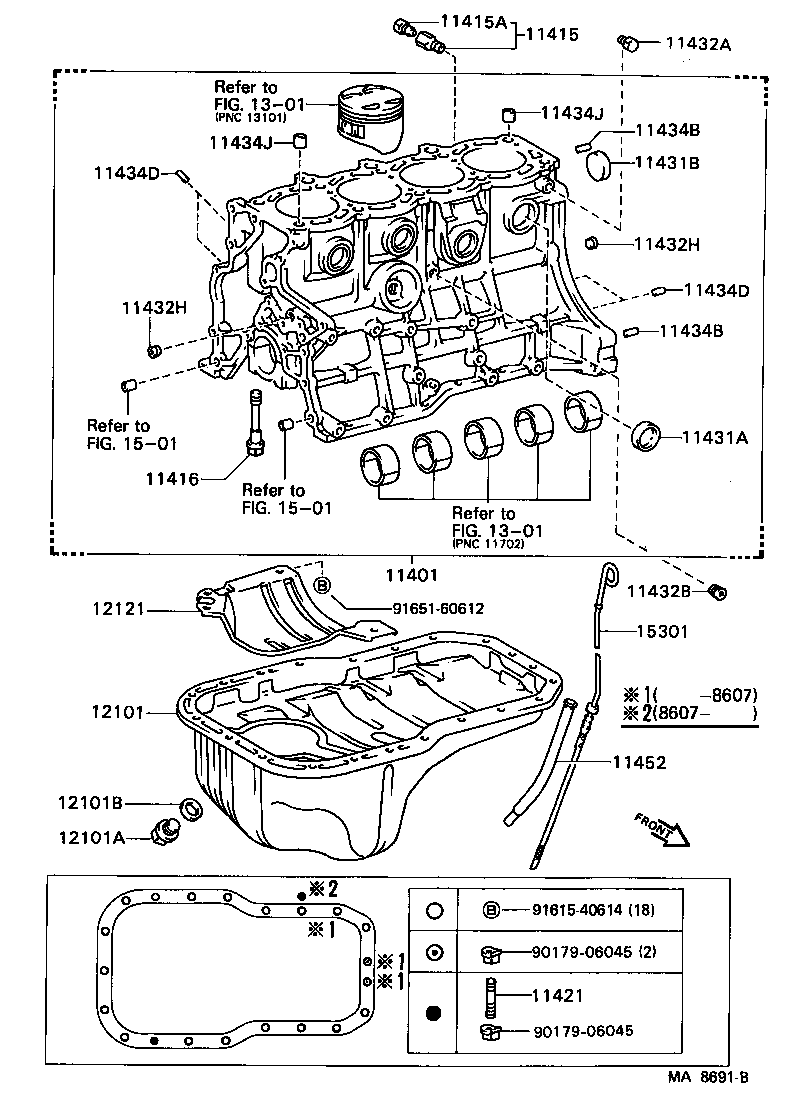

(8508- )3S#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06045 | ||||
| 91615-40614 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||

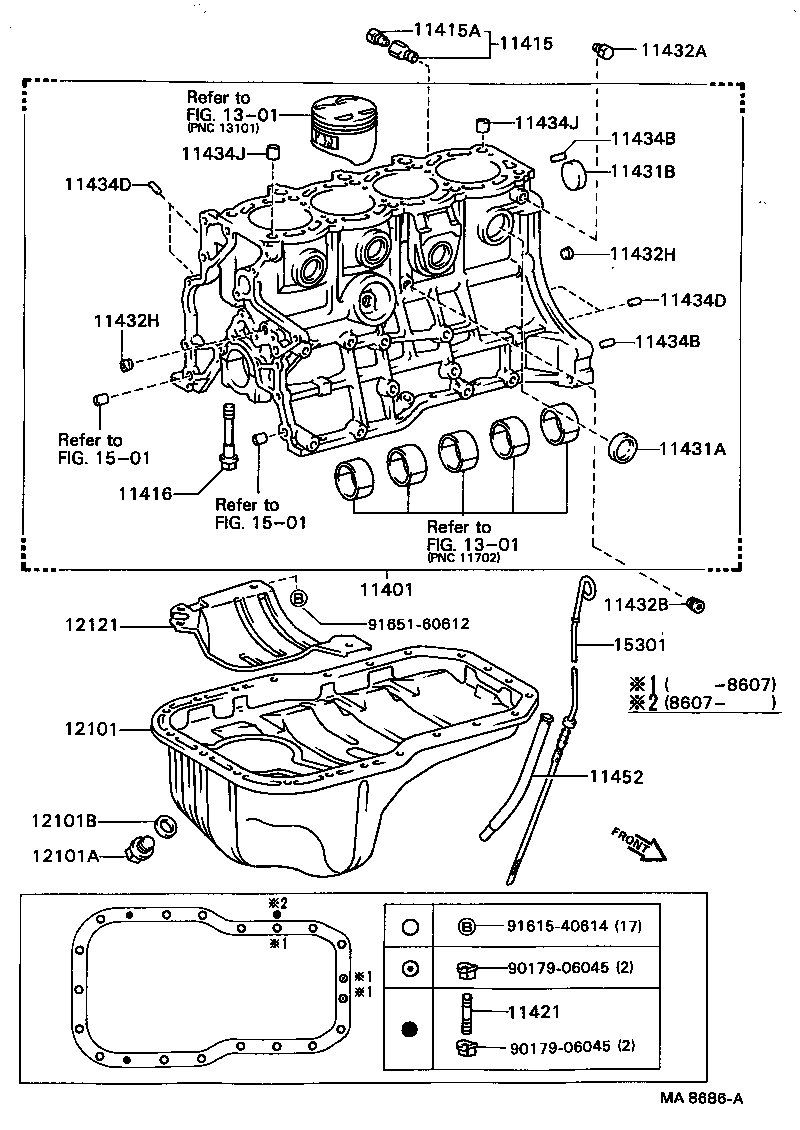

(8508- )3SG#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-79195 |
3SGEL..ST162 |
1 | ||
| 11401-79197 |
3SGEL..ST162 |
1 | ||
| 11401-79196 |
3SGEL..ST162 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09091 |
3SG#..ST162 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
3SG#..ST162 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10028 |
3SG#..ST162 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06014 |
3SG#..ST162 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
3SG#..ST162 OD=35 |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
3SG#..ST162 OD=40 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3SG#..ST162 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-52001 |
3SG#..ST162 |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-53015 |
3SG#..ST162 |
2 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-53015 |
3SG#..ST162 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
3SG#..ST162 L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
3SG#..ST162 L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
3SG#..ST162 L=14,OD=6 |
4 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
3SG#..ST162 L=14,OD=6 |
4 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
3SG#..ST162 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
3SG#..ST162 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-88360 |
3SG#..ST162 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-74031 |
3SG#..ST162 |
1 | ||
| 12101-74032 |
3SG#..ST162 |
1 | ||
| 12101-74030 |
3SG#..ST162 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
3SG#..ST162 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
3SG#..ST162 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12123-88360 |
3SG#..ST162 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-88361 |
3SG#..ST162 |
1 | ||
| 15301-88362 |
3SG#..ST162 |
1 | ||
| Common parts | ||||
| 90179-06045 | ||||
| 91615-40614 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
