ST162L-BLPVKA (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

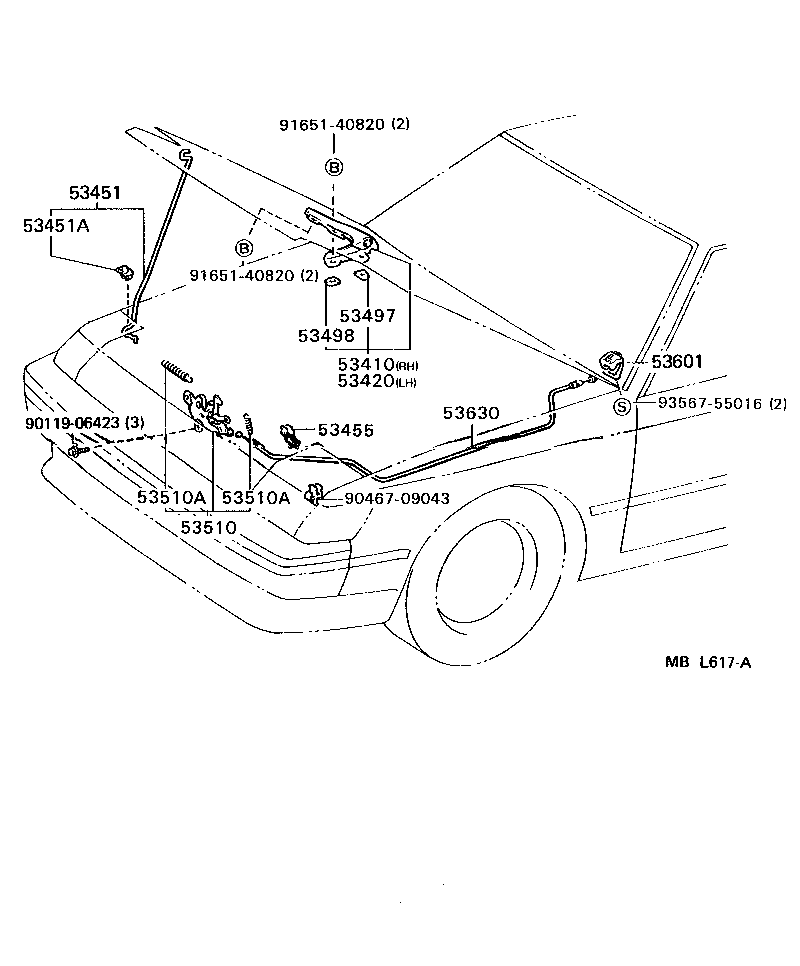

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53498 53510 53510A 53510A 53601 53630 9011906423 9046709043 9165140820 9165140820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-32010

ST16#

 1
53410-32011

ST16#

 1
53420 - HINGE ASSY, HOOD, LH
53420-32011

ST16#

 1
53420-32010

ST16#

 1
53451 - ROD, HOOD SUPPORT
53451-20030

ST16#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-01340

ST16#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-20010

ST16#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-32031

ST16#

 1
53497-32030

ST16#

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12011

ST16#

 1
53498-12010

ST16#

 1
53510 - LOCK ASSY, HOOD
53510-20190

ST16#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

ST16#

WD=2.0,CW=17,WD=2.0,CW=17

 1
90506-09029

ST16#

WD=0.9,WD=0.9,CW=26.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

ST16#

WD=2.0,CW=17,WD=2.0,CW=17

 1
90506-09029

ST16#

WD=0.9,WD=0.9,CW=26.5

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1203011

ST16#

NEW BLACK,TRIM2#

 1
53601-2006022

ST16#..CP,LB

RED,TRIM3#

 1
53601-2006001

ST16#

BLACK,TRIM2#

 1
53601-2006024

ST16#..CP,LB

DEEP BLUE,TRIM8#

 1
53601-2006015

ST162..CP,LB

DARK BEIGE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-20160

ST16#

 1
Common parts
90119-06423
90467-09043
91651-40820
93567-55016

(8708- )

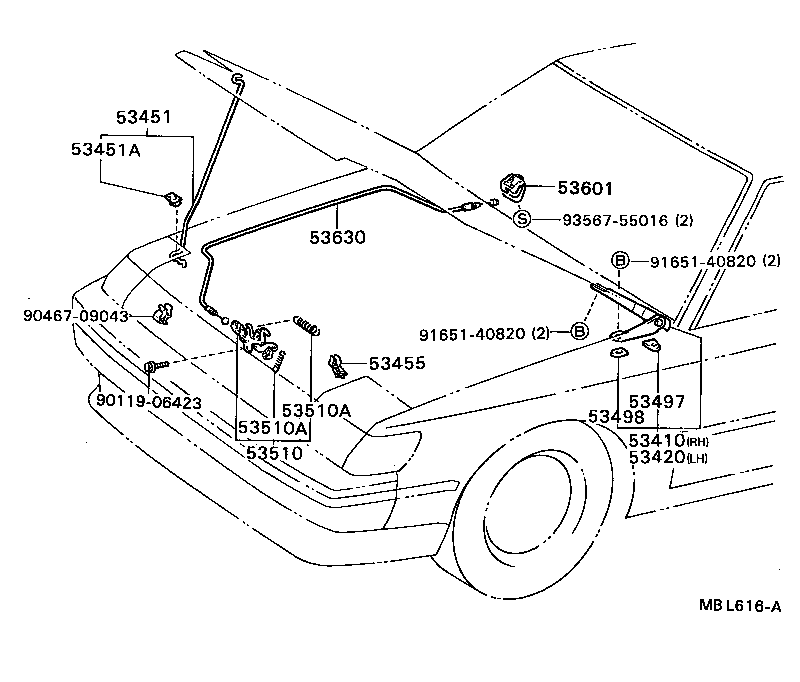

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53498 53510 53510A 53510A 53601 53630 9011906423 9046709043 9165140820 9165140820 9356755016
Part # Description Qty Price
Common parts
90119-06423
90467-09043
91651-40820
93567-55016
