ST162L-BLPVFW (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-50044 | ||||
| 93319-15016 | ||||

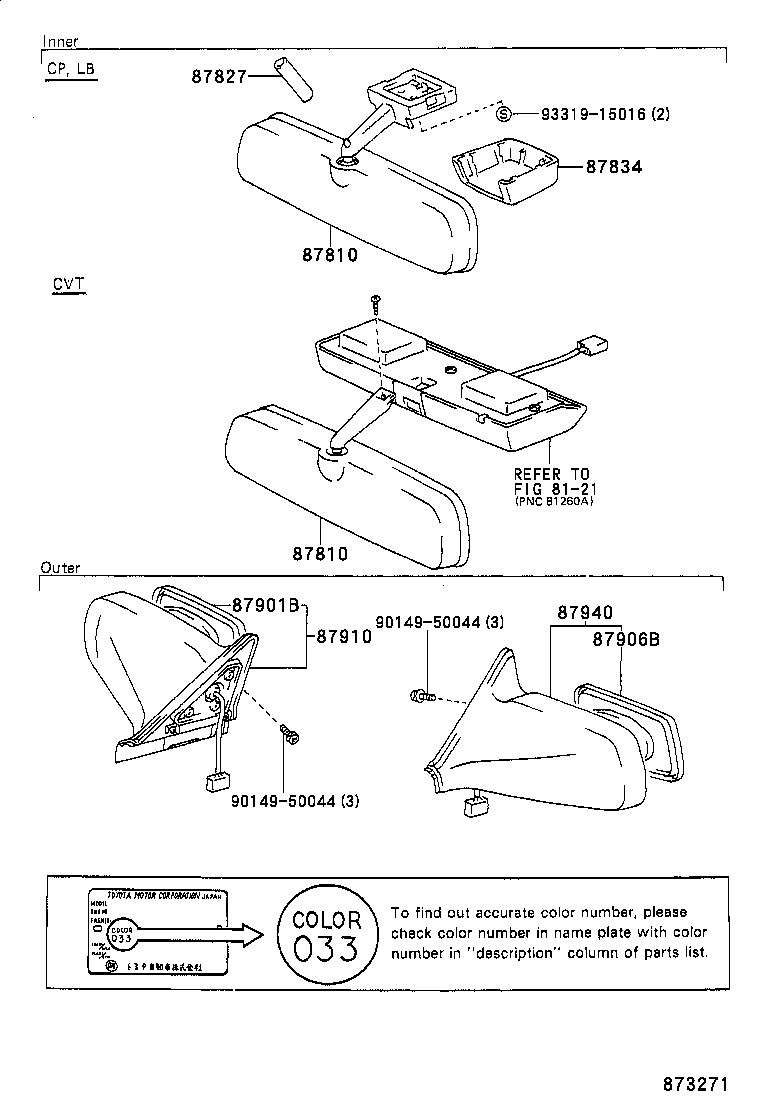

| Linked diagrams | ||||
| 8121 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1222014 |
AT160,ST162 BLUE,BLUE,TRIM8# |
1 | ||
| 87810-1222013 |
AT160,ST162 GRAY,GRAY,TRIM1# |
1 | ||
| 87810-1222114 |
AT160,ST162..CP,LB BLUE,BLUE,TRIM8# |
1 | ||
| 87810-1222113 |
AT160,ST162 GRAY,GRAY,TRIM1# |
1 | ||
| 87810-1222116 |
AT160,ST162..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 87810-1222016 |
AT160,ST162 BROWN,BROWN,TRIM4# |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-87002 |
AT160,ST162 L=32 |
1 | ||
| 87828-22020 |
AT160,ST162 L=34.5 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2008053 |
AT160,ST162 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 87834-2008034 |
AT160,ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 87834-2008006 |
AT160,ST162..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-20660 |
ST162..CP,LB W/MIRROR HEATER |
1 | ||
| 87931-20400 |
AT160,ST162..CP,LB *RCM |
1 | ||
| 87931-20400 |
AT160,ST162..TWC *RCM |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-20660 |
ST162..CP,LB W/MIRROR HEATER |
1 | ||
| 87931-20400 |
AT160,ST162..CP,LB *RCM |
1 | ||
| 87931-20400 |
AT160,ST162..TWC *RCM |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-20680 |
AT160,ST162..TWC *RCM |
1 | ||
| 87961-20720 |
ST162..CP,LB W/MIRROR HEATER |
1 | ||
| 87961-20680 |
AT160,ST162..CP,LB *RCM |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-20680 |
AT160,ST162..TWC *RCM |
1 | ||
| 87961-20720 |
ST162..CP,LB W/MIRROR HEATER |
1 | ||
| 87961-20680 |
AT160,ST162..CP,LB *RCM |
1 | ||
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87908-20660 |
ST162..CP,LB W/MIRROR HEATER |
1 | ||
| 87908-20400 |
AT160,ST162..CP,LB *RCM |
1 | ||
| 87908-20400 |
AT160,ST162..TWC *RCM |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87909-20680 |
AT160,ST162..TWC *RCM |
1 | ||
| 87909-20720 |
ST162..CP,LB W/MIRROR HEATER |
1 | ||
| 87909-20680 |
AT160,ST162..CP,LB *RCM |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-20641 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87910-20640 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87910-20641 |
AT160,ST162..(CP,LB)..LHD *RCM |
1 | ||
| 87910-20670 |
ST162..LHD W/HEATER |
1 | ||
| 87910-20671 |
ST162..LHD W/HEATER |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-20641 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87910-20640 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87910-20641 |
AT160,ST162..(CP,LB)..LHD *RCM |
1 | ||
| 87910-20670 |
ST162..LHD W/HEATER |
1 | ||
| 87910-20671 |
ST162..LHD W/HEATER |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-20700 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87940-20731 |
ST162..LHD W/HEATER |
1 | ||
| 87940-20701 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87940-20701 |
AT160,ST162..(CP,LB)..LHD *RCM |
1 | ||
| 87940-20730 |
ST162..LHD W/HEATER |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-20700 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87940-20731 |
ST162..LHD W/HEATER |
1 | ||
| 87940-20701 |
AT160,ST162..LHD..TWC *RCM |
1 | ||
| 87940-20701 |
AT160,ST162..(CP,LB)..LHD *RCM |
1 | ||
| 87940-20730 |
ST162..LHD W/HEATER |
1 | ||
| Common parts | ||||
| 90149-50044 | ||||
| 93319-15016 | ||||
