ST162L-BLPVFW (1985)
Toyota Celica
(8508- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06126 | ||||
| 90168-40055 | ||||
| 90183-04004 | ||||
| 90467-10012 | ||||
| 90467-10072 | ||||
| 90959-01228 | ||||
| 93510-13010 | ||||
| 93520-55012 | ||||
| 93568-14512 | ||||

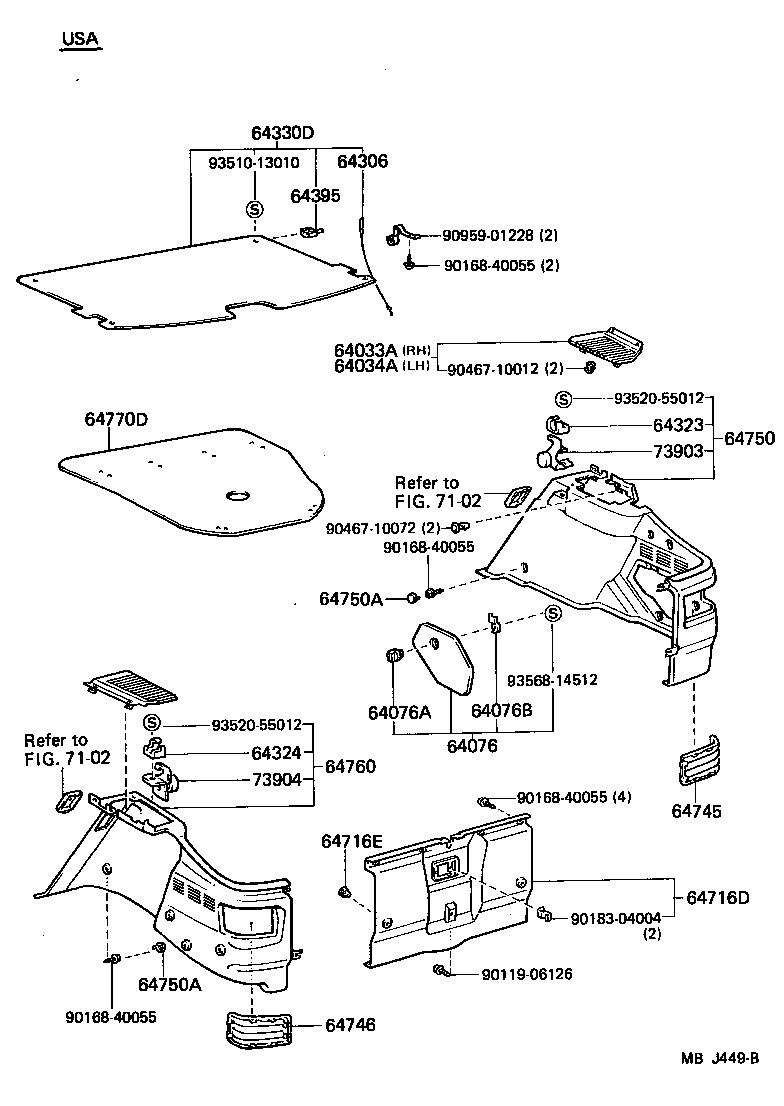

| Linked diagrams | ||||
| 7102 | ||||
(8508- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2008003 |
AT160,ST162..LB W/3-POINTBELT,W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64033-2006003 |
AT160,ST162..LB..(EUG,FRG) W/O 3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64033-2008004 |
AT160,ST162..LB W/3-POINTBELT,W/O SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64033-2006004 |
AT160,ST162..LB..(EUG,FRG) W/O 3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64033-2007004 |
AT160,ST162..LB W/O 3-POINTBELT,W/SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64033-2007003 |
AT160,ST162..LB W/O 3-POINTBELT,W/SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64033-2008006 |
AT160,ST162..LB W/3POINTBELT,W/O SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64033-2009004 |
AT160,ST162..LB W/3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64033-2009006 |
AT160,ST162..LB W/3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64033-2007006 |
AT160,ST162..LB W/O 3POINTBELT,W/SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64033-2009003 |
AT160,ST162..LB W/3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64033-2006006 |
AT160,ST162..LB..(EUG,FRG) W/O 3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64034-2006004 |
AT160,ST162..LB..(EUG,FRG) W/O 3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64034-2006006 |
AT160,ST162..LB..(EUG,FRG) W/O 3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64034-2007006 |
AT160,ST162..LB W/O 3POINTBELT,W/SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64034-2006003 |
AT160,ST162..LB..(EUG,FRG) W/O 3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64034-2009006 |
AT160,ST162..LB W/3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64034-2008006 |
AT160,ST162..LB W/3POINTBELT,W/O SPEAKER,BROWN,BROWN,TRIM4# |
1 | ||
| 64034-2009004 |
AT160,ST162..LB W/3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64034-2008004 |
AT160,ST162..LB W/3-POINTBELT,W/O SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64034-2008003 |
AT160,ST162..LB W/3-POINTBELT,W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64034-2007003 |
AT160,ST162..LB W/O 3-POINTBELT,W/SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64034-2007004 |
AT160,ST162..LB W/O 3-POINTBELT,W/SPEAKER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64034-2009003 |
AT160,ST162..LB W/3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64076 - COVER, DECK TRIM SIDE JACK | ||||
| 64076-2001003 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64076-2001006 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
1 | ||
| 64076-2001004 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64076A - KNOB, DECK TRIM SIDE JACK COVER | ||||
| 64982-1602005 |
AT160,ST162..LB BEIGE,BEIGE,TRIM4# |
1 | ||
| 64982-1602023 |
AT160,ST162..LB GRAY,GRAY,TRIM1# |
1 | ||
| 64982-1602044 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64076B - STOPPER, DECK TRIM SIDE JACK COVER | ||||
| 64768-14020 |
AT160,ST162..LB |
1 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-20020 |
AT160,ST162..LB |
2 | ||
| 64323 - CLAMP, PACKAGE TRAY TRIM, NO.1 | ||||
| 64323-10010 |
AT160,ST162..LB |
1 | ||
| 64324 - CLAMP, PACKAGE TRAY TRIM, NO.2 | ||||
| 64324-10010 |
AT160,ST162..LB |
1 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-2072006 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
1 | ||
| 64330-2072004 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64330-2072003 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64395 - PIN, PACKAGE TRAY TRIM HINGE | ||||
| 64395-16010 |
AT160,ST162..LB |
2 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-2016003 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64716-2016006 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
1 | ||
| 64716-2016004 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0401103 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0401106 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
2 | ||
| 90467-0906804 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 90467-0906803 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0401104 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 90467-0906806 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-2003003 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64745-2003006 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
1 | ||
| 64745-2003004 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-2003004 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64746-2003006 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
1 | ||
| 64746-2003003 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64750 - PANEL ASSY, DECK SIDE TRIM, RH | ||||
| 64730-2007006 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
1 | ||
| 64730-2007004 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64730-2007003 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64750A - PLUG, HOLE(FOR DECK SIDE TRIM PANEL) | ||||
| 90950-0150304 |
AT160,ST162..LB BLUE,BLUE,TRIM8# |
6 | ||
| 90950-0150303 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
6 | ||
| 90950-0150306 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
6 | ||
| 64750A - PLUG, HOLE(FOR DECK SIDE TRIM PANEL) | ||||
| 90950-0150304 |
AT160,ST162..LB BLUE,BLUE,TRIM8# |
6 | ||
| 90950-0150303 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
6 | ||
| 90950-0150306 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
6 | ||
| 64760 - PANEL ASSY, DECK SIDE TRIM, LH | ||||
| 64740-2007003 |
AT160,ST162..LB GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 64740-2007006 |
AT160,ST162..LB BROWN,BROWN,TRIM4# |
1 | ||
| 64740-2007004 |
AT160,ST162..LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 64770D - COVER ASSY, SPARE WHEEL | ||||
| 64770-20090 |
AT160,ST162..LB..TWC |
1 | ||
| 73903 - BRACKET SUB-ASSY, REAR SHELF, RH | ||||
| 73903-16010 |
AT160,ST162..LB |
1 | ||
| 73904 - BRACKET SUB-ASSY, REAR SHELF, LH | ||||
| 73904-16010 |
AT160,ST162..LB |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90168-40055 | ||||
| 90183-04004 | ||||
| 90467-10012 | ||||
| 90467-10072 | ||||
| 90959-01228 | ||||
| 93510-13010 | ||||
| 93520-55012 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 7102 | ||||
