ST162L-BLPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )3SG#

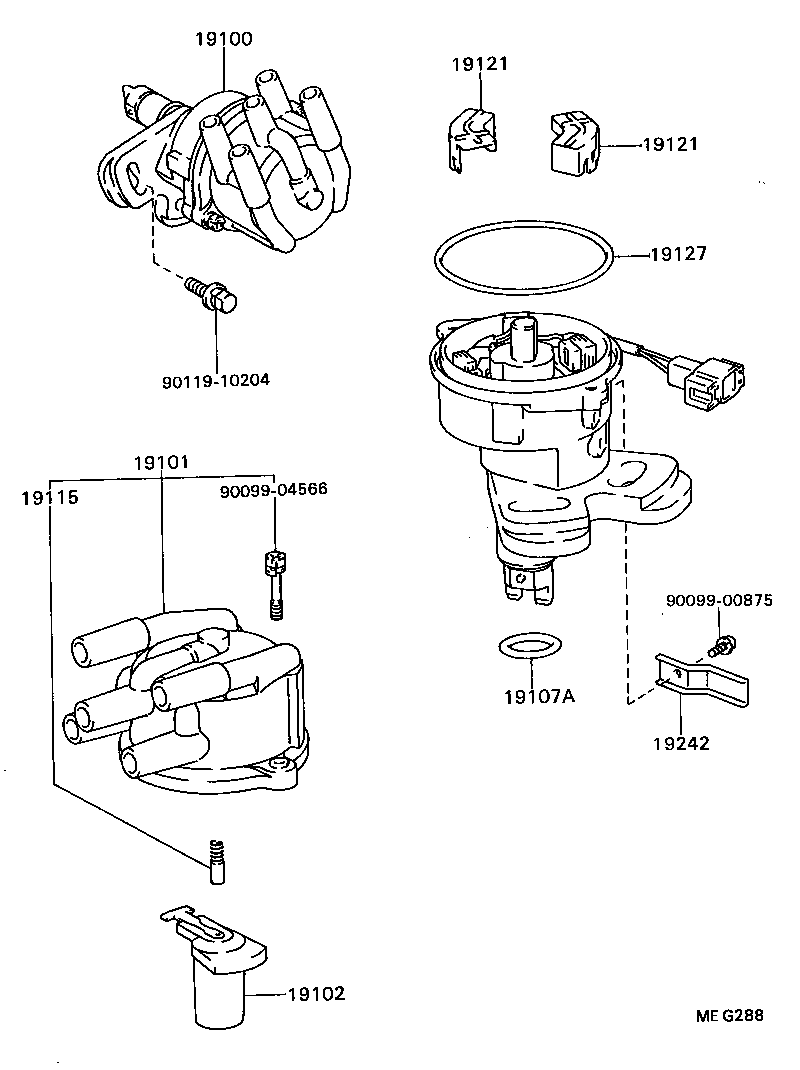

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19121 19121 19127 19242 9009900875 9009904566 9011910204
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-88362

3SG#..ST162

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-88360

3SG#..ST162

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-16020

3SG#..ST162

 1
19102-73020

3SG#..ST162

 1
19102-73021

3SG#..ST162

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

3SG#..ST162

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3SG#..ST162

 1
19121 - COVER, DUST PROOF
19121-16040

3SG#..ST162

 2
19121 - COVER, DUST PROOF
19121-16040

3SG#..ST162

 2
19127 - PACKING, DUST PROOF
19127-15021

3SG#..ST162

 1
19242 - CLAMP, CORD
19242-88361

3SG#..ST162

 1
Common parts
90099-00875
90099-04566
90119-10204
