ST162L-BLMVKA (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

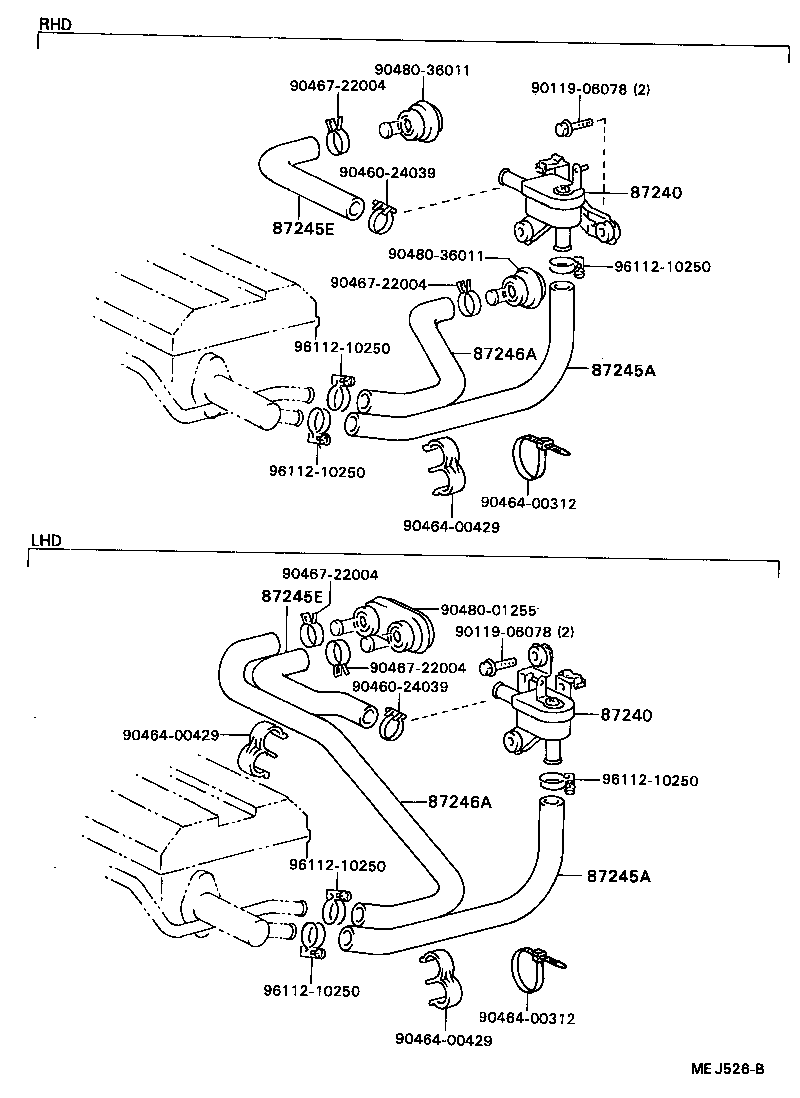

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-20300 |
ST16# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2B080 |
ST162 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-20820 |
ST16# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-20870 |
ST16# |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90339-16001 | ||||
| 90460-24039 | ||||
| 90464-00410 | ||||
| 90464-00429 | ||||
| 90467-22004 | ||||
| 90480-01255 | ||||
| 96112-10250 | ||||
(8708- )ST16#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06078 | ||||
| 90460-24039 | ||||
| 90464-00312 | ||||
| 90464-00429 | ||||
| 90467-22004 | ||||
| 90480-01255 | ||||
| 90480-36011 | ||||
| 96112-10250 | ||||
