ST162L-BLMVFG (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

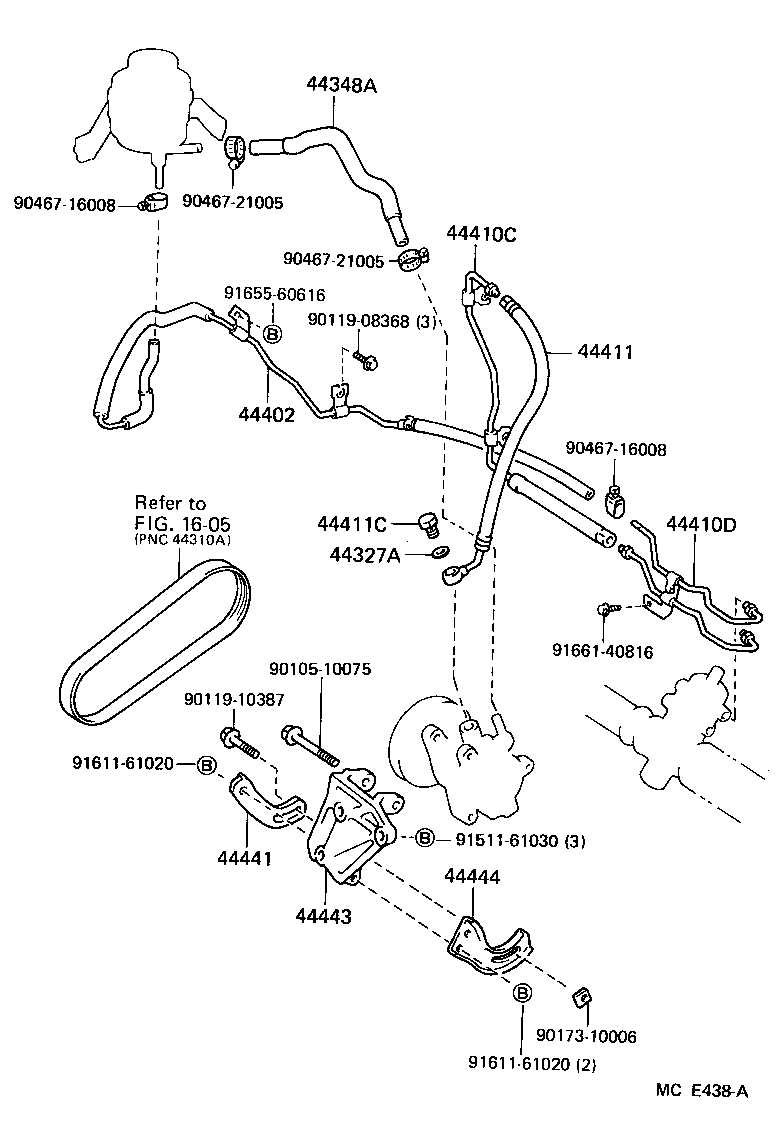

(8708- )GT,ST

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44402 44410C 44410D 44411 44411C 44441 44443 44444 9010510075 9011908368 9011910387 9017310006 9046716008 9046716008 9046721005 9046721005 9151161030 9161161020 9161161020 9165560616 9166140816
Part # Description Qty Price
Common parts
90105-10075
90119-08368
90119-10387
90173-10006
90467-16008
90467-21005
91511-61030
91611-61020
91655-60616
91661-40816
Linked diagrams
1605

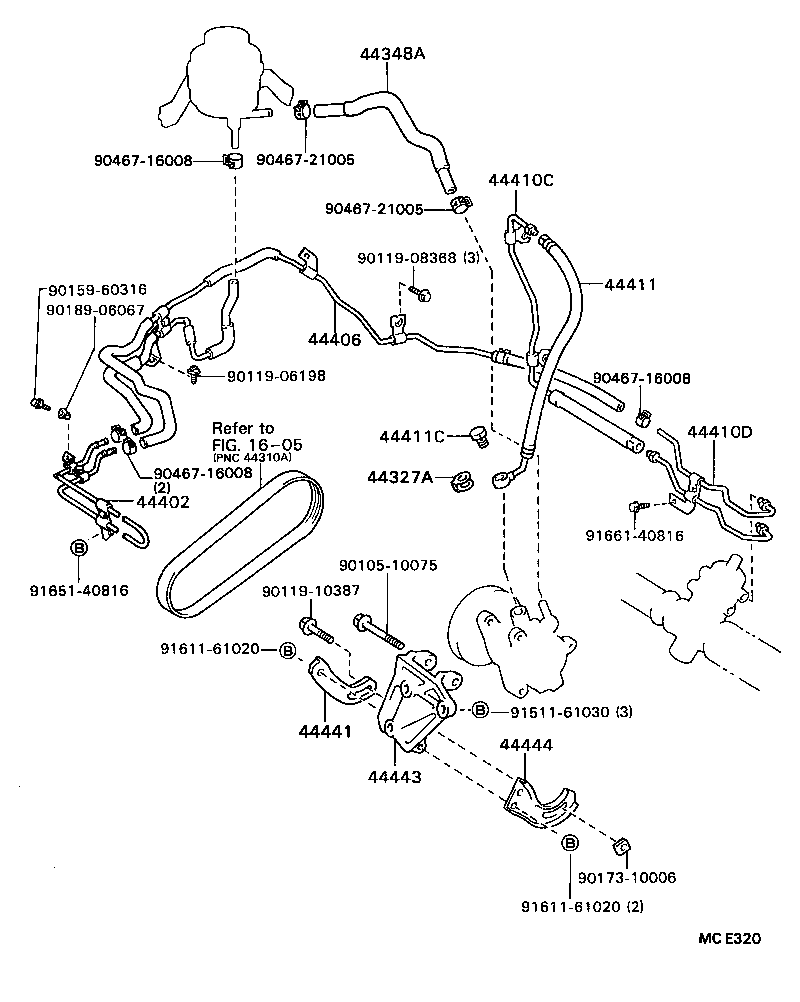

(8708- )ST162..LHD

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44402 44406 44410C 44410D 44411 44411C 44441 44443 44444 9010510075 9011906198 9011908368 9011910387 9015960316 9017310006 9018906067 9046716008 9046716008 9046716008 9046721005 9046721005 9151161030 9161161020 9161161020 9165140816 9166140816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

ST16#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20150

ST162..LHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
44348-20110

ST16#..LHD

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20180

ST162..LHD

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20070

ST162..LHD

W(ANTI-LOCK BRAKE SYSTEM)

 1
44406-20041

ST162..LHD

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20330

ST162..LHD

 1
44410D - TUBE ASSY, PRESSURE FEED, NO.2
44410-20260

ST162..LHD

 1
44411 - HOSE, PRESSURE FEED
44411-20170

ST162..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

ST16#

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

ST16#

 1
44443 - BRACKET, PUMP
44443-20050

ST16#

 1
44444 - STAY, PUMP, REAR
44444-20030

ST16#

 1
Common parts
90105-10075
90119-06198
90119-08368
90119-10387
90159-60316
90173-10006
90189-06067
90467-16008
90467-21005
91511-61030
91611-61020
91651-40816
91661-40816
Linked diagrams
1605
