ST162L-BLMVFC (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

diagram 8504 85310 85310 85330 85330 85330A 85330A 85332 85332 85333 85333 85333A 85333A 9009904301 9009904301 9009904987 9009904987 9011906070 9011906070 9017906026 9017906026
Part # Description Qty Price
Common parts
90099-04301
90099-04987
90119-06070
90179-06026
Linked diagrams
8504

(8508- )

Click highlighted areas on diagram

diagram 1658163030 8271132360 8504 8504 85345 85345 85348 85348 85348D 85348D 85355 85355 85371 85372 85373 85373
Part # Description Qty Price
Common parts
16581-63030
82711-32360
Linked diagrams
8504

(8508- )

Click highlighted areas on diagram

diagram 85310 85310 85330 85330 85330A 85330A 85332 85332 85338 85348 85348D 9009904301 9009904987 9011906070 9011906070 9017906026 9017906026 9166140614
Part # Description Qty Price

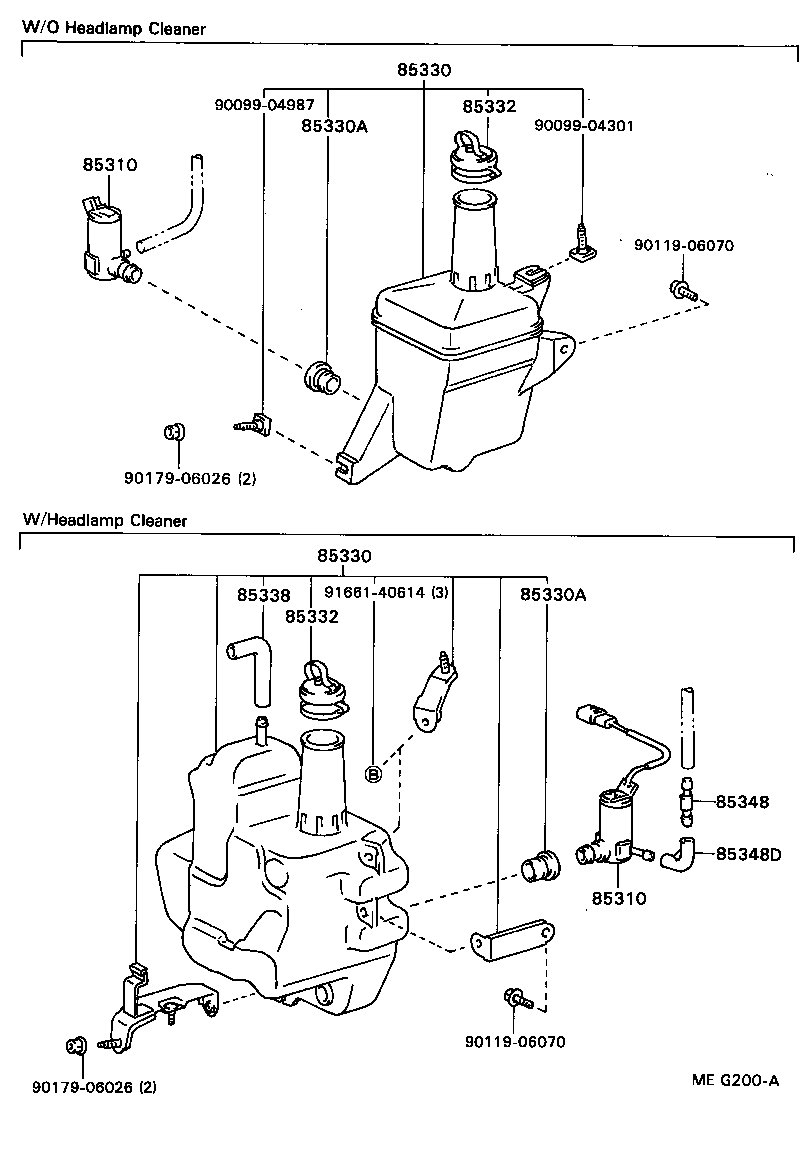

85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-12150

AT160,ST162

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-12150

AT160,ST162

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20270

AT160,ST162..CP,LB

W/HEADLAMP CLEANER

 1
85331-20360

AT160,ST162

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20270

AT160,ST162..CP,LB

W/HEADLAMP CLEANER

 1
85331-20360

AT160,ST162

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AT160,ST162

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AT160,ST162

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20441

AT160,ST162

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20441

AT160,ST162

 1
85338 - HOSE, BREATHER
85338-12240

AT160,ST162..CP,LB

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162

3 WAY

 1
85349-89122

AT160,ST162

2 WAY

 4
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AT160,ST162

 4
Common parts
90099-04301
90099-04987
90119-06070
90179-06026
91661-40614

(8508- )

Click highlighted areas on diagram

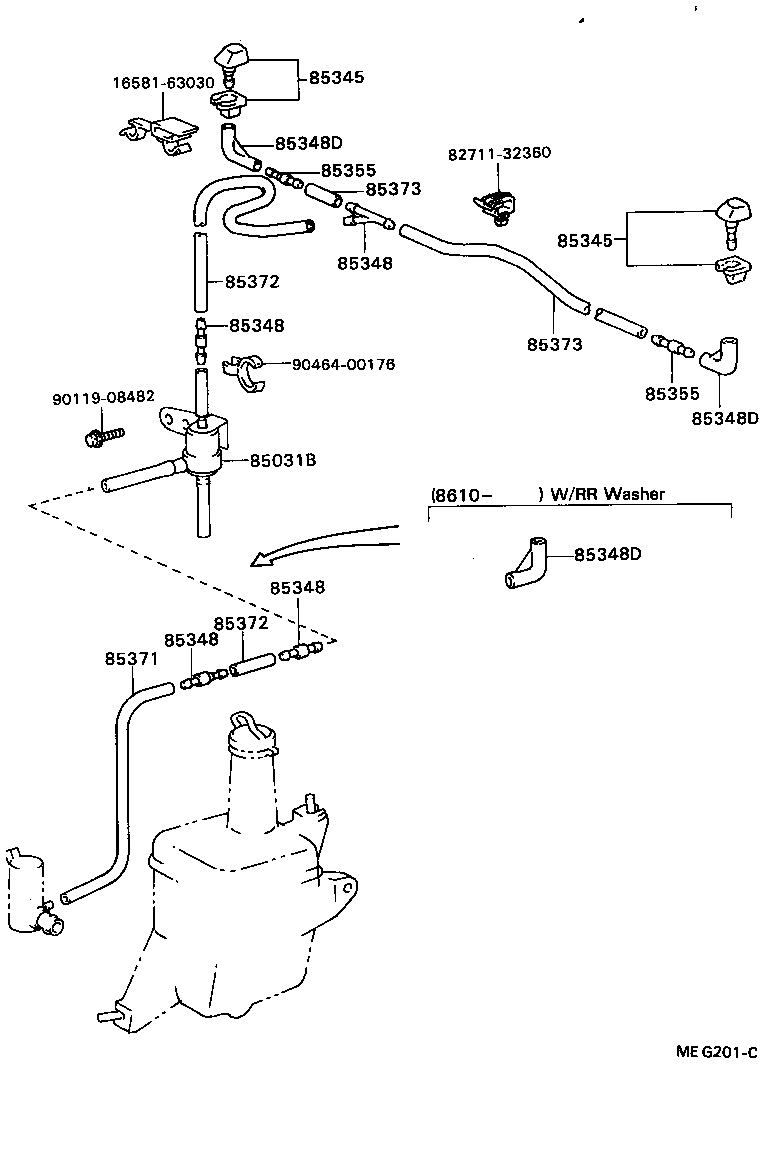

diagram 1658163030 8271132360 85031B 85345 85345 85348 85348 85348 85348 85348D 85348D 85348D 85355 85355 85371 85372 85372 85373 85373 9011908482 9046400176
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-20020

AT160,ST162..LB

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-20110

AT160,ST162..LHD

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-20110

AT160,ST162..LHD

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162

3 WAY

 1
85349-89122

AT160,ST162

2 WAY

 4
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162

3 WAY

 1
85349-89122

AT160,ST162

2 WAY

 4
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162

3 WAY

 1
85349-89122

AT160,ST162

2 WAY

 4
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AT160,ST162

3 WAY

 1
85349-89122

AT160,ST162

2 WAY

 4
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AT160,ST162

 4
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AT160,ST162

 4
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AT160,ST162

 4
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

AT160,ST162

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

AT160,ST162

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

AT160,ST162

*H,L=1040

 1
90446-07001

AT160,ST162..CP,LB

*H,L=990,W/*HC

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

AT160,ST162..LB

*H,L=610

 1
90099-33299

AT160,ST162

*H,L=580

 1
90099-33299

AT160,ST162

*H,L=50

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

AT160,ST162..LB

*H,L=610

 1
90099-33299

AT160,ST162

*H,L=580

 1
90099-33299

AT160,ST162

*H,L=50

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AT160,ST162

*H,L=460

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AT160,ST162

*H,L=460

 1
Common parts
16581-63030
82711-32360
90119-08482
90464-00176
