ST162L-BKPVKA (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

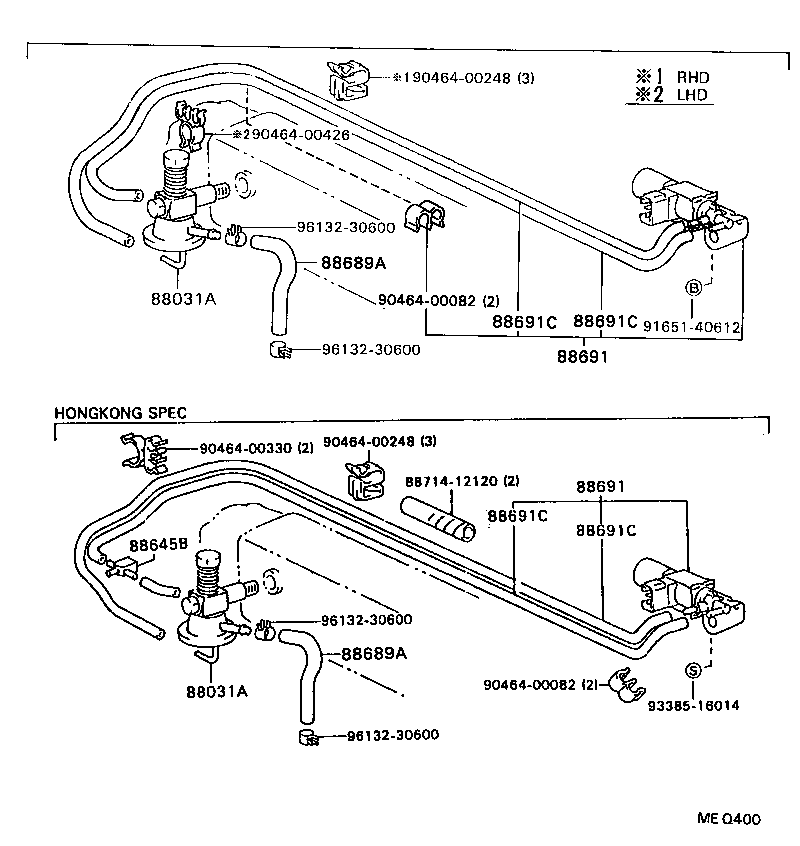

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-32010 |
ST162..ST;ST162..CVT |
1 | ||
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-32010 |
ST162..ST;ST162..CVT |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-32050 |
ST162..ST |
1 | ||
| 88689-32050 |
ST162..CVT |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-32050 |
ST162..ST |
1 | ||
| 88689-32050 |
ST162..CVT |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-32050 |
ST162..ST |
1 | ||
| 88689-32050 |
ST162..CVT |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-20670 |
ST162..ST;ST162..CVT |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-20670 |
ST162..ST;ST162..CVT |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92003 |
ST162 *H,L=330,MARK=#0 |
1 | ||
| 95411-19960 |
ST162 *H,L=330,MARK=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92003 |
ST162 *H,L=330,MARK=#0 |
1 | ||
| 95411-19960 |
ST162 *H,L=330,MARK=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92003 |
ST162 *H,L=330,MARK=#0 |
1 | ||
| 95411-19960 |
ST162 *H,L=330,MARK=#* |
1 | ||
| Common parts | ||||
| 90464-00082 | ||||
| 90464-00426 | ||||
| 91561-40612 | ||||
| 91651-40612 | ||||
| 96132-30600 | ||||
(8708- )ST,TBO4W
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-20440 | ||||
| 90464-00082 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| 96132-30600 | ||||
(8708- )ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-12120 | ||||
| 90464-00082 | ||||
| 90464-00248 | ||||
| 90464-00330 | ||||
| 90464-00426 | ||||
| 91651-40612 | ||||
| 93385-16014 | ||||
| 96132-30600 | ||||
