ST162L-BKPVKA (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

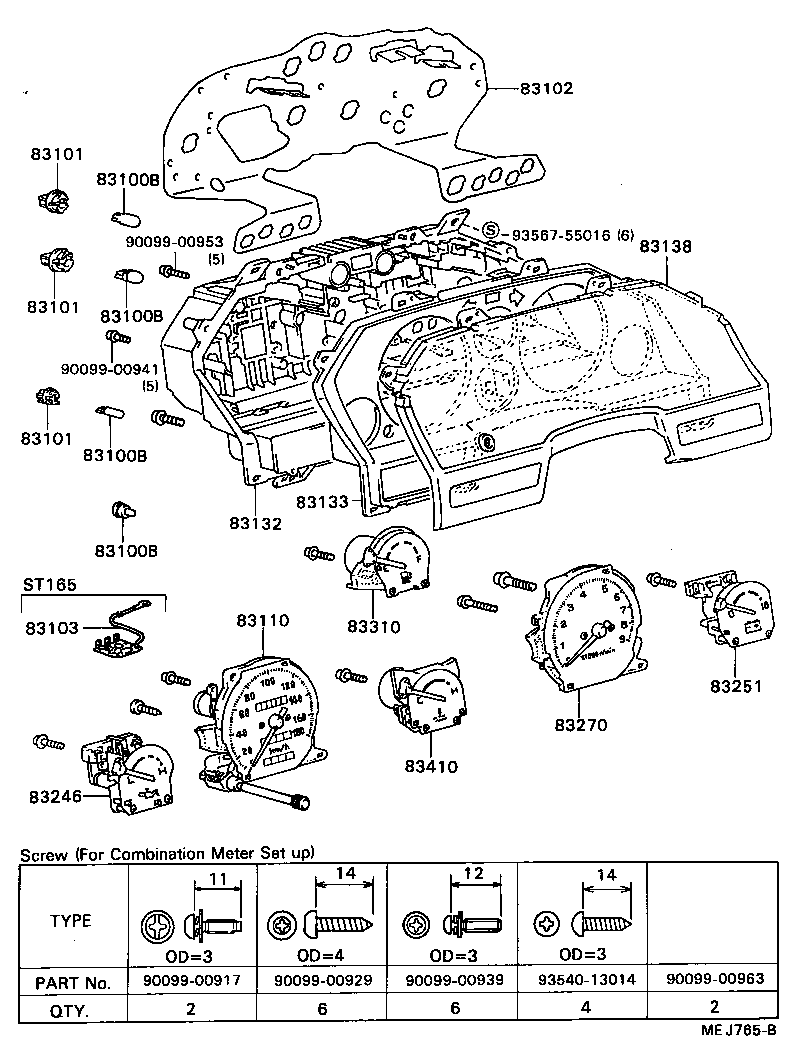

diagram 83100B 83100B 83100B 83100B 83101 83101 83101 83102 83103 83110 83132 83133 83138 83246 83251 83270 83310 83410 9009900917 9009900929 9009900939 9009900941 9009900953 9009900963 9354013014
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

ST162..ST;ST162..CVT

12V 1.2W W/O SOCKET

 7
99132-12034

ST165;ST162..CVT;ST162..ST..USA;ST162..GTS..CND;ST162..4FC..GTS

12V 3.4W

 8
83109-24020

ST16#

12V3.4W W(GREEN CAP)

 4
83100B - BULB, COMBINATION METER, NO.1
90981-11018

ST162..ST;ST162..CVT

12V 1.2W W/O SOCKET

 7
99132-12034

ST165;ST162..CVT;ST162..ST..USA;ST162..GTS..CND;ST162..4FC..GTS

12V 3.4W

 8
83109-24020

ST16#

12V3.4W W(GREEN CAP)

 4
83100B - BULB, COMBINATION METER, NO.1
90981-11018

ST162..ST;ST162..CVT

12V 1.2W W/O SOCKET

 7
99132-12034

ST165;ST162..CVT;ST162..ST..USA;ST162..GTS..CND;ST162..4FC..GTS

12V 3.4W

 8
83109-24020

ST16#

12V3.4W W(GREEN CAP)

 4
83100B - BULB, COMBINATION METER, NO.1
90981-11018

ST162..ST;ST162..CVT

12V 1.2W W/O SOCKET

 7
99132-12034

ST165;ST162..CVT;ST162..ST..USA;ST162..GTS..CND;ST162..4FC..GTS

12V 3.4W

 8
83109-24020

ST16#

12V3.4W W(GREEN CAP)

 4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT

BULB:12V 3.4W

 8
83101-14040

ST162..ST;ST162..CVT

BULB:12V 1.2W

 7
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT

BULB:12V 3.4W

 8
83101-14040

ST162..ST;ST162..CVT

BULB:12V 1.2W

 7
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT

BULB:12V 3.4W

 8
83101-14040

ST162..ST;ST162..CVT

BULB:12V 1.2W

 7
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1J130

ST162..ST;ST162..CVT

 1
83110 - SPEEDOMETER ASSY
83110-2B430

ST162..(GT,ST)..USA

 1
83132 - CASE, COMBINATION METER
83132-1D840

ST162..ST;ST162..CVT

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-1B490

ST16#

 1
83138 - GLASS, SPEEDOMETER
83138-1B150

ST16#

 1
83246 - GAUGE, OIL PRESSURE RECEIVER
83246-14650

ST16#

 1
83251 - METER, VOLTAGE
83251-14630

ST162

 1
83270 - TACHOMETER ASSY, ENGINE
83242-1B130

ST162..(GT,ST)..USA

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-14730

ST16#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-1B310

ST16#

 1
Common parts
90099-00917
90099-00929
90099-00939
90099-00941
90099-00953
90099-00963
93540-13014

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

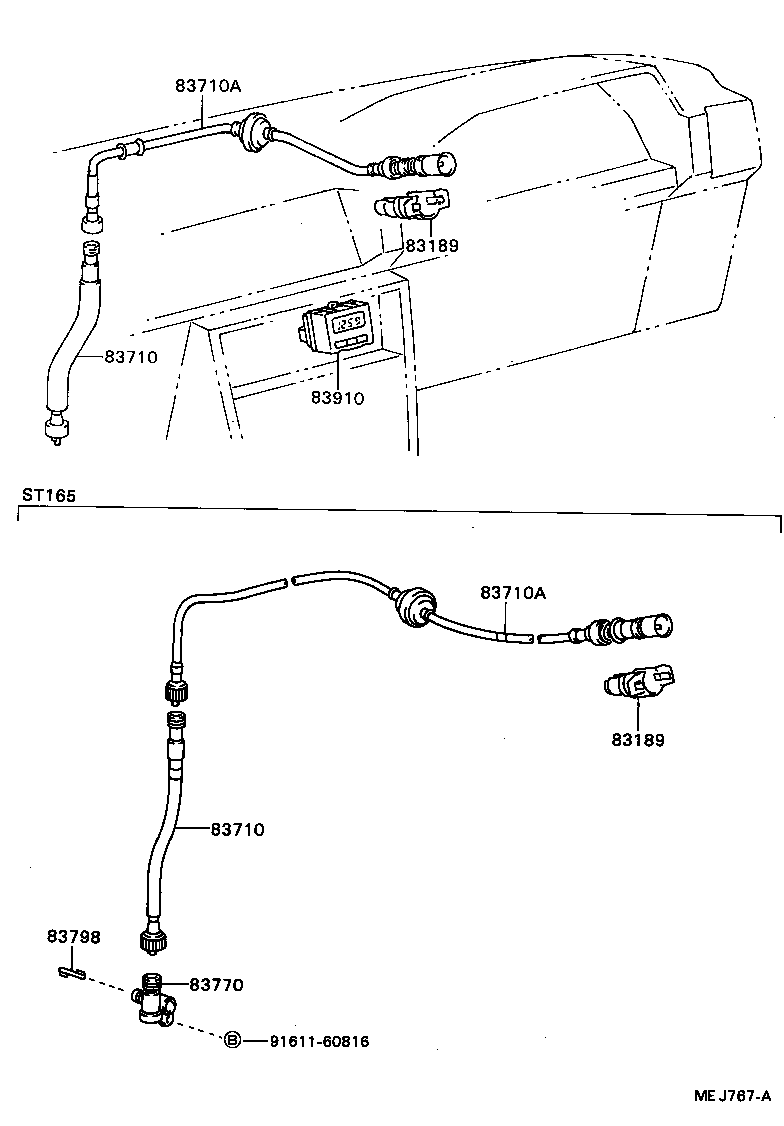

diagram 83189 83189 83710 83710 83710A 83710A 83770 83798 83910 8408 8408 9046313003 9166160816
Part # Description Qty Price
83189 - BRACKET, METER
83189-20020

ST16#

 1
83189 - BRACKET, METER
83189-20020

ST16#

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-20590

ST162..GT,GTS

W(CRUISE CONTROL)

 1
83710-20590

ST162..CVT

 1
83710-20510

ST162

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-20590

ST162..GT,GTS

W(CRUISE CONTROL)

 1
83710-20590

ST162..CVT

 1
83710-20510

ST162

 1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-20530

ST162

 1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-20530

ST162

 1
83910 - CLOCK ASSY
83910-20581

ST16#

 1
Common parts
90463-13003
91661-60816
Linked diagrams
8408

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 83100B 83101 8310114030 8310114040 8310120080 8310924020 9098111018 9913212034
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

ST162..ST;ST162..CVT

12V 1.2W W/O SOCKET

 7
99132-12034

ST165;ST162..CVT;ST162..ST..USA;ST162..GTS..CND;ST162..4FC..GTS

12V 3.4W

 8
83109-24020

ST16#

12V3.4W W(GREEN CAP)

 4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

ST162..GTS..CND;ST162..4FC..GTS;ST16#..GT,ST,TBO4W,TBOAT

BULB:12V 3.4W

 8
83101-14040

ST162..ST;ST162..CVT

BULB:12V 1.2W

 7
Common parts
83101-14030
83101-14040
83101-20080
83109-24020
90981-11018
99132-12034

ILLUST NO. 1 OF 4(8708- )

Click highlighted areas on diagram

diagram 83100B 83100B 83100B 83100B 83101 83101 83101 83102 83103 83110 83132 83133 83138 83246 83251 83270 83310 83410 9009900917 9009900929 9009900939 9009900941 9009900953 9009900963 9354013014 9356755016
Part # Description Qty Price
Common parts
90099-00917
90099-00929
90099-00939
90099-00941
90099-00953
90099-00963
93540-13014
93567-55016

ILLUST NO. 1 OF 4(8708- )

Click highlighted areas on diagram

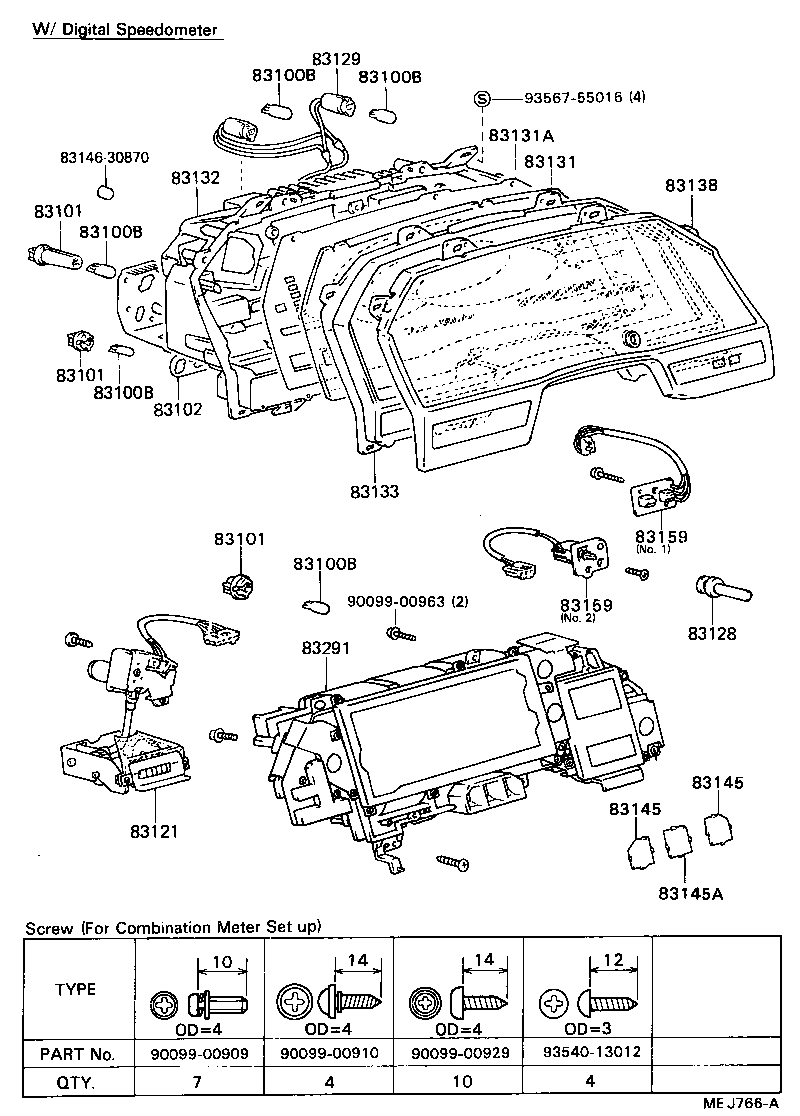

diagram 83100B 83100B 83100B 83100B 83100B 83101 83101 83101 83102 83121 83128 83129 83131 83131A 83132 83133 83138 83145 83145 83145A 8314630870 83159 83159 83291 9009900909 9009900910 9009900929 9009900963 9354013012 9356755016
Part # Description Qty Price
Common parts
83146-30870
90099-00909
90099-00910
90099-00929
90099-00963
93540-13012
93567-55016

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

diagram 83189 83189 83710 83710 83710A 83710A 83770 83798 83910 9161160816
Part # Description Qty Price
Common parts
91611-60816

ILLUST NO. 4 OF 4(8708- )

Click highlighted areas on diagram

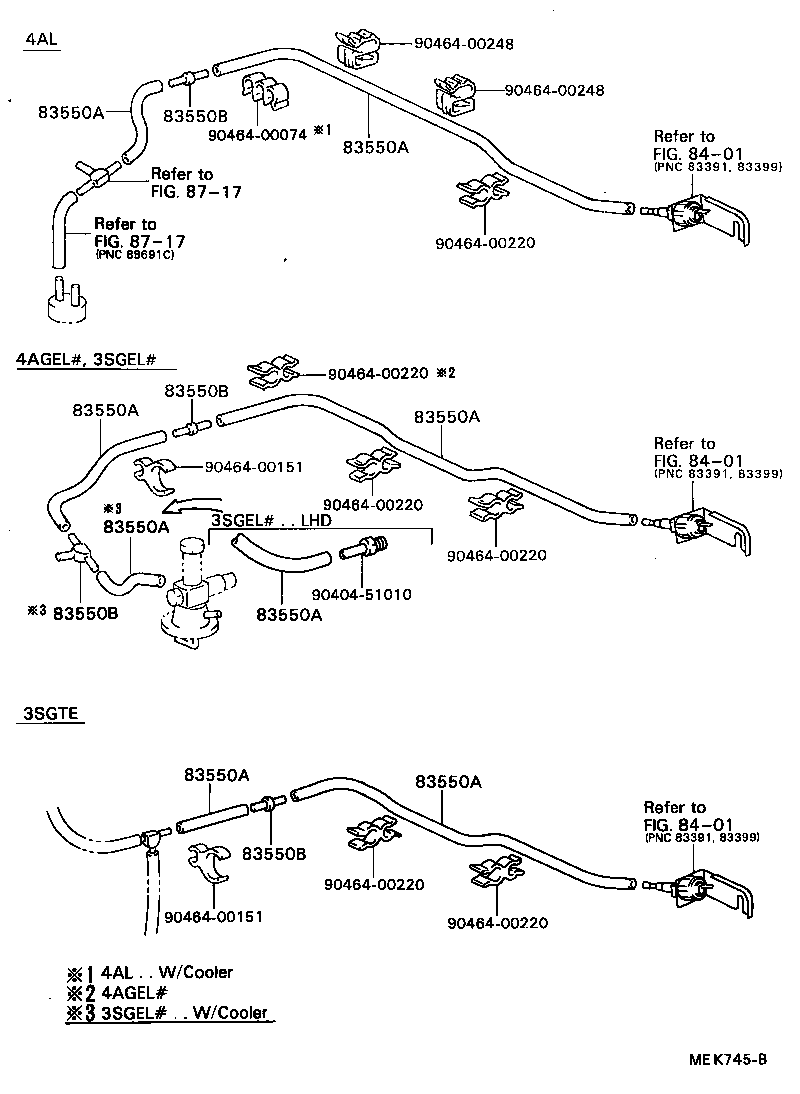

diagram 83550A 83550A 83550A 83550A 83550A 83550A 83550A 83550A 83550B 83550B 83550B 83550B 8401 8401 8401 8717 8717 9040451010 9046400074 9046400151 9046400151 9046400220 9046400220 9046400220 9046400220 9046400220 9046400220 9046400248 9046400248
Part # Description Qty Price
Common parts
90404-51010
90464-00074
90464-00151
90464-00220
90464-00248
Linked diagrams
8401
8717

ILLUST NO. 2 OF 4(8708- )

Click highlighted areas on diagram

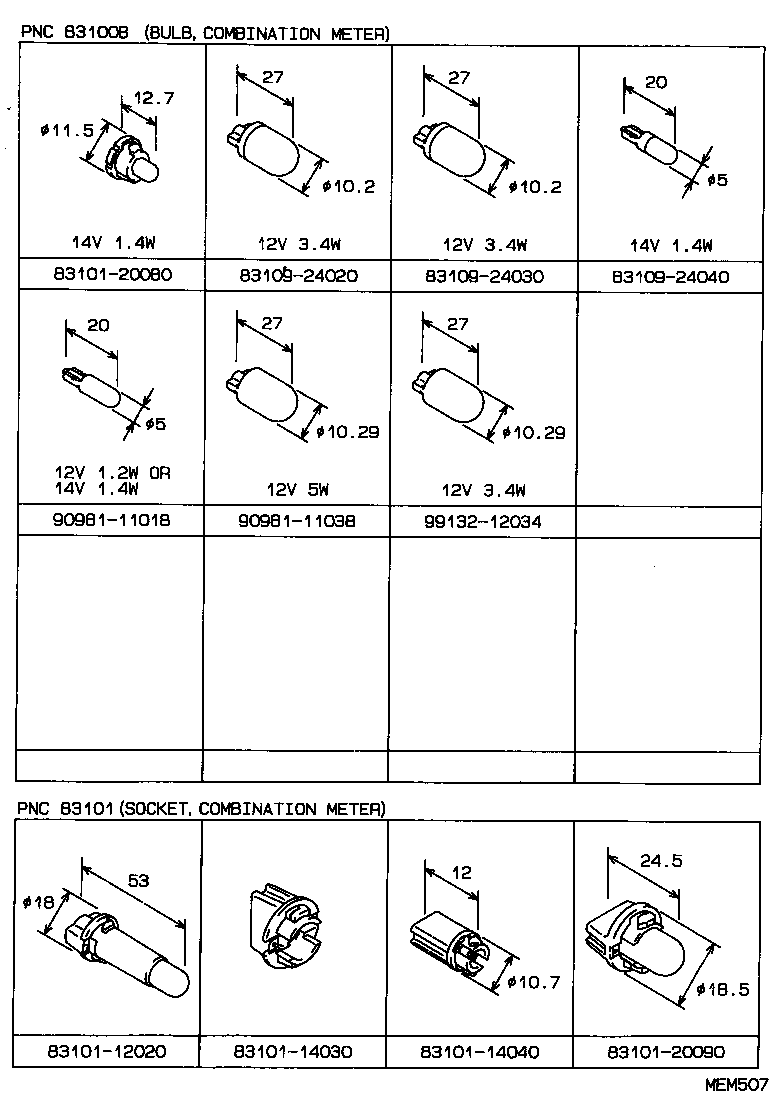

diagram 8310112020 8310114030 8310114040 8310120080 8310120090 8310924020 8310924030 8310924040 9098111018 9098111038 9913212034
Part # Description Qty Price
Common parts
83101-12020
83101-14030
83101-14040
83101-20080
83101-20090
83109-24020
83109-24030
83109-24040
90981-11018
90981-11038
99132-12034
