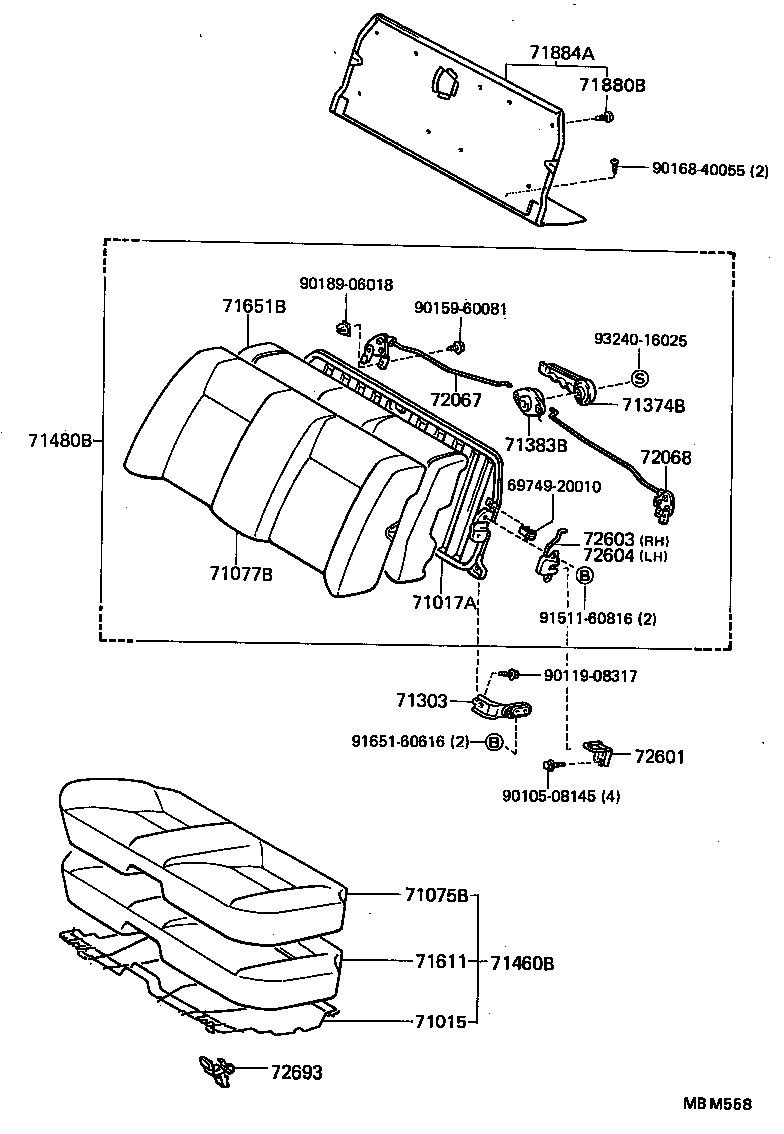

ST162L-BKPVKA (1987)
Toyota Celica
(8708- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20220 |
ST162..CVT |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2054101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 71065-2054104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71065-2054102 |
ST162..ST RED,TRIM3# |
1 | ||
| 71065-2054105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71065-2060013 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71065-2055104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71065-2055102 |
ST162..ST RED,TRIM3# |
1 | ||
| 71065-2060103 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71065-2055113 |
ST162..ST GRAY,TRIM2# |
1 | ||
| 71065-2055105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2B72101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 71077-2D33004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B72105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71077-2B72102 |
ST162..ST RED,TRIM3# |
1 | ||
| 71077-2B72104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B76013 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71077-2D33005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71077-2D33002 |
ST162..ST RED,TRIM3# |
1 | ||
| 71077-2D33003 |
ST162..ST GRAY,TRIM2# |
1 | ||
| 71077-2B76103 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71087 - BOARD SUB-ASSY, REAR SEAT BACK | ||||
| 71087-20010 |
ST162..ST |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20390 |
ST162..CVT |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-20370 |
ST162..ST |
1 | ||
| 71651-20460 |
ST162..CVT |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-14040 |
ST162..CVT |
2 | ||
| Common parts | ||||
| 90119-08317 | ||||
| 90468-18071 | ||||
(8708- )CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20220 |
ST162..CVT |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-20270 |
ST162..CVT |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2054101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 71065-2054104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71065-2054102 |
ST162..ST RED,TRIM3# |
1 | ||
| 71065-2054105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71065-2060013 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71065-2055104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71065-2055102 |
ST162..ST RED,TRIM3# |
1 | ||
| 71065-2060103 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71065-2055113 |
ST162..ST GRAY,TRIM2# |
1 | ||
| 71065-2055105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2B72101 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 71077-2D33004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B72105 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71077-2B72102 |
ST162..ST RED,TRIM3# |
1 | ||
| 71077-2B72104 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B76013 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71077-2D33005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71077-2D33002 |
ST162..ST RED,TRIM3# |
1 | ||
| 71077-2D33003 |
ST162..ST GRAY,TRIM2# |
1 | ||
| 71077-2B76103 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16010 |
ST16#..GT,GTS,TBO4W,TBOAT |
2 | ||
| 71374B - LEVER, REAR SEAT BACK ROD CONTROL, OUTER | ||||
| 71374-13020 |
ST162..CVT |
1 | ||
| 71383B - LEVER, REAR SEAT BACK ROD CONTROL, INNER | ||||
| 71383-13010 |
ST162..CVT |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2055005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 71560-2054013 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71560-2054103 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71560-2055002 |
ST162..ST RED,TRIM3# |
1 | ||
| 71560-2055004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 71560-2055013 |
ST162..ST GRAY,TRIM2# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2B81103 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71480-2B81013 |
ST162..CVT GRAY,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20390 |
ST162..CVT |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-20370 |
ST162..ST |
1 | ||
| 71651-20460 |
ST162..CVT |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0601611 |
ST162..CVT BLACK,TRIM2# |
11 | ||
| 71884A - COVER, REAR SEAT BACK BOARD | ||||
| 71884-2001001 |
ST162..CVT BLACK,TRIM2# |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20020 |
ST162..CVT |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20020 |
ST162..CVT |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12080 |
ST162..CVT |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20020 |
ST162..CVT |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20020 |
ST162..CVT |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-14040 |
ST162..CVT |
2 | ||
| Common parts | ||||
| 69749-20010 | ||||
| 90105-08145 | ||||
| 90119-08317 | ||||
| 90159-60081 | ||||
| 90168-40055 | ||||
| 90189-06018 | ||||
| 91511-60816 | ||||
| 91651-60616 | ||||
| 93240-16025 | ||||
