ST162L-BKPVKA (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CVT

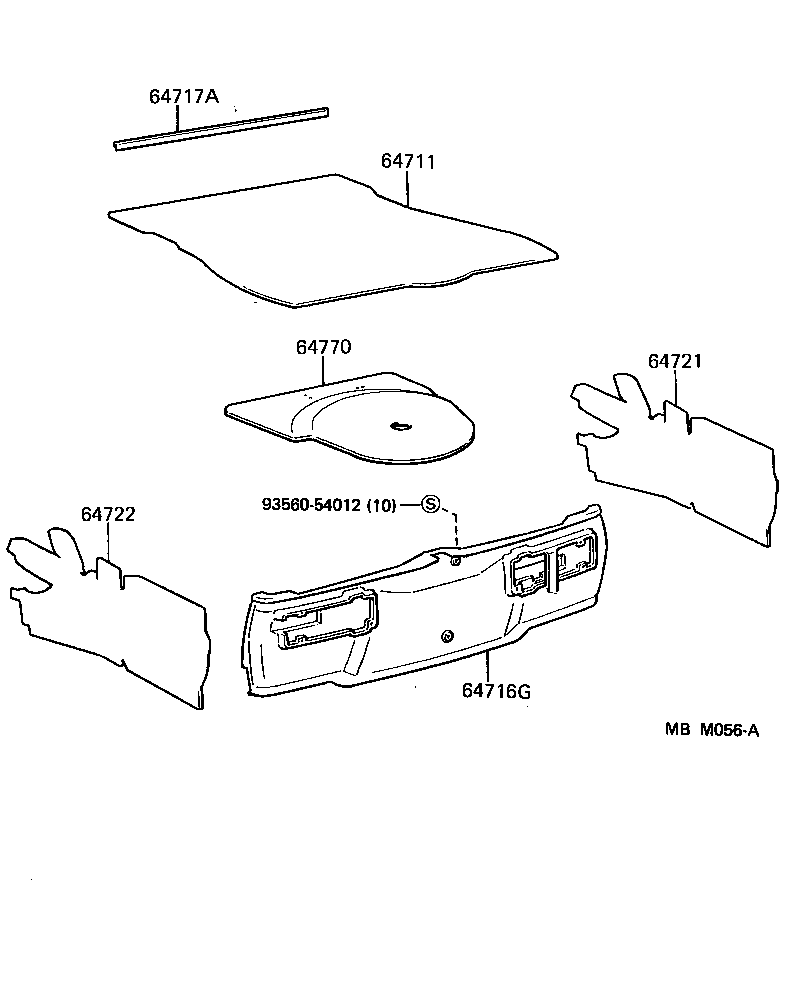

Click highlighted areas on diagram

diagram 64711 64716G 64717A 64721 64722 64770 9356054012
Part # Description Qty Price
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2039001

ST162..CVT

BLACK,TRIM2#

 1
64711-20310

ST162..ST

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-20150

ST162..ST

 1
64716-2017001

ST162..CVT

BLACK,TRIM2#

 1
64716-2017101

ST162..CVT

BRACK,TRIM2#

 1
64716-2015103

ST162..ST

GRAY,TRIM2#,3#,4#,8#

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-20130

ST162..ST

 1
64717-2021001

ST162..CVT

BLACK,TRIM2#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-2012001

ST162..CVT

BLACK,TRIM2#

 1
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-2010011

ST162..CVT

BLACK,TRIM2#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20090

ST162..ST

W(ALUMINUM WHEEL)

 1
64770-20090

ST162..(CP,CVT)..(GT,GTS)

 1
64770-20080

ST162..ST

 1
64770-20090

ST162..ST..USA

W(ALUMINUM WHEEL)

 1
Common parts
93560-54012

(8708- )CP,CVT

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64034B 64279 64330 64711 64712 64713 64714D 64716G 64717A 64721A 64721A 64770 64777 9018304046 9046805011 9054109018 9356054012
Part # Description Qty Price
Common parts
90183-04046
90468-05011
90541-09018
93560-54012
