ST162L-BKPVKA (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )CP,CVT

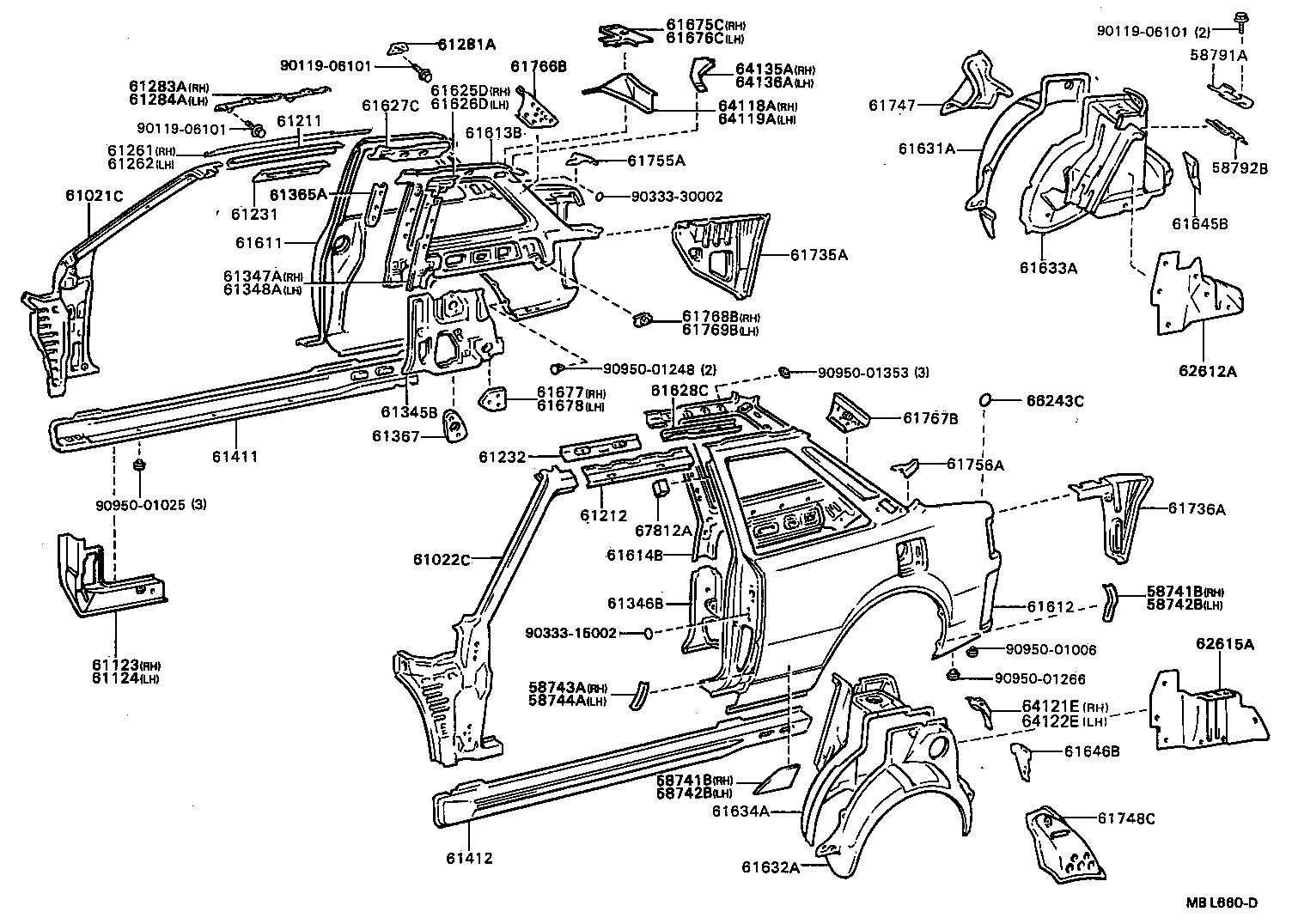

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-20030 |
ST162..CVT;ST162..GTS |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-20030 |
ST162..CVT;ST162..GTS |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-20030 |
ST162..CVT;ST162..GTS |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-20030 |
ST162..CVT;ST162..GTS |
1 | ||
| 58743A - PROTECTOR, REAR WHEEL EXTENSION, NO.2 RH | ||||
| 58743-20010 |
ST162 |
1 | ||
| 58744A - PROTECTOR, REAR WHEEL EXTENSION, NO.2 LH | ||||
| 58744-20010 |
ST162 |
1 | ||
| 58791A - CARRIER, JACK | ||||
| 58791-20030 |
ST162 |
1 | ||
| 58792B - SUPPORT, JACK CARRIER | ||||
| 58792-20030 |
ST16# |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-20420 |
ST162..CVT |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-20370 |
ST162..CVT |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20150 |
ST16# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20150 |
ST16# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20220 |
ST16# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20210 |
ST16# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-20070 |
ST162..CP,CVT |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-20070 |
ST162..CP,CVT |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-20090 |
ST162 |
1 | ||
| 61348A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH | ||||
| 61348-20090 |
ST162 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-20210 |
ST162..CVT |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-20210 |
ST162..CVT |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-2B340 |
ST162..CVT |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-2B450 |
ST162..CVT |
1 | ||
| 61613B - PANEL, QUARTER, INNER FRONT RH | ||||
| 61613-20900 |
ST162..CP,CVT |
1 | ||
| 61614B - PANEL, QUARTER, INNER FRONT LH | ||||
| 61614-20900 |
ST162..CP,CVT |
1 | ||
| 61625D - EXTENSION, QUARTER PANEL, UPPER FRONT RH | ||||
| 61625-20050 |
ST16# |
1 | ||
| 61626D - EXTENSION, QUARTER PANEL, UPPER FRONT LH | ||||
| 61626-20050 |
ST16# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-20180 |
ST16# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20150 |
ST16# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-20900 |
ST162..ST |
1 | ||
| 61607-20160 |
ST162..CVT |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-20900 |
ST162..ST |
1 | ||
| 61608-20180 |
ST162..CVT |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-20060 |
ST162 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-20060 |
ST162 |
1 | ||
| 61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61677-20010 |
ST16# |
1 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61677-20010 |
ST16# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20070 |
ST162..CP,CVT |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20020 |
ST162..CP,CVT |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-20060 |
ST162..CP,CVT |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-20050 |
ST162..CP,CVT |
1 | ||
| 64121E - BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64121-20040 |
ST162..CP,CVT |
1 | ||
| 64122E - BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64122-20040 |
ST162..CP,CVT |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
ST16# |
2 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-32010 |
ST16# |
2 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
| 90950-01353 | ||||
(8708- )CP,CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06101 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
| 90950-01353 | ||||
