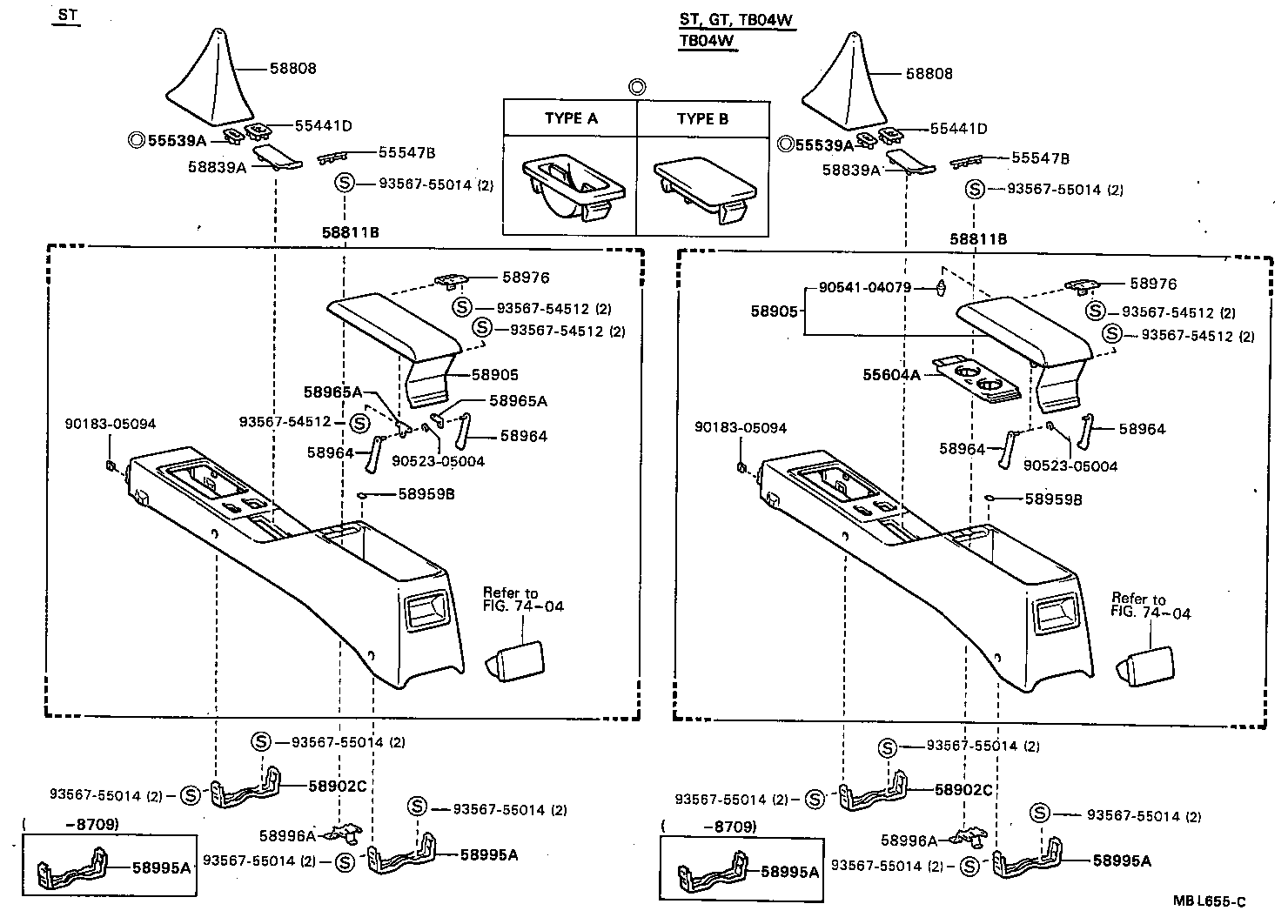

ST162L-BKPVKA (1987)
Toyota Celica
(8708- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003001 |
ST162 BLACK,TRIM2#,TYPE B |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003001 |
ST162 BLACK,TRIM2#,TYPE B |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002002 |
ST162..ST RED,TRIM3# |
1 | ||
| 55547-2002001 |
ST162..ST;ST162..CVT BLACK,TRIM2# |
1 | ||
| 55547-2002004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 55547-2002005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002002 |
ST162..ST RED,TRIM3# |
1 | ||
| 55547-2002001 |
ST162..ST;ST162..CVT BLACK,TRIM2# |
1 | ||
| 55547-2002004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 55547-2002005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-20010 |
ST16#..GT,GTS,TBO4W,TBOAT |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-2014001 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 58801-2018001 |
ST162..CVT BLACK,TRIM2# |
1 | ||
| 58801-2014004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58801-2014002 |
ST162..ST RED,TRIM3# |
1 | ||
| 58801-2014005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-2014001 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 58801-2018001 |
ST162..CVT BLACK,TRIM2# |
1 | ||
| 58801-2014004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58801-2014002 |
ST162..ST RED,TRIM3# |
1 | ||
| 58801-2014005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-2002001 |
ST16# BLACK,TRIM2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-2002001 |
ST16# BLACK,TRIM2# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-20040 |
ST162 |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-20040 |
ST162 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2007001 |
ST16#..GT,GTS,TBO4W,TBOAT BLACK,TRIM2# |
1 | ||
| 58951-2007004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58951-2007005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58951-2007001 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 58951-2007002 |
ST162..ST RED,TRIM3# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2007001 |
ST16#..GT,GTS,TBO4W,TBOAT BLACK,TRIM2# |
1 | ||
| 58951-2007004 |
ST162..ST DEEP BLUE,TRIM8# |
1 | ||
| 58951-2007005 |
ST162..ST DARK BEIGE,TRIM4# |
1 | ||
| 58951-2007001 |
ST162..ST BLACK,TRIM2# |
1 | ||
| 58951-2007002 |
ST162..ST RED,TRIM3# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
ST16# |
2 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
ST16# |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58964-30040 |
ST16#..GT,GTS,TBO4W,TBOAT LH |
1 | ||
| 58964-30030 |
ST162..ST LH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58964-30040 |
ST16#..GT,GTS,TBO4W,TBOAT LH |
1 | ||
| 58964-30030 |
ST162..ST LH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58964-30040 |
ST16#..GT,GTS,TBO4W,TBOAT LH |
1 | ||
| 58964-30030 |
ST162..ST LH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
ST16# RH |
1 | ||
| 58964-30040 |
ST16#..GT,GTS,TBO4W,TBOAT LH |
1 | ||
| 58964-30030 |
ST162..ST LH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-20020 |
ST162..ST RH |
1 | ||
| 58965-12010 |
ST162..ST LH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-20020 |
ST162..ST RH |
1 | ||
| 58965-12010 |
ST162..ST LH |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
ST16# |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
ST16# |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST162 |
1 | ||
| 58995-20030 |
ST162 |
2 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST162 |
2 | ||
| 58995-20030 |
ST162 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST162 |
2 | ||
| 58995-20030 |
ST162 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-20030 |
ST162 |
2 | ||
| 58995-20030 |
ST162 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-20030 |
ST162 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-20030 |
ST162 |
1 | ||
| Common parts | ||||
| 90183-04004 | ||||
| 90183-05094 | ||||
| 90523-05004 | ||||
| 90541-04079 | ||||
| 93567-54512 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05094 | ||||
| 90523-05004 | ||||
| 90541-04079 | ||||
| 93567-54512 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
