ST162L-BCPVKA (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

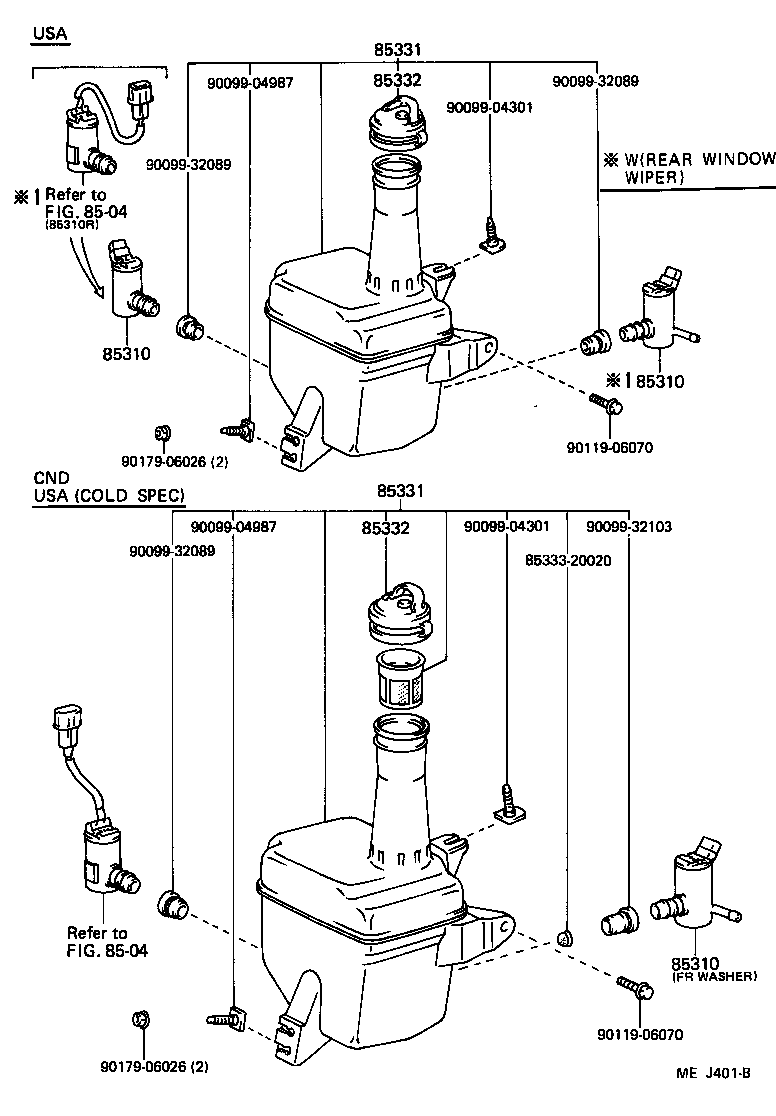

Click highlighted areas on diagram

diagram 8504 8504 85310 85310 85310 85331 85331 85332 85332 8533320020 9009904301 9009904301 9009904987 9009904987 9009932089 9009932089 9009932089 9009932103 9011906070 9011906070 9017906026 9017906026
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-16050

ST16#..(CP,LB)..USA

 1
85310-14080

ST162..CP..USA;ST16#..LB..(GTS,TBOAT)..USA

COLD SPEC

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-16050

ST16#..(CP,LB)..USA

 1
85310-14080

ST162..CP..USA;ST16#..LB..(GTS,TBOAT)..USA

COLD SPEC

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-16050

ST16#..(CP,LB)..USA

 1
85310-14080

ST162..CP..USA;ST16#..LB..(GTS,TBOAT)..USA

COLD SPEC

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-20500

ST162..CP..GTS..USA;ST162..(CP,LB)..(GT,ST)..USA

 1
85331-20590

ST162..CP..GTS..USA;ST162..(CP,LB)..(GT,ST)..USA

COLD SPEC

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-20500

ST162..CP..GTS..USA;ST162..(CP,LB)..(GT,ST)..USA

 1
85331-20590

ST162..CP..GTS..USA;ST162..(CP,LB)..(GT,ST)..USA

COLD SPEC

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-32130

ST16#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-32130

ST16#

 1
Common parts
85333-20020
90099-04301
90099-04987
90099-32089
90099-32103
90119-06070
90179-06026
Linked diagrams
8504

(8708- )

Click highlighted areas on diagram

diagram 1658163030 8271132360 85035 85035 8504 8504 85348 85348 85348 85348 85348D 85348D 85355 85355 85371 85371 85372 85372 85373 85373
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85035-20110

ST16#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-20110

ST16#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

ST162..CP..USA;ST162..LB..GTS..USA

3-WAY,COLD SPEC

 1
85349-89122

ST162..(CP,LB)..USA

2-WAY

 2
85348-14390

ST162..(CP,LB)..USA

3-WAY

 1
85349-14010

ST162..CP..USA;ST162..LB..GTS..USA

COLD SPEC,2-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

ST162..CP..USA;ST162..LB..GTS..USA

3-WAY,COLD SPEC

 1
85349-89122

ST162..(CP,LB)..USA

2-WAY

 2
85348-14390

ST162..(CP,LB)..USA

3-WAY

 1
85349-14010

ST162..CP..USA;ST162..LB..GTS..USA

COLD SPEC,2-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

ST162..CP..USA;ST162..LB..GTS..USA

3-WAY,COLD SPEC

 1
85349-89122

ST162..(CP,LB)..USA

2-WAY

 2
85348-14390

ST162..(CP,LB)..USA

3-WAY

 1
85349-14010

ST162..CP..USA;ST162..LB..GTS..USA

COLD SPEC,2-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

ST162..CP..USA;ST162..LB..GTS..USA

3-WAY,COLD SPEC

 1
85349-89122

ST162..(CP,LB)..USA

2-WAY

 2
85348-14390

ST162..(CP,LB)..USA

3-WAY

 1
85349-14010

ST162..CP..USA;ST162..LB..GTS..USA

COLD SPEC,2-WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

ST16#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

ST16#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

ST16#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

ST16#

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

ST162..CP..USA;ST16#..LB..(GTS,TBOAT)..USA

L=1100,COLD SPEC

 1
90446-07001

ST162..CP..GTS..USA;ST162..(CP,LB)..(GT,ST)..USA

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

ST162..CP..USA;ST16#..LB..(GTS,TBOAT)..USA

L=1100,COLD SPEC

 1
90446-07001

ST162..CP..GTS..USA;ST162..(CP,LB)..(GT,ST)..USA

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

ST16#..(CP,LB)..USA

*H,L=50,NO.1

 1
90099-33094

ST16#

*H,L=580,NO.2

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

ST16#..(CP,LB)..USA

*H,L=50,NO.1

 1
90099-33094

ST16#

*H,L=580,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST16#

*H,L=30,RH

 1
90446-07001

ST16#

*H,L=460,LH

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST16#

*H,L=30,RH

 1
90446-07001

ST16#

*H,L=460,LH

 1
Common parts
16581-63030
82711-32360
Linked diagrams
8504

(8708- )

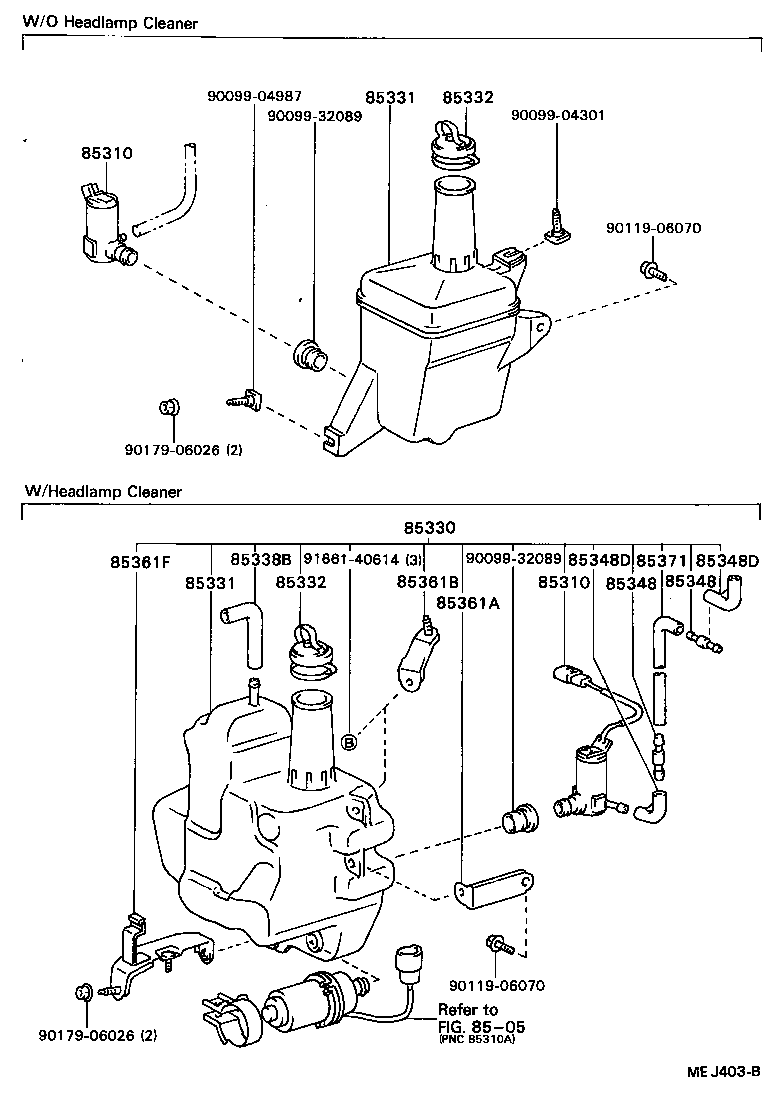

Click highlighted areas on diagram

diagram 8505 85310 85310 85330 85331 85331 85332 85332 85338B 85348 85348 85348D 85348D 85361A 85361B 85361F 85371 9009904301 9009904987 9009932089 9009932089 9011906070 9011906070 9017906026 9017906026 9166140614
Part # Description Qty Price
Common parts
90099-04301
90099-04987
90099-32089
90119-06070
90179-06026
91661-40614
Linked diagrams
8505

(8708- )

Click highlighted areas on diagram

diagram 1658163030 8271132360 85031B 85031B 85035 85035 85348 85348 85348 85348 85348 85348D 85348D 85348D 85355 85355 85371 85372 85372 85372 85372 85373 85373 9011908482 9011908482
Part # Description Qty Price
Common parts
16581-63030
82711-32360
90119-08482
