ST162L-BCPVKA (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

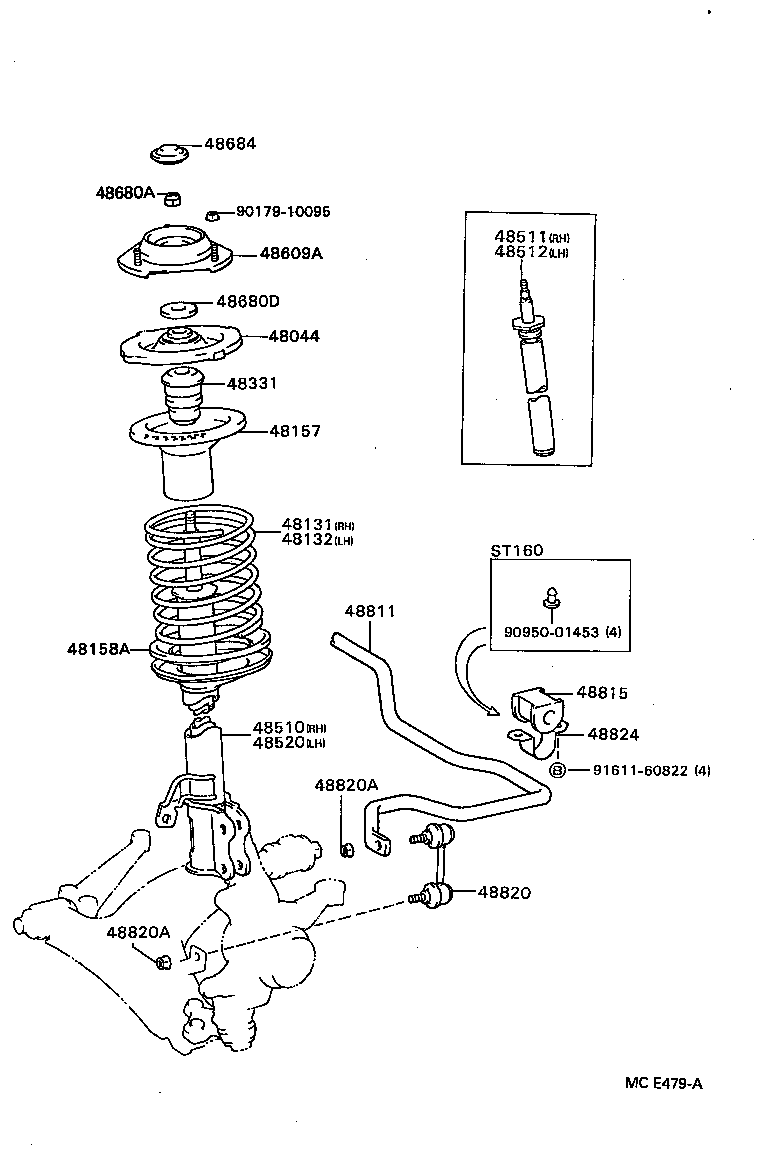

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-32010 |
ST16# |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2D520 |
ST162..(CP,LB)..4FC..(GT,GTS)..USA |
1 | ||
| 48131-2D720 |
ST162..4FC..ST..USA |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2D520 |
ST162..(CP,LB)..4FC..(GT,GTS)..USA |
1 | ||
| 48131-2D720 |
ST162..4FC..ST..USA |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-20040 |
ST16# |
2 | ||
| 48158A - INSULATOR, FRONT COIL SPRING, LOWER | ||||
| 48158-12020 |
ST16# |
2 | ||
| 48158-12030 |
ST16# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-20040 |
ST16# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-20282 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48510-20281 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE) | ||||
| 48511-20140 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE) | ||||
| 48511-20140 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-20271 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48520-20272 |
ST162..(CP,LB)..(GT,ST) |
1 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-20090 |
ST162 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
ST16# |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
ST16# |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-32010 |
ST16# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-20320 |
ST162..GT,ST |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-14160 |
ST162..GT,ST |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-20010 |
ST162 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10054 |
ST16# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10054 |
ST16# |
4 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-20040 |
ST16# |
2 | ||
| Common parts | ||||
| 90179-10095 | ||||
| 91611-60822 | ||||
(8708- )

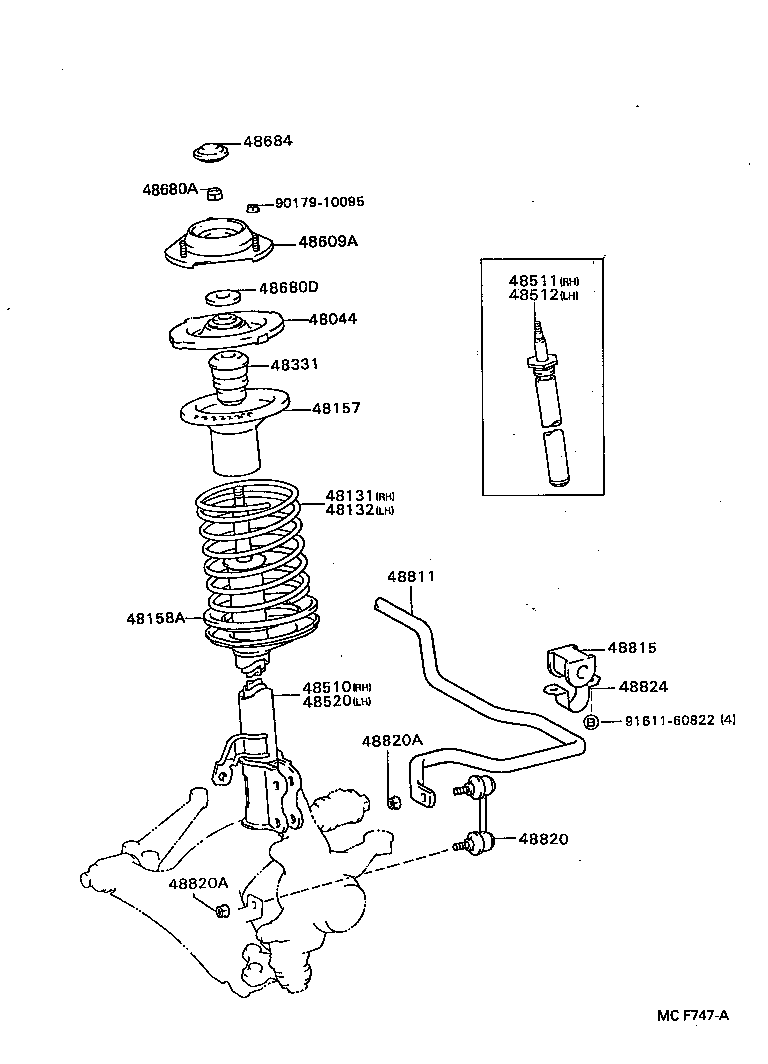

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10095 | ||||
| 90950-01453 | ||||
| 91611-60822 | ||||
