ST162L-BCPVKA (1987)
Toyota Celica
(8708- )4FC
A140L,A140E

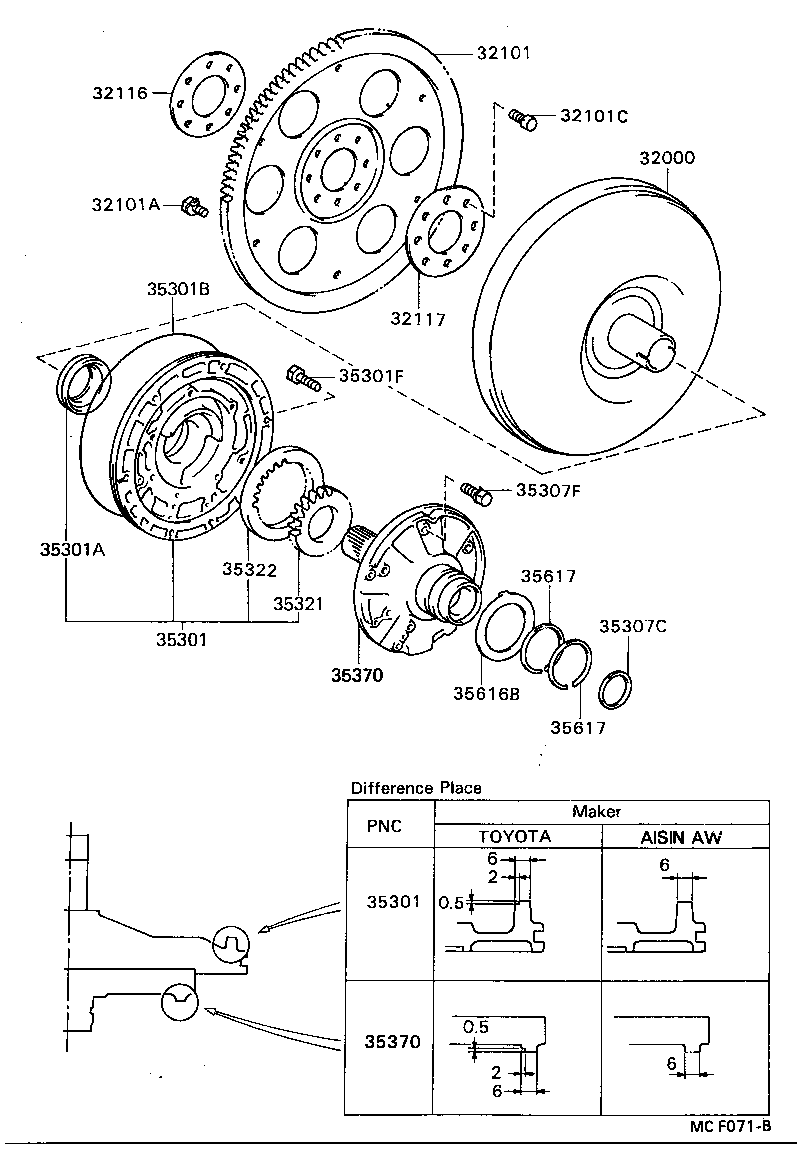

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-32040 |
ST162..4FC..(GT,ST) |
1 | ||
| 32000-32020 |
ST162..4FC..(GT,ST) |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-32040 |
ST162..4FC..(GT,ST) |
1 | ||
| 32101-32050 |
ST162..4FC..(GT,ST) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
ST162..4FC *8-1.25PX12-8,BLACK |
5 | ||
| 90109-08113 |
ST162..4FC *8-1.25PX12-8.4,OLIVE GREEN |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10054 |
ST162..4FC..(GT,ST) *10-1.25PX22-16 |
8 | ||
| 90109-10054 |
ST162..4FC..(GT,ST) *10-1.25PX22-16 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32011 |
ST162..4FC..(GT,ST) |
1 | ||
| 32116-14020 |
ST162..4FC..(GT,ST) |
1 | ||
| 32116-32011 |
ST162..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-14030 |
ST162..4FC..(GT,ST) |
1 | ||
| 32117-32010 |
ST162..4FC..(GT,ST) |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32020 |
ST162..4FC TOYOTA |
1 | ||
| 35035-32010 |
ST162..4FC AISIN AW |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32020 |
ST162..4FC TOYOTA |
1 | ||
| 35035-32010 |
ST162..4FC AISIN AW |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
ST162..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
ST162..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08050 |
ST162..4FC *8-1.25PX28-28 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-32020 |
ST162..4FC T=0.8,T=0.8 |
1 | ||
| 35789-32030 |
ST162..4FC T=1.4,T=1.4 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06180 |
ST162..4FC |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-32040 |
ST162..4FC T=9.440-9.456,MARK A OR D |
1 | ||
| 35321-32050 |
ST162..4FC T=9.456-9.474,MARK B OR E |
1 | ||
| 35321-32060 |
ST162..4FC T=9.474-9.490,MARK C OR F |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-32050 |
ST162..4FC T=9.456-9.474,MARK B OR E |
1 | ||
| 35322-32060 |
ST162..4FC T=9.474-9.490,MARK C OR F |
1 | ||
| 35322-32040 |
ST162..4FC T=9.440-9.456,MARK A OR D |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-32031 |
ST162..4FC TOYOTA |
1 | ||
| 35370-32022 |
ST162..4FC AISIN AW |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-32031 |
ST162..4FC TOYOTA |
1 | ||
| 35370-32022 |
ST162..4FC AISIN AW |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
ST162..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
ST162..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
ST162..4FC |
2 | ||
(8708- )4FC
A140E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-32040 |
ST162..4FC..(GT,ST) |
1 | ||
| 32000-32020 |
ST162..4FC..(GT,ST) |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-32040 |
ST162..4FC..(GT,ST) |
1 | ||
| 32101-32050 |
ST162..4FC..(GT,ST) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
ST162..4FC *8-1.25PX12-8,BLACK |
5 | ||
| 90109-08113 |
ST162..4FC *8-1.25PX12-8.4,OLIVE GREEN |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10054 |
ST162..4FC..(GT,ST) *10-1.25PX22-16 |
8 | ||
| 90109-10054 |
ST162..4FC..(GT,ST) *10-1.25PX22-16 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32011 |
ST162..4FC..(GT,ST) |
1 | ||
| 32116-14020 |
ST162..4FC..(GT,ST) |
1 | ||
| 32116-32011 |
ST162..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-14030 |
ST162..4FC..(GT,ST) |
1 | ||
| 32117-32010 |
ST162..4FC..(GT,ST) |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32020 |
ST162..4FC TOYOTA |
1 | ||
| 35035-32010 |
ST162..4FC AISIN AW |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32020 |
ST162..4FC TOYOTA |
1 | ||
| 35035-32010 |
ST162..4FC AISIN AW |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
ST162..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
ST162..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08050 |
ST162..4FC *8-1.25PX28-28 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-32020 |
ST162..4FC T=0.8,T=0.8 |
1 | ||
| 35789-32030 |
ST162..4FC T=1.4,T=1.4 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06180 |
ST162..4FC |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-32040 |
ST162..4FC T=9.440-9.456,MARK A OR D |
1 | ||
| 35321-32050 |
ST162..4FC T=9.456-9.474,MARK B OR E |
1 | ||
| 35321-32060 |
ST162..4FC T=9.474-9.490,MARK C OR F |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-32050 |
ST162..4FC T=9.456-9.474,MARK B OR E |
1 | ||
| 35322-32060 |
ST162..4FC T=9.474-9.490,MARK C OR F |
1 | ||
| 35322-32040 |
ST162..4FC T=9.440-9.456,MARK A OR D |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-32031 |
ST162..4FC TOYOTA |
1 | ||
| 35370-32022 |
ST162..4FC AISIN AW |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-32031 |
ST162..4FC TOYOTA |
1 | ||
| 35370-32022 |
ST162..4FC AISIN AW |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
ST162..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
ST162..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
ST162..4FC |
2 | ||
