ST162L-BCPVKA (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

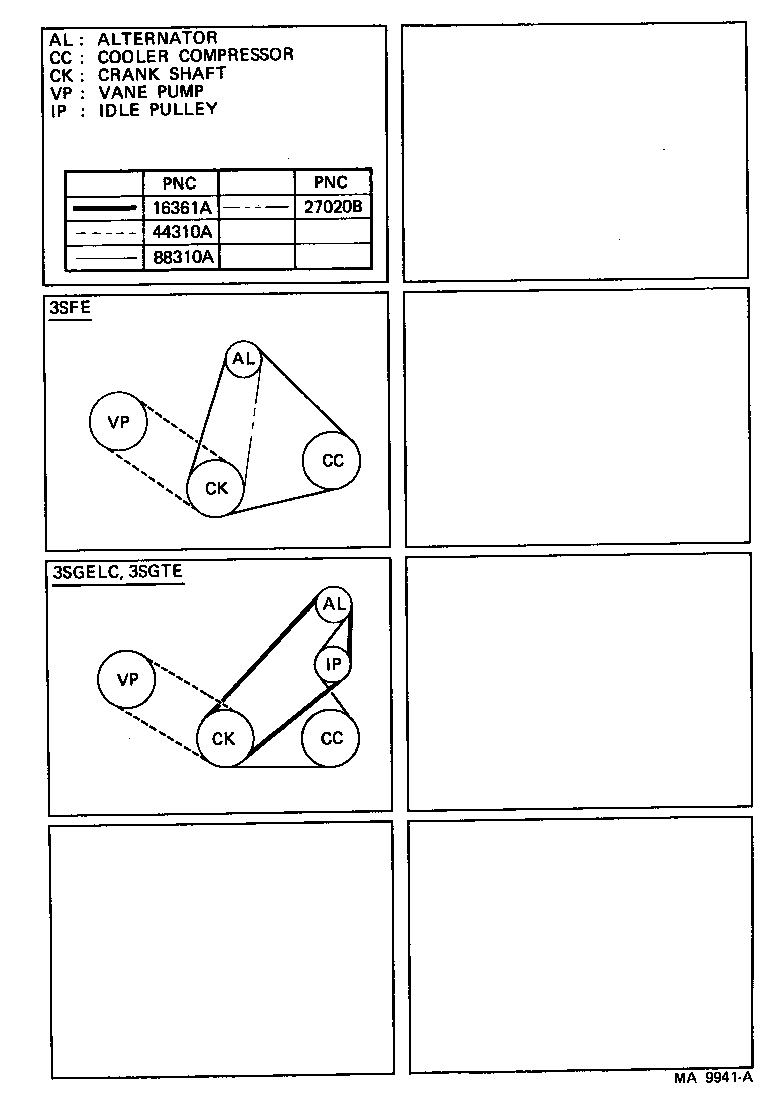

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
99365-01000

3SFE..ST162

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50760

ST162

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-51110

ST162..ST;ST162..CVT

 1
99365-51110

ST162..(CP,LB)..GT

 1

(8708- )

Click highlighted areas on diagram

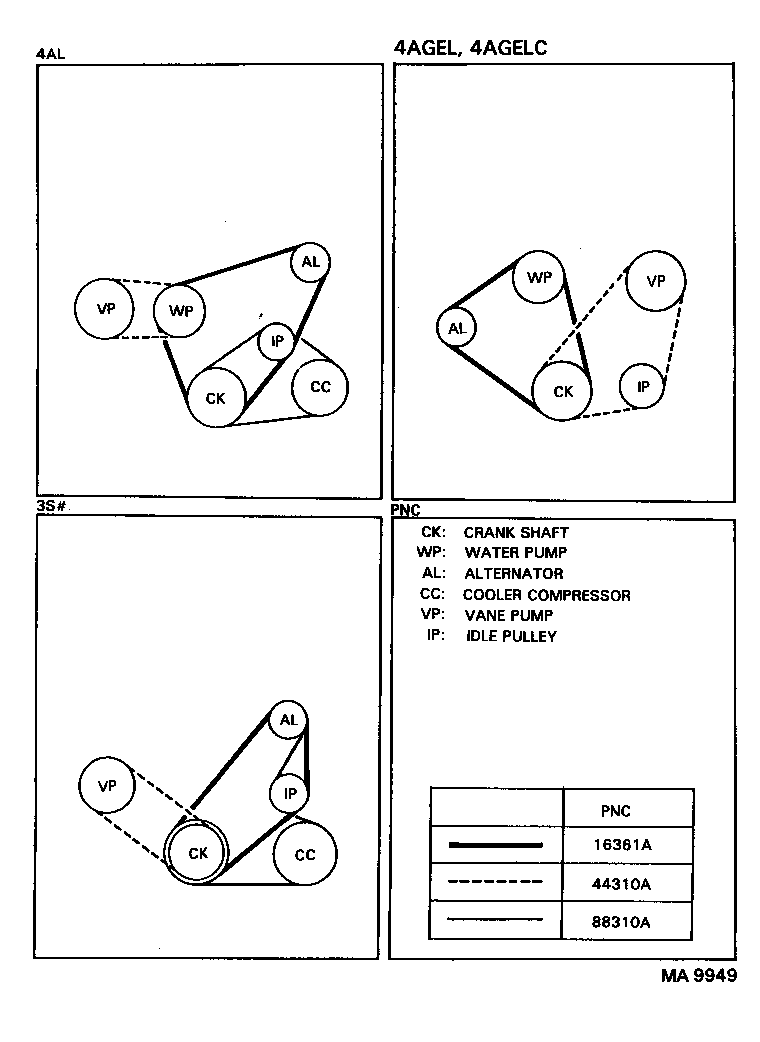

diagram 16361A 44310A 88310A
Part # Description Qty Price
