ST162L-BCPVFW (1987)
Toyota Celica
ILLUST NO. 2 OF 2(8708- )CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20090 |
AT160,ST162..CP RR LH |
1 | ||
| 63249-20080 |
AT160,ST16#..CP,LB FR |
2 | ||
| 63249-20060 |
AT160,ST162..CP RR RH |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20090 |
AT160,ST162..CP RR LH |
1 | ||
| 63249-20080 |
AT160,ST16#..CP,LB FR |
2 | ||
| 63249-20060 |
AT160,ST162..CP RR RH |
1 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-20021 |
AT160,ST16#..CP,LB |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-20040 |
AT160,ST16#..CP,LB |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63259B - HOLDER, SLIDING ROOF WEATHERSTRIP | ||||
| 63259-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
AT160,ST16#..CP,LB |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-20020 |
AT160,ST16#..CP,LB |
2 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
AT160,ST16#..CP,LB T=1.0,T=1.0,124X30 |
1 | ||
| 63277-20030 |
AT160,ST16#..CP,LB T=1.0,T=1.0,28X30 |
1 | ||
| 63277-20040 |
AT160,ST16#..CP,LB T=2.0,T=2.0,124X30 |
1 | ||
| 63277-20050 |
AT160,ST16#..CP,LB T=2.0,T=2.0,28X30 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
AT160,ST16#..CP,LB T=1.0,T=1.0,124X30 |
1 | ||
| 63277-20030 |
AT160,ST16#..CP,LB T=1.0,T=1.0,28X30 |
1 | ||
| 63277-20040 |
AT160,ST16#..CP,LB T=2.0,T=2.0,124X30 |
1 | ||
| 63277-20050 |
AT160,ST16#..CP,LB T=2.0,T=2.0,28X30 |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-20010 |
AT160,ST16#..CP,LB |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90162-50004 | ||||
| 90168-40046 | ||||
| 90168-50031 | ||||
| 90179-06115 | ||||
| 90189-04096 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-16009 | ||||
| 90480-01124 | ||||
| 90480-26011 | ||||
| 93560-14008 | ||||
| 94250-10600 | ||||
| 96160-00400 | ||||
ILLUST NO. 1 OF 2(8708- )CP,CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-14001 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20090 |
AT160,ST162..CP RR LH |
1 | ||
| 63249-20080 |
AT160,ST16#..CP,LB FR |
2 | ||
| 63249-20060 |
AT160,ST162..CP RR RH |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20090 |
AT160,ST162..CP RR LH |
1 | ||
| 63249-20080 |
AT160,ST16#..CP,LB FR |
2 | ||
| 63249-20060 |
AT160,ST162..CP RR RH |
1 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-20021 |
AT160,ST16#..CP,LB |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20031 |
AT160,ST16#..CP,LB |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-20040 |
AT160,ST16#..CP,LB |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63259B - HOLDER, SLIDING ROOF WEATHERSTRIP | ||||
| 63259-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20030 |
AT160,ST16#..CP,LB |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
AT160,ST16#..CP,LB |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-20020 |
AT160,ST16#..CP,LB |
2 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
AT160,ST16#..CP,LB T=1.0,T=1.0,124X30 |
1 | ||
| 63277-20030 |
AT160,ST16#..CP,LB T=1.0,T=1.0,28X30 |
1 | ||
| 63277-20040 |
AT160,ST16#..CP,LB T=2.0,T=2.0,124X30 |
1 | ||
| 63277-20050 |
AT160,ST16#..CP,LB T=2.0,T=2.0,28X30 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
AT160,ST16#..CP,LB T=1.0,T=1.0,124X30 |
1 | ||
| 63277-20030 |
AT160,ST16#..CP,LB T=1.0,T=1.0,28X30 |
1 | ||
| 63277-20040 |
AT160,ST16#..CP,LB T=2.0,T=2.0,124X30 |
1 | ||
| 63277-20050 |
AT160,ST16#..CP,LB T=2.0,T=2.0,28X30 |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-20010 |
AT160,ST16#..CP,LB |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90162-50004 | ||||
| 90168-40046 | ||||
| 90168-50031 | ||||
| 90179-06115 | ||||
| 90189-04096 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-16009 | ||||
| 90480-01124 | ||||
| 90480-26011 | ||||
| 93560-14008 | ||||
| 94250-10600 | ||||
| 96160-00400 | ||||

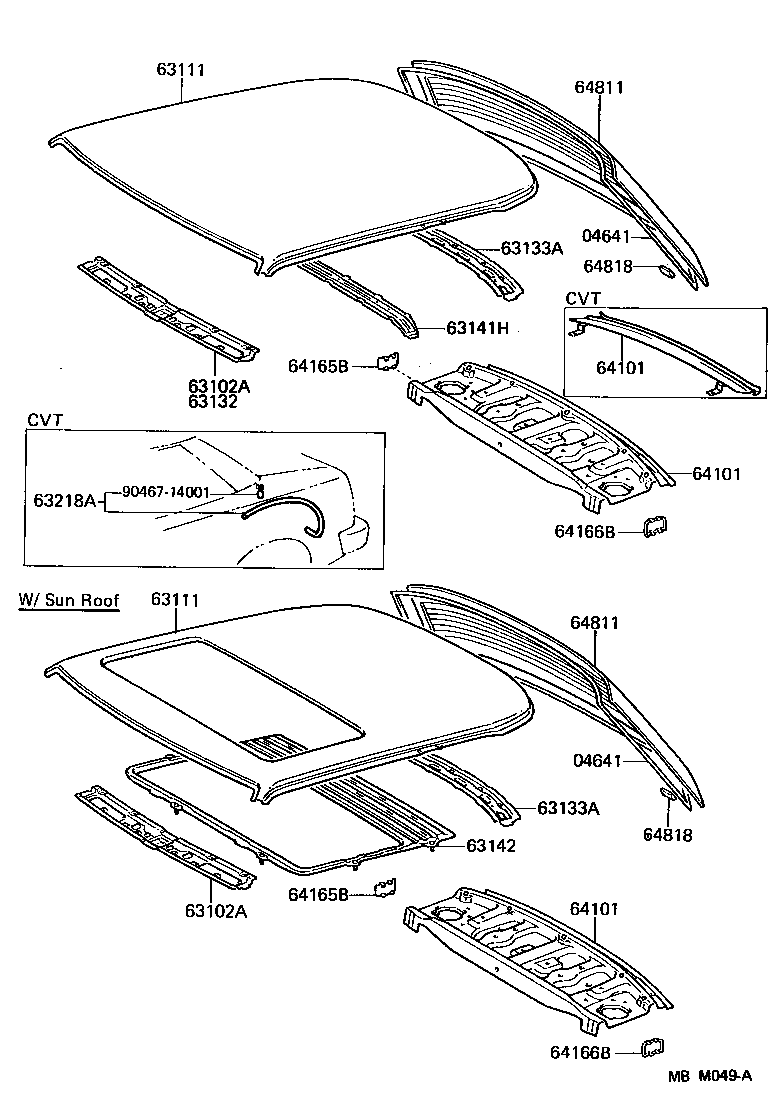

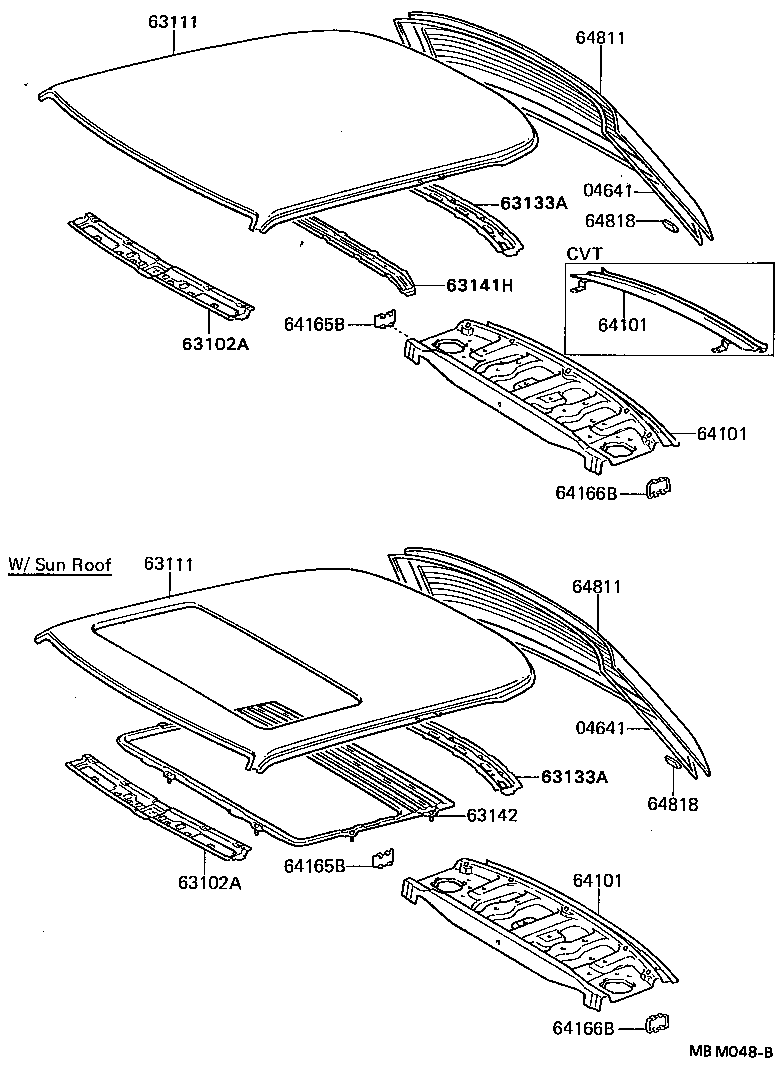

ILLUST NO. 1 OF 2(8708- )CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
AT160,ST162..CP |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
AT160,ST162..CP |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20090 |
AT160,ST16# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20090 |
AT160,ST16# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20220 |
AT160,ST162..CP,CVT |
1 | ||
| 63111-20230 |
AT160,ST162..CP W(SUN ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20220 |
AT160,ST162..CP,CVT |
1 | ||
| 63111-20230 |
AT160,ST162..CP W(SUN ROOF) |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-20120 |
AT160,ST162..CP,CVT |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-20120 |
AT160,ST162..CP,CVT |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20060 |
AT160,ST16# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-20040 |
AT160,ST16#..CP,LB |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20240 |
AT160,ST162..CP..TWC |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20240 |
AT160,ST162..CP..TWC |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20240 |
AT160,ST162..CP..TWC |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-20030 |
AT160,ST162..CP |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-20030 |
AT160,ST162..CP |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-20020 |
AT160,ST162..CP |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-20020 |
AT160,ST162..CP |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-20120 |
AT160,ST162..CP..LHD *EHTT,T=4.0,COLD SPEC |
1 | ||
| 64801-20110 |
AT160,ST162..CP *EHTT,T=4.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-20120 |
AT160,ST162..CP..LHD *EHTT,T=4.0,COLD SPEC |
1 | ||
| 64801-20110 |
AT160,ST162..CP *EHTT,T=4.0 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-30050 |
AT160,ST162..CP |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-30050 |
AT160,ST162..CP |
2 | ||
